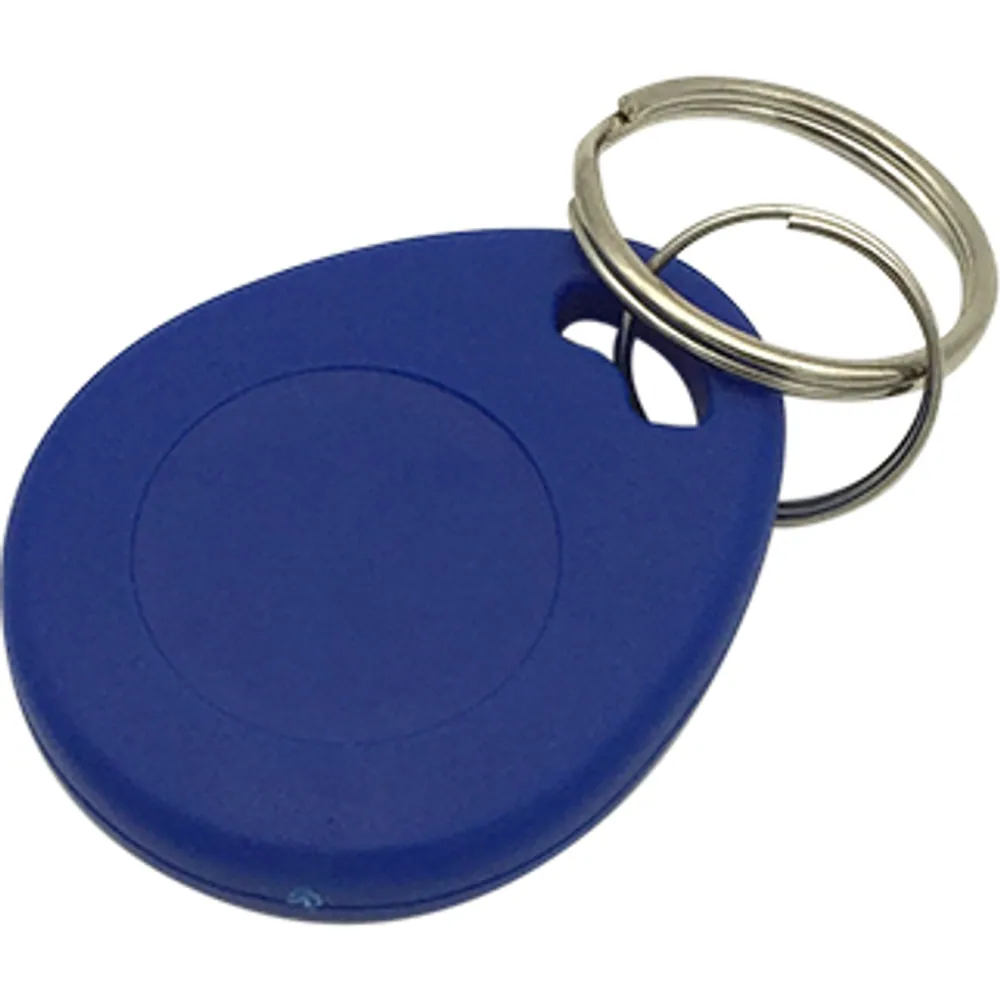

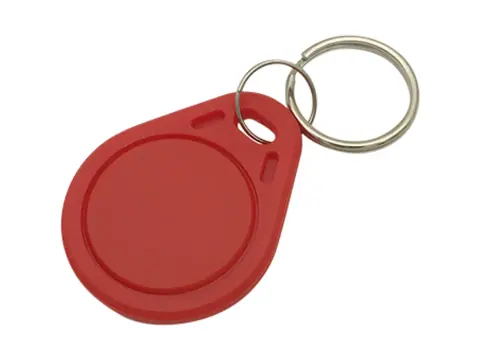

CA-110 ABS RFID Key Fob, 125 kHz / 13.56 MHz
Pocket-size ABS key fob credentials with LF or HF chip options, custom colors and identification printing; listed read distance is 5–10 cm.
- ABS shell with epoxy fill and ultrasonic welded assembly
- 125 kHz or 13.56 MHz chip configurations
- Listed sensing distance of 5–10 cm
- Custom shapes, colors and printed or engraved identifiers
- IP67 / IP68 enclosure options; confirm the ordered design
- Frequency
- 125 kHz or 13.56 MHz
- Read distance
- 5–10 cm, reader dependent
- Housing
- ABS, epoxy filled
- Dimensions
- Customizable
- Marking
- Screen print, code print or engraving
Reply within 24 hours Tested before dispatch Worldwide shipping
ABS RFID Key Fob, 125 kHz / 13.56 MHz: overview
CA-110 is a key fob credential for access doors, attendance readers and membership systems where a full-size card is inconvenient. Its ABS enclosure holds the chip and antenna in an epoxy-filled assembly, joined by ultrasonic welding. The housing can hang from a key ring, keeping the credential with the keys a user already carries.
Choose the chip before choosing the color. The family covers 125 kHz options such as TK4100, EM4200 and T5577, and 13.56 MHz options including MIFARE Classic S50/S70 and ICODE. These are alternative configurations; the frequency list does not mean every fob contains both technologies. Match the exact chip and reader behavior to the credential population already enrolled in your controller.

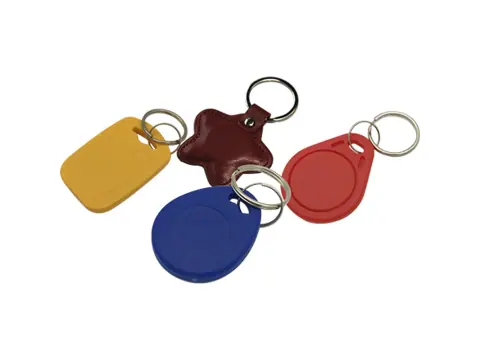

The listed sensing distance is 5–10 cm. Treat that as a starting point for a sample check with your installed reader, rather than a promised distance for every shell and chip combination. Shapes and dimensions can be customized, while the color range includes yellow, blue, red, white, gray, green and black.
Screen printing, identification codes and engraved markings are available for administration. A printed number must use the same convention as the issuing software if staff will enter it manually. The enclosure information lists IP67 and IP68; confirm the rating for the particular housing ordered before using it in a wet installation.
CA-110 specifications
RF & credentials
| Frequency | 125 kHz / 13.56 MHz, according to chip |
|---|---|
| Chip options | TK4100, EM4200, T5577, MIFARE Classic S50/S70, ICODE; confirm exact chip |
| Sensing distance | 5–10 cm |
Housing & customization
| Materials | PVC / ABS listed; ABS shell with epoxy fill |
|---|---|
| Assembly | Ultrasonic plastic welding |
| Size | Customizable |
| Colors | Yellow, blue, red, white, gray, green, black and custom options |
| Identification | Screen printing, code printing and engraving |
| Ingress information | IP67 / IP68 listed; confirm rating for selected housing |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| CA-110-E | 125 kHz fob; specify TK4100, EM4200 or T5577 | |
| CA-110-M | 13.56 MHz fob; specify MIFARE Classic S50/S70 or ICODE chip |
Where the CA-110 is used
- Resident door credentials carried on a key ring
- Attendance credentials issued to staff
- Color-coded membership fobs
Elevator Access Control Readers
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
CA-110 FAQ
Does one fob support both frequencies?
The family offers 125 kHz and 13.56 MHz configurations. Specify the required chip; a combined dual-frequency build is not documented.
Can the enclosure and color be customized?
Yes. The shape and size are customizable, with multiple standard colors and printing or engraving options.
What distance is listed?
The listed distance is 5–10 cm. Check the chosen chip and housing with the reader used in your installation.
Can identification numbers be printed?
Yes. Code printing and engraving are offered alongside screen printing. Set the required numbering convention when ordering.
