Industrial HF RFID Readers & Read Heads (IP67)

Industrial HF read heads and an Ethernet reader/writer for production-line identification. Confirm reading or writing, tag protocol, installed gap and host registers.

4 product families · samples available · reply within 24 h

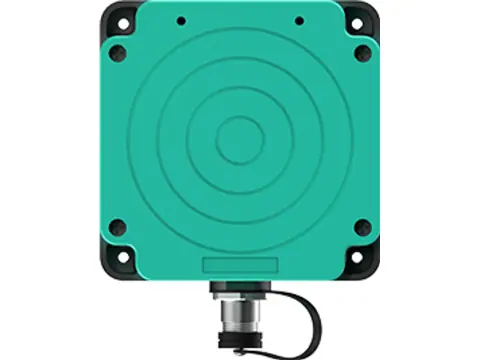

IH-110

Industrial HF RFID Reader with Ethernet, Modbus TCP, IP67

IP67 13.56 MHz reader/writer for production lines: reads ISO 15693 tags at up to 110 mm and connects to PLCs via Modbus TCP over Ethernet or Modbus RTU over RS232/RS485.

13.56 MHz (ISO 15693 / ISO 14443A)Up to 110 mm (ISO 15693, Ø30 mm tag)Ethernet, RS232, RS485 (Wi-Fi optional)
Details →

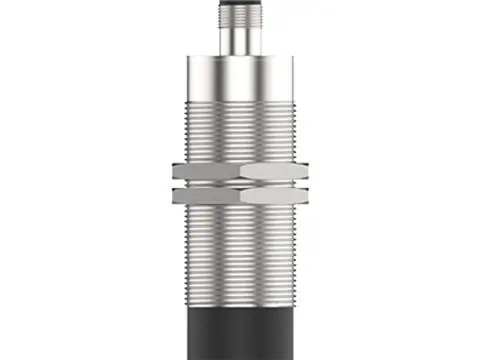

IH-120

M30 HF RFID Read Head, RS485 Modbus RTU, IP67

Threaded Ø30 × 65 mm IP67 read head for ISO 15693 and 14443A tags, rated up to 80 mm and reporting over RS485 Modbus RTU through an M12 connector.

13.56 MHz (ISO 15693 / ISO 14443A)0–80 mm (tag-dependent)RS485, Modbus RTU
Details →

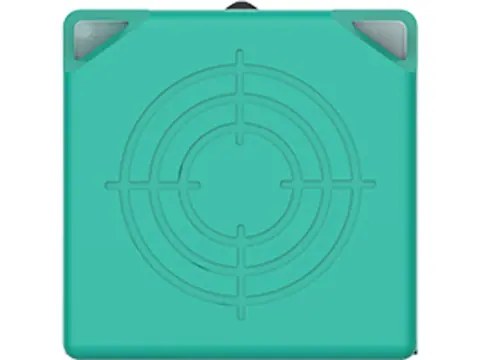

IH-130

40 × 40 mm Square HF RFID Read Head, RS485 Modbus RTU

Square 40 × 40 × 45 mm IP67 read head for ISO 15693 and 14443A tags, rated to 80 mm (about 60 mm with a Ø30 mm tag), with RS485 Modbus RTU and an M12 connector.

13.56 MHz (ISO 15693 / ISO 14443A)0–80 mm (approx. 60 mm with Ø30 mm tag)RS485, Modbus RTU
Details →

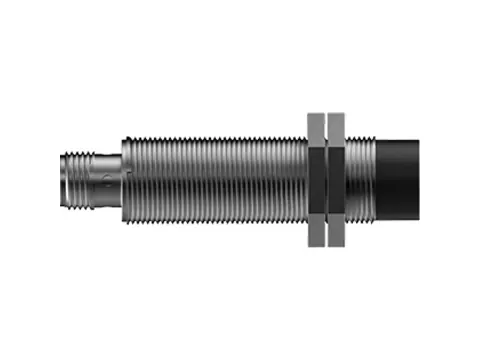

IH-140

Compact HF RFID Read Head, RS485 Modbus RTU, IP67

Lightweight threaded IP67 read head for ISO 15693 and 14443A tags at short range (0–50 mm), with RS485 Modbus RTU and an M12 connector; about 80 g complete.

13.56 MHz (ISO 15693 / ISO 14443A)0–50 mm (approx. 35 mm with Ø30 mm tag)RS485, Modbus RTU
Details →
Buyer's notes

How to choose industrial hf readers

Industrial HF readers and heads differ from bare modules because the housing, connector and installation envelope are defined. IH-120, IH-130 and IH-140 have M12 connections; IH-110 uses its documented breakout cable. Product records list IP67, but operating temperature and reading distance vary by model.

IH-120, IH-130 and IH-140 have published reading ratings only. Write support and write distance need confirmation for the exact tag and operation. IH-110 has recorded read/write data: its write references are up to 100 mm with a Ø30 mm ISO/IEC 15693 industrial tag and 50 mm with a blank ISO/IEC 14443A card. These figures do not establish write support for the other heads.

The three read heads use RS485 Modbus RTU; IH-110 also lists Ethernet and Modbus TCP. Verify register definitions, supported tag operations, command timing and missing-tag or failure status with the actual PLC or host. A shared Modbus name alone does not establish compatibility.

Use the industrial HF reader buying guide to compare IH-110, IH-120, IH-130 and IH-140 and prepare the PLC, tag-operation and sample checks for your RFQ.

Match the listed ISO/IEC 15693 or ISO/IEC 14443A protocol and test the actual mounting gap, orientation and nearby metal. If writing is required, include write/read-back verification in the sample evaluation. Asset and tool tracking provides context for choosing tags and recording read events.

Learn & apply

Guides and applications

Asset Tracking

RFID Asset & Tool Tracking

Build an RFID asset tracking system: on-metal, ceramic and tie-on tags matched to each asset, handheld audits, smart cabinets and IP67 HF heads for tooling.

Frequently asked questions

Can an industrial HF head read UHF asset tags?

No. These IH products operate at 13.56 MHz with their listed HF protocols. Use matching HF tags.

Which product provides Ethernet and Modbus TCP?

IH-110 lists Ethernet with Modbus TCP. The other listed heads use RS485 Modbus RTU.

Can every industrial HF head write data to a tag?

No write support or write distance is established by the published reading ratings for IH-120, IH-130 or IH-140. IH-110 has recorded read/write data; confirm the required tag-memory operations and test writing at the installed gap before specifying the task.

Is the stated range independent of tag size?

No. Product records describe tag-dependent ranges and, in some cases, a reference tag. Test the intended tag at the installed gap and orientation.
