QR Code Readers for Access Control (QR + 13.56MHz)

Readers that scan printed or phone-screen QR codes plus 13.56 MHz cards and pass the data to your controller or turnstile board. Outputs by model include Wiegand, RS485, RS232, TTL, USB, OSDP v2.2 or TCP/IP, in IP67 metal, mullion, glass and embedded formats.

9 product families · samples available · reply within 24 h
QC-170

OSDP QR Code & RFID Reader, 125 kHz/13.56 MHz + BLE

Ultra-thin IP65 metal reader that scans QR and dynamic QR codes, reads 125 kHz and 13.56 MHz credentials and BLE 5.3, and outputs Wiegand, RS485 or OSDP v2.2.

QR / 1D codes, 125 kHz + 13.56 MHz cards, BLE 5.3Wiegand, RS485, OSDP v2.2Codes 3–14 cm; cards 0–3 cm
Details →
QC-180

QR Code Reader Module for Turnstiles, 13.56 MHz, IP65

Embedded IP65 QR code and 13.56 MHz card module for turnstiles and kiosks, with 3–20 cm QR range, 9–24 V DC input and Wiegand + USB plus RS485, RS232 or TTL.

QR / 1D codes + 13.56 MHz cardsWiegand + USB + RS485 / RS232 / TTLQR 3–20 cm; cards 0–5 cm
Details →
QC-110

IP67 QR Code & 13.56 MHz Card Reader with Touch Keypad

IP67 metal-frame reader that scans printed or on-screen QR codes and 13.56 MHz card UIDs, with a touch keypad and Wiegand, RS485 and USB outputs.

QR / 1D codes + 13.56 MHz card UIDWiegand, RS485, USB5–18 cm
Details →
QC-130

IP67 Metal QR Code & 13.56 MHz Card Reader, Keyless

Keyless 120 × 80 mm IP67 reader for QR codes and 13.56 MHz card UIDs, with dual fill lights and Wiegand, RS485 and USB outputs to your existing controller.

QR / 1D codes + 13.56 MHz card UIDWiegand, RS485, USB5–18 cm
Details →
QC-120

Mullion IP67 QR Code & 13.56 MHz Reader with Touch Keypad

Narrow 138 × 58 mm mullion reader that scans QR codes and 13.56 MHz card UIDs through an IP67 glass front, with touch keypad and Wiegand, RS485 and USB outputs.

Mullion, 138 × 58 × 22.67 mmQR / 1D codes + 13.56 MHz card UIDWiegand, RS485, USB
Details →
QC-140

Slim Mullion IP67 QR Code & 13.56 MHz Card Reader

Keyless 138 × 58 mm mullion reader that decodes QR codes and 13.56 MHz card UIDs behind an IP67 glass front, with Wiegand, RS485 and USB outputs.

Mullion, 138 × 58 × 22.67 mmQR / 1D codes + 13.56 MHz card UIDWiegand, RS485, USB
Details →
QC-160

QR Code & 13.56 MHz Card Reader with Relay, Optional TCP/IP

86 × 86 mm QR code and 13.56 MHz card reader with 80 ms average decode, relay contacts and Wiegand, RS485 and USB outputs; a TCP/IP Ethernet version is available.

QR / 1D codes + 13.56 MHz card UIDWiegand, RS485, USB, relay; TCP/IP on QC-160-M-NET80 ms (average)
Details →
QC-190

86-Box QR Code & NFC Card Reader, Glass Panel, IP54

86 × 86 mm black glass-panel reader for QR codes and 13.56 MHz cards, with MIFARE sector encryption, chasing-light LEDs, IP54 and Wiegand + USB plus a serial port.

QR / 1D codes + 13.56 MHz cardsMIFARE sector encryption, CPU card contentWiegand + USB + RS485 / RS232 / TTL
Details →

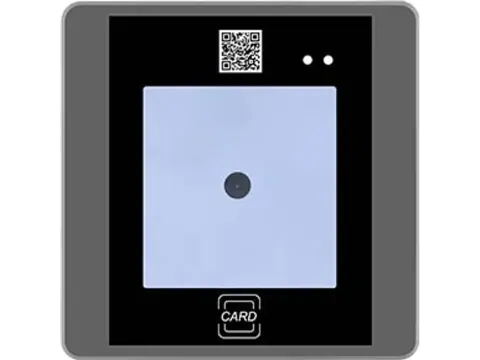

QC-150

QR Code & Encrypted 13.56 MHz Card Reader with Relay

Tempered-glass QR code reader with encrypted MIFARE sector and CPU-card reading, NO/COM/NC relay contacts, and Wiegand, RS485 and USB outputs.

QR / 1D codes + 13.56 MHz cardsMIFARE sector and CPU-card encryption, or UIDWiegand, RS485, USB, relay (NO/COM/NC)
Details →
Buyer's notes

How to choose qr code & rfid readers

These are reader-mode QR scanners. They decode a code and send its content to a controller, turnstile board or PC. Your visitor-management, ticketing or access platform issues the codes and validates them, including dynamic QR codes. Every model also reads 13.56 MHz cards, and one multi-technology model adds 125 kHz EM and Bluetooth LE.

Choosing a model

  • IP67 metal frame: 120 × 80 mm or 138 × 58 mm mullion, with or without a touch keypad. Outputs are Wiegand, RS485 with active upload, and USB. QR range is 5–18 cm.
  • 86 mm glass-front models: relay contacts on two models, optional TCP/IP Ethernet on one, and encrypted MIFARE sector or CPU-card reading on two.
  • Ultra-thin 86 mm metal: IP65, with QR, 125 kHz + 13.56 MHz cards, BLE and OSDP v2.2.
  • Embedded IP65 module: fits turnstile flanges and speed gates. It outputs Wiegand + USB plus RS485, RS232 or TTL, and reads QR codes at 3–20 cm. See turnstile readers.

Integration pitfalls

  • Wiegand limits: Wiegand carries only a fixed-length number, 24 data bits in 26-bit or 32 in 34-bit. The QR payload must map to a numeric ID of that size. For full strings, use a serial, USB or TCP/IP output.
  • Test before ordering: send a sample code and your controller model, and we will confirm how it will be output.
  • Relay use: relay ratings and trigger logic on the relay models must be confirmed before you switch a lock directly.

For codes that expire, how screenshots are handled, and 4G gate units, read QR Code Access Control.

QC-170 lists OSDP v2.2. Compare it with the card-focused CR-300 in the OSDP reader buying guide, and test how your controller interprets QR data, expiry and keypad input before volume ordering.

Learn & apply

Guides and applications

Elevators

Elevator Access Control Readers

Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.

Frequently asked questions

Can a QR code reader send QR data over Wiegand?

Yes, but Wiegand carries only a fixed-length number: 24 data bits in Wiegand 26 and 32 in Wiegand 34. Your platform's QR content must map to a numeric ID of that size. For longer or alphanumeric payloads, use RS485, RS232, TTL, USB or TCP/IP where the model offers it.

Do these readers support dynamic QR codes?

They decode static and dynamic QR codes. Generating and checking time-limited codes is the job of your access platform or controller, because the reader does not know whether a code has expired.

Can a QR reader open the door without a controller?

Most models are reader-mode and need a controller or turnstile board to decide access. Two 86 mm models have NO/COM/NC relay contacts, but relay ratings and trigger logic must be confirmed before you switch a lock directly. For self-contained units, see our QR code access controllers.

Which QR reader fits inside a turnstile?

The embedded IP65 module (71 × 65.54 × 19.4 mm) fits behind a turnstile flange or speed-gate panel. It outputs Wiegand + USB plus RS485, RS232 or TTL to match the gate board. For narrow posts, the 138 × 58 mm mullion models are an alternative.
