QC-130 IP67 Metal QR Code & 13.56 MHz Card Reader, Keyless
Keyless 120 × 80 mm IP67 reader for QR codes and 13.56 MHz card UIDs, with dual fill lights and Wiegand, RS485 and USB outputs to your existing controller.

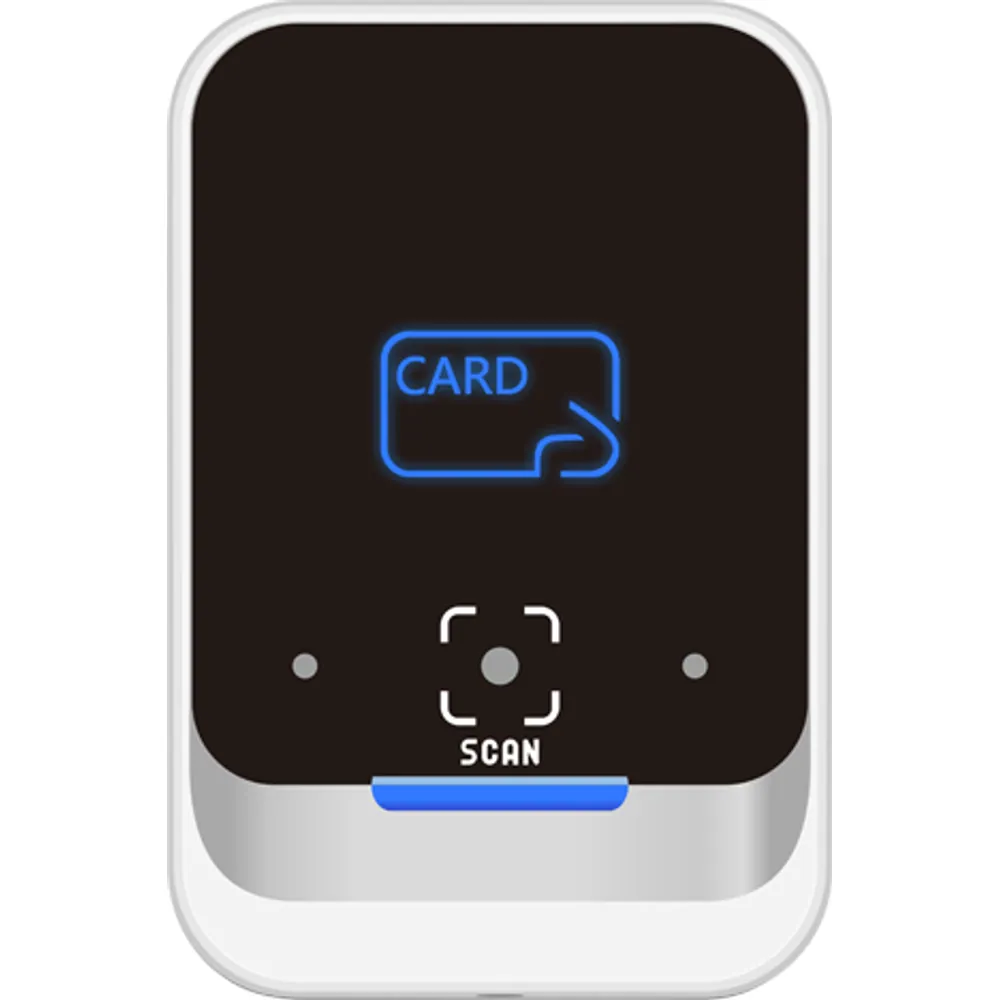

- Keyless glass front with a clear card target and QR scan window
- Reads paper and on-screen QR codes at 5–18 cm, ~100 ms average decode
- 13.56 MHz UID reading: MIFARE Classic 1K/4K, Ultralight, DESFire EV1, NTAG, ISO/IEC 15693
- IP67 metal frame for exposed doors and gates; –10 to +50 °C operation
- Wiegand, RS485 with active upload, and USB outputs
- Credentials
- QR / 1D codes + 13.56 MHz card UID
- Outputs
- Wiegand, RS485, USB
- QR read range
- 5–18 cm
- Ingress rating
- IP67
- Power
- 12 V DC ±5%, ≤ 200 mA
- Dimensions
- 120 × 80 × 22.67 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
IP67 Metal QR Code & 13.56 MHz Card Reader, Keyless: overview

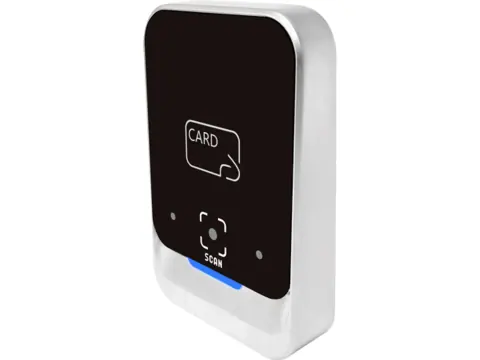

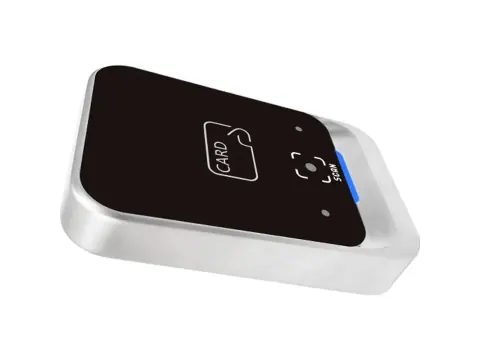

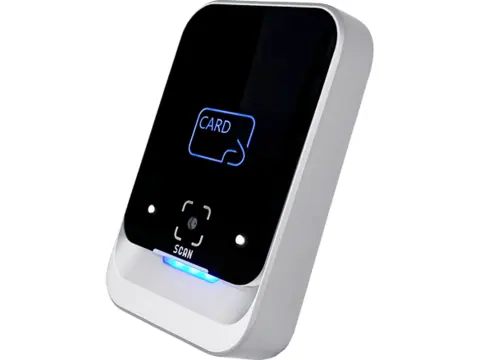

The QC-130 is a keyless IP67 QR code and RFID reader, the card-and-QR-only member of our metal-frame series. With no keypad on the glass, the front is given over to a card target and the scan window, which keeps presentation simple for visitors using the entrance for the first time. It suits sites that authenticate with cards and QR passes and do not need PIN entry.
Inside, a 648 × 488 image sensor and two fill lights read paper tickets and phone-screen QR codes at 5–18 cm, averaging roughly 100 ms per decode. Codes can be turned to any angle and tilted up to ±45°. Card reading covers 13.56 MHz UIDs from MIFARE Classic 1K/4K, MIFARE Ultralight, MIFARE DESFire EV1 and NTAG credentials, other ISO/IEC 14443A cards and ISO/IEC 15693 tags, plus NFC phones in card-emulation mode. Frame and glass are rated IP67.
Integration notes
Outputs are Wiegand D0/D1, RS485 (including an active-upload mode that pushes reads to the host) and USB through a Mini USB port. Power it from 12 V DC ±5%; it draws under 200 mA.
The harness on this model labels its control wires BUZZ (purple), LEDG (gray) and NG (yellow), so check your controller's LED and buzzer logic before final wiring. The housing measures 120 × 80 × 22.67 mm; the mullion-format equivalent is QC-140.
More features
- 12 V DC ±5% at ≤ 200 mA; 120 × 80 × 22.67 mm
QC-130 specifications
RF & credentials
| Frequency | 13.56 MHz |
|---|---|
| Cards (UID read) | MIFARE Classic 1K/4K (S50/S70), MIFARE Ultralight, MIFARE DESFire EV1, NTAG, CPU cards, other ISO/IEC 14443A cards, ISO/IEC 15693 cards |
| NFC phones | Card-emulation mode (UID) |
| Card read distance | More than 5 cm (varies with card type) |
QR & barcode scanning
| Code sources | Printed (paper) and on-screen (electronic) codes |
|---|---|
| Symbologies | QR Code, Data Matrix, PDF417, UPC-A, UPC-E (E0/E1), Code 11, Code 39, Code 93, Code 128, Codabar, Interleaved 2 of 5, Matrix 2 of 5 |
| QR read distance | 5–18 cm (depends on code, scan angle and ambient light) |
| Decode time | 100 ms (average) |
| Presentation angle | 360° rotation, ±45° tilt |
| Field of view | 34° (H) × 26° (V) |
| Sensor resolution | 648 × 488 pixels |
| Illumination | Dual fill lights |
Interfaces
| Access control output | Wiegand (D0/D1) |
|---|---|
| Serial | RS485, with active-upload mode |
| USB | Mini USB port; USB-to-Mini-USB cable, 1,500 mm |
| Feedback control | Buzzer and LED control wires |
| Keypad | None (keyless front) |
Electrical
| Supply voltage | 12 V DC ±5% |
|---|---|
| Current | ≤ 200 mA at 12 V; ≤ 500 mA from USB 5 V |
Mechanical & environment
| Dimensions | 120 × 80 × 22.67 mm (±0.3 mm) |
|---|---|
| Housing | Full metal frame, glass front panel |
| Ingress protection | IP67 |
| Operating temperature | –10 to +50 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 20–80% RH |

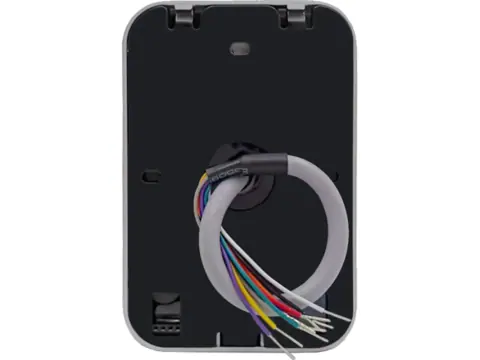

Wiring (flying lead)
| Wire color | Signal |
|---|---|
| Red | +12 V DC |
| Black | GND |
| White | Wiegand D1 |
| Green | Wiegand D0 |
| Purple | BUZZ (buzzer control) |
| Gray | LEDG (LED control) |
| Yellow | NG |
| Blue | RS485+ |
| Orange | RS485− |
Check the LEDG and NG control logic against your controller before final wiring.
Metal-frame QR reader series
| SKU | Housing | Touch keypad | Outputs | Ingress |
|---|---|---|---|---|
| QC-110 | 120 × 80 × 22.67 mm | Yes | Wiegand, RS485, USB | IP67 |
| QC-120 | 138 × 58 × 22.67 mm (mullion) | Yes | Wiegand, RS485, USB | IP67 |
| QC-130 | 120 × 80 × 22.67 mm | No | Wiegand, RS485, USB | IP67 |
| QC-140 | 138 × 58 × 22.67 mm (mullion) | No | Wiegand, RS485, USB | IP67 |
Same scanner, card reader, outputs and IP67 rating; choose by housing and keypad.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| QC-130-M | 120 × 80 mm metal frame, no keypad; QR codes + 13.56 MHz UID; Wiegand, RS485 (active upload) and USB |
Where the QC-130 is used
- Card-and-QR-only entrances where PIN entry is not required
- Residential and office gates exposed to rain that need an IP67 reader
- Visitor-management lanes where guests scan an emailed QR pass
- Elevator lobbies passing QR or card reads to the lift controller over Wiegand
Elevator Access Control Readers
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
Turnstile & Speed-Gate Readers: QR, RFID and Face
Turnstile card readers, QR scanners and face terminals for tripod, swing and speed gates, with Wiegand, RS485, RS232 or TTL output to the gate board.
QC-130 FAQ
What is the difference between the QC-130 and the QC-110?
They share the same scanner, card reader, outputs and 120 × 80 mm IP67 housing. The QC-110 adds a touch keypad under the glass; the QC-130 has none, which suits card-and-QR-only entrances.
Will it work with a standard Wiegand controller?
Yes. Card UIDs and QR results are output on D0/D1. Because common Wiegand formats carry a short numeric ID, check that the QR content your platform issues maps to the format your controller expects.
Can it scan QR codes shown on a phone?
Yes. Printed and on-screen QR codes are both supported at 5–18 cm; the working distance depends on code size, angle and ambient light.
Does it read 125 kHz cards?
No. The QC-130 reads 13.56 MHz credentials only. For 125 kHz EM cards, consider the QC-170, which adds 125 kHz EM4100-family support.
