QC-190 86-Box QR Code & NFC Card Reader, Glass Panel, IP54
86 × 86 mm black glass-panel reader for QR codes and 13.56 MHz cards, with MIFARE sector encryption, chasing-light LEDs, IP54 and Wiegand + USB plus a serial port.
- Black glass 86 × 86 × 21.3 mm panel with sequential chasing-light indicator
- Scans QR Code, Data Matrix, PDF417, DotCode and 1D barcodes at 3–20 cm
- 13.56 MHz ISO/IEC 14443A/B: MIFARE Classic, Ultralight, DESFire and CPU cards at 0–5 cm
- MIFARE Classic sector encryption and CPU-card content reading, not just UID
- Wiegand + USB on every version, plus RS485, RS232 or TTL UART
- Credentials
- QR / 1D codes + 13.56 MHz cards
- Card security
- MIFARE sector encryption, CPU card content
- Outputs
- Wiegand + USB + RS485 / RS232 / TTL
- Read range
- QR 3–20 cm; cards 0–5 cm
- Ingress rating
- IP54
- Dimensions
- 86 × 86 × 21.3 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
86-Box QR Code & NFC Card Reader, Glass Panel, IP54: overview

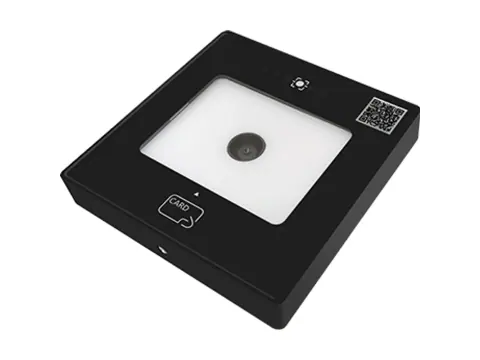

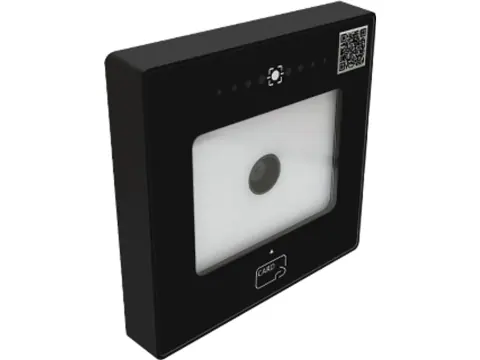

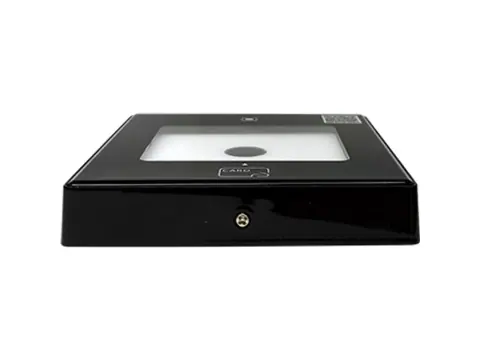

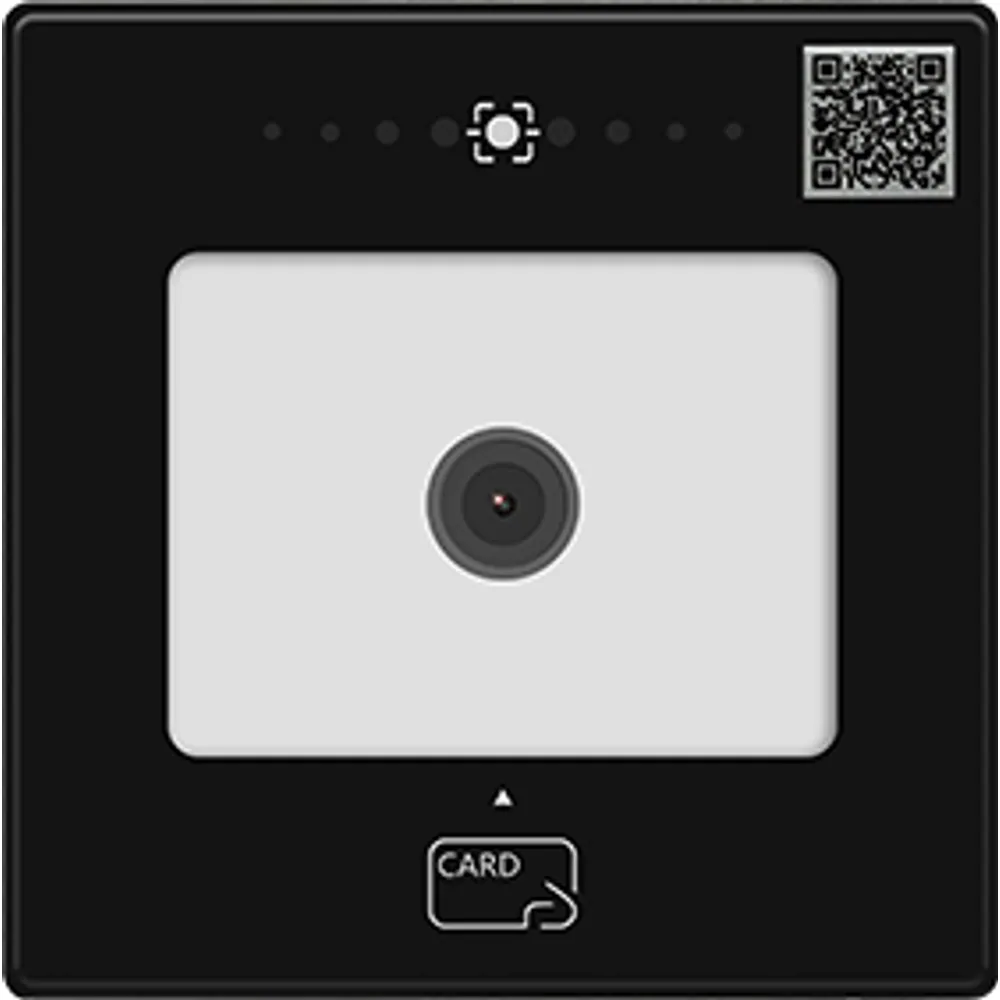

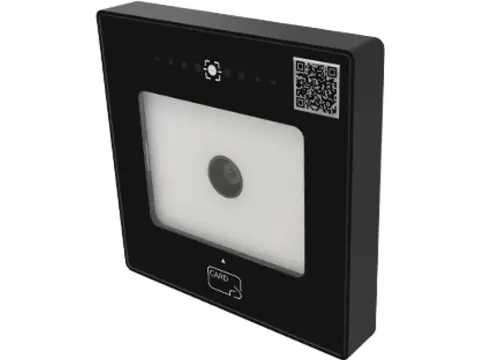

The QC-190 is an 86-box QR code and NFC card reader with a black glass front and a row of indicator LEDs that brighten in sequence, giving a finished look for lobbies and reception areas. It reads QR codes, 1D barcodes and 13.56 MHz cards and hands the result to your existing controller. The front is rated IP54, which covers dust and splashing water at sheltered entrances.
Its scanning specification matches the embedded QC-180 module: a 72° diagonal field of view, 1/30 s capture, 3–20 cm QR range and tolerance of 360° rotation with ±55° pitch and skew. For cards it follows ISO/IEC 14443A/B at 0–5 cm and handles MIFARE Classic 1K/4K, MIFARE Ultralight, DESFire and CPU cards. It can read encrypted MIFARE Classic sectors and CPU-card content as well as UIDs. iCLASS is listed for card serial number (CSN) reading only; test your own iCLASS credentials before committing.
Integration notes

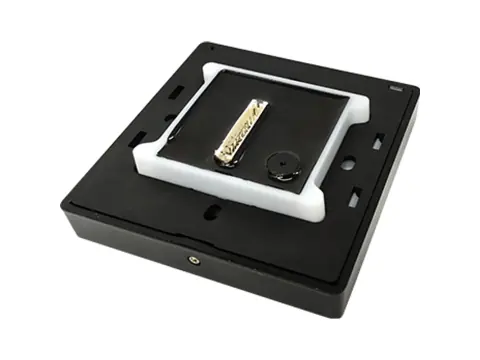

All versions output Wiegand and USB, with RS485 (QC-190-M-RS), RS232 (QC-190-M-RS232) or TTL UART (QC-190-M-T) as the serial option; output format and accepted card types are configurable in software. Supply 9–24 V DC; current is ≤ 130 mA on standby and ≤ 200 mA while reading. The 86 × 86 × 21.3 mm housing connects through an 11-core lead plus a 1,000 mm USB cable, and a white fill light helps in dim entrances.
More features
- IP54 front; 9–24 V DC input, ≤ 200 mA while reading
QC-190 specifications
RF & credentials
| Frequency | 13.56 MHz |
|---|---|
| Standard | ISO/IEC 14443A/B |
| Cards | MIFARE Classic 1K/4K (S50/S70), MIFARE Ultralight, DESFire, CPU cards |
| iCLASS | Card serial number (CSN) only; verify with sample credentials |
| Secure read | MIFARE Classic sector encryption; CPU card content |
| Card read distance | 0–5 cm |
QR & barcode scanning
| 2D symbologies | QR Code, Data Matrix, PDF417, DotCode |
|---|---|
| 1D symbologies | UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Standard 2 of 5, Codabar, MSI/MSI Plessey, GS1 DataBar |
| QR read distance | 3–20 cm |
| Presentation angle | 360° rotation, ±55° pitch, ±55° skew |
| Field of view | 72° diagonal, 56° horizontal, 42° vertical |
| Capture speed | 1/30 s |
| Minimum element size | 2D ≥ 10 mil; 1D ≥ 5 mil |
| Illumination | White fill light |
Interfaces
| Standard outputs | Wiegand, USB |
|---|---|
| Serial (by variant) | RS485 (QC-190-M-RS), RS232 (QC-190-M-RS232) or TTL UART (QC-190-M-T) |
| Configuration | Card-number output format and card types set in PC software |
| Indicator | Sequential chasing-light LED row |
Electrical
| Supply voltage | 9–24 V DC (±5%) |
|---|---|
| Current | ≤ 130 mA standby; ≤ 200 mA during card reading |
Mechanical & environment
| Dimensions | 86 × 86 × 21.3 mm (±0.5 mm) |
|---|---|
| Housing | Black glass front panel, unbranded |
| Leads | 150 mm 11-core lead + 1,000 mm USB cable |
| Ingress protection | IP54 |
| Operating temperature | –20 to +60 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 20–80% RH |
Ordering options
| SKU | Wiegand | USB | Serial port |
|---|---|---|---|
| QC-190-M-RS | Yes | Yes | RS485 |
| QC-190-M-RS232 | Yes | Yes | RS232 |
| QC-190-M-T | Yes | Yes | TTL UART |
Every version reads QR codes, barcodes and 13.56 MHz cards; only the serial port differs.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| QC-190-M-RS | 86-box QR + 13.56 MHz reader; Wiegand, RS485 and USB; black glass, unbranded | |
| QC-190-M-RS232 | 86-box QR + 13.56 MHz reader; Wiegand, RS232 and USB; black glass, unbranded | |
| QC-190-M-T | 86-box QR + 13.56 MHz reader; Wiegand, TTL UART and USB; black glass, unbranded |
Where the QC-190 is used
- Office reception doors where visitors scan an emailed QR code and staff use encrypted MIFARE cards
- Residential lobbies with an 86 mm wall box and a design-led interior
- Turnstile cabinets that need a flush QR and card reader
- Attendance points that accept both QR badges and 13.56 MHz cards
Turnstile & Speed-Gate Readers: QR, RFID and Face
Turnstile card readers, QR scanners and face terminals for tripod, swing and speed gates, with Wiegand, RS485, RS232 or TTL output to the gate board.
QC-190 FAQ
Does the QC-190 read HID iCLASS cards?
iCLASS is supported for card serial number (CSN) reading only; secure iCLASS data is not read. Send us a sample of your credentials and we will confirm the result before you order.
What does sector encryption mean for my project?
Instead of trusting the card UID, the reader authenticates to a MIFARE Classic sector with keys you define, so a card that only copies the UID is rejected. CPU cards can be checked the same way through their stored content.
Can it be used outdoors?
The front is rated IP54, meaning dust-protected and resistant to splashing water. Use it at covered entrances; for exposed lanes, the IP65 QC-180 module is better suited.
Which serial option should I choose?
Pick RS485 (QC-190-M-RS) for controllers on a bus or longer cable runs, RS232 (QC-190-M-RS232) for PC-style serial ports, or TTL UART (QC-190-M-T) for direct microcontroller connection. Wiegand and USB are present on all three.
How far away can a QR code be read?
From 3 to 20 cm. Minimum element size is 10 mil for 2D codes and 5 mil for 1D barcodes.
