QC-180 QR Code Reader Module for Turnstiles, 13.56 MHz, IP65
Embedded IP65 QR code and 13.56 MHz card module for turnstiles and kiosks, with 3–20 cm QR range, 9–24 V DC input and Wiegand + USB plus RS485, RS232 or TTL.
- Embedded 71 × 65.54 × 19.4 mm module for turnstile flanges, speed gates and kiosks
- Reads QR Code, Data Matrix, PDF417, DotCode and common 1D barcodes at 3–20 cm
- 13.56 MHz ISO/IEC 14443A/B: MIFARE Classic, Ultralight, DESFire and CPU cards at 0–5 cm
- IP65 front; –20 to +60 °C operating range
- Wiegand + USB on every version, plus RS485, RS232 or TTL UART
- Credentials
- QR / 1D codes + 13.56 MHz cards
- Outputs
- Wiegand + USB + RS485 / RS232 / TTL
- Read range
- QR 3–20 cm; cards 0–5 cm
- Ingress rating
- IP65
- Power
- 9–24 V DC
- Dimensions
- 71 × 65.54 × 19.4 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
QR Code Reader Module for Turnstiles, 13.56 MHz, IP65: overview

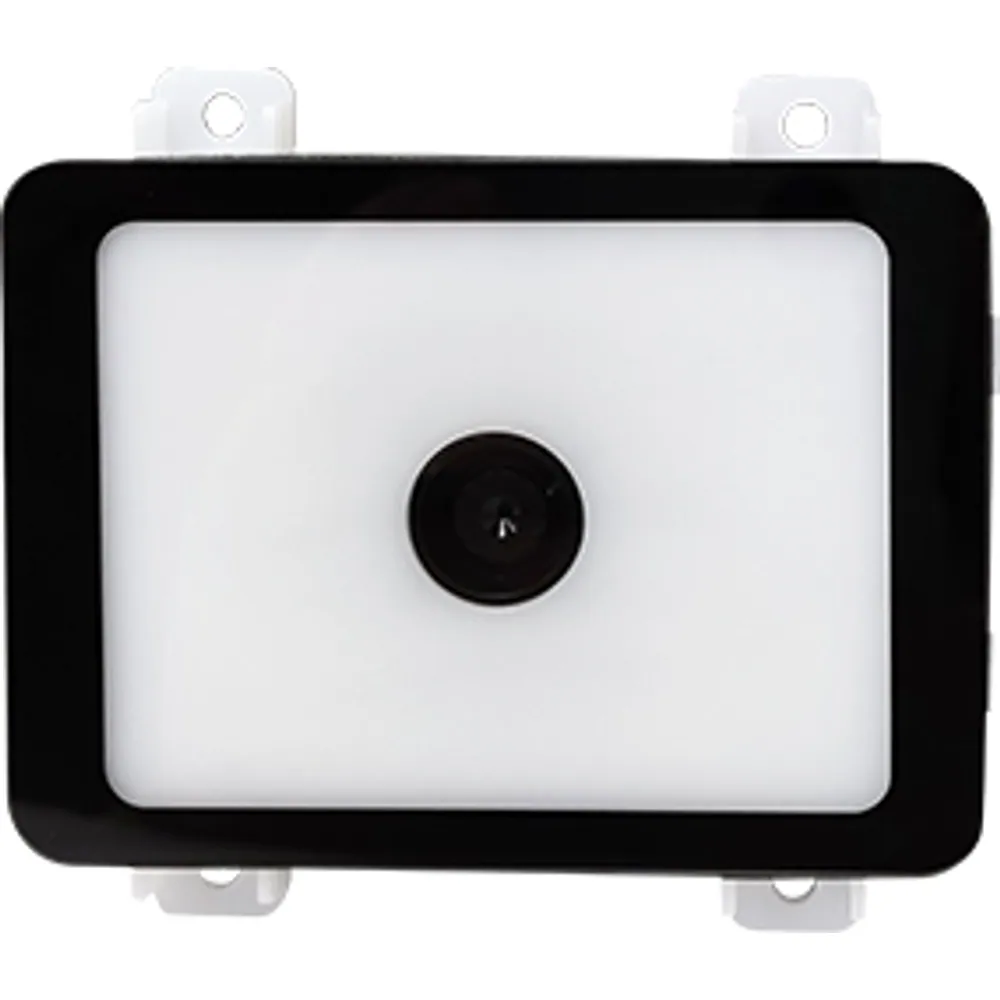

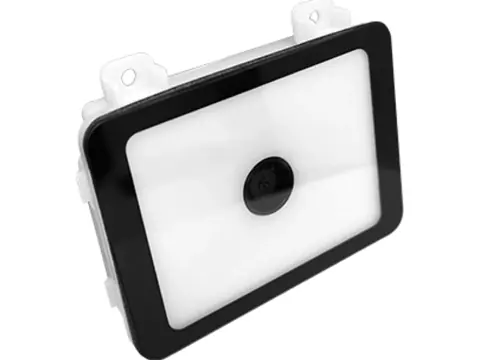

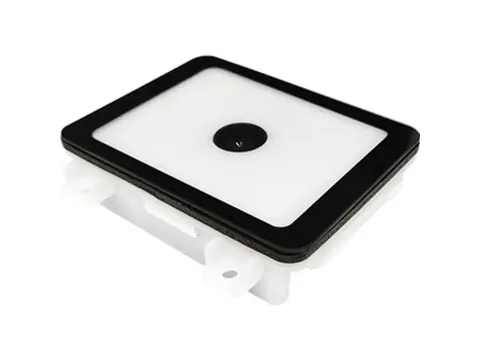

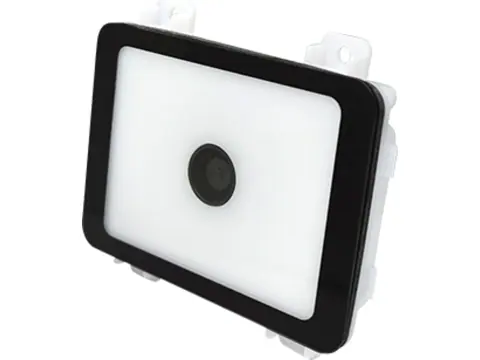

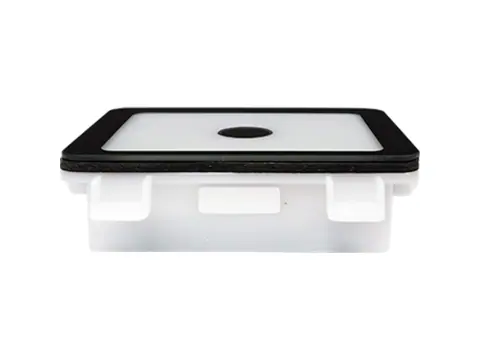

The QC-180 is a QR code reader module for turnstiles: a 71 × 65.54 × 19.4 mm scan-and-read engine built to sit behind a turnstile flange, speed-gate cabinet or kiosk panel. It reads QR codes, 1D barcodes and 13.56 MHz cards through its front window and forwards the data to the gate controller. The front is rated IP65, so it can face outdoor lanes.
Wide-angle optics (72° diagonal field of view) and 1/30 s image capture make it tolerant of hurried presentation: codes are read at 3–20 cm with 360° rotation and up to ±55° of pitch and skew. Minimum element size is 10 mil for 2D codes and 5 mil for 1D barcodes, and a white fill light supports dim lanes. The RF side follows ISO/IEC 14443A/B and handles MIFARE Classic 1K/4K, MIFARE Ultralight, DESFire and CPU cards at 0–5 cm. Card-number output format and accepted card types are set in configuration software.
Integration notes
Every version provides Wiegand and USB; choose RS485 (QC-180-M-RS), RS232 (QC-180-M-RS232) or TTL UART (QC-180-M-T) as the serial port to match the turnstile board. Power ranges from 9 to 24 V DC; standby current is ≤ 130 mA and card-read current ≤ 200 mA.
The module ships with a 300 mm 11-core lead and a 1,000 mm USB cable, and operates from –20 to +60 °C.
More features
- 9–24 V DC input; ≤ 130 mA standby, ≤ 200 mA while reading
- Output format and accepted card types configurable in software
QC-180 specifications
RF & credentials
| Frequency | 13.56 MHz |
|---|---|
| Standard | ISO/IEC 14443A/B |
| Cards | MIFARE Classic 1K/4K (S50/S70), MIFARE Ultralight, DESFire, CPU cards |
| Card read distance | 0–5 cm |
QR & barcode scanning
| 2D symbologies | QR Code, Data Matrix, PDF417, DotCode |
|---|---|
| 1D symbologies | UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Standard 2 of 5, Codabar, MSI/MSI Plessey, GS1 DataBar |
| QR read distance | 3–20 cm |
| Presentation angle | 360° rotation, ±55° pitch, ±55° skew |
| Field of view | 72° diagonal, 56° horizontal, 42° vertical |
| Capture speed | 1/30 s |
| Minimum element size | 2D ≥ 10 mil; 1D ≥ 5 mil |
| Illumination | White fill light |
Interfaces
| Standard outputs | Wiegand, USB |
|---|---|
| Serial (by variant) | RS485 (QC-180-M-RS), RS232 (QC-180-M-RS232) or TTL UART (QC-180-M-T) |
| Configuration | Card-number output format and card types set in PC software |
Electrical
| Supply voltage | 9–24 V DC (±5%) |
|---|---|
| Current | ≤ 130 mA standby; ≤ 200 mA during card reading |
Mechanical & environment
| Dimensions | 71 × 65.54 × 19.4 mm (±0.5 mm) |
|---|---|
| Form factor | Embedded module for turnstiles, gates and kiosks |
| Finish | Black, unbranded |
| Leads | 300 mm (±10 mm) 11-core lead + 1,000 mm (±10 mm) USB cable |
| Ingress protection | IP65 |
| Operating temperature | –20 to +60 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 20–80% RH |
Ordering options
| SKU | Wiegand | USB | Serial port |
|---|---|---|---|
| QC-180-M-RS | Yes | Yes | RS485 |
| QC-180-M-RS232 | Yes | Yes | RS232 |
| QC-180-M-T | Yes | Yes | TTL UART |
Every version reads QR codes, barcodes and 13.56 MHz cards; only the serial port differs.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| QC-180-M-RS | Embedded QR + 13.56 MHz module; Wiegand, RS485 and USB; 300 mm 11-core lead + 1,000 mm USB cable; black | |
| QC-180-M-RS232 | Embedded QR + 13.56 MHz module; Wiegand, RS232 and USB; 300 mm 11-core lead + 1,000 mm USB cable; black | |
| QC-180-M-T | Embedded QR + 13.56 MHz module; Wiegand, TTL UART and USB; 300 mm 11-core lead + 1,000 mm USB cable; black |
Where the QC-180 is used
- Tripod and swing turnstiles that validate printed or mobile QR tickets
- Office-lobby speed gates admitting staff by MIFARE card and visitors by QR code
- Gym and leisure-center entry lanes using QR membership codes
- Self-service kiosks that need a built-in code and card reader
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
QC-180 FAQ
Which serial interface should I order?
Match the turnstile board: RS485 (QC-180-M-RS) for multi-drop or longer runs, RS232 (QC-180-M-RS232) for PC-style serial ports, or TTL UART (QC-180-M-T) for direct connection to a microcontroller. All three also output Wiegand and USB.
How much space does it need inside the turnstile?
The module measures 71 × 65.54 × 19.4 mm. Allow extra room behind it for the 300 mm 11-core lead and the 1,000 mm USB cable.
What is the QR reading distance and angle tolerance?
Codes read at 3–20 cm, at any rotation and up to ±55° of pitch and skew. Minimum element size is 10 mil for 2D codes and 5 mil for 1D barcodes.
Is it suitable for outdoor lanes?
The module is rated IP65 and operates from –20 to +60 °C, which suits covered or partly exposed outdoor turnstiles.
Can I change the card number output format?
Yes. Output format and accepted card types are configured in PC software, so the reader can match the number format your turnstile controller expects.
