Send us your controller model, card type and install environment. We'll shortlist compatible hardware and quote within 24 hours.
Single and double electromagnetic locks with bracket and status-output options. Choose the mounting geometry, supply setting and feedback function as carefully as the listed holding force.
Single-door 280 kg (600 lb) maglock with NO/NC status output, a 250 × 47 × 26 mm aluminum-alloy body and a 12 or 24 V DC coil drawing 480/240 mA.
One 500 mm aluminum body holding two 280 kg (600 lb) magnets for double doors, with an NO/NC status signal output and 12 or 24 V DC operation.
Waterproof single-door maglock holding 280 kg (600 lb), with an aluminum-alloy housing, installer-selectable 12/24 V DC coil and a door-status output.
Fail-safe 280 kg (600 lb) single-door maglock with a 250 × 47 × 26 mm aluminum-alloy body, 12 or 24 V DC coil (480/240 mA) and hex-socket screws.
Fail-safe double-door maglock: two 280 kg (600 lb) magnets in one 500 × 47 × 26 mm aluminum body, 12 or 24 V DC, without signal output.
Compact 210 mm stainless-steel maglock with 280 kg (600 lb) holding force, waterproof construction, selectable 12/24 V DC coil and a door-status output.
Waterproof 280 kg (600 lb) stainless-steel maglock with an oversized 200 × 45 × 13 mm armature plate, lock-status output and selectable 12/24 V DC coil.
Two-piece Z and L aluminum bracket that lets a 280 kg (600 lb) magnetic lock secure a door opening toward the lock side; brushed finish, screws included.

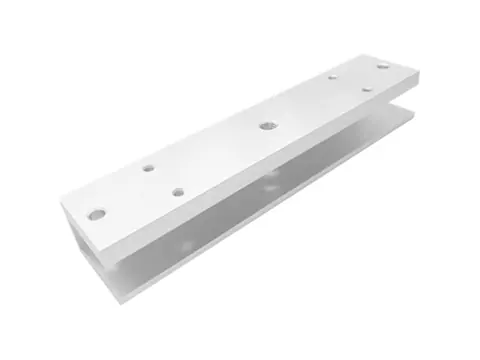

Sandblasted aluminum U bracket that clamps the armature of a 280 kg (600 lb) maglock onto frameless glass 8–15 mm thick; screw pack included.

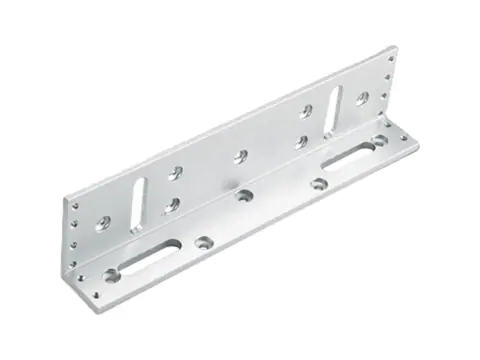

Brushed aluminum L bracket, 250 × 48 × 28 mm, that gives a 280 kg (600 lb) magnetic lock a solid mounting ledge where the door header is too narrow.
The EL range includes 280 kg (600 lb) single-door locks and double-door units with a separate locking face for each leaf. Status-output variants provide feedback contacts; other versions switch the lock without that signal. Confirm whether the output indicates door position or bond condition before assigning it in software.
Maglocks release when power is removed. Plan the release circuit together with the controller, exit device and supply. Read the current specification for the selected voltage setting; double-door units add the load of both coils.
Choose brackets from the door geometry. L brackets support the lock body, ZL sets adapt inward-opening installations and U brackets clamp compatible frameless glass. Check dimensions and alignment on the real door. The maglock bracket guide explains the mounting differences.
Maglock wiring with dry-relay COM/NC: keypad and reader diagrams, REX signals, approved egress release paths and manufacturer-specific suppression.
A fail-safe lock releases when power is cut; a fail-secure lock stays locked. Learn which to use per door, how to wire NO/NC, and what egress codes expect.
Program a standalone access control keypad: enter programming mode, change the master code, add card and PIN users, set relay time, reset and wire it.
Plan an RFID vehicle access control system: UHF windshield tags, long-range lane readers, Wiegand controllers and barrier triggering. Lane BOM and samples.
Apartment building access control hardware: anti-clone readers with matched fob sets, QR visitor codes, 4G controllers for rentals and UHF tags for gates.
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
No. EL-170 and EL-180 are double-door units. Their current specification is the total for both locking sections.
Listed EL lock models provide 12/24 V configurations. Follow the specific model’s voltage-selection instructions and current rating.
Not always. Check the stated output function and wiring. A bond signal and a door-position contact can describe different door conditions.
