EL-180 Double Door Magnetic Lock 2 × 280 kg (2 × 600 lb), 12/24 V
Fail-safe double-door maglock: two 280 kg (600 lb) magnets in one 500 × 47 × 26 mm aluminum body, 12 or 24 V DC, without signal output.
- Two 280 kg (600 lb) magnets in one 500 × 47 × 26 mm body
- Separate 180 × 38 × 11 mm armature plate for each leaf
- 12 V DC (2 × 480 mA) or 24 V DC (2 × 240 mA) operation
- Aluminum-alloy housing with hex-socket security screws
- Fail-safe: both leaves release on power loss; no built-in delay
- Holding force
- 2 × 280 kg (2 × 600 lb)
- Supply
- 12 or 24 V DC
- Current (total)
- 960 mA @ 12 V / 480 mA @ 24 V
- Status output
- None
- Lock body
- 500 × 47 × 26 mm
- Weight
- 4 kg
Reply within 24 hours Tested before dispatch Worldwide shipping
Double Door Magnetic Lock 2 × 280 kg (2 × 600 lb), 12/24 V: overview

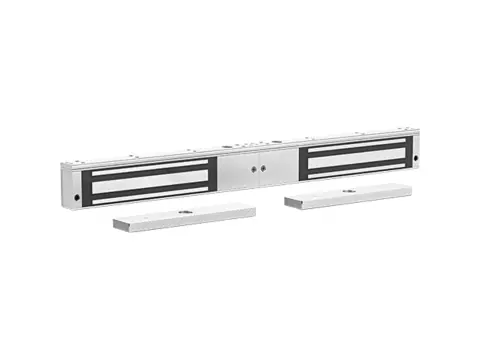

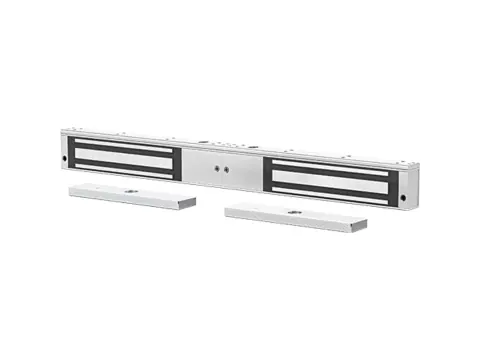

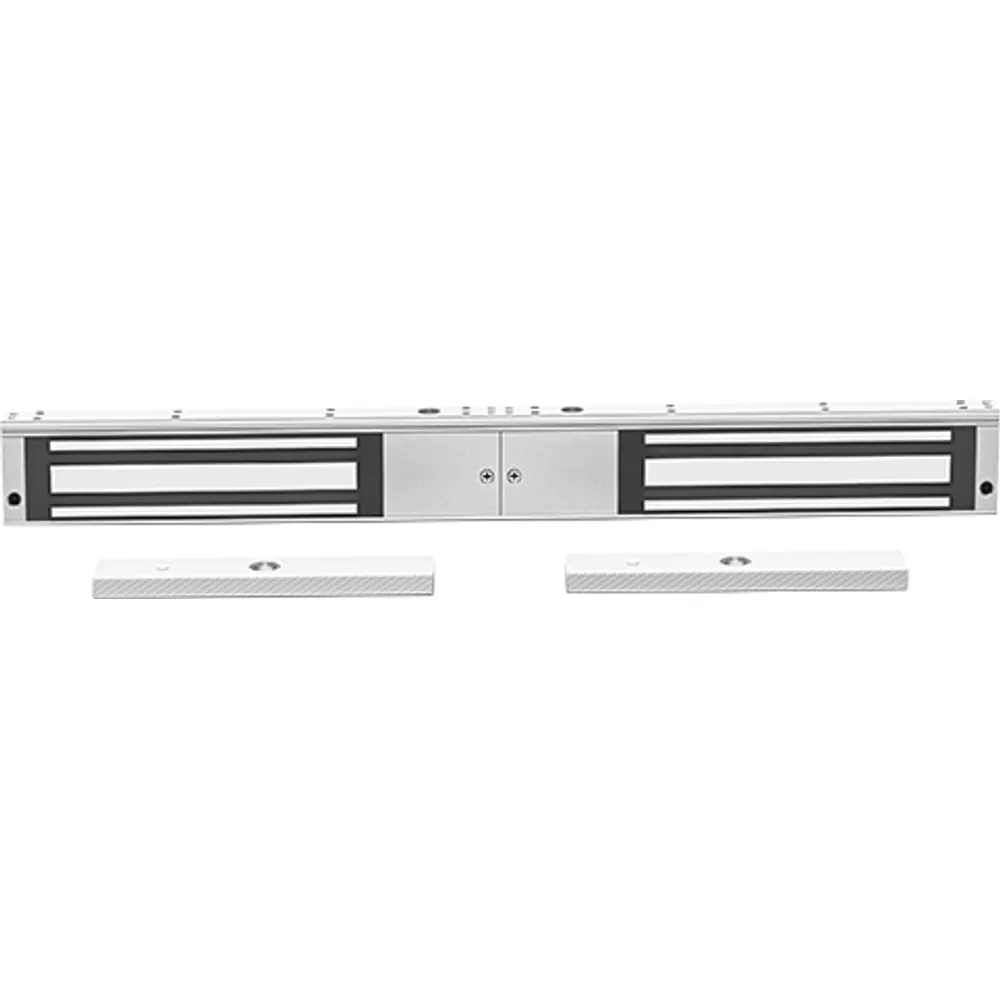

EL-180 is a double-door electromagnetic lock for pairs of doors that only need to be held and released, without status feedback. One 500 × 47 × 26 mm body carries two 280 kg (600 lb) magnets, and each leaf takes its own 180 × 38 × 11 mm armature plate. Buyers searching for a 1,200 lb double maglock are usually looking at this layout: the rating is 600 lb per leaf.
The aluminum-alloy housing is closed with hex-socket (Allen) screws for tamper resistance. The lock runs from 12 V DC, drawing 480 mA per magnet (960 mA in total), or from 24 V DC at 240 mA per magnet (480 mA in total). It is fail-safe, so both leaves open as soon as power is removed, and it has no internal delay.
Choose EL-180 for double doors in lobbies, corridors, stairwells and shared entrances where door monitoring is handled by separate door contacts or is not required. If the controller should know whether the doors are secured, the otherwise identical EL-170 adds an NO/NC status output.
Integration notes
Budget roughly 1 A at 12 V for the lock alone, then add readers, controller and exit buttons plus 25–50% headroom when choosing the supply. The lock weighs 4 kg; fix it into solid header material across the meeting stiles. On frameless glass leaves, mount each armature on an EL-150 U bracket.
More features
- Listed for wooden, glass, metal and fire double doors
EL-180 specifications
Holding & locking
| Holding force | 280 kg (600 lb) per leaf, straight pull; 2 magnets |
|---|---|
| Lock type | Fail-safe (releases when power is removed) |
| Time delay | None built in |
Electrical
| Input voltage | 12 V DC or 24 V DC (state supply voltage when ordering) |
|---|---|
| Working current | 480 mA × 2 at 12 V; 240 mA × 2 at 24 V |
| Signal output | None |
Mechanical
| Lock body | 500 × 47 × 26 mm |
|---|---|
| Armature plates | 2 × 180 × 38 × 11 mm |
| Housing | High-strength aluminum alloy |
| Fasteners | Hex-socket (Allen) security screws |
| Weight | 4 kg |
| Suitable doors | Wooden, glass, metal and fire doors |
Current draw for power-supply sizing
| Supply | Per magnet | Both magnets |
|---|---|---|
| 12 V DC | 480 mA | 960 mA |
| 24 V DC | 240 mA | 480 mA |
Standard 280 kg (600 lb) lock range compared
| SKU | Doors | Holding force | Lock body | Status output | Weight |
|---|---|---|---|---|---|
| EL-190-280S | Single | 280 kg (600 lb) | 250 × 47 × 26 mm | Yes, NO/NC | 2 kg |
| EL-200-280 | Single | 280 kg (600 lb) | 250 × 47 × 26 mm | No | 2 kg |
| EL-170-280S | Double | 2 × 280 kg (2 × 600 lb) | 500 × 47 × 26 mm | Yes, NO/NC | 4 kg |
| EL-180-280 | Double | 2 × 280 kg (2 × 600 lb) | 500 × 47 × 26 mm | No | 4 kg |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| EL-180-280 | Double-door magnetic lock, 2 × 280 kg (2 × 600 lb), 500 mm aluminum body, 12/24 V DC, no signal output |
Where the EL-180 is used
- Shared entrance double doors released by a keypad or card reader
- Corridor or stairwell cross-doors on a fire-alarm release circuit
- Double glass doors with a U bracket carrying each armature
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
EL-180 FAQ
Does EL-180 have a door or lock status output?
No. EL-180 has no signal output. If you need status feedback, order EL-170, which is the same lock with NO/NC status contacts.
How much power does it draw?
960 mA in total at 12 V DC (480 mA per magnet) or 480 mA in total at 24 V DC. Size the supply for the lock plus readers and controller, with 25–50% headroom.
Is it really 1,200 lb?
The two magnets together total 560 kg (1,200 lb), but each leaf is held at 280 kg (600 lb). Specify on the per-leaf figure when comparing with single-door locks.
Is there a built-in time delay?
No. The lock releases immediately when power is removed; set relock timing in the controller or exit button circuit.
