QR Code + RFID Bluetooth Access Controller, TCP/IP & Wiegand
86 × 86 mm all-in-one that opens by phone QR code, Bluetooth 5.0, 125 kHz or 13.56 MHz card. Onboard relay plus Wiegand 34, RS485, USB and TCP/IP. IP55.
Send us your controller model, card type and install environment. We'll shortlist compatible hardware and quote within 24 hours.
Phone-enabled controllers with local Bluetooth access and selected Ethernet or 4G configurations. Card, PIN and QR options vary by model and must be matched to the management app.

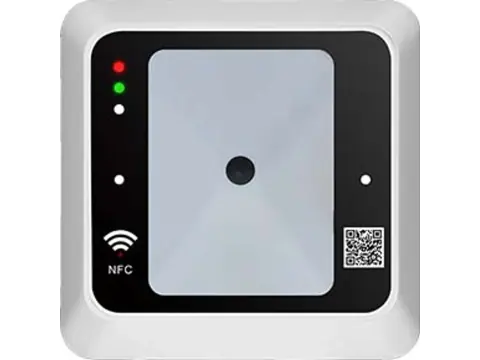

86 × 86 mm all-in-one that opens by phone QR code, Bluetooth 5.0, 125 kHz or 13.56 MHz card. Onboard relay plus Wiegand 34, RS485, USB and TCP/IP. IP55.

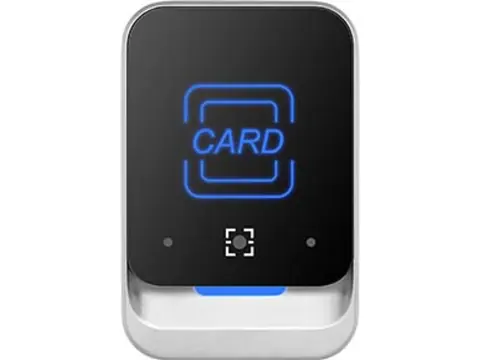

Cellular 4G LTE Cat-1 door controller that manages users from the cloud and opens by QR code, Bluetooth 5.0 or 125 kHz/13.56 MHz card. IP55, relay output.

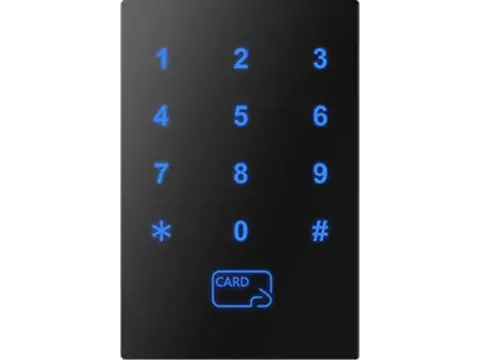

Standalone touch-keypad door controller that opens by PIN, 125 kHz or 13.56 MHz card, or phone over Bluetooth 5.0. IP55, onboard relay, fire-alarm input.

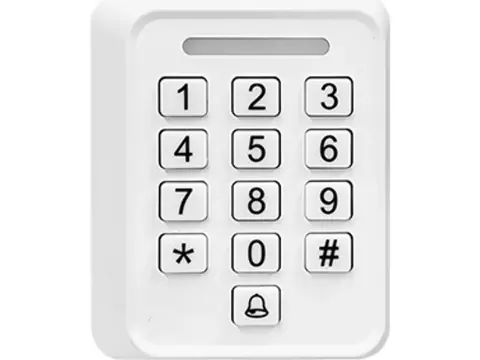

Offline keypad controller that opens by 13.56 MHz card, PIN or Bluetooth phone, stores 5,000 users and offers Wiegand. Black or white, 103 × 86 × 20 mm.

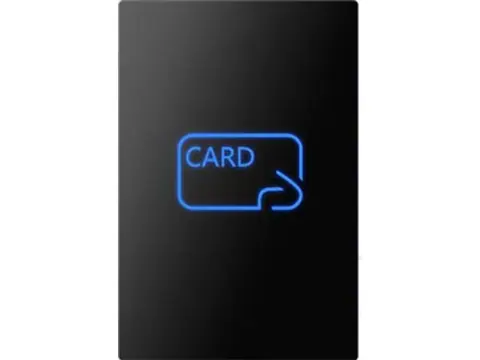

Card-and-phone door controller for sites without a LAN: 4G LTE to the cloud, Bluetooth 5.0 phone entry, 13.56 MHz ISO/IEC 14443A cards, relay output, IP55.
Start with the way users will receive and manage access. BL-150 supports an offline Bluetooth, card and PIN workflow. BL-120 adds QR and Ethernet, while BL-130 and BL-140 provide cellular connectivity. These are different configurations rather than interchangeable ways to connect the same device.
A cellular controller needs more than a SIM: confirm the destination country, supported LTE bands, carrier service and app or cloud availability. For phone access, establish who administers the site and how credentials are issued, revoked and recovered when a phone changes.
The relay can control a local lock, and selected models provide Wiegand for an existing panel. Match card-number output and operating mode before treating the device as a replacement reader. Apartment access hardware shows how phone access fits a wider entrance plan.
Dynamic QR code access control uses signed, time-limited codes that expire, unlike static QR. How readers, turnstiles, 4G controllers and visitor passes work.
Maglock wiring with dry-relay COM/NC: keypad and reader diagrams, REX signals, approved egress release paths and manufacturer-specific suppression.
Wiegand 26-bit is an even parity bit, 8-bit facility code, 16-bit card number and odd parity bit. Convert card numbers to hex and back with the calculator.
Apartment building access control hardware: anti-clone readers with matched fob sets, QR visitor codes, 4G controllers for rentals and UHF tags for gates.
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
Bluetooth provides a local radio link between phone and controller. Remote administration, enrollment and any cloud functions depend on the particular model and platform; confirm the complete workflow.
No global coverage is assumed. Match the ordered model’s LTE bands to the local carrier and confirm the supported app or cloud service.
Selected BL models support cards, and some also support PIN or QR. Check the credential list for the exact model and enroll a sample before a volume order.
