BL-120 QR Code + RFID Bluetooth Access Controller, TCP/IP & Wiegand
86 × 86 mm all-in-one that opens by phone QR code, Bluetooth 5.0, 125 kHz or 13.56 MHz card. Onboard relay plus Wiegand 34, RS485, USB and TCP/IP. IP55.
- Opens by phone QR code, Bluetooth 5.0, 125 kHz EM card or 13.56 MHz ISO/IEC 14443A card
- Wiegand 34 (default), RS485, USB and TCP/IP Ethernet plus onboard NO/COM/NC relay
- Reads MIFARE Classic, CPU and MIFARE DESFire cards alongside 125 kHz EM ID cards
- QR scan tolerance: 360° rotation, ±65° tilt, ±60° skew
- 86 × 86 × 50 mm faceplate with tempered-glass lens for 86-type wall boxes
- Credentials
- QR code, 125 kHz, 13.56 MHz, Bluetooth
- Interfaces
- Wiegand 34, RS485, USB, TCP/IP
- Lock output
- Relay NO / COM / NC
- Power
- 9–15 V DC, ≤ 200 mA
- IP rating
- IP55
- Dimensions
- 86 × 86 × 50 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
QR Code + RFID Bluetooth Access Controller, TCP/IP & Wiegand: overview

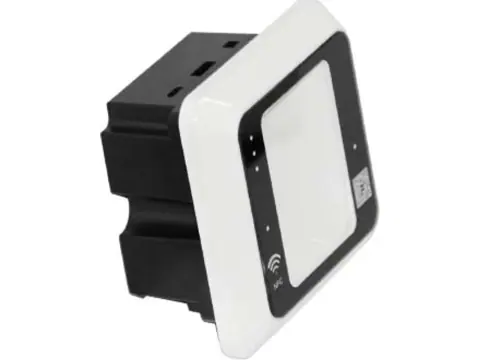

The BL-120 packs a QR code scanner, a dual-frequency card reader and Bluetooth 5.0 into an 86 × 86 mm square faceplate made for standard 86-type back boxes. It can release a door by itself through its onboard relay, or sit in front of an existing controller and pass credentials on as Wiegand 34. Typical sites are residential communities, visitor desks, hotels and unstaffed retail, where one device has to accept phone codes, cards and app entry at the same door.

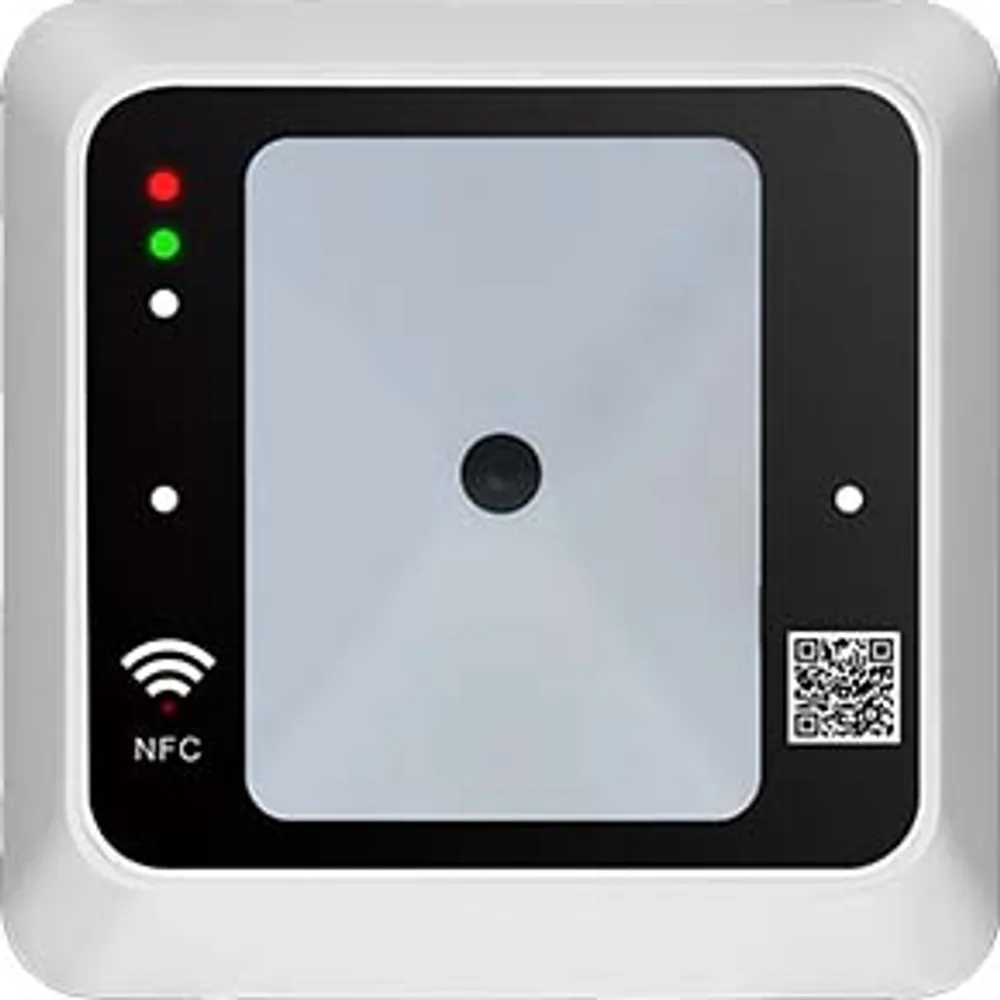

Behind the tempered-glass lens, the scanner reads dynamic QR codes shown on a phone and tolerates 360° rotation, ±65° tilt and ±60° skew, so users do not have to line the screen up precisely. The RF side follows ISO/IEC 14443A at 13.56 MHz for MIFARE Classic, CPU and MIFARE DESFire cards, and also reads 125 kHz EM-type ID cards. Users are added or removed through management software.
Integration notes
Connectivity covers Wiegand (34-bit by default), RS485, USB, Ethernet TCP/IP and Bluetooth. A 10-position screw terminal block on the rear body carries 12 V/GND, RS485 (485+/485–), Wiegand (WG0/WG1), relay contacts (NO1/COM/NC1) and a door-contact input (MAG). Supply 9–15 V DC; current is about 80 mA at standby and up to 200 mA in operation. The enclosure is IP55 with 4 kV contact / 8 kV air ESD protection and runs from –20 to +60 °C. Dynamic QR codes are generated by the phone app or platform the controller is paired with, so confirm that platform for your region before a project order.
More features
- IP55, –20 to +60 °C, 4 kV contact / 8 kV air ESD protection
BL-120 specifications
RF & credentials
| Frequency | 125 kHz and 13.56 MHz |
|---|---|
| 13.56 MHz protocol | ISO/IEC 14443A |
| 13.56 MHz cards | MIFARE Classic, CPU (microprocessor) smart cards, MIFARE DESFire |
| 125 kHz cards | EM-type ID cards and key fobs |
| Bluetooth | Bluetooth 5.0 phone entry |
QR scanning
| Codes | Dynamic QR codes displayed on a phone |
|---|---|
| Reading angle | 360° rotation, ±65° tilt, ±60° skew |
| Window | Tempered-glass lens |
Interfaces
| Wiegand | Output, 34-bit by default |
|---|---|
| Serial | RS485 |
| USB | Yes |
| Network | TCP/IP Ethernet |
| Lock relay | NO1 / COM / NC1 |
| Door contact | MAG input |
| User management | Add and delete users through management software |
Electrical
| Supply voltage | 9–15 V DC |
|---|---|
| Standby current | 80 mA |
| Operating current | ≤ 200 mA |
| ESD protection | 4 kV contact, 8 kV air |
Mechanical & environment
| Dimensions | 86 × 86 × 50 mm (±1.0 mm) |
|---|---|
| Mounting | 86-type wall box |
| Ingress rating | IP55 |
| Operating temperature | –20 to +60 °C |
| Storage temperature | –20 to +60 °C |
| Environmental | RoHS compliant |

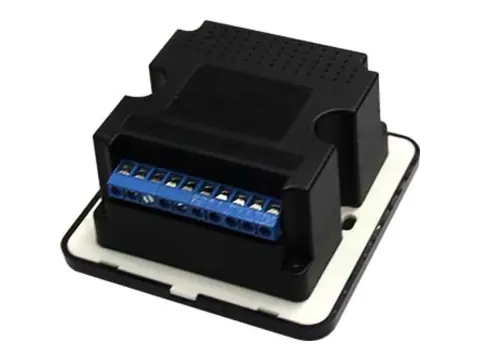

Rear terminal block
| Pin | Label | Function |
|---|---|---|
| 1 | 12V | +12 V DC supply |
| 2 | GND | Ground |
| 3 | 485+ | RS485 A (+) |
| 4 | 485– | RS485 B (–) |
| 5 | WG0 | Wiegand D0 |
| 6 | WG1 | Wiegand D1 |
| 7 | NO1 | Relay normally open |
| 8 | COM | Relay common |
| 9 | NC1 | Relay normally closed |
| 10 | MAG | Door-contact input |
Terminal labels as marked on the block. The exit-button connection is not labeled in the documentation, so confirm it with us before wiring a request-to-exit button.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| BL-120-D-Q-BT | QR scanner + 125 kHz EM + 13.56 MHz ISO/IEC 14443A reader, Bluetooth 5.0; relay, Wiegand 34, RS485, USB, TCP/IP; 86 × 86 mm, IP55. |
Where the BL-120 is used
- Residential lobby doors that accept resident cards and visitor phone QR codes
- Visitor desks issuing phone QR passes instead of plastic cards
- Unstaffed retail rooms and gyms opened by an app QR code
- Front end for an existing Wiegand panel that needs QR and Bluetooth added
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
BL-120 FAQ
Can it work with my existing access control panel?
Yes. It outputs Wiegand (34-bit by default), so a panel with a Wiegand reader input treats it as a reader. RS485 and TCP/IP are also available for integration.
Which QR codes does it accept?
It is designed for dynamic QR codes displayed on a phone, generated by the app or platform paired with the controller. Codes read at any rotation, up to ±65° tilt and ±60° skew.
Does it fit a standard wall box?
The faceplate is 86 × 86 mm and the rear body is 50 mm deep, designed for an 86-type single-gang back box. Check back-box depth before installing.
Which card types can I use?
13.56 MHz ISO/IEC 14443A cards such as MIFARE Classic, CPU smart cards and MIFARE DESFire, plus 125 kHz EM-type ID cards and fobs.
Is it rated for outdoor use?
It is IP55 and operates from –20 to +60 °C, so it suits sheltered exterior doors. Avoid positions with direct driving rain.
