BL-140 4G LTE Bluetooth Card Access Controller, 13.56 MHz
Card-and-phone door controller for sites without a LAN: 4G LTE to the cloud, Bluetooth 5.0 phone entry, 13.56 MHz ISO/IEC 14443A cards, relay output, IP55.
- 4G LTE link to a cloud platform for remote user add/delete; no site network needed
- Bluetooth 5.0 phone entry plus 13.56 MHz ISO/IEC 14443A card reading
- Reads MIFARE Classic, CPU and NFC cards
- Relay NO1/NC1/COM1, exit-button and door-contact inputs, Wiegand D0/D1 leads
- M4-core MCU at 120 MHz; built-in tamper alarm
- Network
- 4G LTE + Bluetooth 5.0
- Frequency
- 13.56 MHz (ISO/IEC 14443A)
- Lock output
- Relay NO / NC / COM
- Power
- 9–15 V DC, ≤ 200 mA
- IP rating
- IP55
- Dimensions
- 113 × 75 × 16 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
4G LTE Bluetooth Card Access Controller, 13.56 MHz: overview
The BL-140 is a compact card-and-phone door controller that reports to a cloud platform over 4G LTE rather than a site network. Residents and staff open the door with a 13.56 MHz card or a phone over Bluetooth 5.0, while administrators add or delete users remotely across the cellular link. The front has no keypad, which keeps it discreet on rental units, plant rooms, telecom cabinets and remote pedestrian gates.
An M4-core MCU running at 120 MHz handles card reading and communication. The reader follows ISO/IEC 14443A and accepts MIFARE Classic, CPU (microprocessor) smart cards and NFC cards. The 113 × 75 × 16 mm housing is IP55 rated, operates from –20 to +60 °C, has 4 kV contact / 8 kV air ESD protection and includes a tamper alarm that sounds from the unit.
Integration notes
Supply 9–15 V DC; standby draw is roughly 80 mA, rising to a maximum of 200 mA when active. The harness carries relay contacts (NO1/NC1/COM1) for standard magnetic or electric bolt locks, an exit-button input (SW1), a door-contact input (MAG) and Wiegand D0/D1 data lines.
This is a 4G variant. The published band list for the standard module covers TD-LTE and FD-LTE bands of specific carriers only, so confirm LTE band compatibility with your country before ordering. The cloud platform and phone app should be confirmed for your region at the same time; we check both before quoting.
More features
- 113 × 75 × 16 mm, IP55, –20 to +60 °C, 9–15 V DC
BL-140 specifications
RF & credentials
| Frequency | 13.56 MHz |
|---|---|
| Protocol | ISO/IEC 14443A |
| Cards | MIFARE Classic, CPU (microprocessor) smart cards, NFC cards |
| Other entry method | Bluetooth 5.0 phone |
Communication & management
| Cellular | 4G LTE (TD-LTE / FD-LTE, limited carrier band set; confirm for your country) |
|---|---|
| Wireless | Bluetooth 5.0 |
| User management | Add and delete users remotely over 4G |
| Processor | M4-core MCU, 120 MHz |
Inputs & outputs
| Lock relay | NO1 / NC1 / COM1 |
|---|---|
| Inputs | Exit button (SW1), door contact (MAG) |
| Wiegand | D0 / D1 data lines |
| Tamper | Built-in tamper alarm |
| Compatible locks | Standard magnetic locks and electric bolt locks |
Electrical
| Supply voltage | 9–15 V DC |
|---|---|
| Standby current | 80 mA |
| Operating current | ≤ 200 mA |
| ESD protection | 4 kV contact, 8 kV air |
Mechanical & environment
| Dimensions | 113 × 75 × 16 mm (±1.0 mm) |
|---|---|

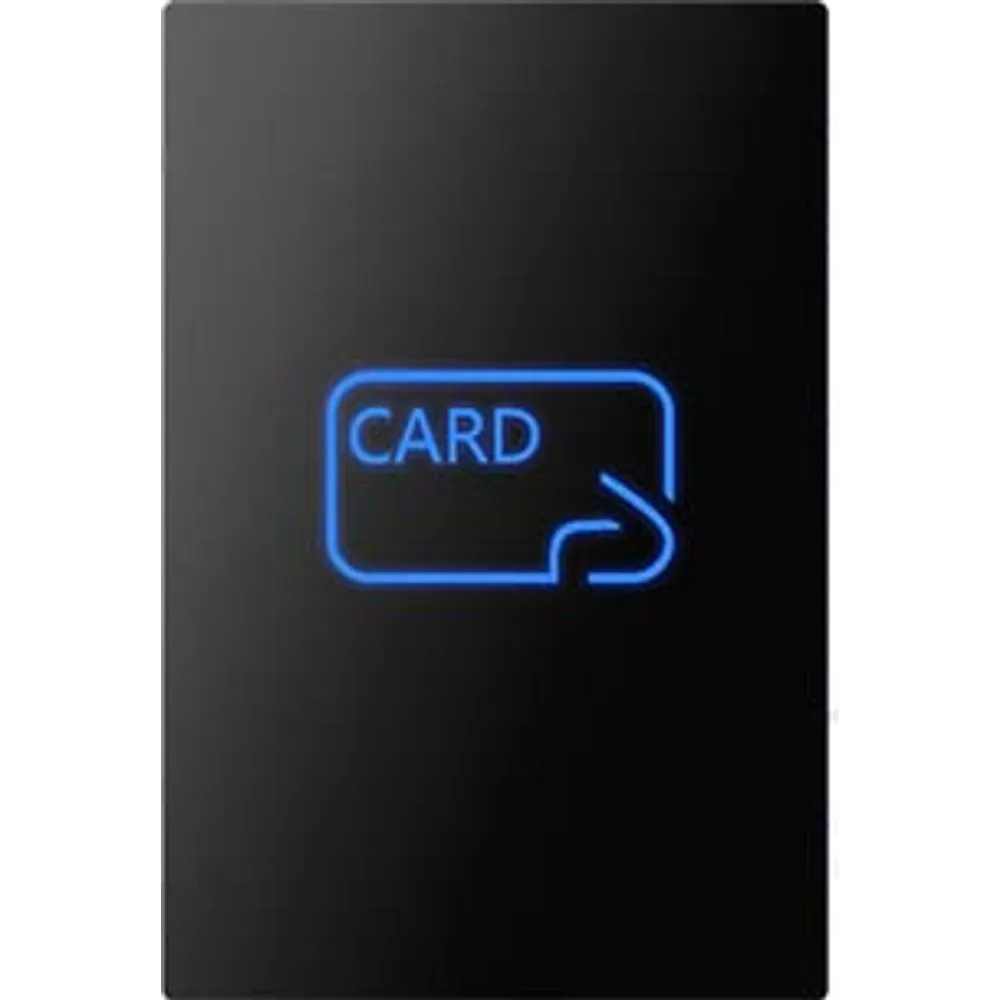

| Front | Card symbol only, no keypad |
| Ingress rating | IP55 |
| Operating temperature | –20 to +60 °C |
| Storage temperature | –20 to +60 °C |
| Environmental | RoHS compliant |
Wire colors
| Wire | Label | Function |
|---|---|---|
| Red | 12V | +12 V DC supply |
| Black | GND | Ground |
| Orange | COM1 | Relay common |
| Gray | NO1 | Relay normally open |
| Blue | NC1 | Relay normally closed |
| Yellow | SW1 | Exit-button input |
| Purple | MAG | Door-contact input |
| Green | D0 | Wiegand D0 |
| White | D1 | Wiegand D1 |
Flying-lead harness as documented for this unit.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| BL-140-M-4G-BT | 4G LTE variant (confirm LTE bands for your country), Bluetooth 5.0, 13.56 MHz ISO/IEC 14443A reader, relay output, IP55. |
Where the BL-140 is used
- Rental units and serviced apartments managed remotely by a property team
- Telecom cabinets, pump houses and plant rooms at sites without a LAN
- Remote pedestrian gates where tenants open by phone and staff use cards
BL-140 FAQ
Which LTE bands does the 4G module support?
The standard module is listed for a limited set of TD-LTE and FD-LTE carrier bands. Tell us your country and carrier, and we confirm compatibility before you place an order.
Does it have a keypad?
No. Entry is by 13.56 MHz card or Bluetooth phone only. If you need PIN entry, choose one of the keypad controllers in this range.
What are the green and white leads for?
They are the Wiegand D0 (green) and D1 (white) data lines. Tell us whether you need the unit to send or receive Wiegand and we confirm the setup for your controller.
Which card types can I enroll?
ISO/IEC 14443A cards at 13.56 MHz: MIFARE Classic, CPU smart cards and NFC cards. It does not read 125 kHz proximity cards.
What lock can it switch?
The relay provides NO, NC and COM contacts for standard magnetic locks or electric bolt locks, powered from a separate lock supply.
