IH-140 Compact HF RFID Read Head, RS485 Modbus RTU, IP67
Lightweight threaded IP67 read head for ISO 15693 and 14443A tags at short range (0–50 mm), with RS485 Modbus RTU and an M12 connector; about 80 g complete.
- Smallest head in the family: Ø30 × 60 mm, about 80 g as a complete set
- Reads ISO 15693 and ISO 14443A tags at 0–50 mm, depending on the tag
- About 35 mm read distance with a Ø30 mm industrial tag
- RS485 at 9600–115200 bit/s with Modbus RTU; M12 connector
- 24 V DC, 2 W max; orange status LED; firmware update over serial
- Frequency
- 13.56 MHz (ISO 15693 / ISO 14443A)
- Read range
- 0–50 mm (approx. 35 mm with Ø30 mm tag)
- Interface
- RS485, Modbus RTU
- Power
- 24 V DC, 2 W max
- Size & weight
- Ø30 × 60 mm, approx. 80 g
- Protection
- IP67, –40 to +70 °C
Reply within 24 hours Tested before dispatch Worldwide shipping
Compact HF RFID Read Head, RS485 Modbus RTU, IP67: overview

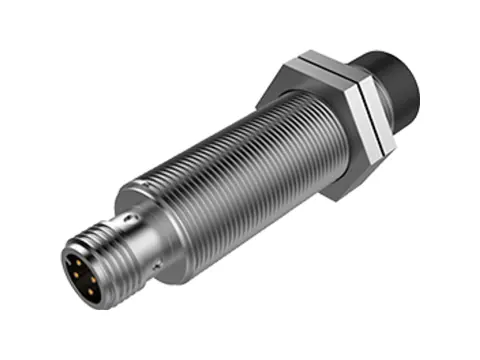

The IH-140 is the smallest and lightest of our 13.56 MHz RS485 read heads, measuring Ø30 × 60 mm and weighing about 80 g as a complete set. Its threaded cylindrical barrel clamps into a bracket with two lock nuts and connects through an M12 cable, which makes it a good fit for crowded fixtures, small workpiece carriers and tool holders where the tag passes close to the head.
It reads ISO/IEC 15693 and ISO/IEC 14443A tags through an integrated PCB antenna behind a black sensing cap. Rated read distance is 0–50 mm depending on the tag, and about 35 mm with a Ø30 mm industrial tag, so mount the head close to the tag path. If your layout needs more clearance, the M30 IH-120 and the square IH-130 are rated up to 80 mm.
The IP67 housing is rated for operation from –40 to +70 °C and for ESD of ±10 kV air and ±8 kV contact discharge, suitable for machine frames and wet or dusty line areas.
Integration notes

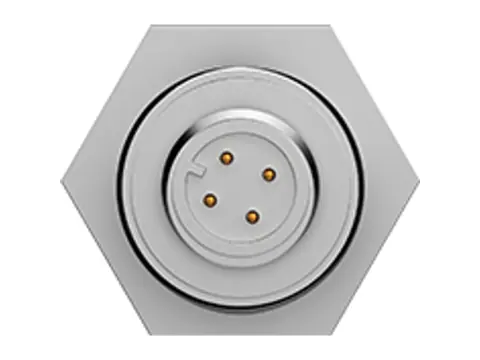

The head runs from 24 V DC and draws no more than 2 W. It communicates over RS485 at 9600–115200 bit/s using Modbus RTU, so it can connect directly to a PLC serial module or reach an Ethernet network through an RS485-to-Ethernet gateway. The M12 connector takes a female-connector cable harness. An orange LED blinks to show operating status, firmware is updated over the serial port, and an API kit with C, C# and Java sample programs is available for bench testing.
More features
- IP67, –40 to +70 °C, ESD ±10 kV air / ±8 kV contact
- Threaded barrel with two lock nuts for bracket mounting
IH-140 specifications
RF & tags
| Operating frequency | 13.56 MHz |
|---|---|
| Air protocols | ISO/IEC 15693, ISO/IEC 14443A |
| Read distance | 0–50 mm, depending on tag |
| With Ø30 mm industrial tag | approx. 35 mm |
| Antenna | Integrated PCB antenna |
Interfaces & software
| Interface | RS485 |
|---|---|
| Protocol | Modbus RTU |
| Serial baud rate | 9600–115200 bit/s |
| Status indication | Orange LED (blinks to show operating status) |
| Firmware update | Over the serial port |
| Software support | API development kit with C, C# and Java sample programs |
Electrical
| Supply voltage | 24 V DC |
|---|---|
| Power consumption | 2 W max |
| ESD immunity | ±10 kV air discharge, ±8 kV contact discharge |
Mechanical & environment
| Dimensions | Ø30 × 60 mm |
|---|---|
| Housing | Threaded cylindrical barrel with two lock nuts |
| Connection | M12 connector, M12 female-connector cable harness |
| Weight | approx. 80 g (complete set) |
| Ingress protection | IP67 (IEC) |
| Operating temperature | –40 to +70 °C |
| Operating humidity | 5–95% RH, non-condensing |
Ordering code
| Variant SKU | Housing | Interface | Connection | Supply |
|---|---|---|---|---|
| IH-140-RS | Compact threaded barrel, Ø30 × 60 mm | RS485, Modbus RTU | M12 | 24 V DC |
Industrial HF reader family comparison
| SKU | Form factor | Dimensions | Rated read distance | With Ø30 mm industrial tag | Interfaces | Weight |
|---|---|---|---|---|---|---|
| IH-110 | Square networked reader/writer | 95 × 95 × 40 mm | Up to 110 mm (ISO 15693) | 110 mm read / 100 mm write | Ethernet, RS232, RS485 (Wi-Fi optional) | approx. 1.1 kg |
| IH-120 | M30 threaded barrel read head | Ø30 × 65 mm | 0–80 mm | approx. 45–60 mm (by build) | RS485 | approx. 140 g |
| IH-130 | Square block read head | 40 × 40 × 45 mm | 0–80 mm | approx. 60 mm | RS485 | approx. 120 g |
| IH-140 | Compact threaded barrel read head | Ø30 × 60 mm | 0–50 mm | approx. 35 mm | RS485 | approx. 80 g |
Read figures are tag-dependent. Weights are for the complete set as supplied.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| IH-140-RS | Compact 13.56 MHz read head, ISO 15693/14443A, RS485 Modbus RTU, M12 connector, IP67 |
Where the IH-140 is used
- Identifying small workpiece carriers on tightly packed assembly fixtures
- Reading tags embedded in tool holders at a tool-change position
- Adding a short-range ID point to a conveyor where space is limited
- Confirming which part tray is loaded at a manual work station
IH-140 FAQ
What read distance should I plan for?
The IH-140 is rated 0–50 mm depending on the tag, and about 35 mm with a Ø30 mm industrial tag. For more clearance, the IH-120 and IH-130 heads are rated up to 80 mm.
How is it mounted?

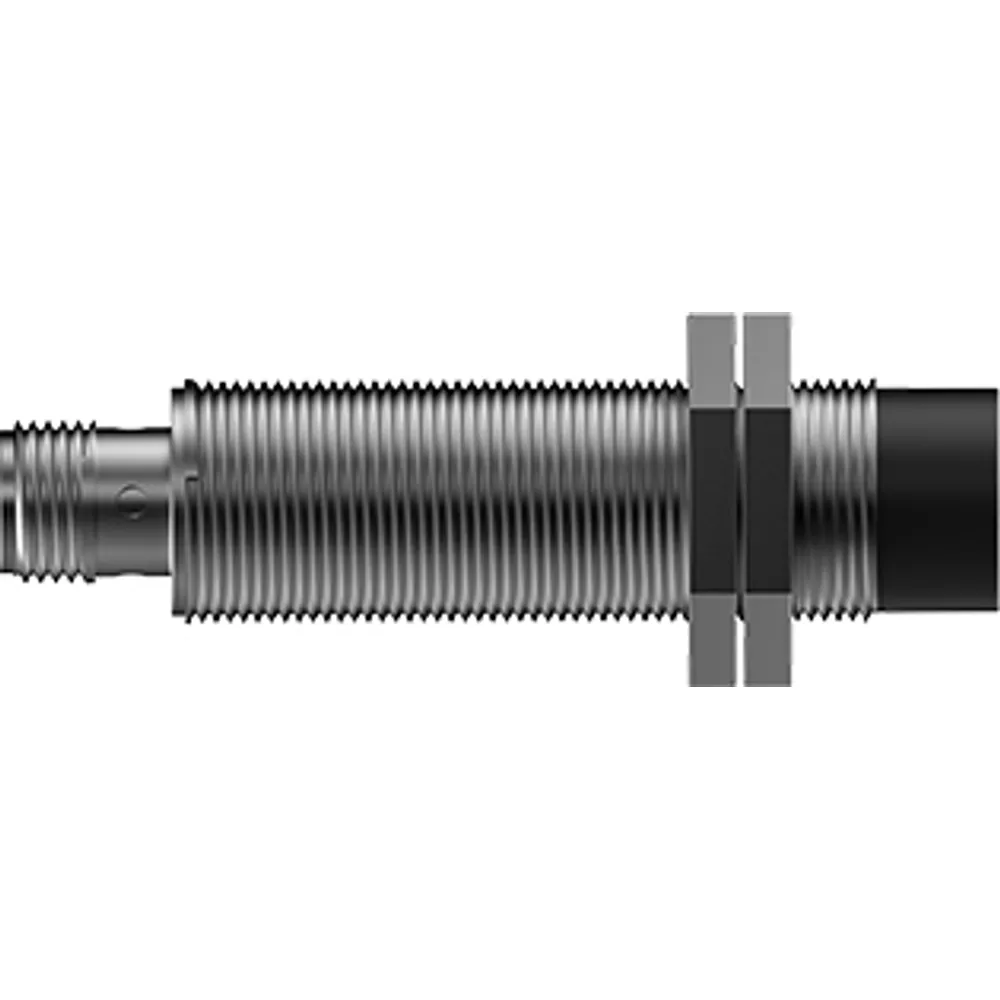

Pass the threaded barrel through a bracket hole and clamp it with the two lock nuts, with the black sensing cap facing the tag path. Keep surrounding metal away from the cap to preserve range.
Does it support Modbus TCP?
Not directly. The IH-140 has a single RS485 port that carries Modbus RTU. For an Ethernet network, place an RS485-to-Ethernet gateway between the head and the PLC, or use the IH-110 reader, which has Modbus TCP built in.
What cable does it use?
An M12 female-connector cable harness carrying 24 V DC and the RS485 pair. Ask for the pin assignment and specify the cable length on your RFQ.
Can the head write data to tags?
The published rating covers reading only. If your process must write lot or step data to the tag, contact us to confirm write support and write distance for your tag type, or use the IH-110, which is rated to write at up to 100 mm on ISO 15693.
