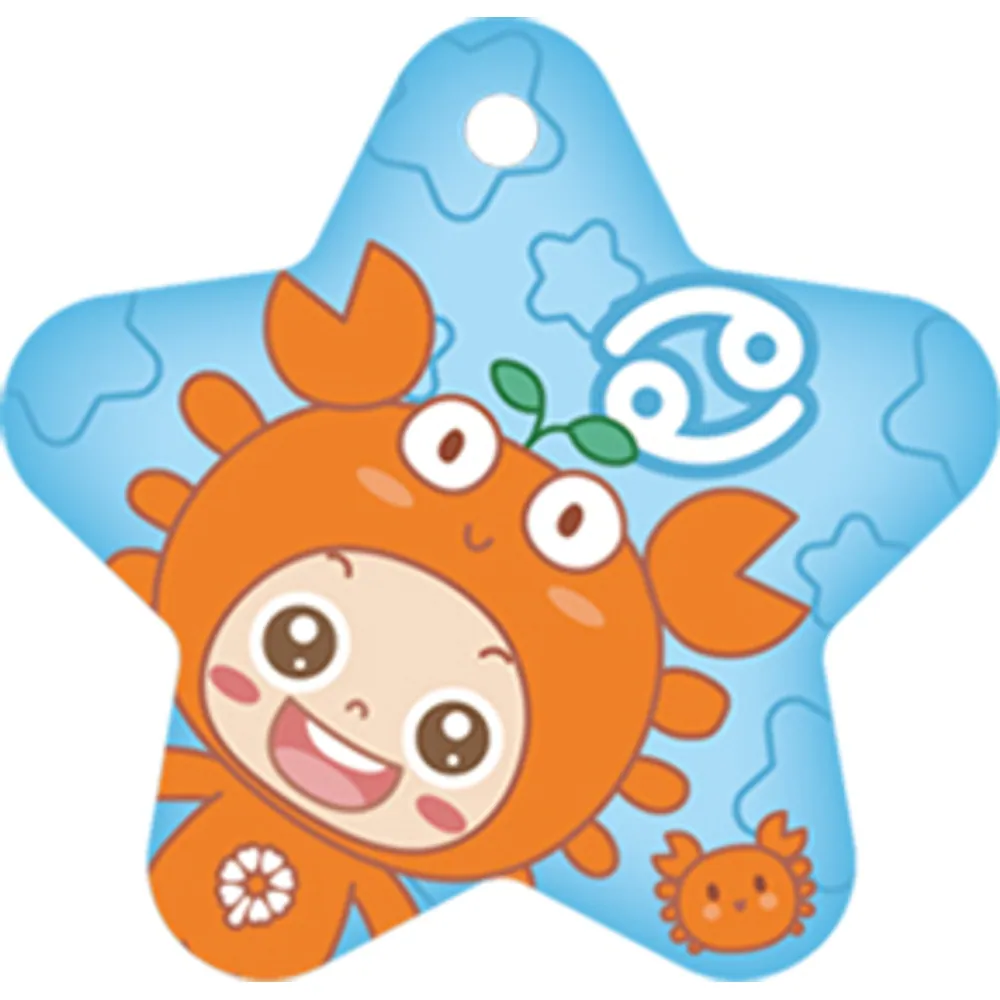

CA-130 Custom-Shaped RFID Card, LF / HF / UHF
Custom round, square or irregular RFID credentials with LF, HF or UHF chip options and configurable printing, coding and finish.
- Custom round, square or irregular outline
- 125 kHz, 13.56 MHz or 860–960 MHz configuration
- HF ISO/IEC 14443A / ISO/IEC 15693 and UHF EPC Gen2 options
- PVC or PET with print, code, hot-stamp and epoxy finish options
- –20 to +55 °C operating range; read distance depends on setup
- Frequency
- 125 kHz / 13.56 MHz / 860–960 MHz
- Outline
- Round, square, irregular or custom
- Material
- PVC / PET
- Memory
- Depends on selected chip
- Operating temperature
- –20 to +55 °C
Reply within 24 hours Tested before dispatch Worldwide shipping
Custom-Shaped RFID Card, LF / HF / UHF: overview
CA-130 is a custom-shaped RFID card family for projects that need the credential outline to fit a particular object, display or issuing format. Round, square and irregular shapes are listed, with PVC and PET construction options. The design is suited to exhibition credentials, event identification and product labels where a standard rectangular card is not the best fit.
The first decision is the radio configuration: 125 kHz, 13.56 MHz or 860–960 MHz. The listed HF choices cover ISO/IEC 14443A and ISO/IEC 15693, while the UHF choices use EPC Class 1 Gen 2 / ISO/IEC 18000-6C. Chip options include EM4200, MIFARE Classic, Ultralight, NTAG, ICODE and UHF devices. Specify one exact configuration, because a custom outline does not make incompatible chips interchangeable.
Printing, screen printing, code marking, hot stamping, data writing, punching and an epoxy finish are available. Memory capacity follows the selected chip. The operating temperature is listed as –20 to +55 °C, with storage at –35 to +70 °C; no universal sensing distance is given.
Give the issuing workflow the same attention as the artwork. Define what the reader must retrieve and how the backend will interpret it, then test the proposed card on the intended equipment. For custom shapes, confirm the completed dimensions and construction before approval, as the description mentions additional enclosure materials beyond the PVC/PET specification.
CA-130 specifications
RF & chip selection
| Frequencies | 125 kHz / 13.56 MHz / 860–960 MHz, by configuration |
|---|---|
| Protocols | ISO/IEC 14443A, ISO/IEC 15693 or ISO/IEC 18000-6C EPC Class 1 Gen 2, by chip |
| Chip choices | EM4200; MIFARE Classic S50/S70; Ultralight EV1/C; NTAG213/216; ICODE SLIX; FM1108; DESFire options; Alien H3; Impinj M4D/M4E/M4QT/M5 |
| Memory | Chip dependent |
| Read distance | Depends on reader and installation |
Construction & environment
| Materials | PVC / PET per specification; confirm custom build |
|---|---|
| Shape | Round, square, irregular or customized |
| Finishes | Print, screen print, code marking, hot stamp, data writing, punching, epoxy |
| Operating temperature | –20 to +55 °C |
| Storage temperature | –35 to +70 °C |
| Data retention | 10 years stated; confirm selected chip |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| CA-130-E | 125 kHz custom credential; EM4200 chip option | |
| CA-130-M | 13.56 MHz custom credential; specify ISO/IEC 14443A or ISO/IEC 15693 chip | |
| CA-130-GL | 860–960 MHz UHF custom credential; specify UHF chip |
Where the CA-130 is used
- Custom event and exhibition credentials
- RFID product labels with a nonstandard outline
- Printed identifiers fitted to a specific issuing format
CA-130 FAQ
Can I order an irregular outline?
Yes. Round, square, irregular and custom shapes are listed.
Is one card compatible with all three frequency bands?
The bands are chip configuration choices. A universal three-frequency card is not documented.
Which finishing operations are offered?
Printing, screen printing, code marking, hot stamping, writing data, punching and epoxy finishing are listed.
What read range is specified?
No fixed distance is specified. Performance depends on the reader and installation.
