EW-110 USB UHF RFID Desktop Reader/Writer, HID Keyboard Output
Driver-free USB desktop UHF reader/writer that types EPC, TID or USER data into any software. 0–8 cm range for controlled enrollment; US and EU band versions.
- USB HID, driver-free on Windows, Android and Linux; powered from the USB port
- Keyboard-emulation output of EPC, TID or USER data, selectable
- Reads and writes EPC Gen2 / ISO 18000-6C tags, including 915 MHz UHF cards
- 0–8 cm read distance and < 90 ms read time for one-tag-at-a-time enrollment
- Beep plus flashing green LED on every successful read
- Frequency
- 902–928 MHz (US) / 865–868 MHz (EU)
- Interface
- USB HID, keyboard emulation
- Read range
- 0–8 cm
- Read time
- < 90 ms
- Power
- 5 V DC via USB, 150 mA operating
- Dimensions
- 107 × 107 × 23 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
USB UHF RFID Desktop Reader/Writer, HID Keyboard Output: overview

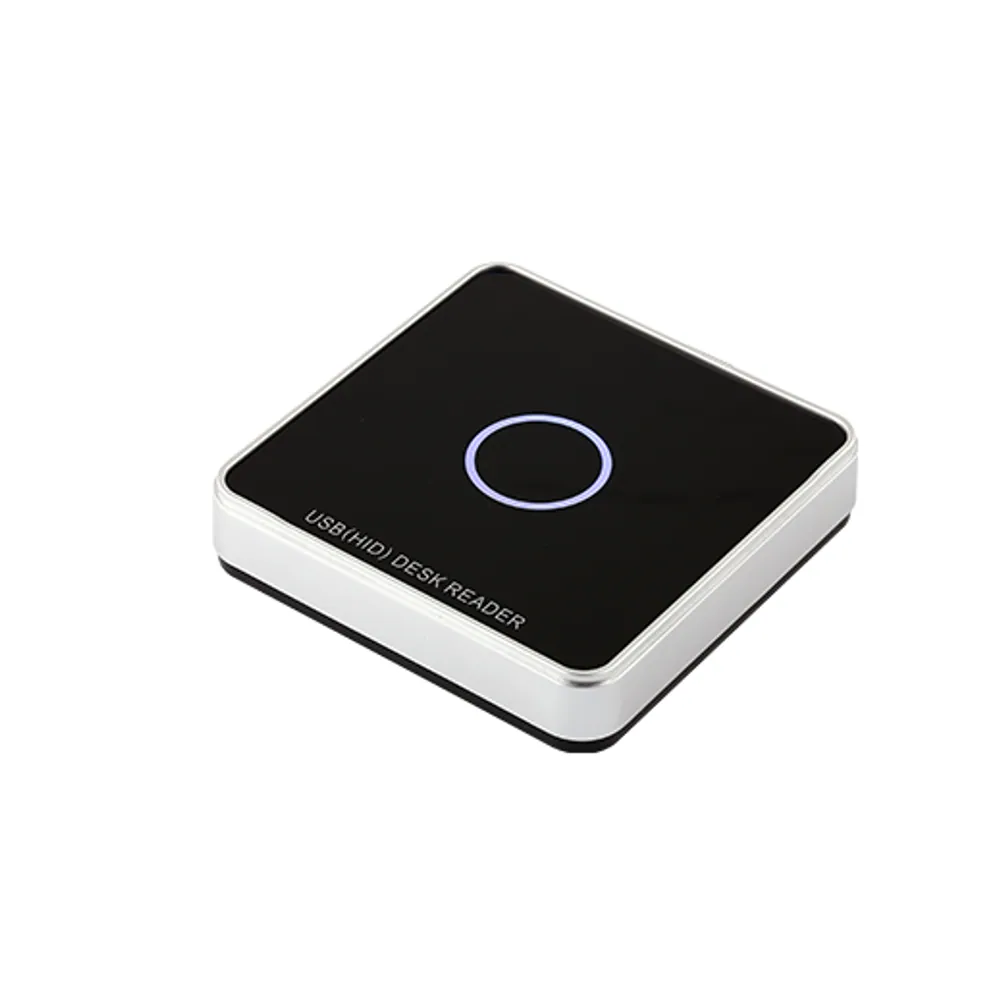

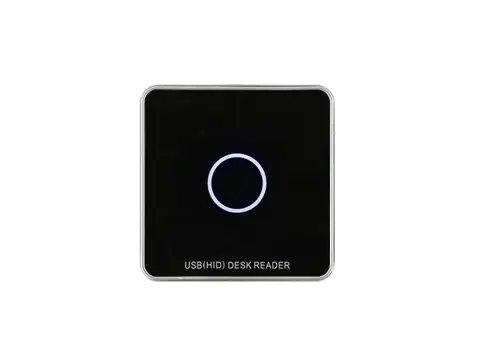

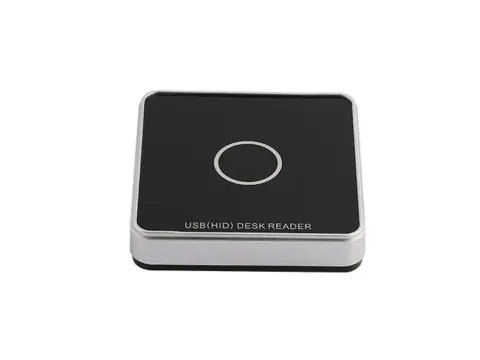

The EW-110 is a USB desktop UHF RFID reader/writer for the enrollment desk, where windshield tags and UHF cards are registered into parking, access-control, attendance, canteen or library systems. It enumerates as a USB HID device, so it works on Windows, Android and Linux without a driver, and it takes its 5 V power from the same USB port.
In active mode the reader acts as a keyboard and types tag data into whichever field has focus, and you choose whether it sends the EPC, TID or USER memory bank. In passive mode the demo software takes over to read and write tags, and the same software switches the unit between read-only and read/write operation. Firmware can be upgraded online.
The built-in antenna handles EPC Gen2 / ISO 18000-6C tags, including 915 MHz UHF cards, at 0–8 cm. That short distance is deliberate: only the tag placed on the reader is captured, not the stack of cards next to it. A read completes in under 90 ms and is confirmed by a beep and a flashing green LED.
Order EW-110-US for the FCC 902–928 MHz band or EW-110-EU for the ETSI 865–868 MHz band, matching the regulations where the reader will be used. The housing measures 107 × 107 × 23 mm and sits flat on a counter next to the keyboard.
More features
- Read-only or read/write mode set in software; online firmware upgrade
- US 902–928 MHz and EU 865–868 MHz versions
EW-110 specifications
RF & credentials
| Frequency | 902–928 MHz (US version) / 865–868 MHz (EU version) |
|---|---|
| Region plans listed | FCC (US, Canada), ETSI EN 302 208 (Europe), China, Japan, Korea, Malaysia, Taiwan |
| Protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
| Supported tags | EPC Gen2 tags and cards, including 915 MHz UHF cards |
| Antenna | Built-in |
| Read range | 0–8 cm (depends on card size and environment) |
| Read time | < 90 ms within range |
| Operations | Read and write; read-only mode selectable |
Interfaces & software
| Host interface | USB HID, driver-free |
|---|---|
| Output | Keyboard emulation; EPC, TID or USER data configurable |
| Working modes | Active (keyboard output) / passive (read-write via demo software) |
| Operating systems | Windows, Android, Linux |
| Firmware | Online upgrade |
| Indicators | Buzzer and green LED |
Electrical
| Power supply | 5 V DC (±4%) via USB |
|---|---|
| Current | 70 mA quiescent, 150 mA operating |
Mechanical & environment
| Dimensions | 107 × 107 × 23 mm |
|---|---|
| Operating temperature | −10 to +60 °C |
| Storage temperature | −20 to +70 °C |
| Operating humidity | 15–90% |
Order codes
| SKU | Band / regulation | Output | Supply |
|---|---|---|---|
| EW-110-US | FCC, 902–928 MHz | USB HID keyboard; EPC/TID/USER configurable | 5 V DC via USB |
| EW-110-EU | ETSI EN 302 208, 865–868 MHz | USB HID keyboard; EPC/TID/USER configurable | 5 V DC via USB |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| EW-110-US | USB HID desktop reader/writer, US FCC band (902–928 MHz) | |
| EW-110-EU | USB HID desktop reader/writer, EU ETSI band (865–868 MHz) |
Where the EW-110 is used
- Registering new windshield tags into a parking or gate-access database
- Issuing UHF staff cards at an HR or security desk
- Checking the EPC or TID of a returned tag before re-issuing it
- Encoding asset tags one at a time before they are applied
RFID Asset & Tool Tracking
Build an RFID asset tracking system: on-metal, ceramic and tie-on tags matched to each asset, handheld audits, smart cabinets and IP67 HF heads for tooling.
EW-110 FAQ
Do I need to install a driver?
No. The EW-110 enumerates as a USB HID device on Windows, Android and Linux and draws power from the same USB port.
What data does it type into my software?
In keyboard mode it outputs the EPC, TID or USER memory bank, whichever you configure. Place the cursor in the target field, as you would with a barcode scanner.
Can it write tags as well as read them?
Yes. In passive mode the demo software reads and writes EPC Gen2 tags, and you can also lock the unit into read-only operation.
Why is the read range only 0–8 cm?
Short range is intended for issuing and enrollment: only the tag on the reader is captured, so nearby cards on the desk are not registered by mistake. For lane reading, use a long-range reader.
Which version should I order?
EW-110-US for FCC 902–928 MHz countries and EW-110-EU for ETSI 865–868 MHz countries. Tell us the destination and we will confirm the region plan.
