LR-150 Standalone UHF RFID Access Controller, Bluetooth, IP66
IP66 all-in-one UHF reader and access controller: stores 5,000 users, controls the gate lock, opens by Bluetooth and reads tags at up to 10 m or 20 m.
- Standalone mode: 5,000 users, on-board access decisions and lock control
- Reader mode: sends tag IDs to external controllers over Wiegand or RS485
- Bluetooth BLE 5.1 door release and configuration at about 0–3 m
- TCP/IP link to management software, with offline operation supported
- 2–10 m (309 mm) or 10–20 m (445 mm) versions, 200 tags/s peak inventory
- User capacity
- 5,000
- Read range
- 2–10 m (309 mm) / 10–20 m (445 mm)
- Frequency
- 865–868 MHz (EU) or 902–928 MHz (US)
- Interfaces
- Wiegand, RS485, TCP/IP, BLE 5.1, USB
- IP rating
- IP66
- Power
- 9–15 V DC, ≤ 1500 mA at 12 V
Reply within 24 hours Tested before dispatch Worldwide shipping
Standalone UHF RFID Access Controller, Bluetooth, IP66: overview

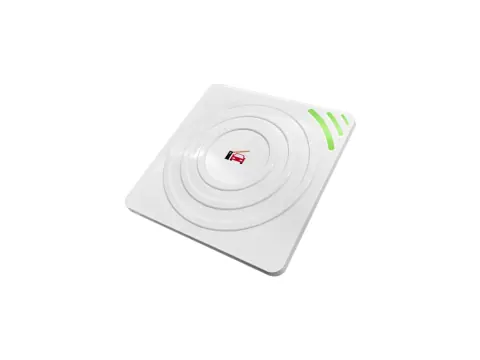

The LR-150 combines a long-range UHF RFID reader and an access controller in one IP66 housing. It holds up to 5,000 users, decides by itself whether a tag is authorized and operates its lock-control output, so a small car park or gated driveway can run without a separate controller cabinet.
The same unit can also run in reader mode. In that role it passes tag IDs over Wiegand or RS485 to an existing access or parking controller, which suits sites that plan to centralize control later. A TCP/IP port links it to management software on the LAN, and the unit also supports offline operation.
Bluetooth (BLE 5.1) handles door release at roughly 0–3 m as well as configuration, and a USB port is available for setup. Inventory speed peaks at 200 tags per second, and a status LED with seven selectable colors shows the reader state to drivers and guards.
Two panel sizes are available: a 309 × 309 mm unit for 2–10 m and a 445 × 445 mm unit for 10–20 m. Each comes in an EU 865–868 MHz version and a US version covering the 902–928 MHz band, which ships set to 902–906 MHz and can be adjusted in the configuration tool.
Integration notes

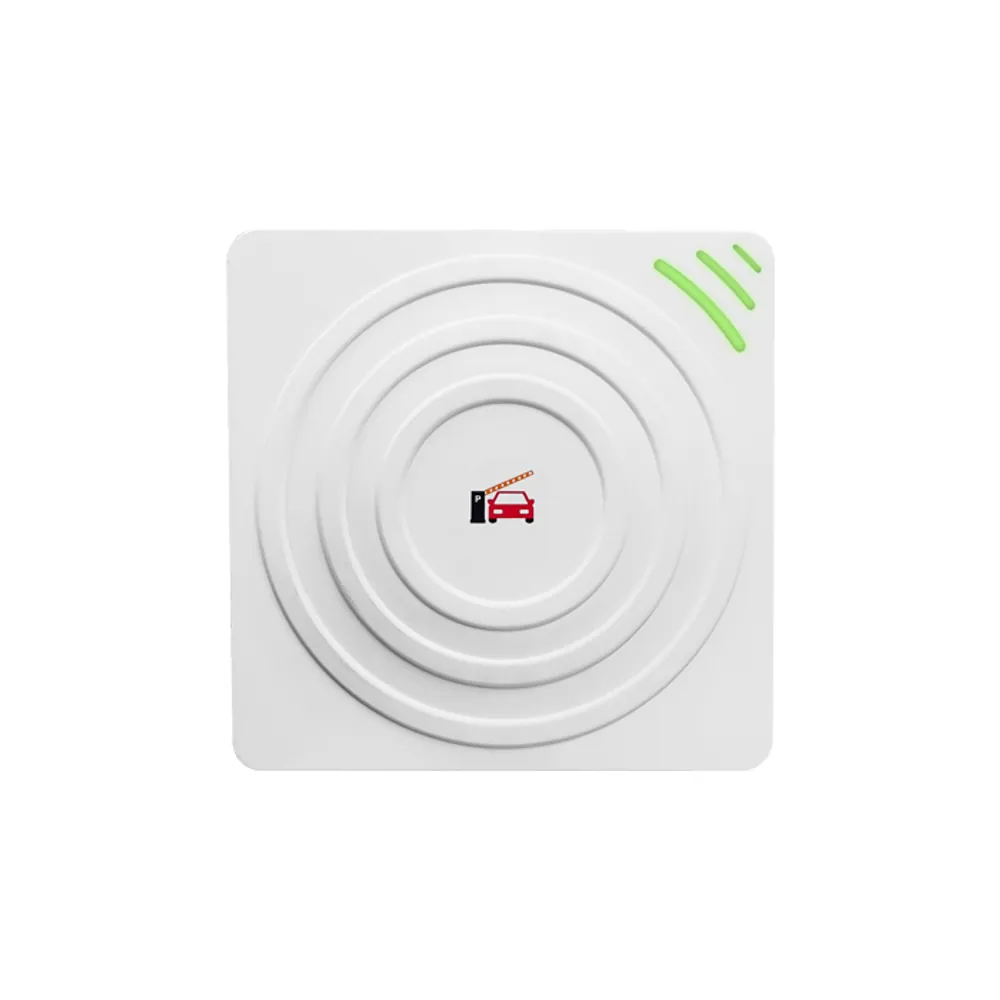

Power from 9–15 V DC. At 12 V the controller draws up to 500 mA on standby and up to 1500 mA while working, so allow at least 1.5 A per unit. Quoted distances come from handheld card tests; run a site test with your windshield tags before fixing the mounting position. The front carries a printed vehicle icon.
More features
- IP66 housing, EU 865–868 MHz or US 902–928 MHz band
LR-150 specifications
Access control
| Operating modes | Standalone access controller or reader |
|---|---|
| User capacity | 5,000 |
| Lock control | Integrated lock-control output |
| Bluetooth | BLE 5.1, about 0–3 m depending on installation; door release and configuration |
| Network | TCP/IP (wired); offline operation supported |
RF & tags
| Air protocol | ISO 18000-6C / EPCglobal UHF Class 1 Gen 2 |
|---|---|
| Frequency | EU: 865–868 MHz; US: 902–928 MHz band (default 902–906 MHz, adjustable) |
| RF output power | 19–30 dBm |
| Read range | 2–10 m (309 mm) / 10–20 m (445 mm), handheld card test; depends on installation and card |
| Peak inventory speed | 200 tags/s |
Interfaces
| Reader-mode outputs | Wiegand, RS485 |
|---|---|
| Network | TCP/IP |
| Configuration | USB, Bluetooth |
| Status LED | 7 colors: red, green, blue, yellow, cyan, purple, white |
Electrical
| Supply voltage | 9–15 V DC |
|---|---|
| Current at 12 V | ≤ 500 mA standby; ≤ 1500 mA working |
Mechanical & environment
| Dimensions | 309 × 309 × 65.5 mm (±0.5 mm) or 445 × 445 × 86.2 mm (±0.3 mm) |
|---|---|
| Ingress protection | IP66 |
| Operating temperature | –20 to +65 °C (–4 to +149 °F) |
| Storage temperature | –40 to +80 °C (–40 to +176 °F) |
| Operating humidity | 20–80% RH, non-condensing |
| Compliance | RoHS |
Variant matrix
| SKU | Band | Panel size | Read range | Interfaces |
|---|---|---|---|---|
| LR-150-309-EU | 865–868 MHz | 309 × 309 × 65.5 mm | 2–10 m | Wiegand, RS485, TCP/IP, BLE 5.1, USB |
| LR-150-309-US | 902–928 MHz band (default 902–906 MHz) | 309 × 309 × 65.5 mm | 2–10 m | Wiegand, RS485, TCP/IP, BLE 5.1, USB |
| LR-150-445-EU | 865–868 MHz | 445 × 445 × 86.2 mm | 10–20 m | Wiegand, RS485, TCP/IP, BLE 5.1, USB |
| LR-150-445-US | 902–928 MHz band (default 902–906 MHz) | 445 × 445 × 86.2 mm | 10–20 m | Wiegand, RS485, TCP/IP, BLE 5.1, USB |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| LR-150-309-EU | 309 mm panel, 2–10 m, 865–868 MHz, standalone/reader modes, TCP/IP + Bluetooth | |
| LR-150-309-US | 309 mm panel, 2–10 m, 902–928 MHz band, standalone/reader modes, TCP/IP + Bluetooth | |
| LR-150-445-EU | 445 mm panel, 10–20 m, 865–868 MHz, standalone/reader modes, TCP/IP + Bluetooth | |
| LR-150-445-US | 445 mm panel, 10–20 m, 902–928 MHz band, standalone/reader modes, TCP/IP + Bluetooth |
Where the LR-150 is used
- Single-gate residential driveway or small car park run without a separate controller
- Private estate entrance where residents use windshield tags and visitors are released by Bluetooth
- Remote depot gate that must keep granting access when the network link drops
- Phased upgrade: start standalone, then switch to reader mode under a central parking controller
Apartment, Multifamily & Rental Property Access Control
Apartment building access control hardware: anti-clone readers with matched fob sets, QR visitor codes, 4G controllers for rentals and UHF tags for gates.
LR-150 FAQ
Do I need a separate access controller?
Not for a single gate. In standalone mode the LR-150 stores up to 5,000 users, checks each tag and operates the lock control itself. Switch to reader mode to send Wiegand or RS485 data to an existing controller instead.
What happens if the network goes down?
The unit supports offline operation, so users stored on the device can still be checked while the TCP/IP connection is unavailable.
How does Bluetooth unlocking work?
The controller supports Bluetooth door release over BLE 5.1 at about 0–3 m, depending on installation. Tell us which management platform or app you plan to use so we can confirm compatibility before you order.
Which panel size should I order?
The 309 mm unit covers 2–10 m for single lanes and short driveways; the 445 mm unit covers 10–20 m for wider vehicle gates. Both offer the same modes and interfaces.
What supply current is needed?
At 12 V the controller draws up to 500 mA on standby and up to 1500 mA while working, so use a 9–15 V DC supply rated for at least 1.5 A.
