PC-130 Compact USB RFID Card Reader, 125 kHz, 13.56 MHz or Dual

Compact USB desktop reader for 125 kHz EM or 13.56 MHz card-number capture. Choose a single-band or dual-frequency version; PC-130-D-MS also reads and writes MIFARE Classic 1K/4K sectors.

  • PC-130-E: 125 kHz EM identifier capture; PC-130-M: 13.56 MHz UID capture
  • PC-130-D reads both credential families in one desktop unit
  • PC-130-D-MS adds MIFARE Classic 1K/4K sector read/write and key change
  • Configurable card-number output; confirm format and USB behavior with your application
  • USB-powered at 5 V, ≤ 150 mA; 110.5 × 81.5 × 25.5 mm housing
Frequency
125 kHz, 13.56 MHz or dual (by version)
Standard
ISO/IEC 14443A (13.56 MHz)
Interface
USB; confirm host mode by SKU
Read range
Card-dependent; confirm with samples
Power
5 V DC via USB, ≤ 150 mA
Dimensions
110.5 × 81.5 × 25.5 mm
Reply within 24 hours Tested before dispatch Worldwide shipping

Compact USB RFID Card Reader, 125 kHz, 13.56 MHz or Dual: overview

PC-130 is a USB-powered desktop reader for capturing card numbers at reception, enrollment and membership desks. Select the full SKU by your credentials and required operation.

Choose the version by the card and operation

  • PC-130-E: read 125 kHz EM4100, EM4102 and EM4200-compatible identifiers.
  • PC-130-M: read 13.56 MHz UIDs from the listed MIFARE, DESFire, Plus, Ultralight, NTAG2xx and CPU card families.
  • PC-130-D: read both families at a mixed-credential enrollment desk.
  • PC-130-D-MS: add MIFARE Classic 1K/4K sector read/write, key changes and active/passive reading modes.

The HF side lists ISO/IEC 14443A. UID reading does not establish NFC URL encoding, card-application access or secure authentication. Compare other operations in the USB NFC reader buying guide.

Confirm USB behavior and output format

Driver-free USB and Windows, Android and Linux are listed. Confirm the selected SKU's device mode, configuration software and application interface on your target OS. Keyboard emulation, HID/CDC switching and CCID-PC/SC are not established by this record.

Output format is configurable. Provide an expected card number, including decimal/hexadecimal representation, byte order, length, leading zeros and prefix/suffix; use the USB output-format guide to prepare it. For Android, identify the USB-host device, adapter and power arrangement.

Sample acceptance before a bulk order

Agree pass/fail criteria and retain the accepted configuration:

  1. Record SKU, firmware, USB mode, configuration-tool version and application.
  2. Test every deployed credential type. Verify complete identifiers, formatting and repeated-scan behavior against your database.
  3. For PC-130-D-MS, verify required Classic sector operations with test cards and test keys; remove and present the card again to read back written data.
  4. Check USB reconnect, application restart and sleep/resume with the planned cable/hub. If keyboard output is confirmed, include focus and keyboard layout.
  5. Confirm card-presentation distance in the final desk arrangement with actual credentials.

Request a quote or samples

Send the full candidate SKU, quantity, card chip, operation, expected output, host OS/application and delivery country. Identify needed cables, adapters, software and command documentation. Confirm MOQ, price, sample availability and delivery timing in the quote.

Still choosing a variant? Prepare your USB reader project brief, then review the details in the inquiry form.

More features

  • Windows, Android and Linux listed; validate the selected SKU and host setup

PC-130 specifications

RF & credentials

Frequency125 kHz (PC-130-E); 13.56 MHz (PC-130-M); 125 kHz + 13.56 MHz (PC-130-D, PC-130-D-MS)
13.56 MHz standardISO/IEC 14443A
125 kHz credentialsEM4100, EM4102 and EM4200-compatible thick cards, thin cards and key fobs
13.56 MHz UID readingMIFARE Classic Mini/EV1, MIFARE DESFire EV1/Light/EV2/EV3, MIFARE Plus S/X, MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx and CPU (microprocessor) cards
Read/write functionsMIFARE Classic 1K/4K sector read/write and key change (PC-130-D-MS only)
Read distanceDepends on card type and installation; confirm the required presentation distance with samples

Interfaces & software

Host interfaceUSB, listed as driver-free; confirm device mode, software and application interface for the selected SKU
Operating systemsWindows, Android and Linux listed; confirm OS version, USB-host setup and configuration-tool support
Output formatCard-number format configurable in software
Reading modesActive or passive, switchable (PC-130-D-MS)

Electrical

Supply5 V DC via USB
Current≤ 150 mA

Mechanical & environment

Dimensions110.5 × 81.5 × 25.5 mm

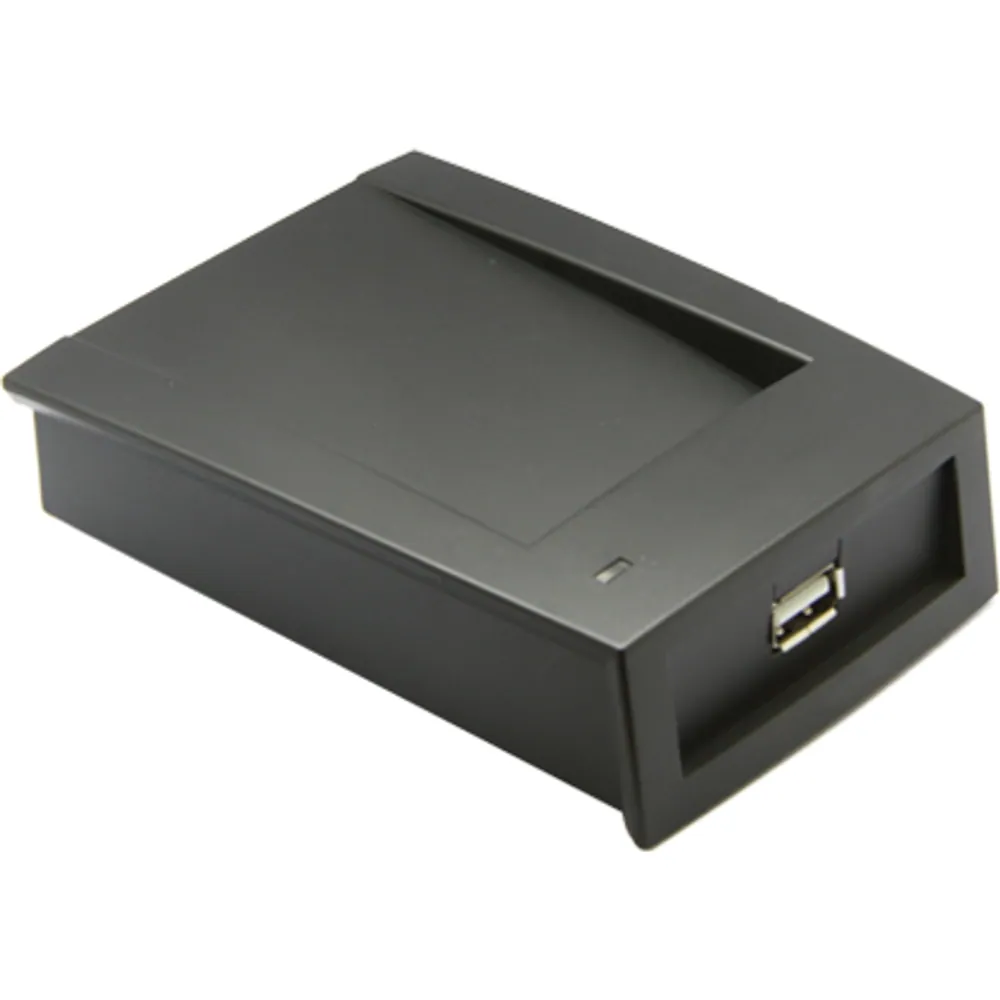

HousingBlack desktop housing with recessed card area
Operating temperature−10 to +60 °C (14 to 140 °F)
Storage temperature−20 to +70 °C (−4 to +158 °F)
Operating humidity15–90% RH

Version comparison

FunctionPC-130-EPC-130-MPC-130-DPC-130-D-MS
Frequency125 kHz13.56 MHz125 kHz + 13.56 MHz125 kHz + 13.56 MHz
EM4100/EM4102/EM4200 card readYes—YesYes
13.56 MHz UID read (MIFARE, DESFire, Plus, Ultralight, NTAG2xx, CPU)—YesYesYes
MIFARE Classic 1K/4K sector read/write, key change———Yes
Active/passive mode switching———Yes
Configurable output formatYesYesYesYes (active mode)

Capabilities listed by variant. UID reading is distinct from card-memory access; confirm firmware, USB behavior and sample results for the ordered build.

Specifications can change between production batches. Confirm the current revision with us before placing volume orders.

Ordering options

Request a quote for a configuration below, or add one or more to your inquiry list. Send the full SKU, card chip, required operation, expected output, host OS/application, quantity and delivery country.

SKUConfigurationActions
PC-130-E 125 kHz EM read-only USB reader (EM4100/EM4102/EM4200-compatible), configurable output
PC-130-M 13.56 MHz UID read-only USB reader for MIFARE, DESFire, Plus, Ultralight, NTAG2xx and CPU cards
PC-130-D Dual-frequency 125 kHz + 13.56 MHz read-only USB reader, configurable output
PC-130-D-MS Dual-frequency reader/writer: UID reading plus MIFARE Classic 1K/4K sector read/write, active/passive modes

Where the PC-130 is used

  • Capturing visitors' badge numbers into a reception application after output-format validation
  • Enrolling mixed 125 kHz EM and 13.56 MHz credentials during a card-technology migration
  • Member check-in at a gym or club counter with a compatible host application
  • Reading or writing MIFARE Classic sectors with PC-130-D-MS and suitable host software

PC-130 FAQ

Which PC-130 version reads both 125 kHz and 13.56 MHz cards?

PC-130-D reads 125 kHz EM identifiers and 13.56 MHz UIDs in one unit. PC-130-D-MS adds MIFARE Classic 1K/4K sector read/write and key changes. Specify the complete SKU and your exact credential types when requesting samples.

Can PC-130 write an NFC URL to NTAG or encode DESFire cards?

NTAG and DESFire support in this family is listed for UID reading. Only PC-130-D-MS lists writing, limited to MIFARE Classic 1K/4K sectors. For an NFC URL, application-data or authenticated-card workflow, use the USB NFC reader buying guide to identify candidates and validate the exact card commands and host software.

Does driver-free USB mean PC-130 types a card number into a browser or spreadsheet?

The product record lists driver-free USB and configurable card-number output, but does not establish keyboard emulation. Request confirmation for the selected SKU and firmware. If keyboard output is available, test focus, keyboard layout, leading zeros, prefix/suffix and repeated scans in the actual application.

Can PC-130 work with Windows, Android or Linux?

Those systems are listed in the product record. Confirm the current OS version, USB mode, application interface and configuration-tool support for the full variant SKU. For Android, also test USB-host support, permissions, adapter and power. The listing is not an application-specific compatibility test.

What read distance should I specify for PC-130?

Specify the card-presentation position required at your desk, then verify it with the exact credentials and installation. Card type, surroundings and reader placement affect the result; retain the sample acceptance distance with the agreed order configuration.

What should I send for a 1000-unit PC-130 quote or sample request?

Include the full candidate SKU, quantity, credential chip, required operation, expected card-number format, host OS/application and delivery country. Identify required cables, software and command documentation, then agree sample acceptance criteria. Confirm MOQ, price, sample availability and delivery timing for the chosen build in the quote.
