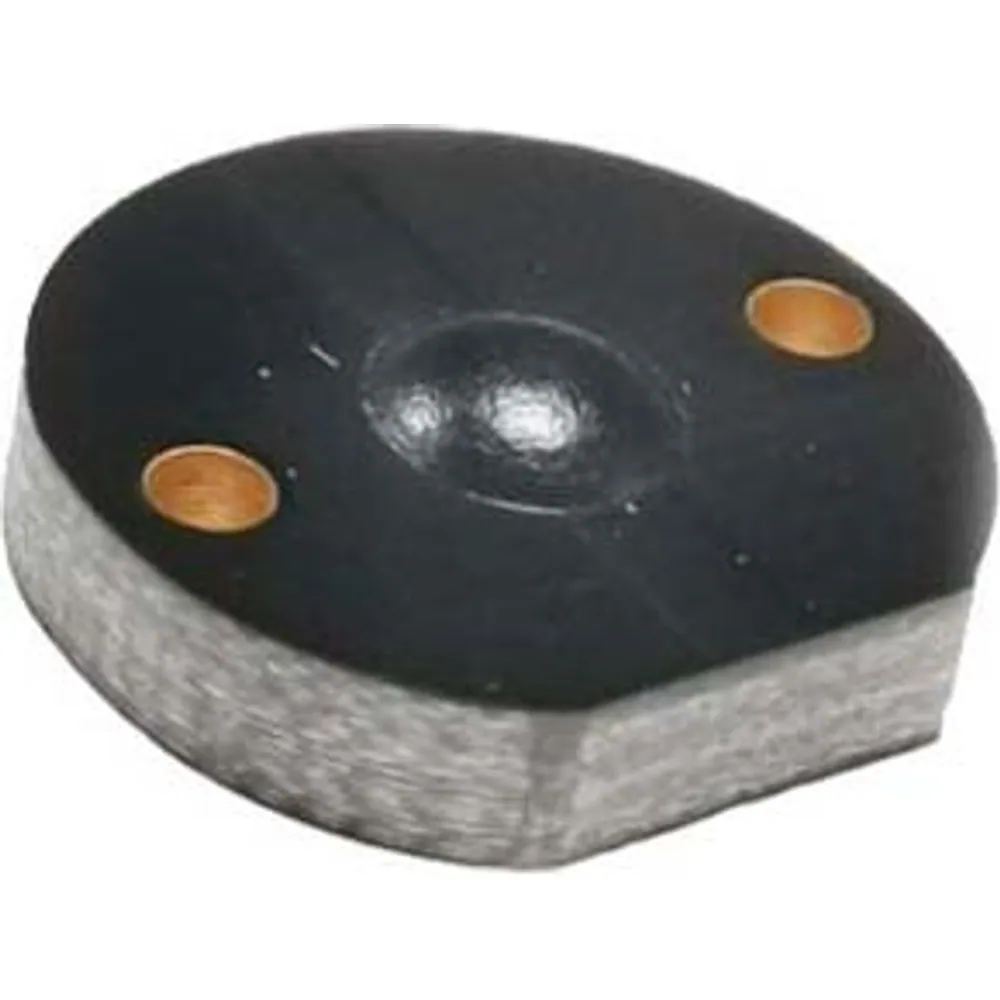

OM-210 Mini PCB On-Metal UHF RFID Tag, 16 × 15 mm
Our smallest PCB on-metal UHF tag: 16 × 15 × 3.8 mm FR4, NXP UCODE 8. Reads 2.6 m on metal with a 4 W fixed reader and 1.6 m with a handheld.
- 16 × 15 × 3.8 mm, the smallest PCB tag in our on-metal range
- 2.6 m on metal with a 4 W fixed reader; 1.6 m with a handheld
- NXP UCODE 8 chip, EPC Gen2
- Order -US for 902–928 MHz or -EU for 866–868 MHz systems
- Rigid FR4 body for bonding or recessing into small metal parts
- Frequency
- 902–928 MHz / 866–868 MHz
- Chip
- NXP UCODE 8
- Read range (4 W fixed, on metal)
- 2.6 m
- Read range (handheld)
- 1.6 m
- Substrate
- FR4 PCB
- Dimensions
- 16 × 15 × 3.8 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
Mini PCB On-Metal UHF RFID Tag, 16 × 15 mm: overview
OM-210 is the smallest PCB tag in our on-metal range, a 16 × 15 × 3.8 mm FR4 circuit-board tag for metal items where even a 25 mm tag will not fit. Typical candidates are surgical and dental instruments, small hand tools, dies and inserts, connectors and firearm parts.
Despite the footprint, the datasheet quotes 2.6 m on a metal surface with a 4 W fixed reader and 1.6 m with an Impinj R2000-based handheld. That is workable for cabinet readers, tool-crib counters and handheld sweeps, but not for dock-door portals. The chip is an NXP UCODE 8, and the tag is listed for 902–928 MHz and 866–868 MHz; order OM-210-US or OM-210-EU for your region.
If you can fit a longer tag, OM-200 (25 × 10 mm) quotes 3 m and OM-180 (52 × 13 mm) quotes 8 m on metal. For an even smaller footprint, our ceramic on-metal tags start at 13 × 9 mm.
Integration notes
No fixing method is given on the datasheet. Tags of this size are usually bonded with epoxy or industrial adhesive, or recessed into a pocket in the part so they sit flush. Trial the method on samples with the tag in its final position, since small tags are sensitive to how they sit on the metal. Encode your EPC numbering on site with any Gen2 reader-writer.
OM-210 specifications
RF & chip
| Frequency band | 902–928 MHz (US) / 866–868 MHz (EU) |
|---|---|
| Chip | NXP UCODE 8 |
| Air interface | Passive UHF, EPC Gen2 (ISO/IEC 18000-63) |
Read range (datasheet)
| Fixed reader (4 W), on metal | 2.6 m |
|---|---|
| Handheld reader (Impinj R2000-based) | 1.6 m |
Mechanical
| Housing / substrate | FR4 printed circuit board |
|---|---|
| Dimensions | 16 × 15 × 3.8 mm |
| Mounting | Not specified; confirm adhesive or embedding method on samples |
| Designed for | Direct mounting on metal surfaces |
FR4 PCB on-metal UHF tags compared
| SKU | Size (mm) | Chip | Band | Fixed reader (4 W), on metal | Handheld reader |
|---|---|---|---|---|---|
| OM-190 | 90 × 20 × 3.5 | NXP UCODE 8 | 902–928 MHz / 866–868 MHz | 10 m | 6 m |
| OM-180 | 52 × 13 × 3.9 | NXP UCODE 8 | 902–928 MHz / 866–868 MHz | 8 m | 3.5 m |
| OM-200 | 25 × 10 × 2.5 | NXP UCODE 8 | 902–928 MHz / 866–868 MHz | 3 m | 2 m |
| OM-210 | 16 × 15 × 3.8 | NXP UCODE 8 | 902–928 MHz / 866–868 MHz | 2.6 m | 1.6 m |
Datasheet figures. Fixed-reader ranges are with the tag on metal and a 4 W reader; handheld ranges use an Impinj R2000-based handheld.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| OM-210-US | Mini FR4 PCB on-metal UHF tag, 16 × 15 × 3.8 mm, NXP UCODE 8, for 902–928 MHz systems | |
| OM-210-EU | Mini FR4 PCB on-metal UHF tag, 16 × 15 × 3.8 mm, NXP UCODE 8, for 866–868 MHz systems |
Where the OM-210 is used
- Surgical and dental instruments counted with a handheld
- Dies, inserts and small tooling in production tool rooms
- Small hand tools logged at a tool-crib reader
- Firearm parts in armory inventories
OM-210 FAQ
How far does such a small tag read?
The datasheet quotes 2.6 m with a 4 W fixed reader and the tag on metal, and 1.6 m with an Impinj R2000-based handheld.
How is it attached?
No method is specified. Epoxy, industrial adhesive or a recessed pocket are the usual options for tags this size; test on samples in the final position.
Which band variant do I need?
OM-210-US for 902–928 MHz systems and OM-210-EU for 866–868 MHz systems.
Can I program my own tag numbers?
Yes. The NXP UCODE 8 chip is EPC Gen2, so any Gen2 reader-writer can encode your EPC numbering.
