Narrow 55 × 15 × 1.2 mm flexible PET label for metal assets, listed for 902–928 MHz. Specify the print-and-encode workflow, roll construction and mounted sample acceptance before ordering.
OM-130 is a narrow 55 × 15 × 1.2 mm printable on-metal UHF label for assets with limited mounting space. The published configuration lists flexible PET, 902–928 MHz and an Impinj Monza R6 chip. Confirm the exact chip, label revision and memory map in the order specification.
Check the available surface and readable text/barcode area on the actual item. The outside dimensions do not establish the printable area, roll pitch or thickness including the liner. Use OM-110 for a larger candidate footprint, or OM-140 when evaluating a smaller face.
The documented band is 902–928 MHz. Request matching variant documentation for any other band. Catalog references on metal are 3.5 m with a reader described as 4 W and 2 m with an R2000-based handheld. Verify performance with your reader, antenna, settings and mounted asset; the source does not specify the 4 W power basis or complete test setup.
Provide the exact printer, RFID hardware option, firmware and ribbon. Request a roll drawing covering web width, pitch/gap, inlay position, liner/thickness basis, winding, core, outside diameter and labels per roll. Confirm the narrow artwork remains readable and the media feeds correctly.
Agree whether the quote covers blank labels, printing, encoding or a combined service. Define the printed-ID-to-EPC mapping, numbering owner, data format and required readback report. The printable on-metal label buying guide covers the full process; use the UHF encoding guide for data preparation.
Send OM-130, sample/bulk quantities, destination, reader band, asset surface, printer configuration, roll requirements, artwork and EPC data requirements. Confirm package contents, MOQ, available services and delivery timing in the quote.
| Frequency band | 902–928 MHz |
|---|---|
| Chip | Listed as Impinj Monza R6; confirm exact chip, revision and memory map |
| Air interface | Published configuration: passive UHF EPC Gen2 (ISO/IEC 18000-63); confirm ordered tag/chip revision |
| Fixed reader (4 W stated in source), on metal | 3.5 m catalog reference; validate the installed reader/antenna setup |
|---|---|
| Handheld reader (Impinj R2000-based) | 2 m on metal, catalog reference; validate with the intended handheld and asset |
| Material | PET, flexible |
|---|---|
| Dimensions | 55 × 15 × 1.2 mm |
| Attachment | Adhesive, flexible label; confirm adhesive and curvature limits for the actual surface |
| Suitable surfaces | Metal and liquid-container use described; qualify the surface and service conditions |
| Customization | Printing and EPC encoding listed; confirm workflow, data format and supply scope |
| SKU | Size (mm) | Build | Chip | Band | Fixed-reader reference, on metal | Handheld reference, on metal |
|---|---|---|---|---|---|---|
| OM-110 | 65 × 35 × 1.25 | Flexible PET, printable | Monza R6 (confirm revision) | 902–928 MHz | 6 m (US settings) | Not specified |
| OM-120 | 60 × 25 × 1 | Flexible PET, frangible | Monza R6 (confirm revision) | 902–928 MHz | 1 m | Not specified |
| OM-130 | 55 × 15 × 1.2 | Flexible PET, printable | Monza R6 (confirm revision) | 902–928 MHz | 3.5 m (4 W source) | 2 m (R2000-based) |
| OM-140 | 30 × 15 × 1.2 | Flexible PET, printable | Monza R6 (confirm revision) | 902–928 MHz | 0.6 m (4 W source) | 0.3 m (R2000-based) |
Catalog read-distance references on metal, not a common qualification test. Conditions are shown where documented; reader/antenna settings, metal geometry and power basis need confirmation with mounted samples.
| Order detail | Current product reference | Confirm before production |
|---|---|---|
| Footprint and band | 55 × 15 × 1.2 mm; 902–928 MHz | Revision, measurement basis, printable area and project reader band |
| Printer setup | Printing and encoding listed as customization | Exact printer/hardware, firmware, ribbon, calibration and pilot results |
| Roll construction | Roll drawing not published | Web width, pitch, inlay position, liner, winding, core/diameter and count |
| Artwork and EPC | Printable face; chip published as Monza R6 | Exact chip/memory, approved artwork, numbering owner, ID mapping and readback |
| Mounted use | Flexible PET; metal/liquid-container uses described | Surface, curvature, adhesive/environment limits and installed read performance |

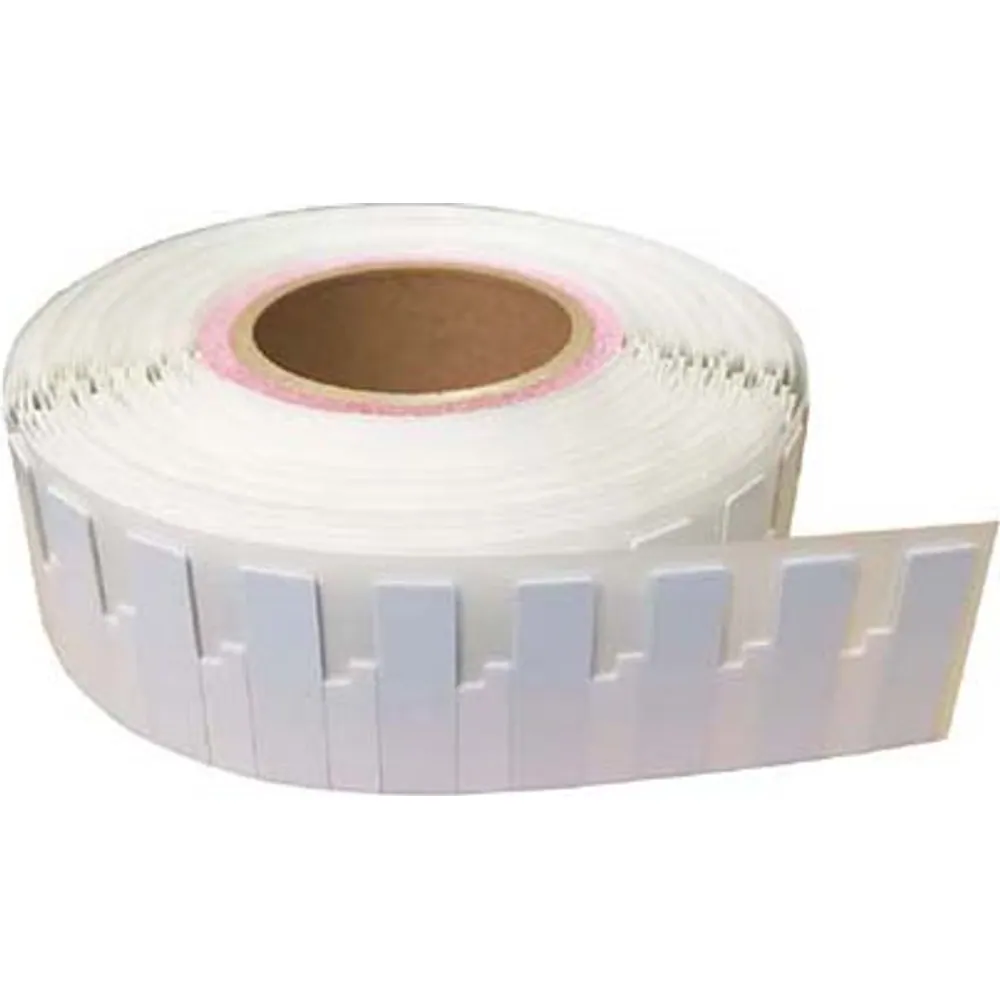

These are procurement and sample-confirmation requirements, not completed printer or environmental tests. The roll photo illustrates appearance rather than a confirmed production roll specification.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Request a quote for a configuration below, or add one or more to your inquiry list. Send OM-130, quantity, delivery country, asset surface, reader band, printer model, roll layout, artwork and EPC requirements.
| SKU | Configuration | Actions |
|---|---|---|
| OM-130 | Flexible printable anti-metal UHF label, 55 × 15 × 1.2 mm, listed Monza R6 (confirm revision), 902–928 MHz | |
Plan RFID for warehouse management: fixed readers and circular antennas at dock doors, conveyor tunnels, handheld cycle counts and on-metal asset tags.
Build an RFID asset tracking system: on-metal, ceramic and tie-on tags matched to each asset, handheld audits, smart cabinets and IP67 HF heads for tooling.
The catalog references are 3.5 m on metal with a reader described as 4 W and 2 m with an R2000-based handheld. The source does not state the complete test setup or 4 W power basis. Use these as evaluation references; record accepted performance with your actual reader, antenna, metal surface and label orientation.
Provide the exact printer, installed RFID/on-metal hardware options, firmware, ribbon and proposed roll drawing. Approve feeding, artwork, calibration, consecutive encoding and readback on a sample run. The printable face and EPC interface do not establish compatibility with every printer or roll layout.
The record gives a nominal 55 × 15 × 1.2 mm label size without a complete thickness measurement basis or roll drawing. Confirm whether the stated thickness includes the liner, along with tolerances, pitch, inlay position and feed-path fit, before approving the printer/media combination.
The current product record specifies 902–928 MHz. A verified 865–868 MHz build is not established here. Request documentation for a matching variant and test it with the project reader before using it in an 865–868 MHz purchase specification.
Printing and encoding are listed customization options; one-pass operation needs an approved printer/media workflow. Agree the visible-ID-to-EPC mapping, exact chip/memory, data allocation and readback report. Include duplicate, reject and reprint handling so accepted labels remain linked to the correct assets.
Flexible PET and metal/liquid-container use are described, but adhesive chemistry, minimum bend radius, application/service temperatures, IP or immersion ratings and chemical/UV resistance are not established by the current record. Specify the actual surface and service conditions, request the missing limits and qualify representative mounted samples.
