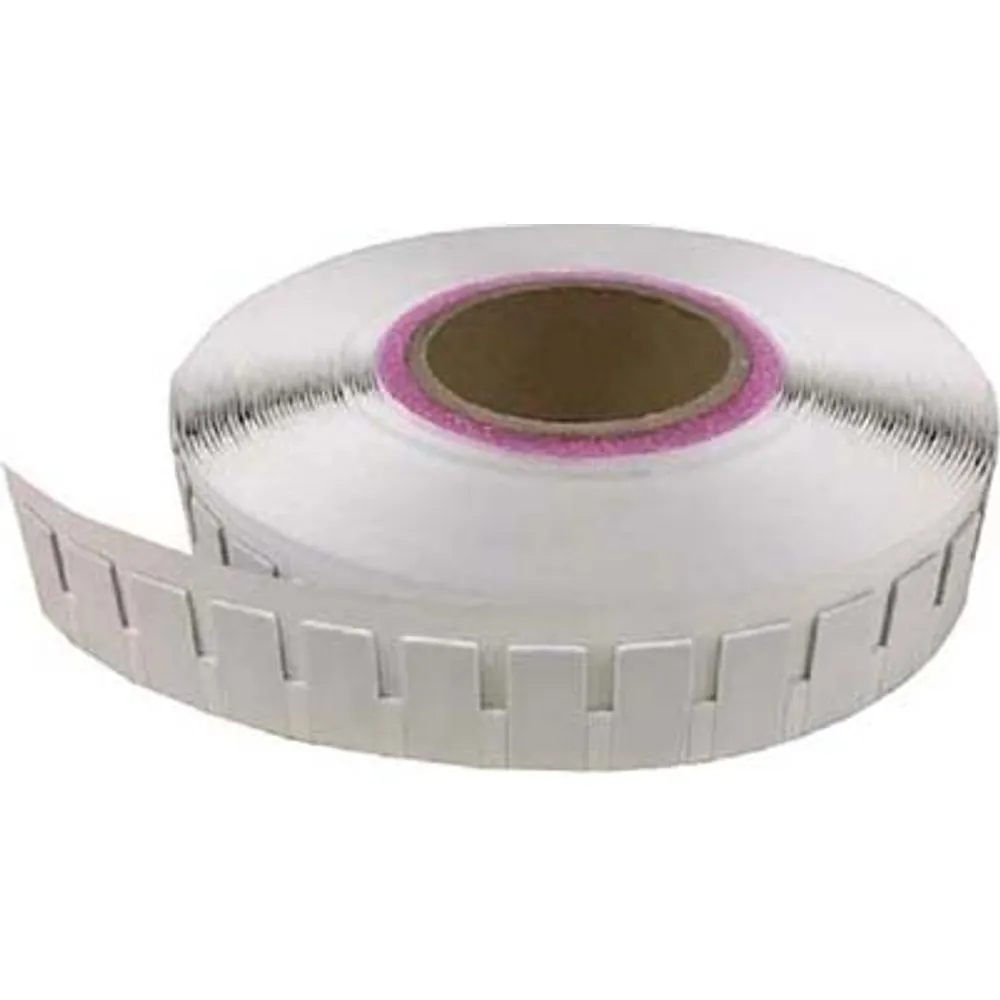

OM-140 Small Anti-Metal UHF RFID Sticker, 30 × 15 mm

Compact 30 × 15 × 1.2 mm on-metal UHF sticker. Catalog references: 0.6 m with a 4 W fixed reader and 0.3 m with an R2000-based handheld; confirm mounted performance with samples.

  • Compact 30 × 15 × 1.2 mm footprint for restricted mounting space
  • Catalog references on metal: 0.6 m (4 W fixed reader); 0.3 m (Impinj R2000-based handheld)
  • Impinj Monza R6 chip, specified for 902–928 MHz
  • Printable face for a visible ID next to the encoded EPC
  • Flexible PET; confirm adhesive, curvature and environment on mounted samples
Frequency
902–928 MHz
Chip
Listed as Impinj Monza R6; confirm revision
Catalog range (4 W fixed, on metal)
0.6 m reference
Catalog range (R2000 handheld, on metal)
0.3 m reference
Dimensions
30 × 15 × 1.2 mm
Reply within 24 hours Tested before dispatch Worldwide shipping

Small Anti-Metal UHF RFID Sticker, 30 × 15 mm: overview

OM-140 is a compact flexible on-metal label. At 30 × 15 × 1.2 mm it is a candidate for metal items with very little room for a tag: hand tools, small instruments, meters, medical device housings and compact IT accessories. Like its larger siblings it is printable and encodable, so each sticker can carry a human-readable ID next to the EPC.

The catalog gives on-metal read-range references of 0.6 m with a 4 W fixed reader and 0.3 m with an Impinj R2000-based handheld. Consider it for short-distance handheld checks, tool-crib counters and bench-top verification; qualify the required distance on the actual asset, reader and antenna setup. The power measurement basis, test asset and antenna configuration are not documented in the current records. The published configuration lists an Impinj Monza R6 chip and the 902–928 MHz band; confirm the exact chip and label revision before production.

The catalog describes flexible PET for curved surfaces and containers holding liquid. Confirm the adhesive, bend limits and relevant environmental ratings before approving the final mounting method; this description does not establish waterproofing, immersion suitability or a temperature rating. If the item has room for a larger label, OM-130 (55 × 15 mm) has a 3.5 m catalog reference on metal with a 4 W fixed reader, and OM-110 (65 × 35 mm) has a 6 m reference under US settings.

Integration notes

Test mounted samples with the reader model your staff will carry, recording the surface, label orientation, antenna and settings. Provide your exact industrial UHF RFID label printer model, firmware and media layout so compatibility can be confirmed and samples tested before production. Printing and EPC encoding in one pass requires a confirmed printer and media combination. For roll, artwork, EPC data and sample-acceptance requirements, use the printable on-metal label buying guide.

OM-140 specifications

RF & chip

Frequency band902–928 MHz
ChipPublished configuration: Impinj Monza R6; confirm exact chip/revision and memory before ordering
Air interfacePassive UHF, EPC Gen2 (ISO/IEC 18000-63)

Read range (catalog reference)

Fixed reader (4 W), on metal0.6 m reference; power measurement basis and test setup not documented
Handheld reader (Impinj R2000-based)0.3 m reference, on metal; qualify on the project setup

Mechanical

MaterialPET, flexible
Dimensions30 × 15 × 1.2 mm
AttachmentAdhesive label; adhesive specification and bend limits require confirmation
Suitable surfacesMetal and containers holding liquid (catalog description); qualify the actual surface and environment
CustomizationPrinting and EPC encoding

Flexible on-metal UHF labels compared

SKUSize (mm)BuildChipBandFixed-reader reference, on metalHandheld reference, on metal
OM-11065 × 35 × 1.25Flexible PET, printableMonza R6 (confirm revision)902–928 MHz6 m (US settings)Not specified
OM-12060 × 25 × 1Flexible PET, frangibleMonza R6 (confirm revision)902–928 MHz1 mNot specified
OM-13055 × 15 × 1.2Flexible PET, printableMonza R6 (confirm revision)902–928 MHz3.5 m (4 W source)2 m (R2000-based)
OM-14030 × 15 × 1.2Flexible PET, printableMonza R6 (confirm revision)902–928 MHz0.6 m (4 W source)0.3 m (R2000-based)

Catalog read-distance references on metal, not a common qualification test. Conditions are shown where documented; reader/antenna settings, metal geometry and power basis need confirmation with mounted samples.

Specifications can change between production batches. Confirm the current revision with us before placing volume orders.

Ordering options

Request a quote for a configuration below, or add one or more to your inquiry list. Send OM-140, quantity, delivery country, asset surface, reader band and distance, printer model, roll layout, artwork and EPC requirements.

SKUConfigurationActions
OM-140 Small flexible printable anti-metal UHF sticker, 30 × 15 × 1.2 mm, listed Monza R6 (confirm revision), 902–928 MHz

Where the OM-140 is used

  • Hand tools and gauges checked in and out at a tool crib
  • Small instruments and meters verified with a handheld
  • Medical device housings too small for a standard label
  • Compact IT accessories in asset registers
Asset Tracking

RFID Asset & Tool Tracking

Build an RFID asset tracking system: on-metal, ceramic and tie-on tags matched to each asset, handheld audits, smart cabinets and IP67 HF heads for tooling.

OM-140 FAQ

How close does the reader need to be?

The catalog quotes on-metal references of 0.6 m with a 4 W fixed reader and 0.3 m with an Impinj R2000-based handheld. Use these to shortlist a short-distance application, then check mounted samples at the required distance with the actual reader, antenna, surface and settings. The records do not include a complete test setup or a project-specific range guarantee.

Is there a longer-range label in the same format family?

OM-130 (55 × 15 mm) has a 3.5 m catalog reference on metal with a 4 W fixed reader, and OM-110 (65 × 35 mm) has a 6 m reference under US settings. These are selection references; compare mounted samples on the actual asset and reader setup before choosing a size.

Can the stickers be printed and encoded?

The face accepts printing and the Monza R6 chip is writable. Provide the exact industrial UHF RFID label printer model, firmware and media layout so compatibility can be confirmed and samples tested before production. Printing IDs and encoding EPC data in one pass requires a confirmed printer and media combination.
