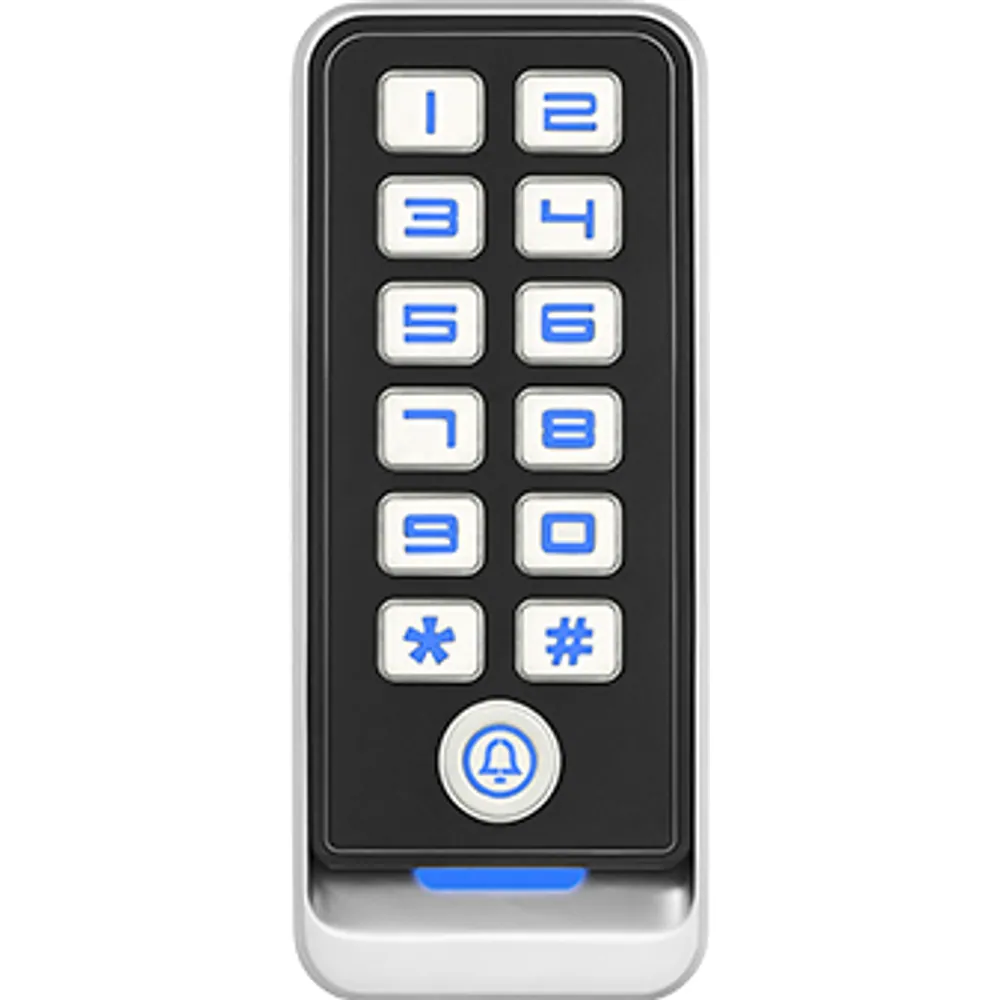

SK-130 Narrow IP65 Metal Access Control Keypad
Narrow 138 × 58 mm IP65 metal keypad holding 5,000 users. Opens by card, PIN or both, drives its own lock relay and can switch to Wiegand reader mode.
- 58 mm-wide IP65 metal housing for narrow frames, posts and wall strips
- 5,000 users with card, PIN or card + PIN access
- 125 kHz EM or 13.56 MHz MIFARE/NTAG UID versions
- Standalone or reader mode; Wiegand or TXD/RXD output set by DIP switch
- Door-sensor, tamper and wrong-entry alarms plus doorbell terminals
- Frequency
- 125 kHz or 13.56 MHz (by variant)
- User capacity
- 5,000 users
- IP rating
- IP65
- Outputs
- Lock relay (NO/COM/NC) + Wiegand
- Power
- 12 V DC ±5%, ≤ 200 mA
- Dimensions
- 138 × 58 × 22.67 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
Narrow IP65 Metal Access Control Keypad: overview
The SK-130 fits a complete standalone access controller into a narrow 138 × 58 mm metal housing for door frames, gate posts and wall strips too tight for a standard keypad. It stores 5,000 users, grants access by card, PIN or card plus PIN, and switches the lock from its own relay. The housing is rated IP65.
The SK-130-E reads 125 kHz EM4100, EM4102 and EM4200-compatible cards and key fobs. The SK-130-M reads 13.56 MHz UIDs from MIFARE Classic, MIFARE Plus, MIFARE DESFire, MIFARE Ultralight and NTAG2xx, and its card-number output format can be configured in software. Read distance is 0–3 cm, so users hold the card close to the front of the unit.
Apart from its shape, the SK-130 shares the published specification and 13-lead wiring of our SK-120, which makes it easy to mix wide and narrow keypads on one site. It can run standalone or switch to reader mode for an existing Wiegand panel, copy users to another unit and accept user management from a PC. Alarm handling covers door-sensor events, tampering and repeated wrong entries, and ESD tolerance is 6 kV contact and 8 kV air.
Integration notes
DIP switches 5 and 6 route Wiegand D0/D1 or TXD/RXD serial to the green and white leads. The NO/COM/NC relay contacts suit both fail-safe maglocks and fail-secure strikes. Budget up to 200 mA for the keypad in addition to the lock. Enrollment steps are in our keypad programming guide.
More features
- Same 13-lead wiring as the SK-120 for mixed-format sites
SK-130 specifications
RF & credentials
| Frequency | 125 kHz (SK-130-E) or 13.56 MHz (SK-130-M) |
|---|---|
| 125 kHz credentials | EM4100, EM4102 and EM4200-compatible cards and key fobs (thick, thin and fob formats) |
| 13.56 MHz credentials | MIFARE Classic Mini/EV1, MIFARE Plus S/X, MIFARE DESFire EV1/EV2/EV3/Light, MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx (UID read) |
| Output format | SK-130-M: card-number output format and card type configurable in software |
| Read range | 0–3 cm (depends on credential and installation) |
Access control
| User capacity | 5,000 users |
|---|---|
| Access modes | Card, PIN, card + PIN |
| Operating modes | Standalone controller or Wiegand reader (switchable) |
| User management | Add, delete single user, delete all; management cards; user copy; PC user management |
| Alarms | Door sensor, tamper, repeated wrong entry |
Interfaces & wiring
| Lock output | Relay, NO / COM / NC contacts |
|---|---|
| Data output | Wiegand D0/D1 or TXD/RXD serial, selected by DIP switches 5 and 6 |
| Inputs | Door sensor (SEN), exit button (BUT) |
| Other leads | Alarm linkage (AL), auxiliary (AUX+), doorbell (BELL+ / BELL–) |
| Harness | 13 color-coded leads |
Electrical
| Supply voltage | 12 V DC ±5% |
|---|---|
| Operating current | ≤ 200 mA |
| Standby current | ≤ 150 mA |
| ESD | 6 kV contact, 8 kV air |
Mechanical & environment
| Housing | Metal, physical keys, narrow format |
|---|---|
| Protection | IP65 |
| Dimensions | 138 × 58 × 22.67 mm (±0.3 mm) |
| Operating temperature | –20 to +60 °C |
| Storage temperature | –20 to +80 °C |
| Humidity | 15–90% RH |
Variant matrix
| Variant | Frequency | Credentials | Notes |
|---|---|---|---|
| SK-130-E | 125 kHz | EM4100 / EM4102 / EM4200 cards and fobs | — |
| SK-130-M | 13.56 MHz | MIFARE Classic, Plus, DESFire, Ultralight, NTAG2xx (UID) | Output format and card type set in software |
Wiring (13 color-coded leads)
| Wire color | Label | Function |
|---|---|---|
| Red | +12 V | Power, 12 V DC |
| Black | GND | Ground |
| Yellow | NC | Relay, normally closed |
| Pink | COM | Relay common |
| Blue | NO | Relay, normally open |
| Light blue | SEN / LED | Door sensor input (controller mode) / LED control (reader mode) |
| Gray | BUT / BEEP | Exit button input (controller mode) / beeper control (reader mode) |
| Orange | AL | Alarm linkage |
| Light green | AUX+ | Auxiliary linkage |
| Purple | BELL+ | Doorbell |
| Brown | BELL– | Doorbell |
| Green | WD0 / RXD | Wiegand D0 or serial RXD (DIP 5, 6) |
| White | WD1 / TXD | Wiegand D1 or serial TXD (DIP 5, 6) |
Green and white leads carry Wiegand or serial data depending on DIP switches 5 and 6.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| SK-130-E | 125 kHz EM4100/EM4200-compatible narrow IP65 metal keypad | |
| SK-130-M | 13.56 MHz MIFARE/NTAG UID narrow IP65 metal keypad |
Where the SK-130 is used
- Narrow brick or concrete pier beside a pedestrian gate
- Door frame of a shop-front or office suite with no room for a square keypad
- Mixed site using SK-120 on walls and SK-130 on frames with identical wiring
- Reader-mode keypad on a narrow frame feeding an existing Wiegand controller
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
SK-130 FAQ
How does the SK-130 differ from the SK-120?
Only the housing shape: the SK-130 is 138 × 58 mm against the SK-120’s 120 × 80 mm. User capacity, IP65 rating, electrical data and 13-lead wiring are the same.
Can it run as a Wiegand reader instead of a controller?
Yes. It can be switched to reader mode, and with DIP switches 5 and 6 set to Wiegand it outputs on the green (D0) and white (D1) leads.
What read distance should I expect?
Up to 3 cm, depending on the credential and the mounting surface. Users should hold the card close to the front of the keypad.
Will it drive a fail-safe maglock?
Yes. The relay has NO, COM and NC contacts, so it can switch a fail-safe maglock or a fail-secure strike. Power the lock from a supply sized for its own current.
