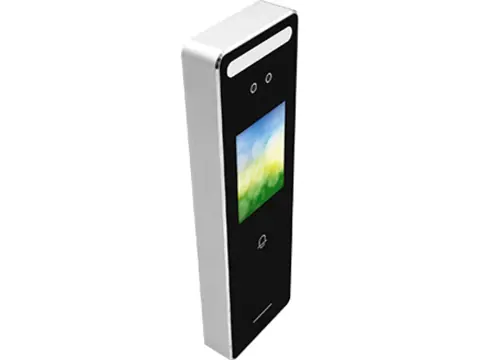

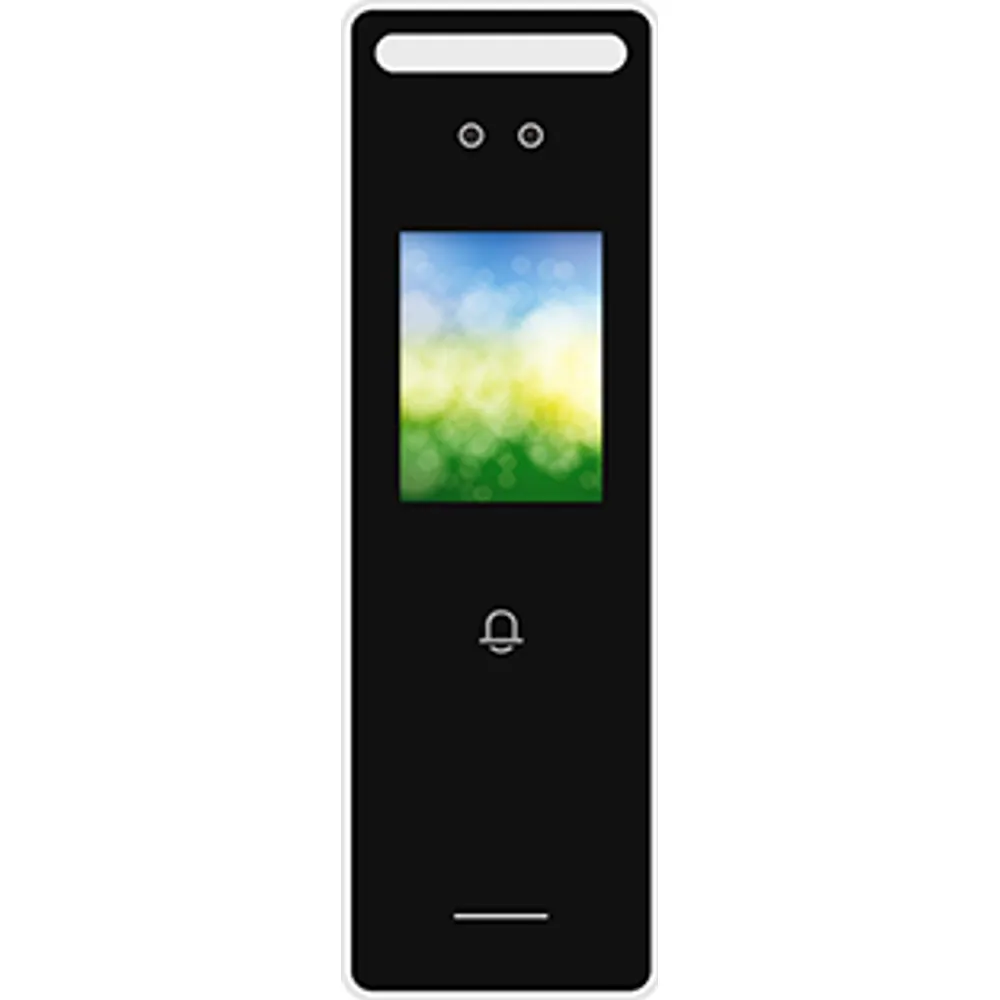

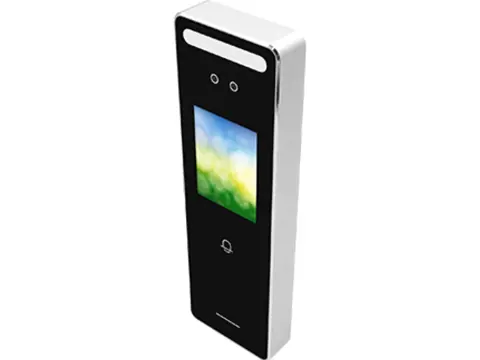

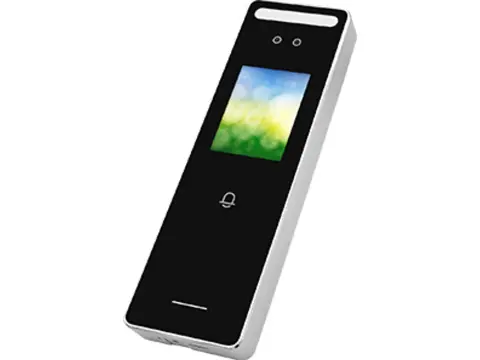

FR-120 Slim IP65 Metal Face Recognition Access Control Terminal
Narrow CNC-machined metal face terminal, IP65, with visible-light binocular camera, 2.4-inch screen and encrypted IC/CPU card reader. Wiegand in/out, TCP/IP.
- Visible-light dynamic face recognition with megapixel binocular camera
- IP65 CNC-machined metal body, 185 × 58.5 × 19 mm for narrow frames and mullions
- Encrypted IC/CPU card verification plus ISO/IEC 14443A/B and 15693 UID checks
- Face, card or combined verification; 1,000 users and 100,000 event logs
- Wiegand in/out, TCP/IP, optional Wi-Fi and wired doorbell connection
- IP rating
- IP65
- Capacity
- 1,000 users / faces
- Card reader
- 13.56 MHz, IC/CPU encrypted verification
- Interfaces
- TCP/IP, Wiegand in/out, optional Wi-Fi
- Power
- 12 V DC, 3 A
- Dimensions
- 185 × 58.5 × 19 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
Slim IP65 Metal Face Recognition Access Control Terminal: overview
The FR-120 is a narrow face recognition terminal in a CNC-machined metal body measuring 185 × 58.5 × 19 mm, slim enough for door frames and mullions. It runs a visible-light dynamic recognition algorithm on a megapixel binocular camera, so people are verified as they approach without stopping at the reader. IP65 sealing lets it sit at entrances exposed to dust and damp.
Its 13.56 MHz reader checks IC (MIFARE Classic) and CPU cards by encrypted verification and can also match UIDs of ISO/IEC 14443A/B and 15693 cards. Verification can be face only, card only or a combination, chosen per door, so a lobby can run on face alone while a server room asks for face plus card. The terminal stores 1,000 users and 1,000 faces with 100,000 event records, and a 2.4-inch TFT color display gives the user feedback. A wired doorbell connection is also provided.
Integration notes
Wiegand input and output let the FR-120 report to an existing controller or accept an external reader, while TCP/IP (with optional Wi-Fi) connects it to PC access-control and time-attendance software; ask us which software package is supplied. It needs a 12 V DC supply rated at 3 A. Operating range is –5 to +45 °C at 10–90% RH, so check winter lows before specifying it for an unheated exterior position. Plan enrollment capacity carefully: at 1,000 faces it suits single departments, small offices and turnstile lanes rather than large sites.
More features
- 2.4-inch TFT color display; 12 V DC 3 A; –5 to +45 °C
FR-120 specifications
Recognition
| Camera | Megapixel binocular (dual-lens) camera |
|---|---|
| Face recognition | Visible-light dynamic recognition |
| Verification modes | Face, card and combined modes |
RF & credentials
| Frequency | 13.56 MHz |
|---|---|
| Encrypted verification | IC (MIFARE Classic) and CPU smart cards |
| UID verification | ISO/IEC 14443A/B and ISO/IEC 15693 cards |
Capacity
| Users | 1,000 |
|---|---|
| Faces | 1,000 |
| Event records | 100,000 |
Interfaces & functions
| Network | TCP/IP; Wi-Fi optional |
|---|---|
| Wiegand | Input and output |
| Doorbell | Wired doorbell connection |
| Software | PC access-control and time-attendance software (package confirmed at order) |
Electrical
| Power supply | 12 V DC, 3 A |
|---|
Mechanical & environment
| Display | 2.4-inch TFT color screen |
|---|---|
| Housing | CNC-machined metal |
| Dimensions | 185 × 58.5 × 19 mm |
| Ingress rating | IP65 |
| Operating temperature | –5 to +45 °C |
| Operating humidity | 10–90% RH |
Variants
| Variant | Card verification | Network | Housing |
|---|---|---|---|
| FR-120-MS | IC/CPU encrypted; ISO/IEC 14443A/B and 15693 UID | TCP/IP | Metal, IP65 |
| FR-120-MS-WF | IC/CPU encrypted; ISO/IEC 14443A/B and 15693 UID | TCP/IP + Wi-Fi | Metal, IP65 |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| FR-120-MS | Face + 13.56 MHz IC/CPU encrypted card verification, TCP/IP, Wiegand in/out, IP65 metal body. | |
| FR-120-MS-WF | As FR-120-MS with the optional Wi-Fi module fitted. |
Where the FR-120 is used
- Glass-door and aluminum-frame entrances with no room for a wide terminal
- Turnstile or speed-gate lanes where the terminal sends Wiegand to the gate controller
- Covered exterior staff doors that need IP65 sealing
- Small offices and gyms enrolling up to 1,000 members or staff
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
FR-120 FAQ
Can it be mounted outdoors?
It is IP65 and runs from –5 to +45 °C, so it suits covered exterior doors in mild climates. Check your site’s winter lows against the –5 °C limit.
How many people can it enroll?
Up to 1,000 users and 1,000 faces, with 100,000 event records. For larger sites, see the 10,000-face terminals in this range.
Will it work with my existing access controller?
Yes. Matched users go out on Wiegand to the controller, and a Wiegand input takes an external reader.
Which cards can it verify?
It checks IC (MIFARE Classic) and CPU cards at 13.56 MHz with encrypted verification, and matches UIDs of ISO/IEC 14443A/B and 15693 cards.
Does it have a doorbell?
Yes. The terminal provides a wired doorbell connection for a chime at reception or inside the room.
