ST-150 UHF RFID File Lock Tag for Archive & Folder Tracking
PP archive lock tag with a 44 × 32 × 3 mm tag body and 83.31 mm overall length that clasps onto folders, boxes and document bags; reads at 1.5 m fixed, 0.5 m handheld.
- Clasp-on PP lock tag for archive boxes, folders, binders and document bags
- 44 × 32 × 3 mm tag body, 83.31 mm overall including the clasp
- Impinj Monza 4QT chip across 860–960 MHz for US and EU band readers
- Rated 1.5 m with a 4 W fixed reader and 0.5 m with a handheld
- Adds a readable ID without putting adhesive on the documents
- Frequency
- 860–960 MHz
- Chip
- Impinj Monza 4QT (EPC Gen2)
- Read range
- 1.5 m (4 W fixed reader)
- Handheld range
- 0.5 m
- Tag body
- 44 × 32 × 3 mm
- Overall length
- 83.31 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
UHF RFID File Lock Tag for Archive & Folder Tracking: overview
The ST-150 is a UHF RFID lock tag for records management. It clasps onto archive boxes, file folders, binders and document bags through a punched hole, strap or handle, giving each file a readable ID without sticking a label onto the documents themselves.

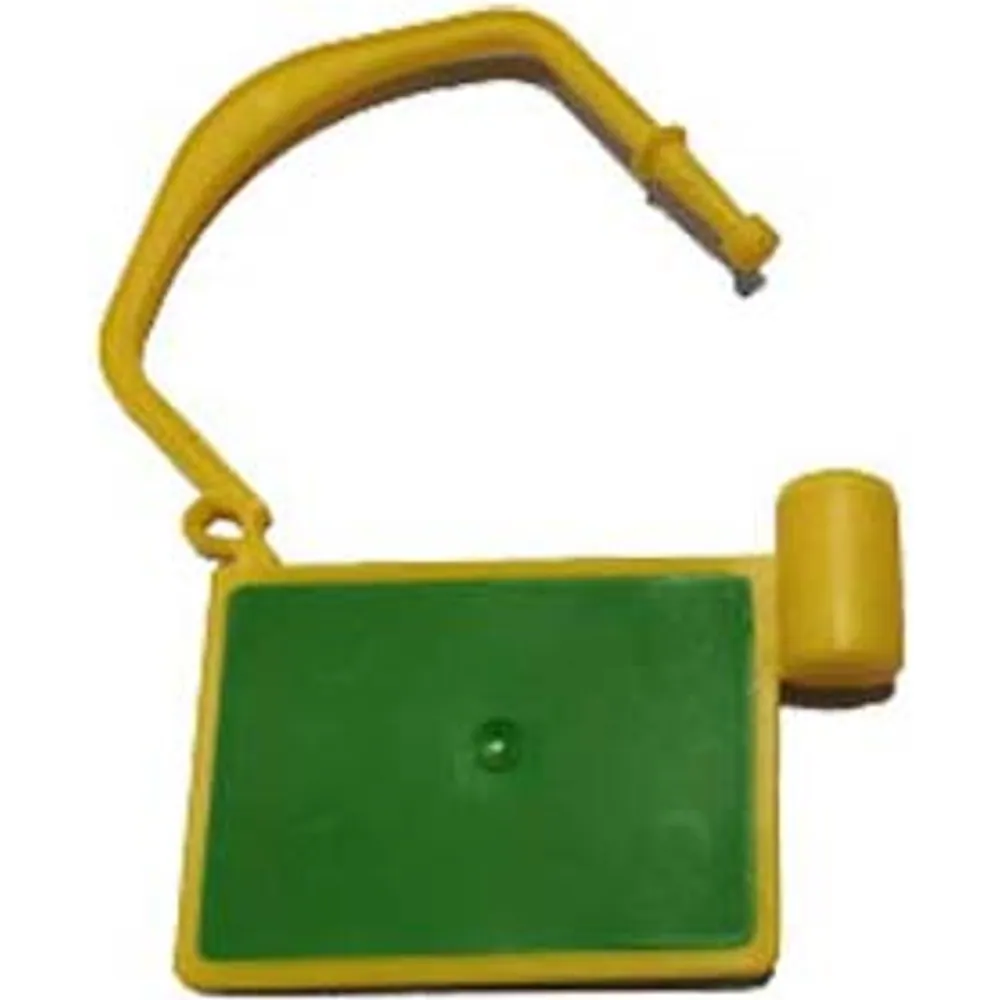

The part is molded in PP. The tag body measures 44 × 32 × 3 mm, and the whole piece, clasp included, is 83.31 mm long. The product photo shows a plastic shackle that hooks through the file and snaps into a socket on the tag body. Inside is an Impinj Monza 4QT chip covering 860–960 MHz.
Rated read distance is 1.5 m with a 4 W fixed reader and 0.5 m with a handheld. That suits shelf audits with a handheld, reading files on a counter during check-out and return, and reader-equipped cabinets or desks. For portal control at a records-room door, test with files carried the way staff actually hold them.
Integration notes
Link each tag ID to the file reference in your records or document-management system when the tag is fitted. Fit the tag on the outside edge or spine of the box or folder, where a handheld can reach it without pulling the file from the shelf.
ST-150 specifications
RF & chip
| Frequency | 860–960 MHz |
|---|---|
| Chip | Impinj Monza 4QT |
| Air interface | EPC Gen2 / ISO/IEC 18000-63 passive UHF |
Read performance
| Fixed reader (4 W) | 1.5 m |
|---|---|
| Handheld reader (Impinj R2000-based) | 0.5 m |
Construction
| Material | PP (polypropylene) |
|---|---|
| Tag body | 44 × 32 × 3 mm |
| Overall length | 83.31 mm including clasp |
| Fastening | Plastic lock clasp through a hole, strap or handle |
Seal, tie and plant tag comparison
| SKU | Type | Size | Chip | 4 W fixed reader | Handheld reader |
|---|---|---|---|---|---|
| ST-110 | One-time steel-wire cable seal | Head 100 × 26.5 × 13.4 mm; wire 280 mm × Ø1.8 mm | Alien Higgs-9 | 5 m | 2 m |
| ST-120 | Compact one-time steel-wire cable seal | Head 36 × 23 × 11 mm; wire 280 mm × Ø1.8 mm | Alien Higgs-9 | 0.3 m | 0.1 m |
| ST-130 | Plant breeding stake label | Head 100 × 60 × 3 mm; 360 mm overall | Impinj Monza 4QT | 10 m | 2.5 m |
| ST-140 | Cable tie tag | Head 53.5 × 30 × 1.9 mm; 330 mm overall | Impinj Monza 4QT | 0.7 m | 0.2 m |
| ST-150 | Archive file lock tag | Tag 44 × 32 × 3 mm; 83.31 mm overall | Impinj Monza 4QT | 1.5 m | 0.5 m |
| ST-160 | Leaf-shaped plant tag | Inlay pocket 52 × 20 × 2 mm | Impinj Monza 4QT | 7–8 m | 1.5–2 m |
All six tags operate across 860–960 MHz. Ranges as published with a 4 W fixed reader and an Impinj R2000-based handheld.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| ST-150-GL | UHF RFID archive file lock tag, PP, 44 × 32 × 3 mm tag body, 83.31 mm overall, Impinj Monza 4QT, 860–960 MHz |
Where the ST-150 is used
- Records-room shelf audits with a handheld UHF reader
- Check-out and return of case files at a counter reader
- Tracking archive boxes moved between offices and off-site storage
- Document pouches that need a sign-out log
ST-150 FAQ
How far can file tags be read?
The datasheet lists 1.5 m with a 4 W fixed reader and 0.5 m with a handheld. That covers shelf audits and counter reading; test before relying on a doorway portal.
How does it attach?
It clasps through a hole, strap or handle on the box, folder or bag. Per the product photo, a plastic shackle hooks through and snaps into the tag body, so no adhesive touches the file.
Will it work with our existing UHF readers?
Yes, if they are EPC Gen2 readers operating within 860–960 MHz. That range covers both the 902–928 MHz and 865–868 MHz bands.
Can the tags be pre-numbered?
The EPC memory can be written with your own file or box numbering using a UHF reader/writer. Ask us if you want tags encoded before dispatch.
