ST-120 Compact UHF RFID Cable Seal, Short-Range, Steel Wire
Small single-use UHF cable seal with a 36 × 23 × 11 mm ABS head and 280 mm steel wire, read at close range (0.3 m fixed, 0.1 m handheld) for one-at-a-time checks.
- Compact 36 × 23 × 11 mm ABS head for latches, valves and meter boxes
- 280 mm × 1.8 mm steel wire with a one-way steel-ball lock
- Close-contact read range: 0.3 m on a fixed reader, 0.1 m on a handheld
- Alien Higgs-9 chip across 860–960 MHz for US and EU readers
- Must be cut to remove, leaving visible evidence of opening
- Frequency
- 860–960 MHz
- Chip
- Alien Higgs-9 (EPC Gen2)
- Read range
- 0.3 m (4 W fixed reader)
- Handheld range
- 0.1 m
- Seal head
- 36 × 23 × 11 mm, ABS
- Wire
- Steel, 280 mm (11 in) × Ø1.8 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
Compact UHF RFID Cable Seal, Short-Range, Steel Wire: overview

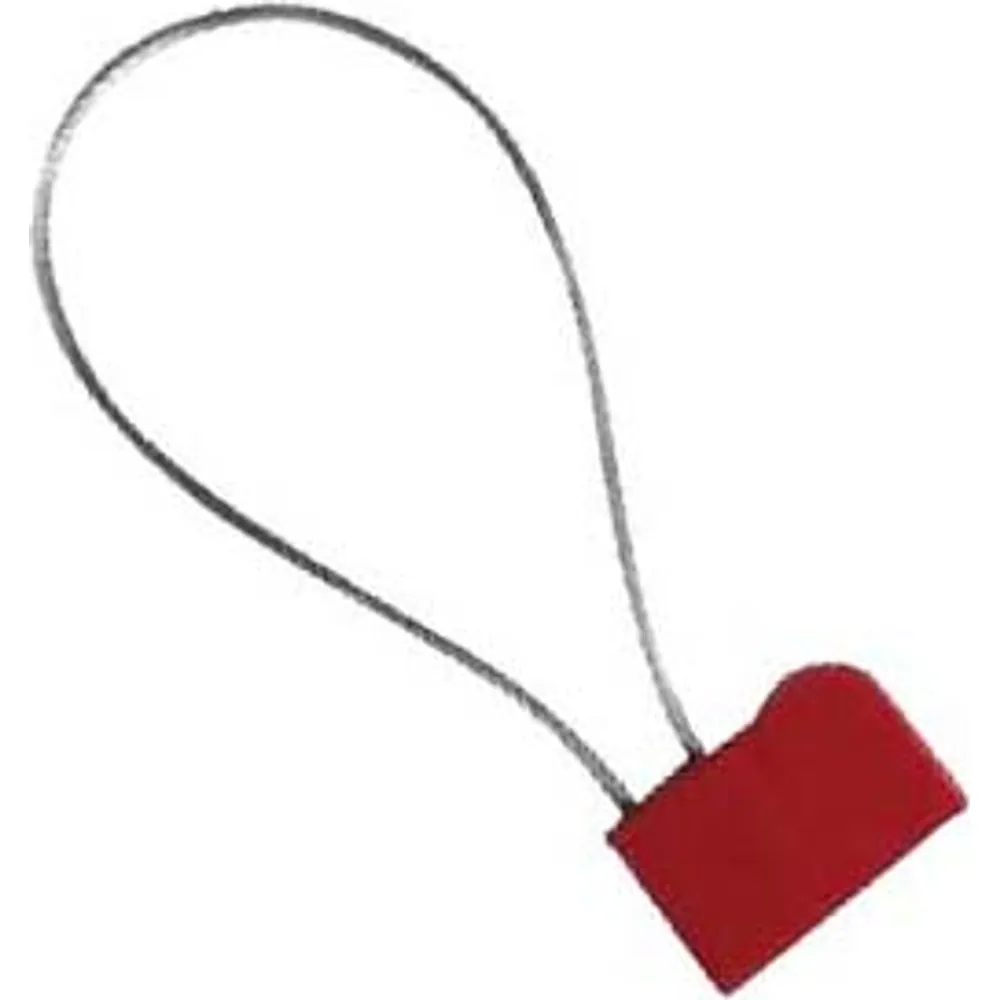

The ST-120 is a compact, single-use UHF RFID cable seal for places where a large seal head would get in the way: meter boxes, cabinet latches, valve handles, instrument covers and bag closures. The ABS head measures 36 × 23 × 11 mm, and it uses the same 280 mm steel wire, 1.8 mm in diameter, as our larger ST-110.
Locking is one-way. The wire loops through the fitting and into the head, a steel ball grips it, and it cannot be pulled back out. To open the sealed item, the wire has to be cut, which is plain to see on inspection.
The tag inside uses an Alien Higgs-9 chip across 860–960 MHz, but its short read range is the defining trait: 0.3 m with a 4 W fixed reader and 0.1 m with a handheld. Treat it as a close-contact seal. An inspector holds the reader right at the seal to confirm its ID, and neighboring seals are unlikely to answer by mistake.
Integration notes
Because the range is so short, the ST-120 does not suit drive-through portals; use the ST-110 where seals must be read from a vehicle lane. For checks at a desk or counter, bring the seal to a UHF desktop reader. The datasheets list the head as both 36 × 23 × 11 mm and 36 × 26 × 11 mm, so we confirm the current dimension with a sample.
ST-120 specifications
RF & chip
| Frequency | 860–960 MHz |
|---|---|
| Chip | Alien Higgs-9 |
| Air interface | EPC Gen2 / ISO/IEC 18000-63 passive UHF |
Read performance
| Fixed reader (4 W) | 0.3 m |
|---|---|
| Handheld reader (Impinj R2000-based) | 0.1 m |
Construction & locking
| Head material | ABS plastic |
|---|---|
| Head dimensions | 36 × 23 × 11 mm (one datasheet lists 36 × 26 × 11 mm; confirm on sample) |
| Wire | Steel, 280 mm (11 in) long, 1.8 mm diameter |
| Locking | Steel-ball one-time lock; wire cannot be withdrawn once tightened |
| Removal | Cut the wire (single use) |
| Security classification | No ISO 17712 rating stated |
Seal, tie and plant tag comparison
| SKU | Type | Size | Chip | 4 W fixed reader | Handheld reader |
|---|---|---|---|---|---|
| ST-110 | One-time steel-wire cable seal | Head 100 × 26.5 × 13.4 mm; wire 280 mm × Ø1.8 mm | Alien Higgs-9 | 5 m | 2 m |
| ST-120 | Compact one-time steel-wire cable seal | Head 36 × 23 × 11 mm; wire 280 mm × Ø1.8 mm | Alien Higgs-9 | 0.3 m | 0.1 m |
| ST-130 | Plant breeding stake label | Head 100 × 60 × 3 mm; 360 mm overall | Impinj Monza 4QT | 10 m | 2.5 m |
| ST-140 | Cable tie tag | Head 53.5 × 30 × 1.9 mm; 330 mm overall | Impinj Monza 4QT | 0.7 m | 0.2 m |
| ST-150 | Archive file lock tag | Tag 44 × 32 × 3 mm; 83.31 mm overall | Impinj Monza 4QT | 1.5 m | 0.5 m |
| ST-160 | Leaf-shaped plant tag | Inlay pocket 52 × 20 × 2 mm | Impinj Monza 4QT | 7–8 m | 1.5–2 m |
All six tags operate across 860–960 MHz. Ranges as published with a 4 W fixed reader and an Impinj R2000-based handheld.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| ST-120-GL | Compact UHF RFID cable seal, 36 × 23 × 11 mm ABS head, 280 mm × Ø1.8 mm steel wire, Alien Higgs-9, 860–960 MHz |
Where the ST-120 is used
- Utility meter boxes and metering cabinets resealed after inspection
- Valve handles and instrument covers on tankers and process lines
- Cargo compartment latches verified one seal at a time with a handheld
- Cash or valuables bags checked at a counter with a desktop reader
RFID Seals for Containers, Trucks & Meters
Plan RFID container seal checks: one-time-lock UHF wire seals, handheld and fixed gate readers, and encoding that links each seal to its shipment record.
ST-120 FAQ
Why is the read range so short?
The small head leaves little room for an antenna, so it is rated 0.3 m with a 4 W fixed reader and 0.1 m with a handheld. That suits deliberate, one-at-a-time verification rather than portal reading.
How does it differ from the ST-110?
Both use a 280 mm × 1.8 mm steel wire and a one-time steel-ball lock. The ST-120 has a much smaller 36 × 23 × 11 mm head and reads at 0.3 m, while the ST-110's 100 mm head reads at 5 m.
Can the seal be reused?
No. Once tightened, the wire cannot be withdrawn, so removal means cutting it and fitting a new seal.
Does it work with US and EU readers?
Yes. The tag covers 860–960 MHz, which includes both the 902–928 MHz and 865–868 MHz bands.
