CR-110 125 kHz Long-Range Wiegand 26 Reader for Barrier Gates
Large-frame 125 kHz EM reader for barrier gates and vehicle lanes, used with dedicated thick cards and wired to any controller with a Wiegand 26 input.
- 125 kHz EM reader built for lanes and gates, used with dedicated thick cards
- Also decodes EM4100, EM4102 and EM4200-compatible credentials
- Fixed Wiegand 26 output to standard access controllers and barrier boards
- Open I-shaped frame, 240 × 235 × 35 mm, for posts, islands and kiosks
- 12 V DC (±5%) supply, ≤ 200 mA; card data in < 120 ms
- Frequency
- 125 kHz (EM4100/EM4102/EM4200)
- Output
- Wiegand 26 (fixed)
- Credential
- Dedicated 125 kHz thick card
- Power
- 12 V DC ±5%, ≤ 200 mA
- Dimensions
- 240 × 235 × 35 mm
- Operating temperature
- –10 to +60 °C
Reply within 24 hours Tested before dispatch Worldwide shipping
125 kHz Long-Range Wiegand 26 Reader for Barrier Gates: overview
The CR-110 is a 125 kHz long-range proximity reader for barrier gates, vehicle lanes and other entrances where a small door reader would make users lean out to badge. It is used with dedicated EM-format thick cards, also decodes EM4100, EM4102 and EM4200-compatible credentials, and passes every card number to your controller as Wiegand 26.

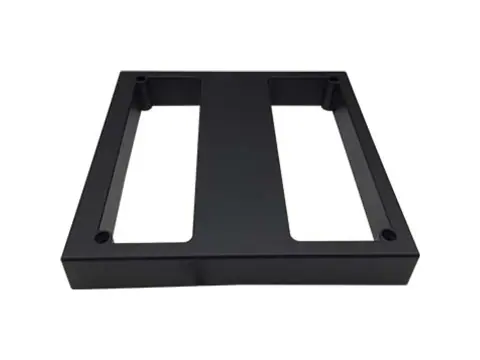

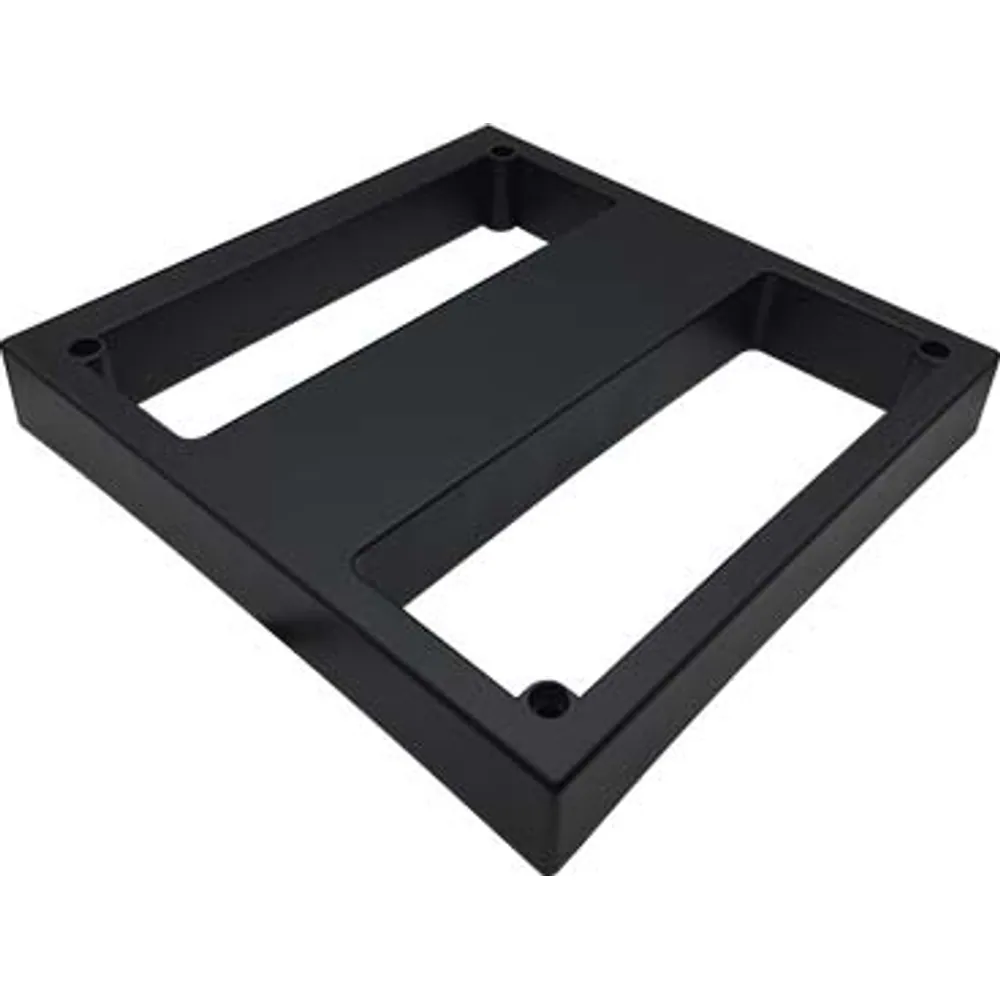

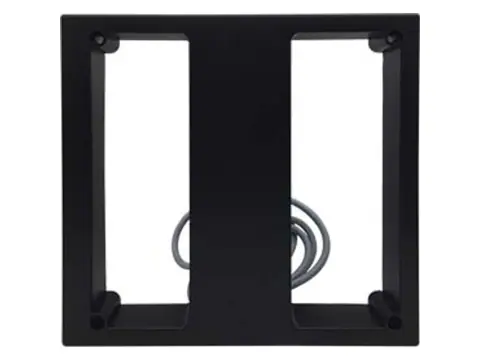

Its open I-shaped frame measures 240 × 235 × 35 mm and mounts on a gate post, lane island or kiosk wall. The reader runs from 12 V DC (±5%) at up to 200 mA, reports a card in under 120 ms once it enters the field, and has static and miswiring protection on its inputs.
We do not quote a read distance, because none is published for this model. Real-world range depends on the thick card, the mounting surface and any steel close by, so we bench-test a sample with your cards and send you the measured figure before a volume order. No ingress rating is published either: plan a canopy or a weatherproof kiosk for exposed lanes.
Integration notes
There are four leads: red for +12 V, black for ground, and white and green for the Wiegand data pair. Land them on any access controller or barrier board with a 26-bit Wiegand input; if card numbers come through garbled, swap the two data leads. The output format is fixed, so there is nothing to set on the reader itself. Configure the controller port for Wiegand 26 and enroll the cards by number.
More features
- Four-wire hookup with ESD and miswiring protection
CR-110 specifications
RF & credentials
| Frequency | 125 kHz |
|---|---|
| Credentials | EM4100, EM4102, EM4200-compatible; used with dedicated thick cards |
| Read range | Not published; measured with your cards on request |
| Response time | < 120 ms once a card is inside the read zone |
Interfaces
| Output | Wiegand 26 (fixed) |
|---|---|
| Wiring | 4 leads: power, ground, Wiegand data pair |
Electrical
| Supply voltage | 12 V DC (±5%) |
|---|---|
| Operating current | ≤ 200 mA |
| Protection | ESD protection, miswiring protection |
Mechanical & environment
| Dimensions | 240 × 235 × 35 mm (±3 mm) |
|---|---|
| Form factor | Open I-shaped frame |
| Operating temperature | –10 to +60 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 15–90% RH |
| Ingress rating | Not specified (use a canopy or kiosk outdoors) |
Wire colors
| Wire | Function |
|---|---|
| Red | +12 V DC |
| Black | GND |
| White | Wiegand data |
| Green | Wiegand data |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| CR-110-E | 125 kHz EM long-range reader for dedicated thick cards; also reads EM4100/EM4102/EM4200-compatible cards; Wiegand 26 output. |
Where the CR-110 is used
- Staff car park barrier where drivers badge a thick card at the lane island
- Residential compound vehicle gate tied to an existing Wiegand 26 controller
- Yard or site gate for delivery and contractor vehicles
- Visitor lanes where reception issues thick cards on arrival
Apartment, Multifamily & Rental Property Access Control
Apartment building access control hardware: anti-clone readers with matched fob sets, QR visitor codes, 4G controllers for rentals and UHF tags for gates.
CR-110 FAQ
What read range does the CR-110 achieve?
No range figure is published for this reader. Distance depends on the thick card, the mounting surface and nearby metal, so we measure it with your cards and share the result before a volume order.
Will it read thin EM cards or key fobs?
It decodes EM4100, EM4102 and EM4200-compatible credentials, but it is specified with dedicated thick cards. Expect a shorter distance with thin cards or fobs and test samples first.
Can it output Wiegand 34?
No. The output is fixed at Wiegand 26, so set the controller or barrier board input to 26-bit.
Can it be mounted outdoors?
No ingress rating is published. Mount it under a canopy or inside a weatherproof kiosk, or ask us for an IP-rated alternative for fully exposed lanes.
What power supply does it need?
A regulated 12 V DC supply held within ±5%. Budget 200 mA per reader when sizing the supply.
