CR-310 Industrial IP65 RFID Card Reader, Wiegand/RS485 + Bluetooth
Faceted metal reader for harsh sites: –40 to +85 °C, IP65, 125 kHz + 13.56 MHz, Wiegand 26/34 and RS485, optional Bluetooth LE 5.1. Card-only or touch keypad.
- Operating and storage range –40 to +85 °C (–40 to +185 °F), IP65
- Reads 125 kHz EM4100/4200/4305/4450 and 13.56 MHz MIFARE, DESFire EV1/EV2 and NFC tags
- Wiegand 26/34 and RS485 outputs; Bluetooth LE 5.1 on BT versions
- MIFARE sector and CPU-card content reading, anti-copy and NFC-phone rejection
- Configured by setup card or NFC phone; firmware updatable in the field
- Frequency
- 13.56 MHz (-M) or 125 kHz + 13.56 MHz (-D)
- Output
- Wiegand 26/34, RS485; BLE 5.1 on BT versions
- Operating temperature
- –40 to +85 °C
- IP rating
- IP65
- Power
- 9–15 V DC
- Read range
- 0–5 cm
Reply within 24 hours Tested before dispatch Worldwide shipping
Industrial IP65 RFID Card Reader, Wiegand/RS485 + Bluetooth: overview

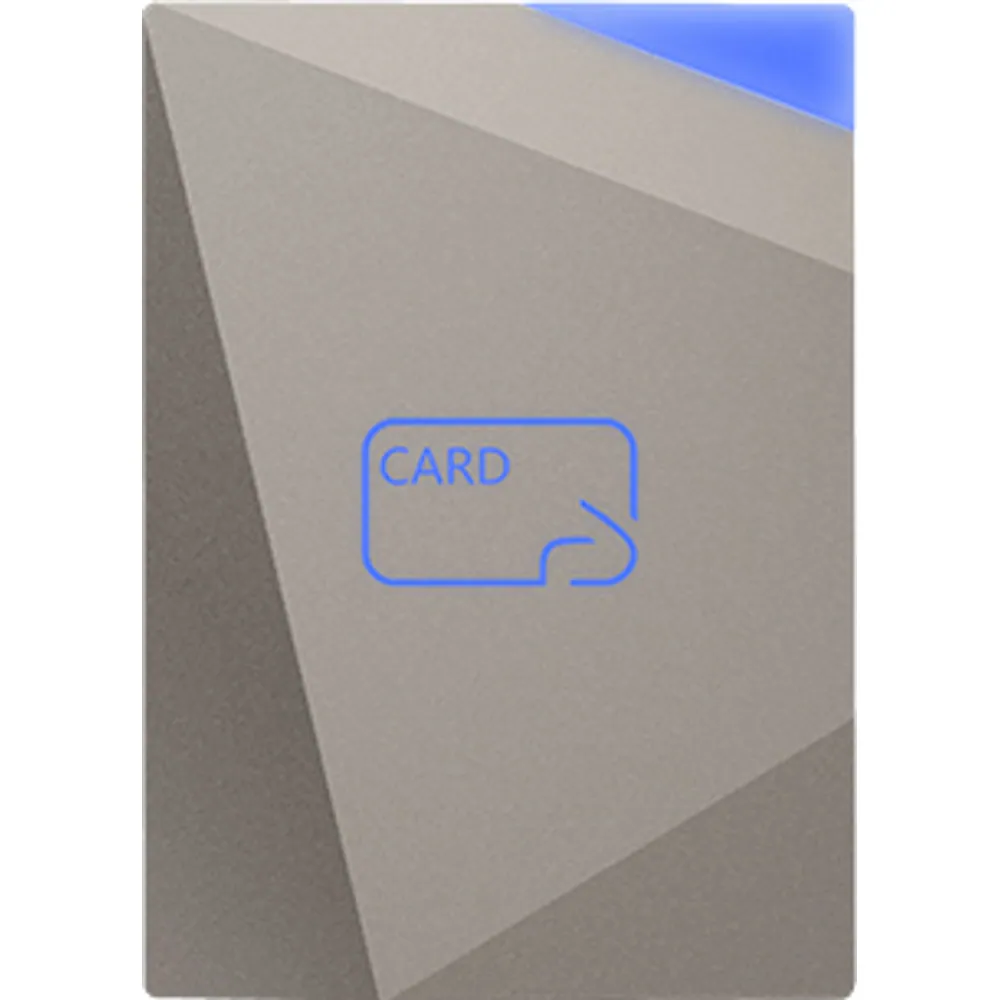

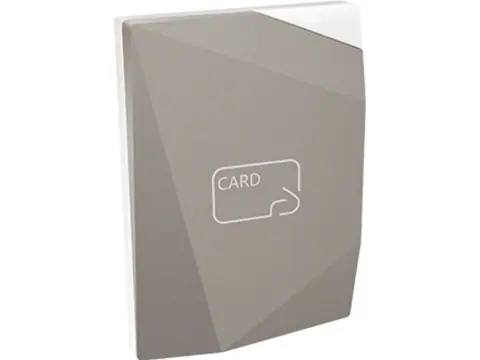

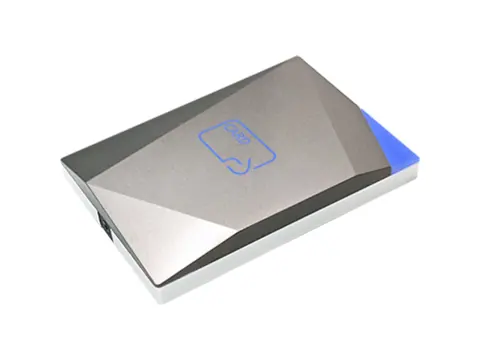

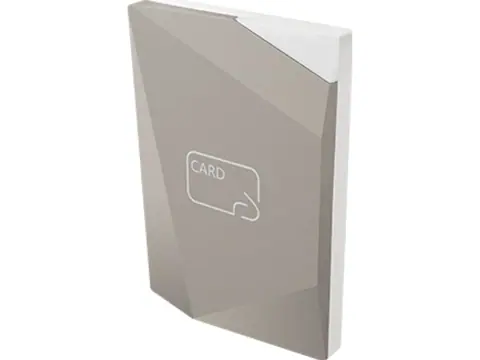

The CR-310 is built for doors and gates that see real temperature extremes: loading docks, cold stores, plant rooms and unheated perimeter entrances. It is rated for operation and storage from –40 to +85 °C, carries an IP65 rating and sits in a faceted, metal-framed housing. Outputs are Wiegand 26/34 and RS485, with Bluetooth LE 5.1 on the BT versions.
Dual-frequency versions read 125 kHz EM4100, EM4102, EM4200, EM4305 and EM4450 cards alongside 13.56 MHz credentials. At 13.56 MHz the reader is compatible with MIFARE Classic, DESFire EV1/EV2, Ultralight, Ultralight C, CPU cards and NFC Forum Type 1, 2 and 4 tags, and the card-only models also read ISO/IEC 15693 tags such as ICODE. Beyond UIDs, it can read MIFARE sector data and CPU-card content, includes anti-copy protection and rejects card emulation from NFC phones.
Setup uses a configuration card or an NFC-enabled phone, and firmware and parameters can be updated in the field. Supply is 9–15 V DC; at 12 V the reader draws about 170 mA on standby and about 190 mA while reading, with a read distance of 0–5 cm.
Integration notes
The reader is wall-mounted and ships with a 374 mm (14.7 in) cable and no logo. Run Wiegand D0/D1 to a conventional controller or use RS485 for panels and turnstile boards that poll serial readers. Keypad models (suffix K) add a touch keypad in the same 120 × 86 mm housing. The input is limited to 15 V, so 24 V systems need a step-down converter.
More features
- Faceted metal-framed housing, 120 × 86 mm, card-only or touch keypad
CR-310 specifications
RF & credentials
| Frequency | 13.56 MHz (-M versions); 125 kHz + 13.56 MHz (-D versions) |
|---|---|
| HF standards | ISO/IEC 14443A, ISO/IEC 14443B; ISO/IEC 15693 on card-only models |
| 13.56 MHz credentials | MIFARE Classic, MIFARE DESFire EV1/EV2, MIFARE Ultralight, Ultralight C, CPU cards, NFC Forum Type 1/2/4 tags; ICODE (card-only models) |
| 125 kHz credentials (-D) | EM4100, EM4102, EM4200, EM4305, EM4450 |
| Data read | UID, MIFARE sector content, CPU-card content |
| Security | Anti-copy protection; rejects card emulation from NFC phones |
| Read range | 0–5 cm, depending on installation and card |
Interfaces
| Wired outputs | Wiegand 26/34, RS485 |
|---|---|
| Wireless | Bluetooth LE 5.1 (BT versions) |
| Keypad | None or touch keypad (K versions) |
| Setup | Configuration card or NFC-enabled phone |
| Maintenance | Field firmware and parameter updates |
Electrical
| Supply voltage | 9–15 V DC |
|---|---|
| Standby current (12 V) | Approx. 170 mA |
| Operating current (12 V) | Approx. 190 mA |
Mechanical & environment
| Housing | Faceted metal-framed front, metallic gray, no logo |
|---|---|
| Dimensions | 120 × 86 × 17 mm (±0.5 mm) |
| Cable | 374 mm (14.7 in), ±10 mm |
| Mounting | Wall mount |
| Ingress rating | IP65 |
| Operating temperature | –40 to +85 °C (–40 to +185 °F) |
| Storage temperature | –40 to +85 °C (–40 to +185 °F) |
| Operating humidity | 10–90% RH, non-condensing |
Variant comparison
| Variant | Frequency | Keypad | Interfaces |
|---|---|---|---|
| CR-310-M | 13.56 MHz | None | Wiegand 26/34, RS485 |
| CR-310-M-BT | 13.56 MHz | None | Wiegand 26/34, RS485, BLE 5.1 |
| CR-310-D-BT | 125 kHz + 13.56 MHz | None | Wiegand 26/34, RS485, BLE 5.1 |
| CR-310-M-K | 13.56 MHz | Touch | Wiegand 26/34, RS485 |
| CR-310-M-BT-K | 13.56 MHz | Touch | Wiegand 26/34, RS485, BLE 5.1 |
| CR-310-D-BT-K | 125 kHz + 13.56 MHz | Touch | Wiegand 26/34, RS485, BLE 5.1 |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| CR-310-M | Card-only, 13.56 MHz; Wiegand 26/34 and RS485. | |
| CR-310-M-BT | Card-only, 13.56 MHz; Wiegand 26/34, RS485 and Bluetooth LE 5.1. | |
| CR-310-D-BT | Card-only, 125 kHz + 13.56 MHz; Wiegand 26/34, RS485 and Bluetooth LE 5.1. | |
| CR-310-M-K | Touch keypad, 13.56 MHz; Wiegand 26/34 and RS485. | |
| CR-310-M-BT-K | Touch keypad, 13.56 MHz; Wiegand 26/34, RS485 and Bluetooth LE 5.1. | |
| CR-310-D-BT-K | Touch keypad, 125 kHz + 13.56 MHz; Wiegand 26/34, RS485 and Bluetooth LE 5.1. |
Where the CR-310 is used
- Cold-store and freezer-room doors where standard readers stop working
- Unheated perimeter gates and vehicle entrances in cold climates
- Loading docks and plant rooms exposed to dust, spray and heat
- Turnstile boards and panels that poll readers over RS485
Turnstile & Speed-Gate Readers: QR, RFID and Face
Turnstile card readers, QR scanners and face terminals for tripod, swing and speed gates, with Wiegand, RS485, RS232 or TTL output to the gate board.
CR-310 FAQ
Will it work in a cold store or unheated gatehouse?
Yes. Operating and storage range is –40 to +85 °C, humidity up to 90% non-condensing, and the housing is rated IP65.
What is the difference between CR-310-M and CR-310-M-BT?
Both read 13.56 MHz cards and output Wiegand 26/34 and RS485. The BT version adds Bluetooth LE 5.1, and the dual-frequency (D) builds always include it.
Can it stop cloned cards?
It has anti-copy protection and can read MIFARE sector or CPU-card content rather than relying on the UID alone. It also rejects card emulation from NFC phones.
What power supply does it need?
9–15 V DC. At 12 V, allow about 190 mA per reader while reading; 24 V systems need a step-down converter.
Do the keypad models read ICODE tags?
No. The keypad models are specified for ISO/IEC 14443A/B credentials only; ICODE (ISO/IEC 15693) reading is listed for the card-only models.
