CR-170 Mullion Card Reader, Wiegand, 125 kHz or 13.56 MHz
Card-only 153 × 45 mm mullion reader for narrow frames, in 125 kHz EM or 13.56 MHz MIFARE versions with Wiegand 26/34/66 output.
- Slim mullion housing, 153 × 45 × 16.3 mm, card-only front
- Four tiers: 125 kHz EM, 13.56 MHz UID, sector/CPU data read, FeliCa UID
- Wiegand 26/34 on all tiers; Wiegand 66 on -MS and -MS-FC
- Configuration card sets Wiegand format, read mode, card key and number format
- 12 V DC (±5%), ≤ 200 mA; ESD and miswiring protection
- Frequency
- 125 kHz (-E) or 13.56 MHz (-M, -MS, -MS-FC)
- Output
- Wiegand 26/34; 66 on -MS tiers
- Power
- 12 V DC ±5%, ≤ 200 mA
- Dimensions
- 153 × 45 × 16.3 mm
- Form factor
- Mullion, no keypad
Reply within 24 hours Tested before dispatch Worldwide shipping
Mullion Card Reader, Wiegand, 125 kHz or 13.56 MHz: overview

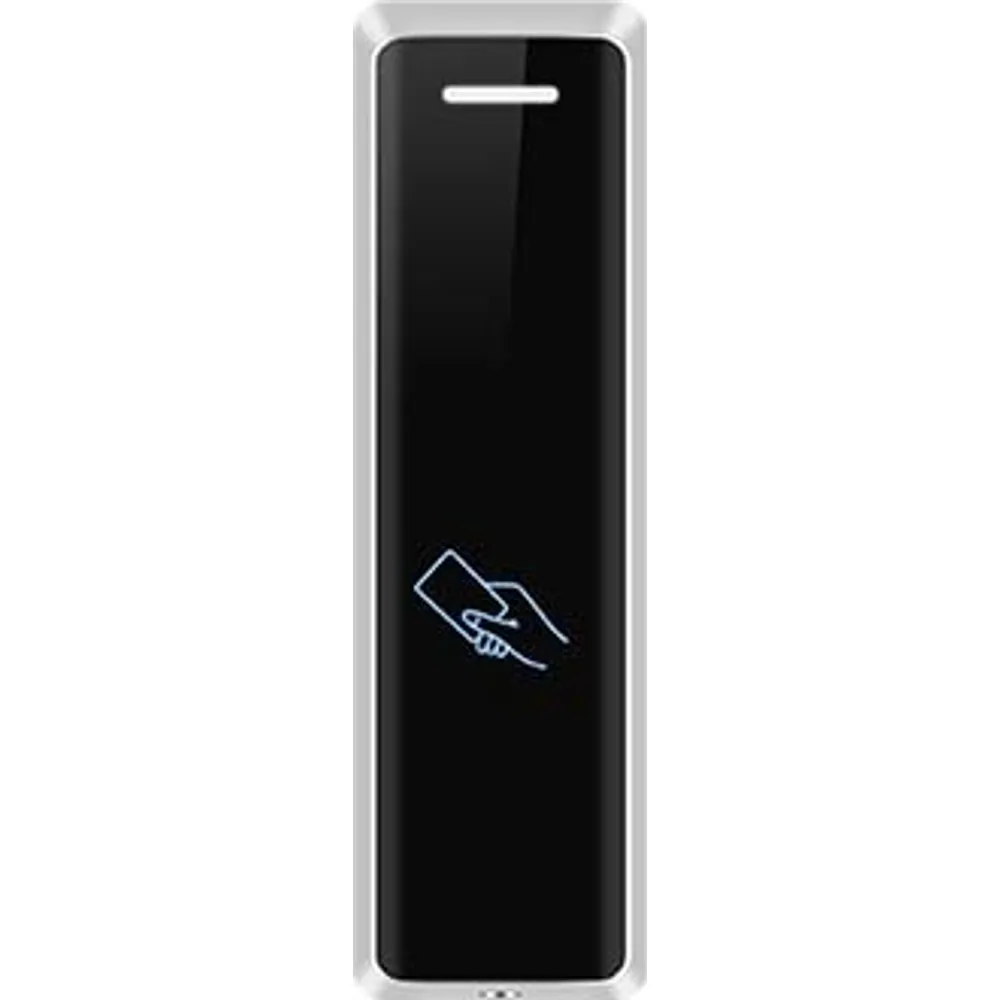

The CR-170 is a card-only mullion reader, 153 × 45 × 16.3 mm, for narrow door frames, glass partitions and turnstile posts where a square reader will not fit. It outputs Wiegand to any standard access controller and comes in four credential tiers.
Choose CR-170-E for 125 kHz EM4100, EM4102 and EM4200-compatible cards and fobs, or CR-170-M for the UIDs of 13.56 MHz MIFARE Classic, DESFire, Plus, Ultralight, NTAG2xx and CPU cards. CR-170-MS reads protected MIFARE Classic 1K/4K sectors and CPU card files and adds ISO/IEC 15693 UIDs, the iCLASS CSN and Wiegand 66. CR-170-MS-FC also reads FeliCa UIDs.
A configuration card changes the Wiegand format, read mode, card key and card-number format in the field. Card data reaches the controller within 120 ms, and the inputs carry ESD and miswiring protection. For card plus PIN on the same frame width, see the CR-160 keypad version.
Integration notes
Power: 12 V DC (±5%), budget 200 mA. Leads: red +12 V, black GND, white D1, green D0, purple buzzer control, gray LED control; tie yellow to GND to fix the output at Wiegand 26. No ingress rating is published, so fit it indoors or on a sheltered frame.
CR-170 specifications
RF & credentials
| Frequency | 125 kHz (-E); 13.56 MHz (-M, -MS, -MS-FC) |
|---|---|
| Protocols | ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693 |
| 125 kHz credentials | EM4100, EM4102, EM4200-compatible thick cards, thin cards and key fobs |
| 13.56 MHz UID read | MIFARE Classic Mini/EV1, MIFARE DESFire EV1/EV2/EV3/Light, MIFARE Plus S/X, MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx; ISO/IEC 14443 CPU cards |
| Data read (-MS, -MS-FC) | Protected sector data of MIFARE Classic 1K/4K; file data of CPU cards (card key set by configuration card) |
| Other UIDs (-MS, -MS-FC) | ISO/IEC 15693 tags (e.g. ICODE); iCLASS card serial number (CSN) only |
| FeliCa (-MS-FC) | FeliCa card UID |
| Response time | < 120 ms once a card is inside the read zone |
Interfaces
| Output | Wiegand 26 / 34 (all versions); Wiegand 66 (-MS, -MS-FC) |
|---|---|
| Setup | Configuration card: Wiegand format, read mode, card key, card-number format |
| Controller inputs | Buzzer control, LED control |
| Format lead (yellow) | Connect to GND to fix the output at Wiegand 26 |
Electrical
| Supply voltage | 12 V DC (±5%) |
|---|---|
| Operating current | ≤ 200 mA |
| Protection | ESD protection, miswiring protection |
Mechanical & environment
| Dimensions | 153 × 45 × 16.3 mm (±0.5 mm) |
|---|---|
| Housing | Slim mullion format, card-only |
| Operating temperature | –10 to +60 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 15–90% RH |
| Ingress rating | Not specified (indoor or sheltered mounting) |
Variant comparison
| Variant | 125 kHz EM | 13.56 MHz UID | MIFARE Classic / CPU data | ISO/IEC 15693 UID & iCLASS CSN | FeliCa UID | Wiegand output |
|---|---|---|---|---|---|---|
| CR-170-E | Yes | — | — | — | — | 26 / 34 |
| CR-170-M | — | MIFARE, NTAG, CPU | — | — | — | 26 / 34 |
| CR-170-MS | — | MIFARE, NTAG, CPU | Yes | Yes | — | 26 / 34 / 66 |
| CR-170-MS-FC | — | MIFARE, NTAG, CPU | Yes | Yes | Yes | 26 / 34 / 66 |
Choose the version by the credentials already in use on site. "CPU" = ISO/IEC 14443 CPU (smart) cards; iCLASS support is card serial number (CSN) only.
Wire colors
| Wire | Function |
|---|---|
| Red | +12 V DC |
| Black | GND |
| White | Wiegand D1 |
| Green | Wiegand D0 |
| Purple | Buzzer control input |
| Gray | LED control input |
| Yellow | Connect to GND to fix the output at Wiegand 26 |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| CR-170-E | 125 kHz version: reads EM4100/EM4102/EM4200-compatible thick cards, thin cards and key fobs; Wiegand 26/34. | |
| CR-170-M | 13.56 MHz UID version: MIFARE Classic, DESFire EV1/EV2/EV3/Light, Plus S/X, Ultralight, NTAG2xx and ISO/IEC 14443 CPU card UIDs; Wiegand 26/34. | |
| CR-170-MS | 13.56 MHz secure-read version: all -M UIDs plus MIFARE Classic 1K/4K sector data and CPU card file data, ISO/IEC 15693 UID, iCLASS CSN only; Wiegand 26/34/66. | |
| CR-170-MS-FC | As -MS, plus FeliCa card UID (e.g. Octopus cards); Wiegand 26/34/66. |
Where the CR-170 is used
- Aluminum shopfront and office doors with narrow frames
- Glass partition doors in open-plan offices
- Pedestrian gate and turnstile posts with limited face width
- Like-for-like replacement of older mullion EM readers
Turnstile & Speed-Gate Readers: QR, RFID and Face
Turnstile card readers, QR scanners and face terminals for tripod, swing and speed gates, with Wiegand, RS485, RS232 or TTL output to the gate board.
CR-170 FAQ
What size is the CR-170?
153 × 45 × 16.3 mm (±0.5 mm), so it fits on most narrow door frames and stiles.
Which version reads 125 kHz key fobs?
CR-170-E. It reads EM4100, EM4102 and EM4200-compatible thick cards, thin cards and key fobs with Wiegand 26/34 output.
How do I force Wiegand 26 output?
Tie the yellow lead to GND. Other formats, including Wiegand 34 and, on -MS versions, Wiegand 66, are set with the configuration card.
Is there a keypad version?
Yes. The CR-160 has the same mullion footprint with a touch keypad and doorbell key.
