WS-110 Access Control Rain Cover for Keypads & Readers, ABS
ABS rain covers for outdoor access control terminals, keypads and readers: a large IP56 hood with a 135° front flap, or a compact 0.25 kg shield.
- Shields outdoor keypads, readers and terminals from rain, direct sun and dust

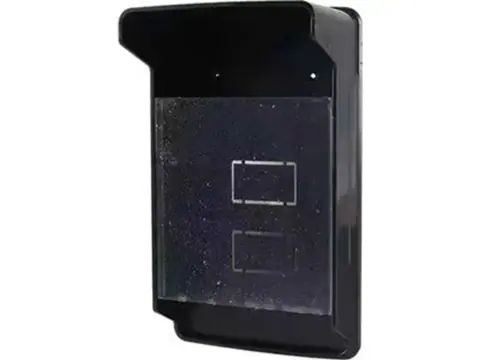

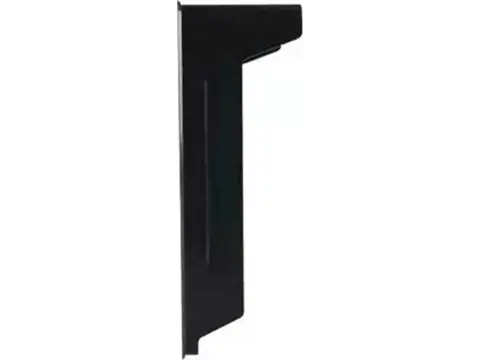

- WS-110-245: 142 × 245 × 83 mm hood with a front flap that opens through 135°
- IP56 protection rating stated for the WS-110-245 cover

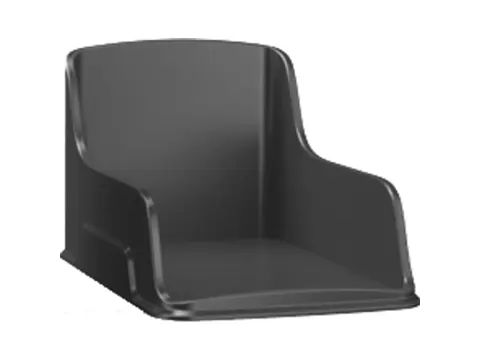

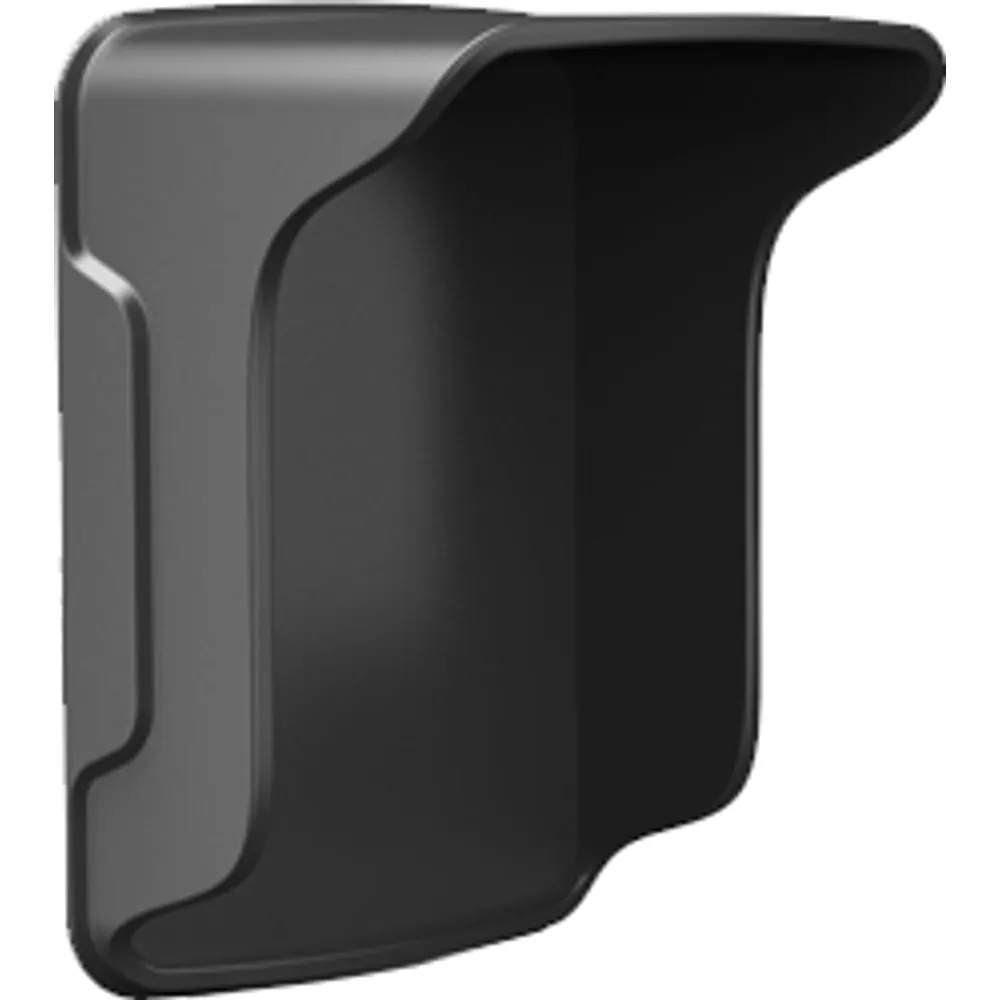

- WS-110-150: compact 150 × 104 × 90 mm shield weighing 0.25 kg
- Non-metallic ABS does not shield 125 kHz or 13.56 MHz reader fields
- Material
- ABS
- Sizes
- 142 × 245 × 83 mm / 150 × 104 × 90 mm
- Protection rating
- IP56 (WS-110-245)
- Front flap
- 135° opening (WS-110-245)
- Weight
- 0.25 kg (WS-110-150)
Reply within 24 hours Tested before dispatch Worldwide shipping
Access Control Rain Cover for Keypads & Readers, ABS: overview
WS-110 is an ABS rain cover that shields access control terminals, keypads and card readers on exterior walls, gate posts and parking entrances from rain, direct sun and dust. It works for access control, time-attendance, payment and other control terminals, and it helps protect devices mounted in exposed spots.
Two sizes are available. WS-110-245 is the larger hood at 142 × 245 × 83 mm, with a roomy interior for taller terminals, a front flap that opens and closes through 135°, and an IP56 protection rating stated for the cover. WS-110-150 is a compact 150 × 104 × 90 mm shield weighing 0.25 kg for smaller readers and keypads.
ABS is non-metallic, so it does not shield 125 kHz or 13.56 MHz reader fields, and cards can still be read with the cover fitted.
Integration notes
Only outer dimensions are published, so compare your device's height, width and depth with the cover before ordering and leave room for the cable entry. Mount the cover tight to the wall so water runs off the top rather than behind the device, and keep the reader's own weather rating in mind: the cover adds protection but does not replace it.
WS-110 specifications
General
| Material | ABS |
|---|---|
| Protection | Rain, sun and dust; for outdoor use |
| Suitable devices | Access control, time-attendance, payment and control terminals; keypads; card readers |
WS-110-245 (large hood)
| Dimensions | 142 × 245 × 83 mm |
|---|---|
| Front flap | Opens and closes through 135° |
| Protection rating | IP56 |
WS-110-150 (compact shield)
| Dimensions | 150 × 104 × 90 mm |
|---|---|
| Weight | 0.25 kg |
| Protection | Outdoor waterproof and dustproof design |
Size comparison
| SKU | Style | Outer dimensions | Front flap | Rating | Weight |
|---|---|---|---|---|---|
| WS-110-245 | Large hood | 142 × 245 × 83 mm | 135° opening | IP56 | Not stated |
| WS-110-150 | Compact shield | 150 × 104 × 90 mm | — | Not stated | 0.25 kg |
Outer dimensions as published; inner dimensions are not specified.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| WS-110-245 | Large ABS rain hood, 142 × 245 × 83 mm, 135° front flap, IP56 stated | |
| WS-110-150 | Compact ABS rain shield, 150 × 104 × 90 mm, 0.25 kg |
Where the WS-110 is used
- Keypads and card readers on gate posts at parking and vehicle entrances
- Face or fingerprint terminals on exterior walls of apartment buildings
- Time-attendance terminals at outdoor site entrances
- Readers at pedestrian gates exposed to afternoon sun and rain
Apartment, Multifamily & Rental Property Access Control
Apartment building access control hardware: anti-clone readers with matched fob sets, QR visitor codes, 4G controllers for rentals and UHF tags for gates.
WS-110 FAQ
Which size do I need?
Compare your device with the outer dimensions: 142 × 245 × 83 mm for WS-110-245 and 150 × 104 × 90 mm for WS-110-150. Inner dimensions are not published, so send us your device size and we will confirm the fit.
Will cards still read with the cover fitted?
Yes. ABS is non-metallic and does not shield 125 kHz or 13.56 MHz reader fields.
Does the cover make my reader IP56?
No. IP56 is stated for the WS-110-245 cover itself; it adds rain, sun and dust protection, but the device keeps its own rating.
What is the 135° flap for?
The WS-110-245 front flap swings open through 135° for access to the keypad or screen and closes back over the device when not in use.
