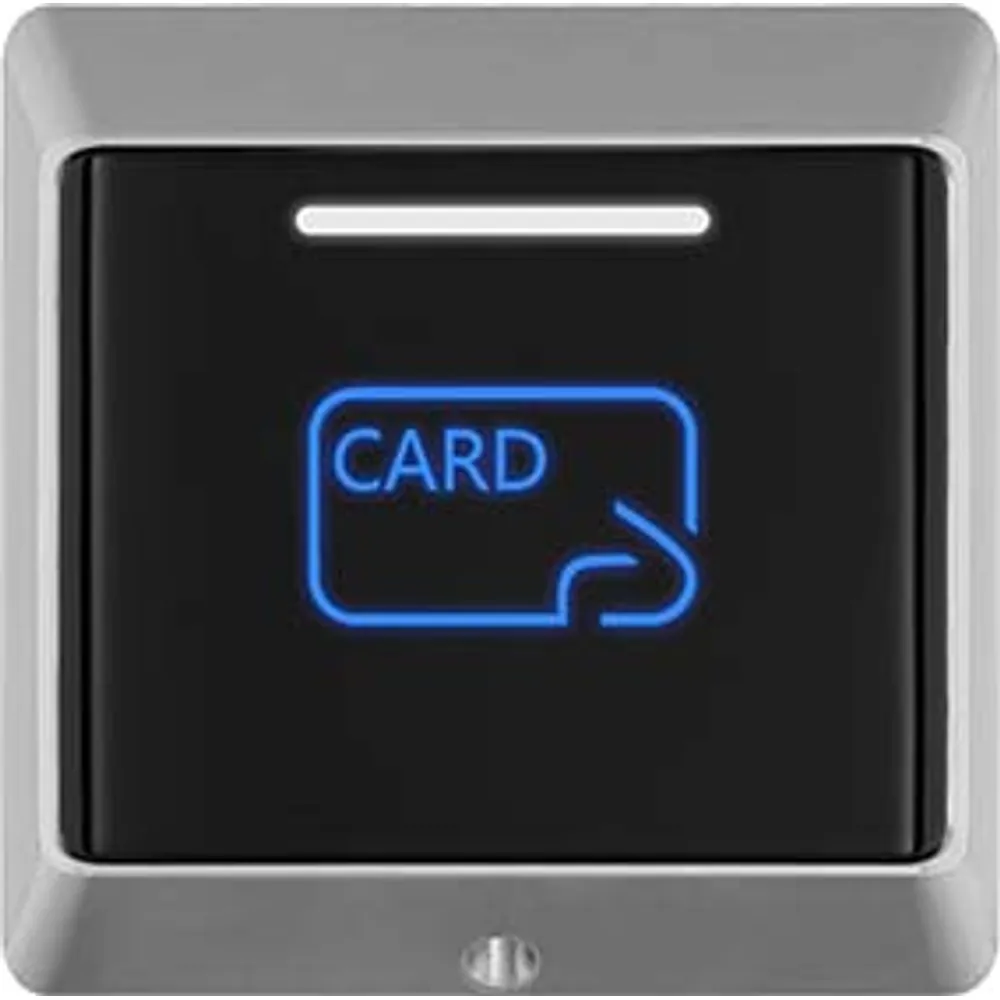

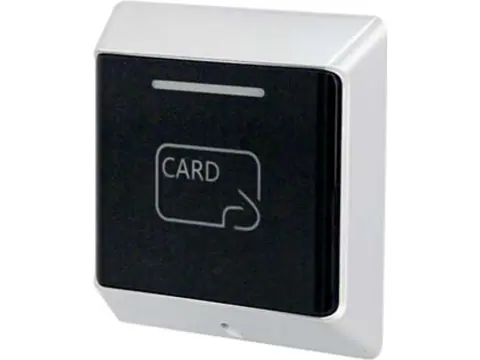

AX-120 Anti-Clone Encrypted Card Reader, IP67, Wiegand 26/34/66
Card-only encrypted 13.56 MHz reader in an IP67 housing: anti-copy cards, Wiegand 26/34/66 output, up to 7 cm range and card validity control.
- Card-only encrypted 13.56 MHz reader; cloned UIDs are not accepted as valid cards
- IP67-rated 89.5 × 89.5 × 16.3 mm housing for exposed entrances
- Wiegand 26/34/66 output for standard access controllers
- Card validity period and use-count limits built into the card system
- On-site setup by configuration card: key, format, Wiegand mode, read mode
- Frequency
- 13.56 MHz, ISO/IEC 14443A
- Card security
- Encrypted anti-copy cards
- Output
- Wiegand 26/34/66
- Read range
- 0–7 cm
- IP rating
- IP67
- Dimensions
- 89.5 × 89.5 × 16.3 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
Anti-Clone Encrypted Card Reader, IP67, Wiegand 26/34/66: overview
AX-120 is the card-only model in the 89.5 mm encrypted reader pair. It reads 13.56 MHz cards issued under the reader's encryption key and passes the card number to the controller over Wiegand, so it can take the place of a UID-only reader on an existing panel. A card cloned from a genuine UID is not accepted.
The housing carries an IP67 rating, which makes it a good fit for building entrances, pedestrian gates and car-park doors that see rain or wash-down. Operating range is –20 to +60 °C at 15–90% humidity, and the reader measures 89.5 × 89.5 × 16.3 mm.
Encrypted cards support a validity period and a use-count limit. Visitor passes, contractor cards and short-let tenants can all be given access that ends on a fixed date or after a fixed number of entries. Read range is up to 7 cm, depending on the card type and surroundings.
Integration notes
Run the reader from 12 V DC ±5% (≤ 200 mA). White is D1 and green is D0; purple and gray accept beeper and LED control from the controller. Select 26, 34 or 66-bit output with a configuration card, which also sets the key, card-number format and read mode, or tie the yellow lead to GND for fixed 26-bit output. Cards are part of the order: we confirm chip type and availability for your region in the quote.
More features
- Up to 7 cm read range; 12 V DC ±5%, ≤ 200 mA
AX-120 specifications
RF & credentials
| Standard | ISO/IEC 14443A |
|---|---|
| Frequency | 13.56 MHz |
| Supported chip families | MIFARE Classic Mini/EV1, MIFARE DESFire EV1/EV2/EV3/Light, MIFARE Plus S/X, MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx |
| Card system | Customized encrypted cards with validity-period and use-count control |
| Read range | 0–7 cm (varies with card type and installation) |
Configuration
| Setup method | Configuration card presented to the reader |
|---|---|
| Configurable items | Encryption key, card-number output format, Wiegand mode, read mode |
Interfaces
| Output | Wiegand 26 / 34 / 66, selectable |
|---|---|
| Fixed Wiegand 26 | Yellow lead tied to GND |
| Control inputs | Beeper (purple), LED (gray) |
Electrical
| Supply voltage | 12 V DC ±5% |
|---|---|
| Current | ≤ 200 mA |
Mechanical & environment
| Dimensions | 89.5 × 89.5 × 16.3 mm (±0.5 mm) |
|---|---|
| Ingress protection | IP67 |
| Operating temperature | –20 to +60 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 15–90% RH |
Wiring definition
| Wire color | Function |
|---|---|
| Red | +12 V DC |
| Black | GND |
| White | Wiegand D1 (DATA1) |
| Green | Wiegand D0 (DATA0) |
| Purple | Beeper control input |
| Gray | LED control input |
| Yellow | Connect to GND to fix the output at Wiegand 26 |
Seven-lead pigtail. Beeper and LED leads are control inputs driven by the access controller.
Encrypted reader family at a glance
| SKU | Keypad | Housing | Read range | Ingress rating |
|---|---|---|---|---|
| AX-110-MS-K | Touch keypad | 89.5 × 89.5 × 16.3 mm | 0–7 cm | IP67 |
| AX-120-MS | None (card only) | 89.5 × 89.5 × 16.3 mm | 0–7 cm | IP67 |
| AX-130-MS | None (card only) | 86 × 86 × 15.6 mm | 0–8 cm | Not specified |
| AX-140-MS-K | Touch keypad | 93 × 93 × 19 mm | 0–5 cm | Not specified |
| AX-150-MS | None (card only) | 93 × 93 × 19 mm | 0–5 cm | Not specified |
All five read 13.56 MHz ISO/IEC 14443A cards, output Wiegand 26/34/66 and run on 12 V DC ±5% at ≤ 200 mA.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| AX-120-MS | Card-only encrypted 13.56 MHz reader, 89.5 mm square, IP67, Wiegand 26/34/66 |
Where the AX-120 is used
- Pedestrian gates and building entrances exposed to rain
- Visitor and contractor cards that stop working after a set date
- Elevator lobby call points linked to an existing Wiegand controller
- Apartment doors where residents have been duplicating cards
Elevator Access Control Readers
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
Turnstile & Speed-Gate Readers: QR, RFID and Face
Turnstile card readers, QR scanners and face terminals for tripod, swing and speed gates, with Wiegand, RS485, RS232 or TTL output to the gate board.
AX-120 FAQ
Is the card-only model as secure as the keypad model?
The card encryption is the same. The keypad model, AX-110, adds PIN entry for doors that need a second factor.
Can it be mounted at an exposed entrance?
The housing is rated IP67, with an operating range of –20 to +60 °C and 15–90% humidity.
Will it work with my existing controller?
Yes, if the controller accepts Wiegand 26, 34 or 66-bit input. The reader sends the card number over D0/D1 like a standard Wiegand reader.
How far away is a card read?
Up to 7 cm. Range varies with the card type and the installation environment.
How are the encrypted cards supplied?
The reader uses customized encrypted cards, so order cards together with readers to keep the key set and output format matched. We confirm chip type and lead time in the quote.
