AX-110 Anti-Clone Encrypted Keypad Card Reader, IP67, Wiegand
Touch-keypad 13.56 MHz reader for encrypted anti-copy cards, with an IP67 housing, Wiegand 26/34/66 output and card validity and use-count control.
- Touch keypad and encrypted 13.56 MHz card reading in one IP67 housing
- Anti-copy card system: cards issued under the reader's key; UID-only copies are not accepted
- Card validity period and use-count limits for tenants, contractors and visitors
- Wiegand 26, 34 or 66-bit output; yellow lead to GND fixes Wiegand 26
- Configuration card sets key, output format, Wiegand mode and read mode on site
- Frequency
- 13.56 MHz, ISO/IEC 14443A
- Keypad
- Touch keypad
- Output
- Wiegand 26/34/66
- Read range
- 0–7 cm
- IP rating
- IP67
- Dimensions
- 89.5 × 89.5 × 16.3 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
Anti-Clone Encrypted Keypad Card Reader, IP67, Wiegand: overview

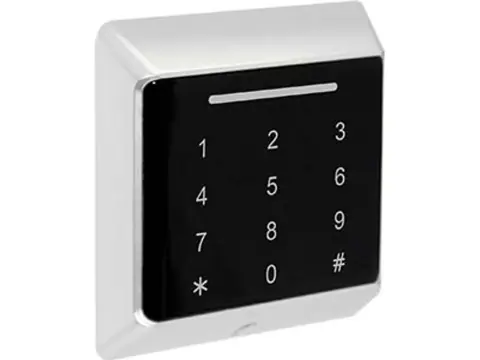

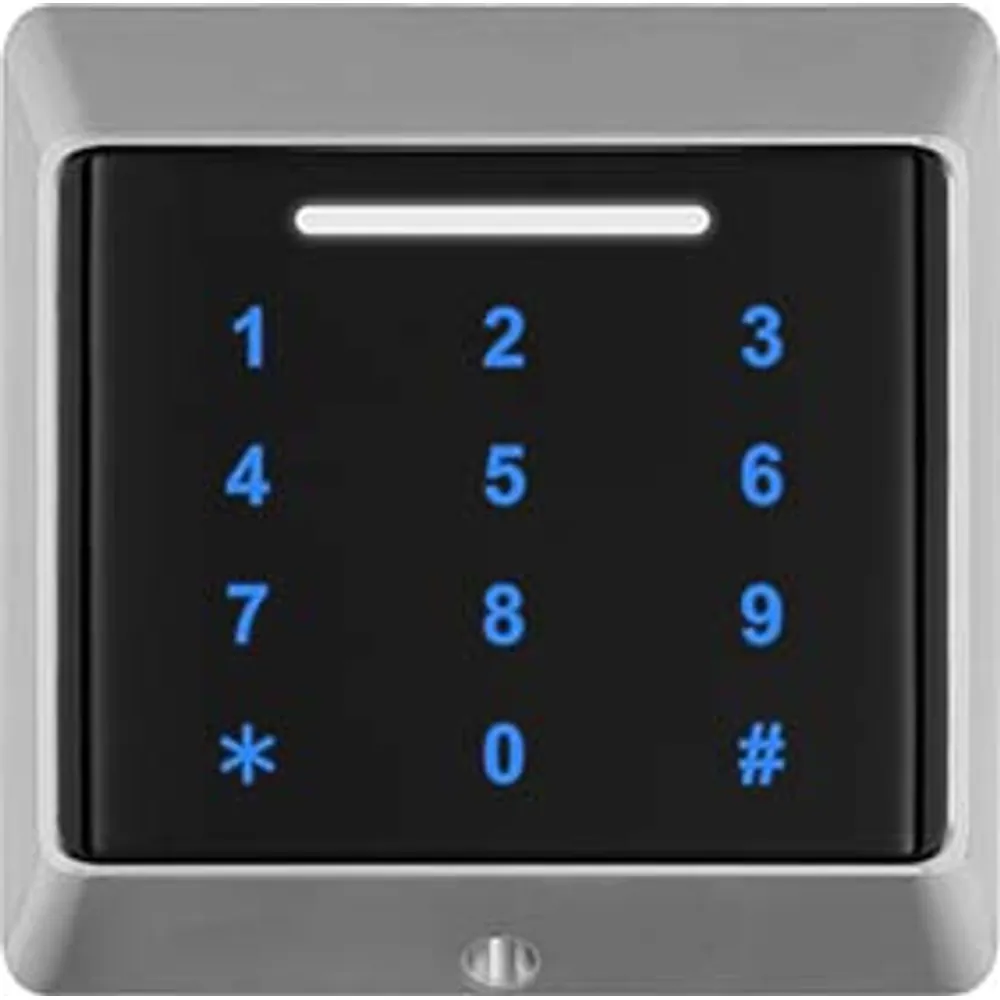

AX-110 combines encrypted 13.56 MHz card reading with a touch keypad in one IP67-rated housing. It is aimed at card-plus-PIN doors in apartment blocks, offices and staff areas where duplicated cards keep turning up. The reader works with cards issued under its encryption key, so a card that only repeats a genuine card's UID is not accepted.
Each card can be given a validity period and a limit on the number of uses. One reader model can therefore serve permanent residents, short-term tenants and contractors without extra hardware. Read range is up to 7 cm depending on the card and the mounting surface, and the square housing measures 89.5 × 89.5 × 16.3 mm.
Installers set the reader on site by presenting a configuration card, which changes the encryption key, the card-number format, the Wiegand mode and the read mode. That means one stock item can be matched to different controllers project by project.
Integration notes
Power is 12 V DC ±5% at no more than 200 mA. Connect white (D1) and green (D0) to the controller's Wiegand input; purple and gray are beeper and LED control inputs. Grounding the yellow lead fixes the output at Wiegand 26. The reader belongs to a customized-card system, so we confirm card chip, key handling and card supply for your country before quoting.
More features
- Read range up to 7 cm; 12 V DC ±5%, ≤ 200 mA
AX-110 specifications
RF & credentials
| Standard | ISO/IEC 14443A |
|---|---|
| Frequency | 13.56 MHz |
| Supported chip families | MIFARE Classic Mini/EV1, MIFARE DESFire EV1/EV2/EV3/Light, MIFARE Plus S/X, MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx |
| Card system | Customized encrypted cards with validity-period and use-count control |
| Read range | 0–7 cm (varies with card type and installation) |
User interface
| Keypad | Touch keypad, 0–9, * and # |
|---|
Configuration
| Setup method | Configuration card presented to the reader |
|---|---|
| Configurable items | Encryption key, card-number output format, Wiegand mode, read mode |
Interfaces
| Output | Wiegand 26 / 34 / 66, selectable |
|---|---|
| Fixed Wiegand 26 | Yellow lead tied to GND |
| Control inputs | Beeper (purple), LED (gray) |
Electrical
| Supply voltage | 12 V DC ±5% |
|---|---|
| Current | ≤ 200 mA |
Mechanical & environment
| Dimensions | 89.5 × 89.5 × 16.3 mm (±0.5 mm) |
|---|---|
| Ingress protection | IP67 |
| Operating temperature | –20 to +60 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 15–90% RH |
Wiring definition
| Wire color | Function |
|---|---|
| Red | +12 V DC |
| Black | GND |
| White | Wiegand D1 (DATA1) |
| Green | Wiegand D0 (DATA0) |
| Purple | Beeper control input |
| Gray | LED control input |
| Yellow | Connect to GND to fix the output at Wiegand 26 |
Seven-lead pigtail. Beeper and LED leads are control inputs driven by the access controller.
Encrypted reader family at a glance
| SKU | Keypad | Housing | Read range | Ingress rating |
|---|---|---|---|---|
| AX-110-MS-K | Touch keypad | 89.5 × 89.5 × 16.3 mm | 0–7 cm | IP67 |
| AX-120-MS | None (card only) | 89.5 × 89.5 × 16.3 mm | 0–7 cm | IP67 |
| AX-130-MS | None (card only) | 86 × 86 × 15.6 mm | 0–8 cm | Not specified |
| AX-140-MS-K | Touch keypad | 93 × 93 × 19 mm | 0–5 cm | Not specified |
| AX-150-MS | None (card only) | 93 × 93 × 19 mm | 0–5 cm | Not specified |
All five read 13.56 MHz ISO/IEC 14443A cards, output Wiegand 26/34/66 and run on 12 V DC ±5% at ≤ 200 mA.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| AX-110-MS-K | Touch-keypad encrypted 13.56 MHz reader, 89.5 mm square, IP67, Wiegand 26/34/66 |
Where the AX-110 is used
- Apartment entrance doors that need card plus PIN and have a history of copied resident cards
- Gym and club doors where visit-pack cards stop after a set number of entries
- Contractor access to plant rooms with cards that expire when the job ends
- Replacing UID-only keypad readers on an existing Wiegand controller
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
AX-110 FAQ
What happens if someone copies a card's UID onto a blank card?
The copy is not accepted. AX-110 works with cards issued under its encryption key, so repeating the serial number of a genuine card is not enough to pass.
Can cards expire automatically?
Yes. The card system supports a validity period and a use-count limit, so temporary cards for tenants, contractors or visitors stop working on schedule.
Which Wiegand formats are available?
26, 34 and 66-bit, selected with a configuration card. Connecting the yellow lead to GND fixes the output at 26-bit.
What power supply does it need?
12 V DC ±5%, with up to 200 mA per reader. The reader supply on most access controllers can feed it if that current is available.
Can we source the encrypted cards from you as well?
Yes. Readers and cards are quoted together so the key set and output format match; send us the quantity, preferred chip type and controller model and we confirm availability for your country.
