AX-140 Anti-Copy Encrypted Touch Keypad Card Reader, 93 mm
Touch-keypad encrypted card reader in a 93 mm square housing: anti-copy cards, Wiegand 26/34/66, sub-120 ms response and a standalone card-issuing program.
- Touch keypad plus encrypted 13.56 MHz card reading in a 93 × 93 × 19 mm housing
- Anti-copy cards prepared with a standalone issuing program; controller software stays unchanged
- Card data received in under 120 ms within the 0–5 cm read zone
- Wiegand 26/34/66 output, selected by configuration card
- Card validity period and use-count control for temporary users
- Frequency
- 13.56 MHz, ISO/IEC 14443A
- Keypad
- Touch keypad
- Output
- Wiegand 26/34/66
- Read range
- 0–5 cm
- Power
- 12 V DC ±5%, ≤ 200 mA
- Dimensions
- 93 × 93 × 19 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
Anti-Copy Encrypted Touch Keypad Card Reader, 93 mm: overview

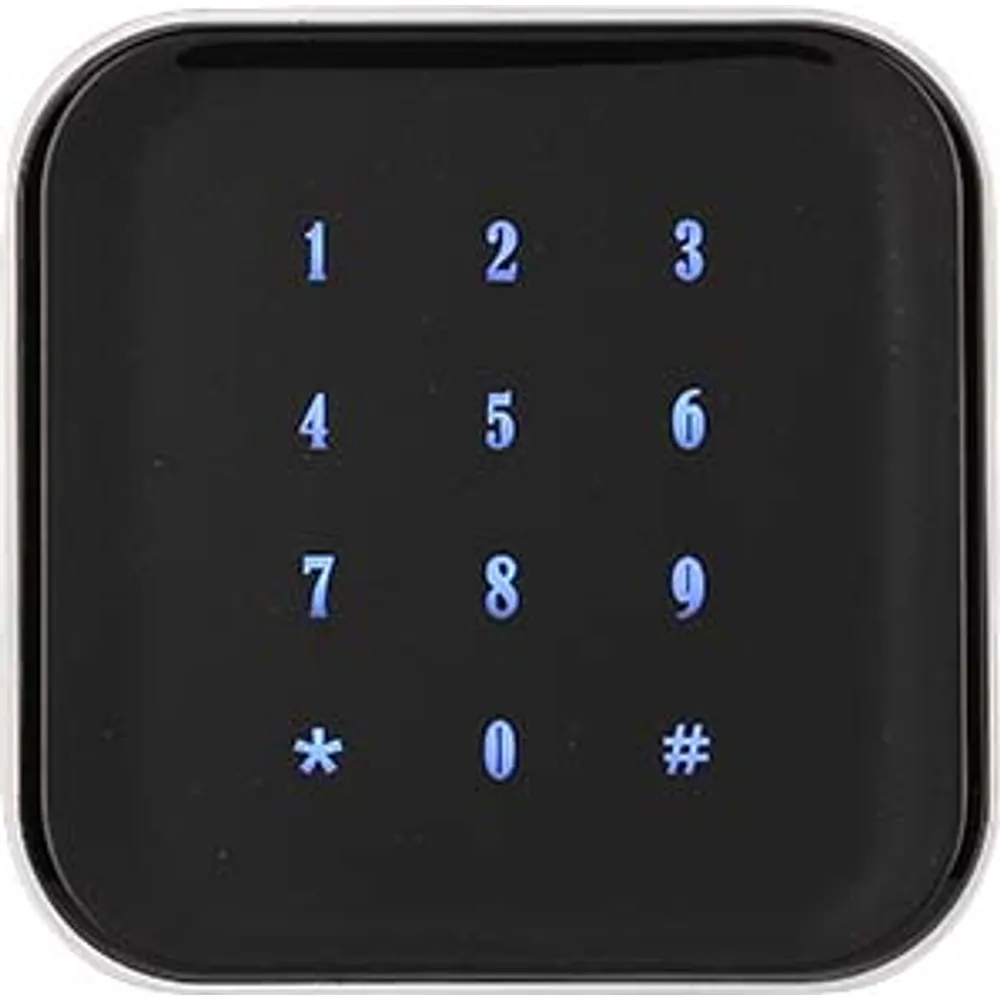

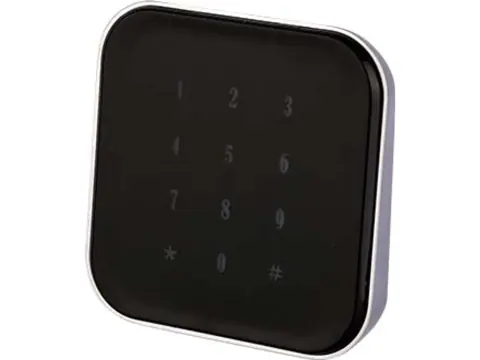

AX-140 pairs a touch keypad with encrypted 13.56 MHz card reading in a 93 × 93 × 19 mm square housing. It suits card-plus-PIN doors in offices, residential buildings and service areas where copied cards have been showing up, and it connects to the controller as an ordinary Wiegand reader.
Protection comes from the card system. Cards are prepared under the reader's key with a standalone issuing program, and the access software on the controller side is left as it is: it simply enrolls the Wiegand number the reader sends. Each card can carry a validity period and a use-count limit for temporary users.
Card data is received in under 120 ms once a card enters the 0–5 cm read zone. The electronics include ESD and mis-wiring protection, and the reader is designed to cope with metal surroundings and neighboring readers, which helps on steel door frames and in dense reader banks.
Integration notes
Supply 12 V DC ±5%, ≤ 200 mA. Wire green (D0) and white (D1) to the controller, with purple and gray as beeper and LED control inputs. A configuration card sets the key, Wiegand format (26, 34 or 66-bit), output content and read mode; grounding the yellow lead forces Wiegand 26. We confirm the firmware build, card supply and issuing-software language for your project before quoting.
More features
- ESD and mis-wiring protection; tolerant of metal surroundings and adjacent readers
AX-140 specifications
RF & credentials
| Standard | ISO/IEC 14443A |
|---|---|
| Frequency | 13.56 MHz |
| Supported chip families | MIFARE Classic Mini/EV1, MIFARE DESFire EV1/EV2/EV3/Light, MIFARE Plus S/X, MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx |
| Card system | Customized encrypted cards with validity-period and use-count control |
| Read range | 0–5 cm (varies with card type and installation) |
| Response time | < 120 ms data reception within read range |
| Interference | Designed to tolerate metal shielding and adjacent readers |
User interface
| Keypad | Touch keypad, 0–9, * and # |
|---|
Configuration
| Setup method | Configuration card presented to the reader |
|---|---|
| Configurable items | Encryption key, card-number output format, Wiegand mode, read mode |
| Card issuing | Standalone issuing program; no change to third-party access software |
Interfaces
| Output | Wiegand 26 / 34 / 66, selectable |
|---|---|
| Fixed Wiegand 26 | Yellow lead tied to GND |
| Control inputs | Beeper (purple), LED (gray) |
Electrical
| Supply voltage | 12 V DC ±5% |
|---|---|
| Current | ≤ 200 mA |
| Protection | ESD and mis-wiring protection |
Mechanical & environment
| Dimensions | 93 × 93 × 19 mm (±0.2 mm) |
|---|---|
| Operating temperature | –20 to +60 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 15–90% RH |
Wiring definition
| Wire color | Function |
|---|---|
| Red | +12 V DC |
| Black | GND |
| White | Wiegand D1 (DATA1) |
| Green | Wiegand D0 (DATA0) |
| Purple | Beeper control input |
| Gray | LED control input |
| Yellow | Connect to GND to fix the output at Wiegand 26 |
Seven-lead pigtail. Beeper and LED leads are control inputs driven by the access controller.
Encrypted reader family at a glance
| SKU | Keypad | Housing | Read range | Ingress rating |
|---|---|---|---|---|
| AX-110-MS-K | Touch keypad | 89.5 × 89.5 × 16.3 mm | 0–7 cm | IP67 |
| AX-120-MS | None (card only) | 89.5 × 89.5 × 16.3 mm | 0–7 cm | IP67 |
| AX-130-MS | None (card only) | 86 × 86 × 15.6 mm | 0–8 cm | Not specified |
| AX-140-MS-K | Touch keypad | 93 × 93 × 19 mm | 0–5 cm | Not specified |
| AX-150-MS | None (card only) | 93 × 93 × 19 mm | 0–5 cm | Not specified |
All five read 13.56 MHz ISO/IEC 14443A cards, output Wiegand 26/34/66 and run on 12 V DC ±5% at ≤ 200 mA.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| AX-140-MS-K | Touch-keypad encrypted 13.56 MHz reader, 93 × 93 × 19 mm, Wiegand 26/34/66 |
Where the AX-140 is used
- Card-plus-PIN office doors where staff cards have been duplicated
- Residential entrances needing tenant cards that expire at the end of a lease
- Service and plant rooms opened by contractors with limited-use cards
- Readers mounted on or close to steel door frames
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
AX-140 FAQ
Does the access control software need changes?
No. Cards are prepared with the standalone issuing program, and the controller receives a normal Wiegand number that it enrolls like any other card.
How does AX-140 differ from AX-150?
Both use the same 93 mm housing and card system. AX-140 adds a touch keypad; AX-150 is card-only.
What is the read range?
0–5 cm, depending on the card and the installation. Card data is received in under 120 ms once the card is in range.
Can it be mounted on a metal door frame?
The reader is designed to resist metal shielding and interference from nearby readers. Range on metal can still drop, so test with your own card type before a large rollout.
Which Wiegand formats does it support?
26, 34 and 66-bit, chosen with a configuration card. Tie the yellow lead to GND to force 26-bit output.
