AX-150 Anti-Copy Encrypted Card Reader, 93 mm Square, Wiegand
Card-only encrypted 13.56 MHz reader in a 93 mm square housing, with anti-copy cards, Wiegand 26/34/66 output and a standalone card-issuing program.
- Card-only encrypted 13.56 MHz reader built around an anti-copy card system
- 93 × 93 × 19 mm square housing
- Wiegand 26/34/66 output to third-party controllers
- Standalone card-issuing program; access software needs no changes
- Validity period and use-count limits for temporary cards
- Frequency
- 13.56 MHz, ISO/IEC 14443A
- Card security
- Encrypted anti-copy cards
- Output
- Wiegand 26/34/66
- Read range
- 0–5 cm
- Power
- 12 V DC ±5%, ≤ 200 mA
- Dimensions
- 93 × 93 × 19 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
Anti-Copy Encrypted Card Reader, 93 mm Square, Wiegand: overview

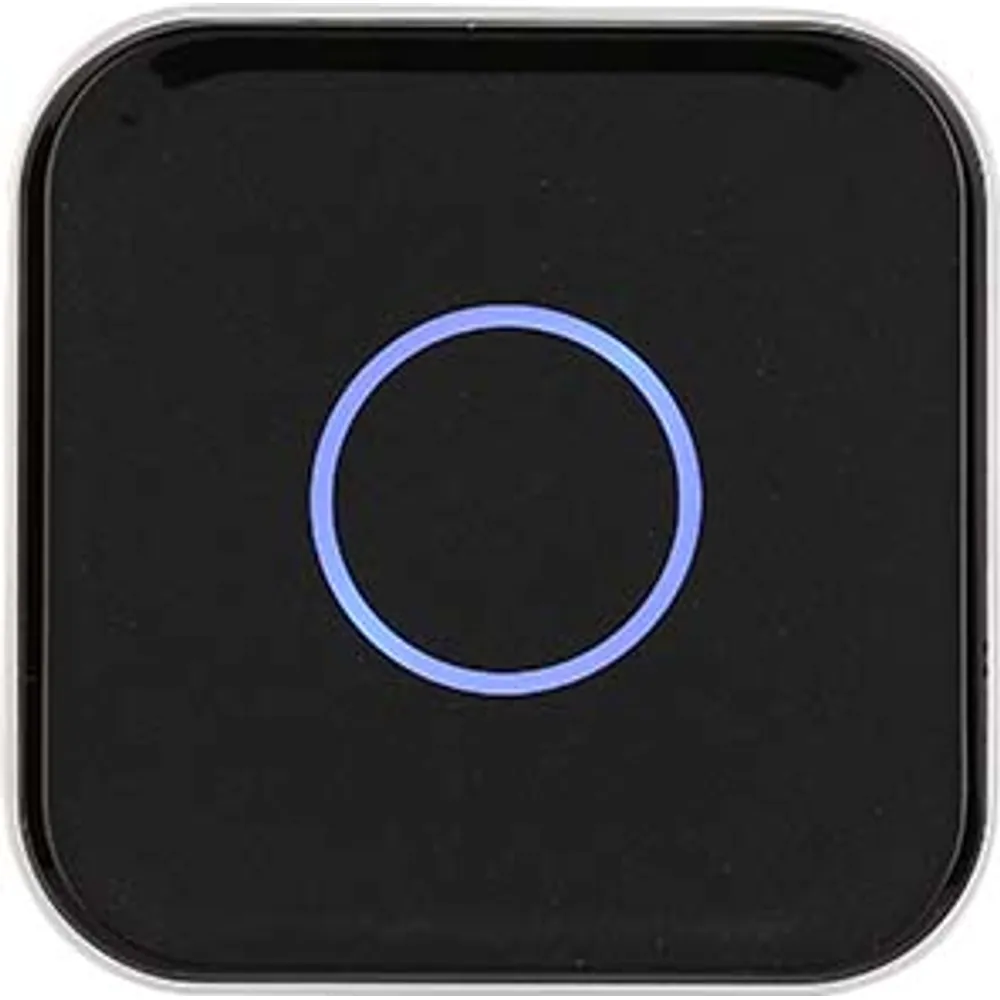

AX-150 is a keyless encrypted card reader in a 93 × 93 × 19 mm square housing. It reads 13.56 MHz ISO/IEC 14443A cards issued under its key and hands the card number to any controller with a Wiegand 26, 34 or 66-bit input. Choose it for card-only doors that call for a larger face than an 86 mm reader.
Cards are prepared with a standalone issuing program, so the existing access software carries on unchanged. Encrypted cards can be limited by date and by number of uses, which lets the same reader stock handle visitor, contractor and short-stay cards.
Output parameters are set on site with a configuration card: encryption key, card-number format, Wiegand mode and read mode. One part number can therefore serve projects with different controllers and card formats.
Integration notes
Supply is 12 V DC ±5% at no more than 200 mA. Read range is 0–5 cm depending on the card and surroundings. Wiring follows the family standard: red +12 V, black GND, white D1, green D0, purple beeper input, gray LED input, and yellow to GND for a fixed Wiegand 26 output. The matching touch-keypad model is AX-140.
More features
- Configuration-card setup of key, output format, Wiegand mode and read mode
AX-150 specifications
RF & credentials
| Standard | ISO/IEC 14443A |
|---|---|
| Frequency | 13.56 MHz |
| Supported chip families | MIFARE Classic Mini/EV1, MIFARE DESFire EV1/EV2/EV3/Light, MIFARE Plus S/X, MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx |
| Card system | Customized encrypted cards with validity-period and use-count control |
| Read range | 0–5 cm (varies with card type and installation) |
Configuration
| Setup method | Configuration card presented to the reader |
|---|---|
| Configurable items | Encryption key, card-number output format, Wiegand mode, read mode |
| Card issuing | Standalone issuing program; no change to third-party access software |
Interfaces
| Output | Wiegand 26 / 34 / 66, selectable |
|---|---|
| Fixed Wiegand 26 | Yellow lead tied to GND |
| Control inputs | Beeper (purple), LED (gray) |
Electrical
| Supply voltage | 12 V DC ±5% |
|---|---|
| Current | ≤ 200 mA |
Mechanical & environment
| Dimensions | 93 × 93 × 19 mm (±0.2 mm) |
|---|---|
| Operating temperature | –20 to +60 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 15–90% RH |
Wiring definition
| Wire color | Function |
|---|---|
| Red | +12 V DC |
| Black | GND |
| White | Wiegand D1 (DATA1) |
| Green | Wiegand D0 (DATA0) |
| Purple | Beeper control input |
| Gray | LED control input |
| Yellow | Connect to GND to fix the output at Wiegand 26 |
Seven-lead pigtail. Beeper and LED leads are control inputs driven by the access controller.
Encrypted reader family at a glance
| SKU | Keypad | Housing | Read range | Ingress rating |
|---|---|---|---|---|
| AX-110-MS-K | Touch keypad | 89.5 × 89.5 × 16.3 mm | 0–7 cm | IP67 |
| AX-120-MS | None (card only) | 89.5 × 89.5 × 16.3 mm | 0–7 cm | IP67 |
| AX-130-MS | None (card only) | 86 × 86 × 15.6 mm | 0–8 cm | Not specified |
| AX-140-MS-K | Touch keypad | 93 × 93 × 19 mm | 0–5 cm | Not specified |
| AX-150-MS | None (card only) | 93 × 93 × 19 mm | 0–5 cm | Not specified |
All five read 13.56 MHz ISO/IEC 14443A cards, output Wiegand 26/34/66 and run on 12 V DC ±5% at ≤ 200 mA.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| AX-150-MS | Card-only encrypted 13.56 MHz reader, 93 × 93 × 19 mm, Wiegand 26/34/66 |
Where the AX-150 is used
- Card-only office and residential entrances replacing UID-only readers
- Turnstile and gate lanes fed by a Wiegand controller
- Visitor cards limited to a date range or a set number of entries
- Elevator lobbies where only issued resident cards should work
Elevator Access Control Readers
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
Turnstile & Speed-Gate Readers: QR, RFID and Face
Turnstile card readers, QR scanners and face terminals for tripod, swing and speed gates, with Wiegand, RS485, RS232 or TTL output to the gate board.
AX-150 FAQ
What is the read range?
0–5 cm, depending on the card type and the installation.
Is there a keypad version?
Yes. AX-140 uses the same 93 mm housing and card system and adds a touch keypad.
Do I need to change my access control software?
No. Cards are prepared with the separate issuing program, and the controller enrolls the Wiegand number from the reader in the usual way.
Is the housing waterproof?
No ingress rating is specified for this model. For exposed doors, choose the IP67-rated AX-120 (card only) or AX-110 (keypad).
What does the configuration card change?
The encryption key, the card-number output format, the Wiegand mode (26, 34 or 66-bit) and the read mode.
