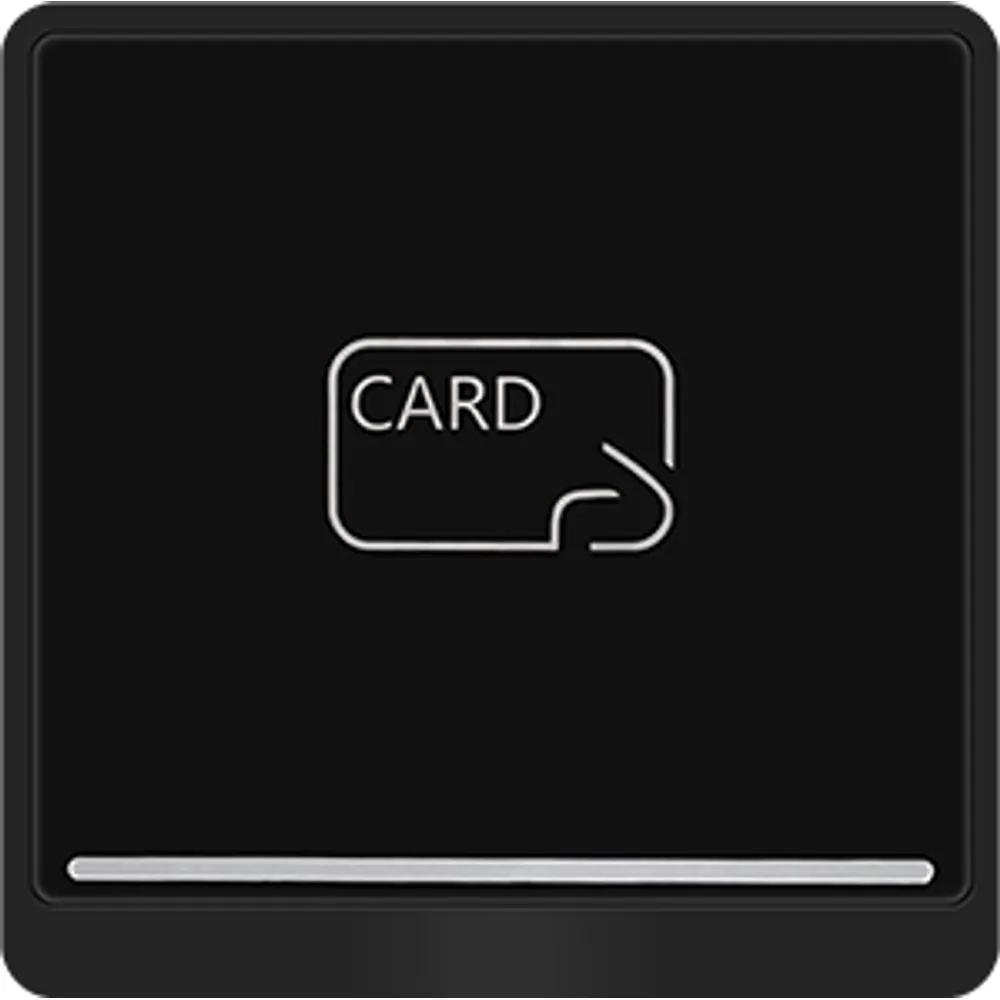

CR-280 Glass-Panel Wiegand Card Reader, Black or Gold Metal Frame

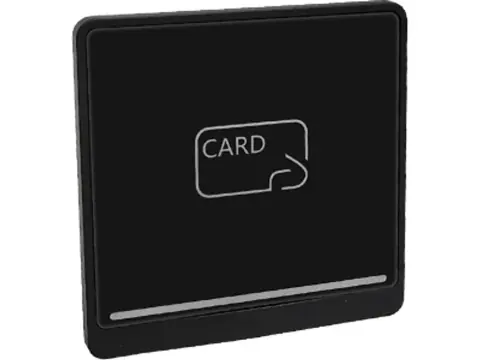

Keyless 90 mm reader with a black glass panel, running-light LED and black or champagne-gold metal frame. 13.56 MHz or dual-frequency, Wiegand 26/34, no logo.
- Black glass panel with black or champagne-gold metal frame; ships without a logo
- Gradient running-light LED bar for clear read feedback
- 13.56 MHz: MIFARE Classic 1K/4K, DESFire, CPU cards, ICODE, TI HF tags, iCLASS CSN
- Dual-frequency versions add 125 kHz EM-type cards and fobs
- Wiegand 34 standard, Wiegand 26 selectable; read range 0–5 cm
- Frequency
- 13.56 MHz (-M) or 125 kHz + 13.56 MHz (-D)
- Output
- Wiegand 34 / 26
- Read range
- 0–5 cm
- Finish

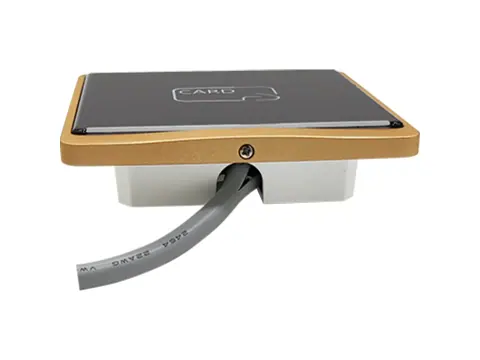

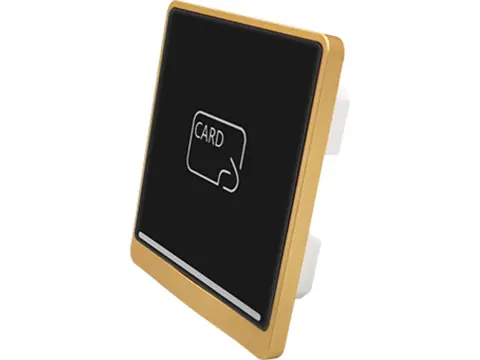

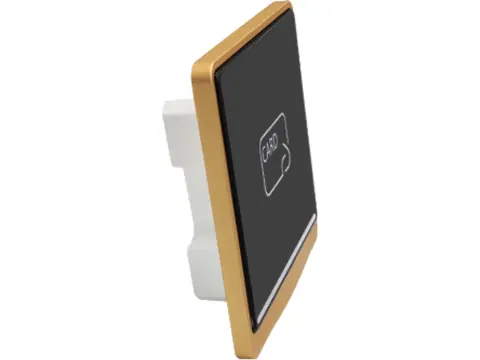

- Black glass; black or champagne-gold metal frame
- Power
- 12 V DC ±5%, ≤ 200 mA
- Dimensions
- 90 × 90 × 20.8 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
Glass-Panel Wiegand Card Reader, Black or Gold Metal Frame: overview
The CR-280 pairs a black glass panel with a black or champagne-gold metal frame and a gradient running-light LED bar, for hotel corridors, offices and residential lobbies where the reader is on show. It is card-only, measures 90 × 90 × 20.8 mm overall, and ships with no logo on the glass, so it will not clash with your branding or your client's.
CR-280-M versions read 13.56 MHz credentials to ISO/IEC 14443A/B and ISO/IEC 15693, including MIFARE Classic 1K/4K, DESFire and CPU cards, ICODE and TI HF tags, and the iCLASS card serial number (CSN) only. CR-280-D versions add 125 kHz EM-type cards for sites that still carry older fobs. Reading distance is 0–5 cm depending on the card and installation.
Output is Wiegand 34 as standard, with Wiegand 26 selectable, and further output parameters are changed with a configuration card. The reader runs on 12 V DC at no more than 200 mA across –20 to +60 °C and is designed to resist metal shielding, so it can sit on metal surrounds.
Integration notes

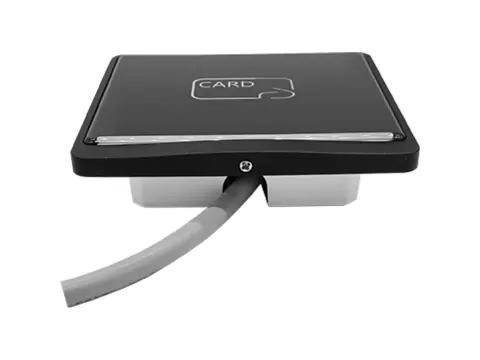

A 220 mm (8.7 in) pigtail carries red +12 V, black GND, green D0, white D1, purple buzzer control and gray LED control. Tie yellow to GND to switch the output to Wiegand 26. No ingress rating is published, so treat it as an indoor reader.
More features
- 90 × 90 × 20.8 mm; 12 V DC, ≤ 200 mA; –20 to +60 °C
CR-280 specifications
RF & credentials
| Frequency | 13.56 MHz (CR-280-M); 125 kHz + 13.56 MHz (CR-280-D) |
|---|---|
| Protocols | ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693 |
| 13.56 MHz credentials | MIFARE Classic 1K/4K, MIFARE DESFire, CPU cards, ICODE, TI HF tags; iCLASS card serial number (CSN) only |
| 125 kHz credentials (-D) | EM-type (ID) cards and key fobs |
| Read range | 0–5 cm, depending on card type and installation |
Interfaces
| Output | Wiegand 34 (standard) or Wiegand 26 |
|---|---|
| Setup | Configuration card for output parameters |
| Controller inputs | Buzzer control, LED control |
| Format lead (yellow) | Connect to GND to switch the output to Wiegand 26 |
| Cable | 220 mm (8.7 in) pigtail, ±10 mm |
Electrical
| Supply voltage | 12 V DC (±5%) |
|---|---|
| Working current | ≤ 200 mA |
Mechanical & environment
| Housing | Black glass panel, metal front frame (black or champagne gold), no keypad, no logo |
|---|---|
| Indicator | Gradient running-light LED bar |
| Dimensions | 90 × 90 × 20.8 mm (±0.5 mm) |
| Operating temperature | –20 to +60 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 20–80% |
| Ingress rating | Not specified (indoor mounting) |
Variant comparison
| Variant | Frequency | Frame color | Keypad | Output |
|---|---|---|---|---|
| CR-280-M-BK | 13.56 MHz | Black | None | Wiegand 34 / 26 |
| CR-280-M-GD | 13.56 MHz | Champagne gold | None | Wiegand 34 / 26 |
| CR-280-D-BK | 125 kHz + 13.56 MHz | Black | None | Wiegand 34 / 26 |
| CR-280-D-GD | 125 kHz + 13.56 MHz | Champagne gold | None | Wiegand 34 / 26 |
Wire colors
| Wire | Function |
|---|---|
| Red | +12 V DC |
| Black | GND |
| Green | Wiegand D0 |
| White | Wiegand D1 |
| Purple | Buzzer control input |
| Gray | LED control input |
| Yellow | Connect to GND to fix the output at Wiegand 26 |
Supplied on a 220 mm (8.7 in) pigtail. Output is Wiegand 34 unless the yellow lead is grounded.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| CR-280-M-BK | 13.56 MHz glass-panel reader, black metal frame, no logo, Wiegand 34/26. | |
| CR-280-M-GD | 13.56 MHz glass-panel reader, champagne-gold metal frame, no logo, Wiegand 34/26. | |
| CR-280-D-BK | Dual-frequency (125 kHz + 13.56 MHz) glass-panel reader, black metal frame, no logo, Wiegand 34/26. | |
| CR-280-D-GD | Dual-frequency (125 kHz + 13.56 MHz) glass-panel reader, champagne-gold metal frame, no logo, Wiegand 34/26. |
Where the CR-280 is used
- Hotel room corridors and executive floors where the reader must match the fit-out
- Premium residential lobbies choosing black or champagne-gold hardware
- White-label installs that need unbranded glass readers
- Lift lobbies passing MIFARE or ICODE numbers to an elevator controller
Elevator Access Control Readers
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
CR-280 FAQ
Does the CR-280 have a keypad?
No, the CR-280 is card-only. The CR-290 is the touch-keypad version in the same 90 × 90 mm glass-and-metal housing.
Is there a logo on the glass?
No. Standard units ship with a plain glass panel, which suits reseller and white-label projects.
Which frame colors can I order?
Black or champagne gold, both with a black glass panel. Add BK or GD to the SKU, for example CR-280-D-GD.
Can it read HID iCLASS credentials?
It reads the iCLASS card serial number (CSN) only, not the secure credential data. Enroll iCLASS cards by CSN in your access software.
What read distance does it achieve?
Up to 5 cm, depending on the card type and installation environment.
