CR-240 IP67 Waterproof Slim Wiegand Card Reader, 125 kHz/13.56 MHz
Slim 80.5 × 44 mm reader, epoxy-potted to IP67, with a lit diamond light strip. Sends 125 kHz EM or 13.56 MHz MIFARE-family card numbers as Wiegand 26/34.
- Epoxy-potted electronics rated IP67 for exposed and wet-area entrances
- Narrow 80.5 × 44 × 16 mm housing for mullions and slim door frames
- CR-240-E reads 125 kHz EM-type cards and fobs; CR-240-M reads 13.56 MHz ISO/IEC 14443A/B UIDs
- Wiegand 26 or 34 output; yellow lead to GND fixes Wiegand 26
- Configuration card sets Wiegand mode, card key and number format
- Frequency
- 125 kHz (-E) or 13.56 MHz (-M)
- Output
- Wiegand 26 / 34
- Read range
- 0–3 cm (card and mounting dependent)
- IP rating
- IP67, epoxy-potted
- Power
- 12 V DC ±5%, ≤ 200 mA
- Dimensions
- 80.5 × 44 × 16 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
IP67 Waterproof Slim Wiegand Card Reader, 125 kHz/13.56 MHz: overview

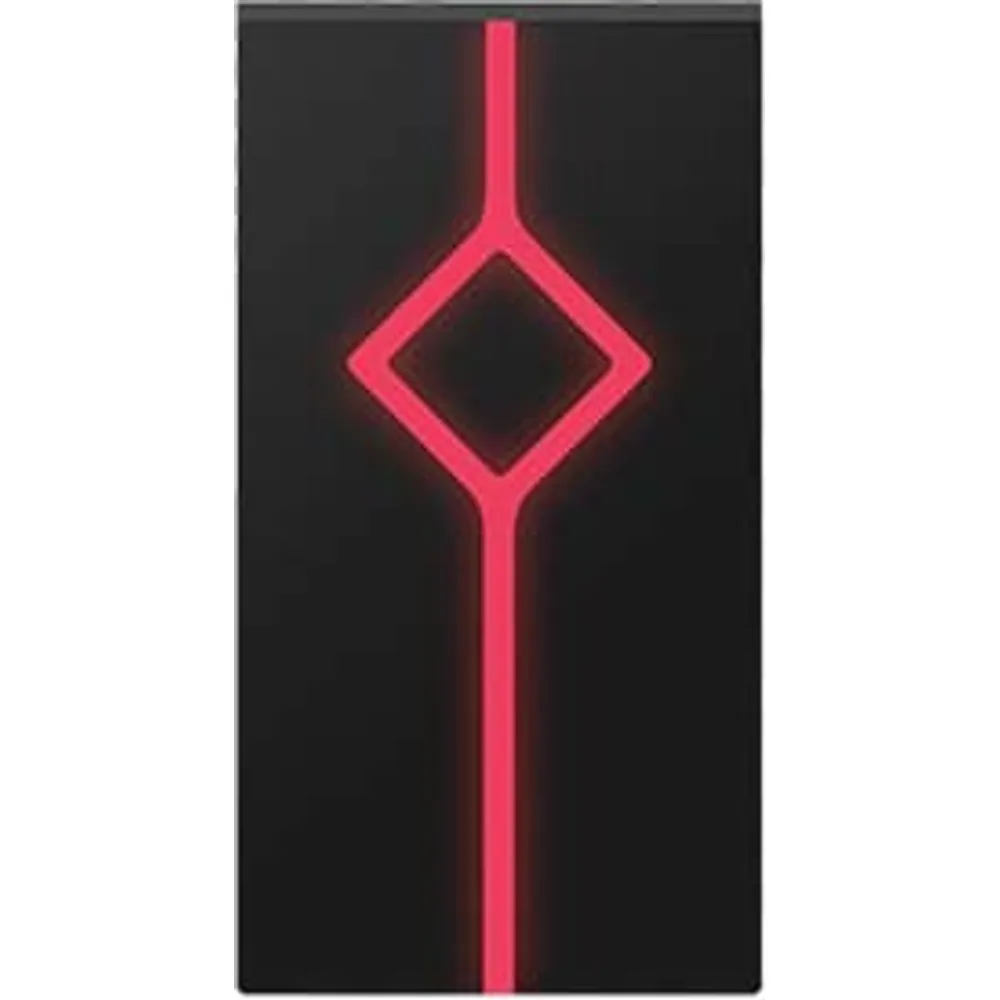

The CR-240 is a narrow, card-only reader for doors where a square unit will not fit or would spoil the finish. Its 80.5 × 44 mm face suits mullions and slim frames, and the electronics are fully potted in epoxy resin to an IP67 rating, so it can be used on exposed entrances as well as indoors. A red diamond-and-line light strip on the black housing gives it a distinctive look that works in both traditional and minimalist interiors.
Two versions are stocked. CR-240-E reads 125 kHz EM-type thick cards, thin cards and key fobs. CR-240-M reads the UID of ISO/IEC 14443A/B credentials, including MIFARE Classic 1K/4K, DESFire, Ultralight, NTAG213/NTAG216 and CPU smart cards. Both send the number to the controller as Wiegand 26 or 34, with a read distance of up to 3 cm depending on the card and the surface behind the reader.
Output format, card key and number format are set by presenting a configuration card, so no software is needed at the door. The reader runs from 12 V DC at no more than 200 mA over –20 to +65 °C, with anti-static design and short-circuit protection on the outputs.
Integration notes
Connect red to +12 V, black to GND, green to D0 and white to D1. Purple and gray are buzzer and LED control inputs driven by the controller. Grounding the yellow lead locks the output to Wiegand 26, which suits panels that accept only the 26-bit format.
More features
- Red illuminated diamond light strip on a black housing
CR-240 specifications
RF & credentials
| Frequency | 125 kHz (CR-240-E); 13.56 MHz (CR-240-M) |
|---|---|
| 125 kHz credentials | EM-type (ID) thick cards, thin cards and key fobs - card number |
| 13.56 MHz credentials | ISO/IEC 14443A/B UID: MIFARE Classic 1K/4K, MIFARE DESFire, MIFARE Ultralight, NTAG213/NTAG216, CPU smart cards |
| Read range | 0–3 cm, depending on card type and installation |
Interfaces
| Output | Wiegand 26 or Wiegand 34 |
|---|---|
| Setup | Configuration card: Wiegand mode, card key, card-number format |
| Controller inputs | Buzzer control, LED control |
| Format lead (yellow) | Connect to GND to fix the output at Wiegand 26 |
Electrical
| Supply voltage | 12 V DC (±5%) |
|---|---|
| Working current | ≤ 200 mA |
| Output short-circuit protection | Responds in ≤ 100 µs |
| ESD | Anti-static protection design |
Mechanical & environment
| Housing | Black, epoxy-potted, red diamond light strip, no keypad |
|---|---|
| Ingress rating | IP67 |
| Dimensions | 80.5 × 44 × 16 mm (±0.2 mm) |
| Operating temperature | –20 to +65 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 20–80% |
Variant comparison
| Variant | Frequency | Cards read (card number / UID) | Output |
|---|---|---|---|
| CR-240-E | 125 kHz | EM-type thick cards, thin cards, key fobs | Wiegand 26 / 34 |
| CR-240-M | 13.56 MHz | MIFARE Classic 1K/4K, DESFire, Ultralight, NTAG213/216, CPU cards (ISO/IEC 14443A/B) | Wiegand 26 / 34 |
Wire colors
| Wire | Function |
|---|---|
| Red | +12 V DC |
| Black | GND |
| Green | Wiegand D0 |
| White | Wiegand D1 |
| Purple | Buzzer control input |
| Gray | LED control input |
| Yellow | Connect to GND to fix the output at Wiegand 26 |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| CR-240-E | 125 kHz EM-type card and fob reader, slim IP67 housing, Wiegand 26/34. | |
| CR-240-M | 13.56 MHz ISO/IEC 14443A/B UID reader (MIFARE Classic, DESFire, Ultralight, NTAG, CPU cards), slim IP67 housing, Wiegand 26/34. |
Where the CR-240 is used
- Narrow aluminum shopfront and office door frames with no room for a square reader
- Exposed side gates and wash-down areas that need a potted IP67 reader
- Boutique hotels and residences where the reader is part of the interior design
- Replacing worn 125 kHz readers on an existing Wiegand controller
Elevator Access Control Readers
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
CR-240 FAQ
Can the CR-240 be installed outdoors?
The electronics are potted in epoxy resin and the reader is rated IP67, with an operating range of –20 to +65 °C. That covers exposed entrances in most temperate climates; for sites colder than –20 °C choose a wide-temperature reader.
Does CR-240-M read encrypted MIFARE sectors?
No. CR-240-M is specified for UID reading of MIFARE Classic, DESFire, Ultralight, NTAG and CPU cards. For readers that authenticate MIFARE sectors in the same style, see CR-260-M or CR-270-M.
What read distance should I expect?
Up to 3 cm. The exact figure depends on the card or fob type and on the mounting surface, so test with your own credentials before rollout.
How do I choose Wiegand 26 or 34?
Tie the yellow lead to GND for fixed Wiegand 26, or leave it unconnected and set the format with a configuration card.
