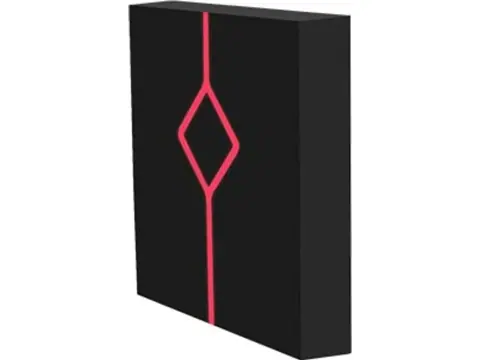

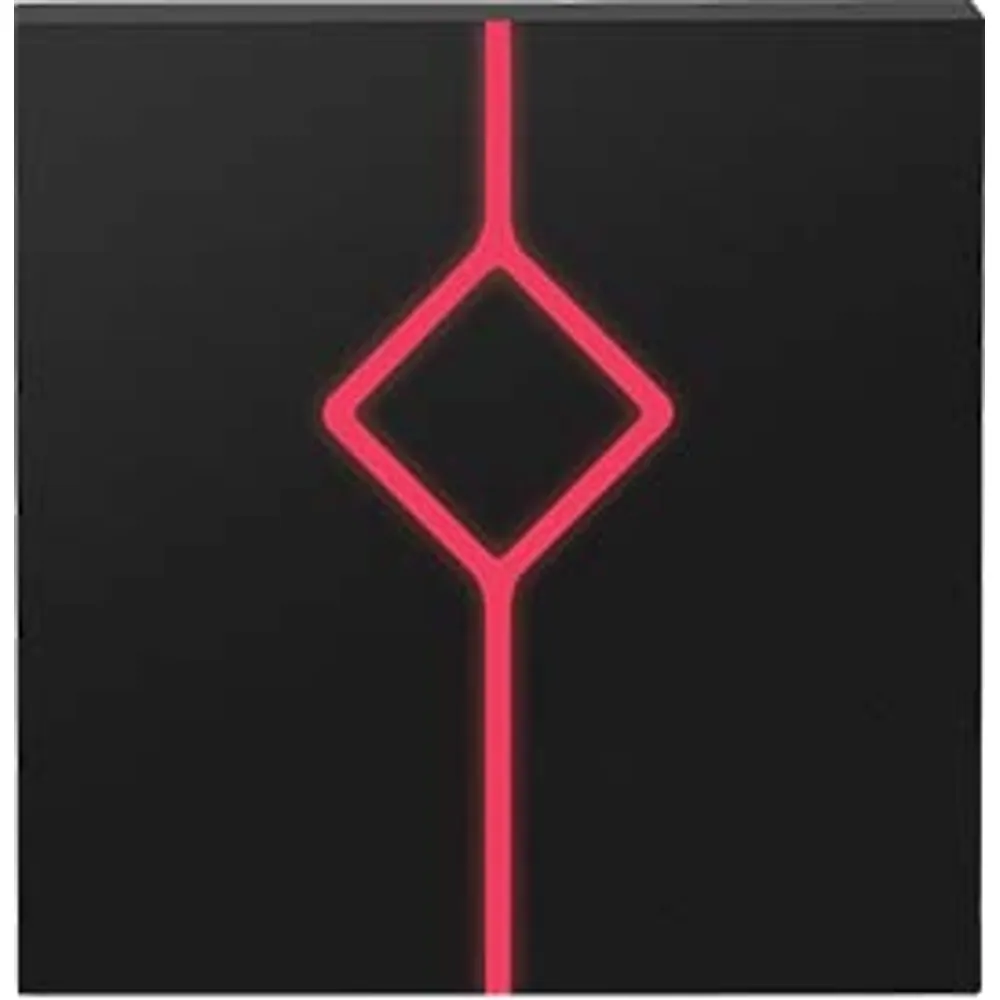

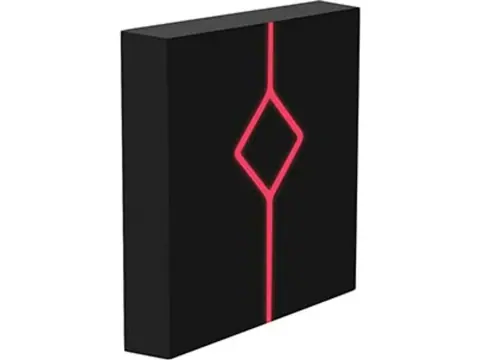

CR-250 IP67 Waterproof Wiegand Card Reader, 90 mm Square
Square 90 × 90 mm card reader, epoxy-potted to IP67, with a lit diamond strip. Sends 125 kHz EM or 13.56 MHz MIFARE-family card numbers as Wiegand 26/34.
- IP67 rating with fully epoxy-potted electronics
- Square 90 × 90 × 16 mm black housing with red illuminated diamond light strip
- CR-250-E: 125 kHz EM-type cards and fobs; CR-250-M: 13.56 MHz ISO/IEC 14443A/B UIDs
- Wiegand 26 or 34 output, selectable by configuration card or yellow lead
- Read range 0–3 cm; 12 V DC, ≤ 200 mA
- Frequency
- 125 kHz (-E) or 13.56 MHz (-M)
- Output
- Wiegand 26 / 34
- Read range
- 0–3 cm
- IP rating
- IP67, epoxy-potted
- Power
- 12 V DC ±5%, ≤ 200 mA
- Dimensions
- 90 × 90 × 16 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
IP67 Waterproof Wiegand Card Reader, 90 mm Square: overview
The CR-250 is the square, card-only member of our decorative IP67 reader range. It carries the same red diamond-and-line light strip as the slim CR-240 on a 90 × 90 × 16 mm black face, so a building can mix both sizes and keep one look. Epoxy potting seals the electronics, which makes it a good fit for exposed gates, pool and spa areas and car-park doors.
Choose CR-250-E for 125 kHz EM-type cards and key fobs, or CR-250-M for the UID of ISO/IEC 14443A/B credentials such as MIFARE Classic 1K/4K, DESFire, Ultralight, NTAG213/NTAG216 and CPU cards. Reading distance is 0–3 cm depending on the credential and installation. Each card number goes to the controller as Wiegand 26 or Wiegand 34.
A configuration card changes the Wiegand mode, card key and number format without a laptop. Power is 12 V DC (±5%) at up to 200 mA, the operating range is –20 to +65 °C, and the design includes anti-static protection plus a short-circuit guard on the outputs.
Integration notes
The pigtail follows a common Wiegand color code: red +12 V, black GND, green D0, white D1, purple buzzer input and gray LED input. Link yellow to GND if the panel accepts only Wiegand 26. For card plus PIN in the same style, see the CR-260 keypad version.
More features
- Operating range –20 to +65 °C with anti-static and output short-circuit protection
CR-250 specifications
RF & credentials
| Frequency | 125 kHz (CR-250-E); 13.56 MHz (CR-250-M) |
|---|---|
| 125 kHz credentials | EM-type (ID) thick cards, thin cards and key fobs - card number |
| 13.56 MHz credentials | ISO/IEC 14443A/B UID: MIFARE Classic 1K/4K, MIFARE DESFire, MIFARE Ultralight, NTAG213/NTAG216, CPU smart cards |
| Read range | 0–3 cm, depending on card type and installation |
Interfaces
| Output | Wiegand 26 or Wiegand 34 (selectable) |
|---|---|
| Setup | Configuration card: Wiegand mode, card key, card-number format |
| Controller inputs | Buzzer control, LED control |
| Format lead (yellow) | Connect to GND to fix the output at Wiegand 26 |
Electrical
| Supply voltage | 12 V DC (±5%) |
|---|---|
| Working current | ≤ 200 mA |
| Output short-circuit protection | Responds in ≤ 100 µs |
| ESD | Anti-static protection design |
Mechanical & environment
| Housing | Black, epoxy-potted, red diamond light strip, no keypad |
|---|---|
| Ingress rating | IP67 |
| Dimensions | 90 × 90 × 16 mm (±0.2 mm) |
| Operating temperature | –20 to +65 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 20–80% |
Variant comparison
| Variant | Frequency | Cards read (card number / UID) | Output |
|---|---|---|---|
| CR-250-E | 125 kHz | EM-type thick cards, thin cards, key fobs | Wiegand 26 / 34 |
| CR-250-M | 13.56 MHz | MIFARE Classic 1K/4K, DESFire, Ultralight, NTAG213/216, CPU cards (ISO/IEC 14443A/B) | Wiegand 26 / 34 |
Wire colors
| Wire | Function |
|---|---|
| Red | +12 V DC |
| Black | GND |
| Green | Wiegand D0 |
| White | Wiegand D1 |
| Purple | Buzzer control input |
| Gray | LED control input |
| Yellow | Connect to GND to fix the output at Wiegand 26 |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| CR-250-E | 125 kHz EM-type card and fob reader, 90 mm square IP67 housing, Wiegand 26/34. | |
| CR-250-M | 13.56 MHz ISO/IEC 14443A/B UID reader (MIFARE Classic, DESFire, Ultralight, NTAG, CPU cards), 90 mm square IP67 housing, Wiegand 26/34. |
Where the CR-250 is used
- Pool, spa and changing-room doors that see splashes and wash-down
- Car-park pedestrian doors and side gates on a Wiegand controller
- Hotel and residential lobbies that pair the square and slim versions for one look
- Gym and club entrances issuing MIFARE or NTAG membership cards
Elevator Access Control Readers
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
CR-250 FAQ
How does the CR-250 differ from the CR-240?
They share the same published specifications, IP67 potting and diamond light strip. The CR-250 is a 90 × 90 mm square for flat walls, while the CR-240 is an 80.5 × 44 mm slim version for mullions and narrow frames.
Which cards does CR-250-M read?
It reads the UID of ISO/IEC 14443A/B cards, including MIFARE Classic 1K/4K, DESFire, Ultralight, NTAG213/NTAG216 and CPU smart cards. It is not specified for reading protected sectors.
Is there a keypad version in the same style?
Yes. The CR-260 uses the same 90 × 90 mm decorative housing with a keypad, and the CR-270 is an 86 × 86 mm keypad version that adds a dual-frequency option.
Can it be used in freezing weather?
It operates down to –20 °C. For colder sites, choose a reader rated to –40 °C such as the CR-310.
