CR-220 Metal Touch Keypad Card Reader, 93 mm, Wiegand 26/34/66
93 × 93 mm metal reader with touch keypad for card plus PIN, in 125 kHz EM or 13.56 MHz MIFARE versions with Wiegand 26/34/66 output.
- Metal housing, 93 × 93 × 19 mm, with touch keypad for card plus PIN
- 125 kHz EM or 13.56 MHz MIFARE/CPU versions, plus sector-read and FeliCa tiers
- Wiegand 26/34 on all versions; Wiegand 66 on -MS and -MS-FC
- Configuration card sets Wiegand format, read mode, card key and number format
- 12 V DC (±5%), ≤ 200 mA; response < 120 ms
- Frequency
- 125 kHz (-E) or 13.56 MHz (-M, -MS, -MS-FC)
- Output
- Wiegand 26/34; 66 on -MS tiers
- Keypad
- Touch keys
- Housing
- Metal
- Power
- 12 V DC ±5%, ≤ 200 mA
- Dimensions
- 93 × 93 × 19 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
Metal Touch Keypad Card Reader, 93 mm, Wiegand 26/34/66: overview

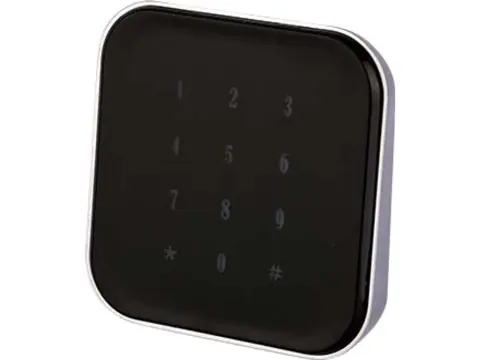

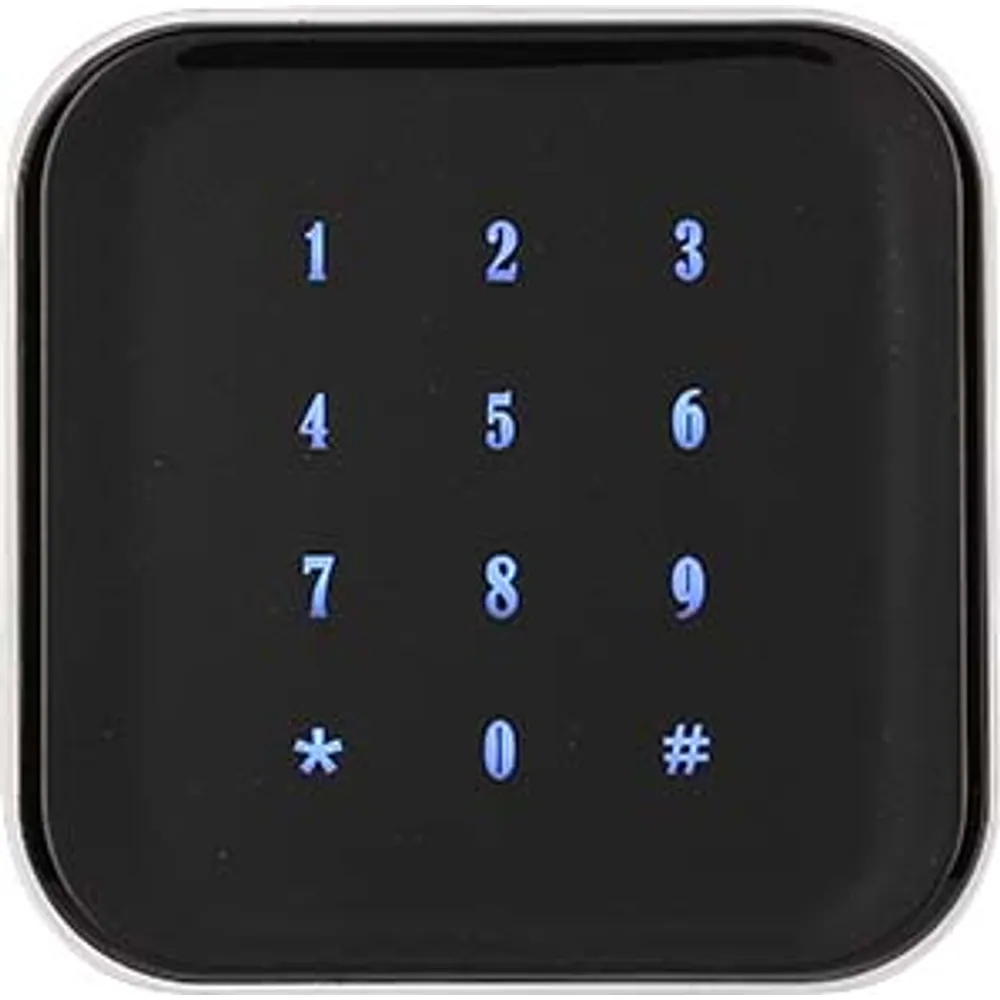

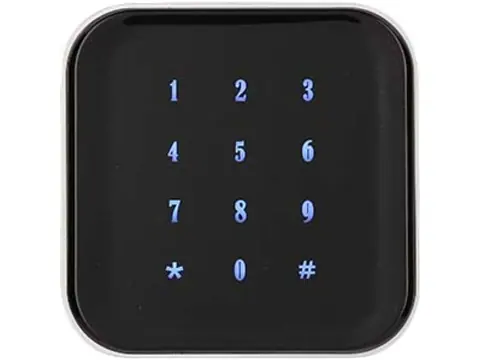

The CR-220 is a card reader with a touch keypad in a 93 × 93 × 19 mm metal housing, for entrances that need card plus PIN and a metal finish rather than plastic. It works with any access controller that has a Wiegand input and is stocked in four credential tiers.
CR-220-E is the 125 kHz model for EM4100, EM4102 and EM4200-compatible cards and fobs. CR-220-M reads the UID of 13.56 MHz MIFARE Classic, DESFire, Plus, Ultralight, NTAG2xx and CPU cards. CR-220-MS adds protected MIFARE Classic 1K/4K sector reads, CPU card file data, ISO/IEC 15693 UIDs and the iCLASS CSN, and supports Wiegand 66. CR-220-MS-FC adds FeliCa UIDs on top.
Setup needs no software: a configuration card selects the Wiegand format, read mode, card key and card-number format. The reader responds in under 120 ms, and its inputs are protected against ESD and wiring mistakes.
Integration notes
Supply 12 V DC (±5%), up to 200 mA. Leads: red +12 V, black GND, white D1, green D0, purple buzzer control, gray LED control; tie yellow to GND to fix Wiegand 26. PIN entries share the Wiegand pair, and the keypad format is not published, so send us your controller model and we confirm it. No ingress rating is published, so a metal housing alone does not make it an outdoor reader; add a rain cover for exposed doors.
CR-220 specifications
RF & credentials
| Frequency | 125 kHz (-E); 13.56 MHz (-M, -MS, -MS-FC) |
|---|---|
| Protocols | ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693 |
| 125 kHz credentials | EM4100, EM4102, EM4200-compatible thick cards, thin cards and key fobs |
| 13.56 MHz UID read | MIFARE Classic Mini/EV1, MIFARE DESFire EV1/EV2/EV3/Light, MIFARE Plus S/X, MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx; ISO/IEC 14443 CPU cards |
| Data read (-MS, -MS-FC) | Protected sector data of MIFARE Classic 1K/4K; file data of CPU cards (card key set by configuration card) |
| Other UIDs (-MS, -MS-FC) | ISO/IEC 15693 tags (e.g. ICODE); iCLASS card serial number (CSN) only |
| FeliCa (-MS-FC) | FeliCa card UID |
| Response time | < 120 ms once a card is inside the read zone |
Interfaces
| Output | Wiegand 26 / 34 (all versions); Wiegand 66 (-MS, -MS-FC) |
|---|---|
| Setup | Configuration card: Wiegand format, read mode, card key, card-number format |
| Controller inputs | Buzzer control, LED control |
| Format lead (yellow) | Connect to GND to fix the output at Wiegand 26 |
| Keypad | Touch keys |
Electrical
| Supply voltage | 12 V DC (±5%) |
|---|---|
| Operating current | ≤ 200 mA |
| Protection | ESD protection, miswiring protection |
Mechanical & environment
| Dimensions | 93 × 93 × 19 mm (±0.2 mm) |
|---|---|
| Housing | Metal |
| Operating temperature | –10 to +60 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 15–90% RH |
| Ingress rating | Not specified (indoor or sheltered mounting) |
Variant comparison
| Variant | 125 kHz EM | 13.56 MHz UID | MIFARE Classic / CPU data | ISO/IEC 15693 UID & iCLASS CSN | FeliCa UID | Wiegand output |
|---|---|---|---|---|---|---|
| CR-220-E | Yes | — | — | — | — | 26 / 34 |
| CR-220-M | — | MIFARE, NTAG, CPU | — | — | — | 26 / 34 |
| CR-220-MS | — | MIFARE, NTAG, CPU | Yes | Yes | — | 26 / 34 / 66 |
| CR-220-MS-FC | — | MIFARE, NTAG, CPU | Yes | Yes | Yes | 26 / 34 / 66 |
Choose the version by the credentials already in use on site. "CPU" = ISO/IEC 14443 CPU (smart) cards; iCLASS support is card serial number (CSN) only.
Wire colors
| Wire | Function |
|---|---|
| Red | +12 V DC |
| Black | GND |
| White | Wiegand D1 |
| Green | Wiegand D0 |
| Purple | Buzzer control input |
| Gray | LED control input |
| Yellow | Connect to GND to fix the output at Wiegand 26 |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| CR-220-E | 125 kHz version: reads EM4100/EM4102/EM4200-compatible thick cards, thin cards and key fobs; Wiegand 26/34. | |
| CR-220-M | 13.56 MHz UID version: MIFARE Classic, DESFire EV1/EV2/EV3/Light, Plus S/X, Ultralight, NTAG2xx and ISO/IEC 14443 CPU card UIDs; Wiegand 26/34. | |
| CR-220-MS | 13.56 MHz secure-read version: all -M UIDs plus MIFARE Classic 1K/4K sector data and CPU card file data, ISO/IEC 15693 UID, iCLASS CSN only; Wiegand 26/34/66. | |
| CR-220-MS-FC | As -MS, plus FeliCa card UID (e.g. Octopus cards); Wiegand 26/34/66. |
Where the CR-220 is used
- Main office entrances that need card plus PIN in a metal finish
- Apartment lobby doors under a canopy
- Plant rooms and stores where the controller requires a PIN
- Hong Kong or Japan sites whose users already carry FeliCa cards (-MS-FC)
Elevator Access Control Readers
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
CR-220 FAQ
Is the CR-220 housing metal?
Yes, the 93 × 93 × 19 mm housing is metal with a touch keypad on the front.
Is it rated for outdoor use?
No ingress rating is published. Mount it indoors or under a canopy, or fit a rain cover on exposed doors.
How are PIN entries sent?
On the same Wiegand data pair as card numbers. The keypad format is not listed, so we confirm it against your controller model before dispatch.
Which version reads FeliCa cards?
CR-220-MS-FC. It reads the FeliCa UID plus everything the -MS version reads, with Wiegand 26/34/66 output.
