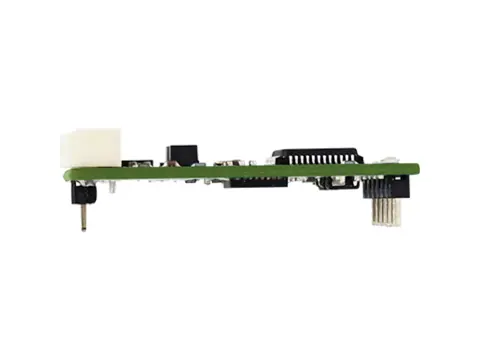

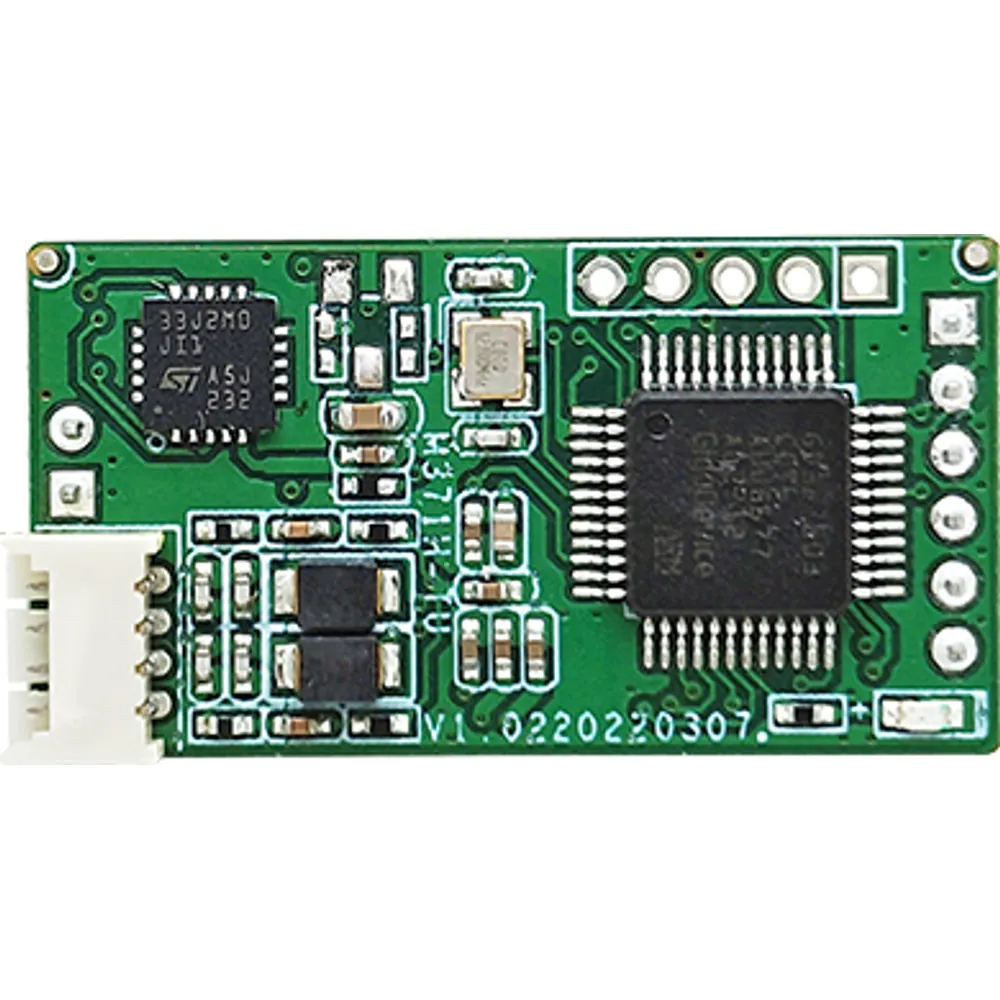

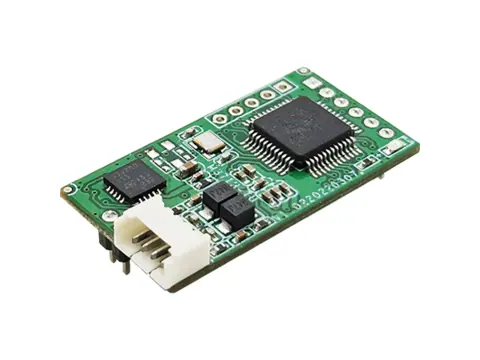

XM-140 13.56 MHz iCLASS/Seos-Compatible Multi-Tech Module
HF-only OEM module listing iCLASS, iCLASS SE and Seos compatibility alongside MIFARE, DESFire, FeliCa and ICODE, with 3.3 V UART and USB on a 30 × 16 mm board.
- Listed compatibility with iCLASS, iCLASS SE and Seos credentials at 13.56 MHz
- Also reads MIFARE Classic, DESFire EV1/EV2, Ultralight C, FeliCa, ICODE, CEPAS and NFC Type 1–5
- ISO/IEC 14443A/B, ISO/IEC 15693 and ISO/IEC 18092 protocols
- Single external 50 Ω antenna — no 125 kHz coil to fit
- 3.3 V TTL UART (115200 bps) plus USB full speed (12 Mbps)
- Frequency
- 13.56 MHz
- Credentials
- iCLASS/Seos-compatible, MIFARE, DESFire, FeliCa, ICODE
- Interface
- UART (3.3 V TTL) + USB
- Power
- 5 V DC, ≤ 180 mA (RF on)
- Dimensions
- 30 × 16 × 9.2 mm
- Antenna
- External, 50 Ω
Reply within 24 hours Tested before dispatch Worldwide shipping
13.56 MHz iCLASS/Seos-Compatible Multi-Tech Module: overview
The XM-140 is a 13.56 MHz-only reader module for products built around high-frequency credentials. Its supported list covers iCLASS, iCLASS SE and Seos-compatible cards together with MIFARE Classic, DESFire EV1/EV2, Ultralight and Ultralight C, FeliCa, ICODE, CEPAS, CPU cards and NFC Forum Type 1–5 tags, over ISO/IEC 14443A/B, ISO/IEC 15693 and ISO/IEC 18092. Leaving out 125 kHz keeps the antenna work to a single 50 Ω loop, which simplifies slim and metal-framed reader designs.
Before you design it in, confirm which data your access-control system expects from iCLASS and Seos credentials — the card serial number (CSN) or the protected access-control payload — and we will check the module configuration against your sample cards. For DESFire, likewise tell us whether you need the UID or application data. The board is 30 × 16 × 9.2 mm, weighs about 1.9 g and is rated from –40 to +85 °C.
Integration notes
The 6-pin, 2.0 mm pitch host header carries 5 V DC, GND, a 3.3 V TTL UART at 115200 bps and USB full-speed data (12 Mbps); Windows, Linux, Android and macOS hosts are listed. Connect the external 50 Ω antenna to the HF pins of the 4-pin, 1.25 mm connector. The LF pins belong to the shared family pin map; this version is specified for 13.56 MHz only. Current is ≤ 180 mA with the RF field on and ≤ 30 mA off. A configuration tool is provided, firmware updates run over the serial port, and CE, FCC, RoHS and Japan Radio Law approvals are listed.
Third-party credential and platform names on this page are trademarks of their respective owners and are used only to describe compatibility.
More features
- 30 × 16 × 9.2 mm, about 1.9 g; rated –40 to +85 °C
XM-140 specifications
RF & credentials
| Operating frequency | 13.56 MHz |
|---|---|
| 13.56 MHz credentials | iCLASS, iCLASS SE and Seos-compatible (data returned to be confirmed per credential); MIFARE Classic, MIFARE DESFire EV1/EV2, MIFARE Ultralight, MIFARE Ultralight C, FeliCa, ICODE, CEPAS, CPU (microprocessor) cards, NFC Forum Type 1–5 tags; ISO/IEC 14443A/B and ISO/IEC 15693 cards |
| Protocols | ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693, ISO/IEC 18092, FeliCa |
| Antenna | External, 50 Ω |
Interfaces
| Host interfaces | UART (3.3 V TTL levels) and USB |
|---|---|
| Data rate | UART 115200 bps; USB 12 Mbps (full speed) |
| Supported host OS | Windows 10, 8.1, 8 and 7; Linux; Android; macOS |
| Configuration & firmware | Management tool for configuration; firmware upgrade via serial port |
| Connectors | 6-pin 2.0 mm (power/data); 4-pin 1.25 mm (antennas); 2-pin 2.0 mm (fixing only) |
Electrical
| Supply voltage | 5 V DC via host header, or 4.3–5.5 V via USB |
|---|---|
| Current, RF field on | ≤ 180 mA |
| Current, RF field off | ≤ 30 mA |
Mechanical & environment
| Dimensions | 30 × 16 × 9.2 mm ±0.5 mm (antennas not included) |
|---|---|
| Weight | Approx. 1.9 g |
| Operating temperature | –40 to +85 °C (–40 to +185 °F) |
| Storage temperature | –40 to +85 °C (–40 to +185 °F) |
| Operating humidity | 10–90% RH, non-condensing |
Compliance
| Certifications | CE, FCC, RoHS, Japan Radio Law (TELEC) — listed for the module; request reports |
|---|
Connector pinout
| Pin | Signal | Function |
|---|---|---|
| P1-1 | VCC | Power input, +5 V DC |
| P1-2 | GND | Ground |
| P1-3 | TXD | UART transmit (3.3 V TTL) |
| P1-4 | RXD | UART receive (3.3 V TTL) |
| P1-5 | USB_DP | USB data + |
| P1-6 | USB_DM | USB data – |
| P2-1 | HF_TX1 | 13.56 MHz antenna, pin 1 |
| P2-2 | HF_TX2 | 13.56 MHz antenna, pin 2 |
| P2-3 | LF_TX1 | 125 kHz antenna, pin 1 |
| P2-4 | LF_TX2 | 125 kHz antenna, pin 2 |
| P3-1 | NC | Mechanical fixing pin, no electrical function |
| P3-2 | NC | Mechanical fixing pin, no electrical function |
P1: 6-pin, 2.0 mm pitch host header. P2: 4-pin, 1.25 mm pitch antenna connector. P3: 2-pin, 2.0 mm pitch fixing header. This 13.56 MHz-only version uses the HF antenna pair; the LF pins are part of the shared family pin map.
Multi-technology module family at a glance
| Variant | 125 kHz | 13.56 MHz | iCLASS/Seos-compatible | BLE 5.1 | Mobile wallet | Size (mm) |
|---|---|---|---|---|---|---|
| XM-120-P-E | EM + HID Prox-compatible | — | — | — | — | 30 × 16 × 9.2 |
| XM-130-D-P | EM + HID Prox-compatible | Yes | — | — | — | 25 × 15 × 3.0 |
| XM-140-IC-M | — | Yes | Yes | — | — | 30 × 16 × 9.2 |
| XM-150-D | EM | Yes | — | — | — | 30 × 16 × 8.8 |
| XM-160-D-IC-N | EM + HID Prox-compatible | Yes | Yes | — | Listed (Apple Wallet) | 30 × 16 × 9.2 |
| XM-170-D-BT | EM | Yes | — | Yes | — | 30 × 16 × 8.8 |
| XM-180-D-IC-BT | EM + HID Prox-compatible | Yes | Yes | Yes | Listed (Apple Wallet) | 30 × 16 × 8.8 |
| XM-190-D-P-BT | EM + HID Prox-compatible | Yes | — | Yes | — | 30 × 16 × 8.8 |
| XM-200-D-P | EM + HID Prox-compatible | Yes | — | — | — | 30 × 16 × 9.2 |
13.56 MHz support = MIFARE Classic, DESFire EV1/EV2, Ultralight/Ultralight C, FeliCa, ICODE, CEPAS, CPU cards and NFC Forum Type 1–5 tags. All nine modules use external antennas and offer both UART and USB. Sizes in mm, antennas excluded.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| XM-140-IC-M | 13.56 MHz module: iCLASS/iCLASS SE/Seos-compatible plus MIFARE, DESFire, FeliCa, ICODE; UART + USB; external 50 Ω antenna |
Where the XM-140 is used
- Reader boards for enterprise sites that issue only 13.56 MHz badges
- Turnstile or speed-gate electronics accepting iCLASS-type and DESFire staff cards
- Elevator destination panels in office towers with HF-only credential estates
- Kiosks and EV chargers that read corporate badges and NFC tags
Turnstile & Speed-Gate Readers: QR, RFID and Face
Turnstile card readers, QR scanners and face terminals for tripod, swing and speed gates, with Wiegand, RS485, RS232 or TTL output to the gate board.
RFID for EV Charging Stations: Modules, Cards & Fobs
EV charger RFID cards, key fobs and 13.56 MHz reader modules for charger OEMs and operators: UID formats, OCPP idTag mapping and UART integration notes.
XM-140 FAQ
Does the XM-140 read 125 kHz prox cards?
No. It is specified for 13.56 MHz only. For prox plus iCLASS/Seos-compatible reading, choose the XM-160, or the XM-180 if you also need BLE 5.1.
Does it return the iCLASS/Seos serial number or the secure credential data?
The specification does not state which data is returned. Send us sample credentials and the format your controller expects, and we will confirm before you order.
Which protocols are supported?
ISO/IEC 14443A and 14443B, ISO/IEC 15693, ISO/IEC 18092 and FeliCa.
What antenna does it need?
One external 50 Ω 13.56 MHz antenna on the HF pins of the 4-pin, 1.25 mm connector. The antenna shape can be adapted to your housing.
Which host operating systems are supported?
Windows 10, 8.1, 8 and 7, Linux, Android and macOS, over USB or via your own controller on the UART.
