HD-110 Android UHF RFID Handheld with 1D/2D Scanner, 4G, IP65
IP65 Android handheld with pistol grip that combines a 915 MHz UHF RFID reader (4–6 m), 1D/2D barcode scanning, 4G, dual-band Wi-Fi and GPS for field and warehouse data capture.
- 915 MHz UHF RFID read/write at 4–6 m plus 1D and 2D barcode scanning in one device
- Android 6.0, quad-core up to 1.8 GHz, 1 GB RAM + 8 GB storage, microSD up to 32 GB
- 5.0-inch 1280 × 720 glove-capable touchscreen and 28-key backlit industrial keypad
- 4G LTE, dual-band Wi-Fi 802.11 a/b/g/n, Bluetooth 4.0 and GPS/AGPS
- IP65 sealing, repeated 1.2 m drops to concrete, ±15 kV air-discharge ESD
- Operating system
- Android 6.0
- UHF read range
- 4–6 m (915 MHz)
- Barcode
- 1D / 2D scan engine
- Wireless
- 4G LTE, Wi-Fi 2.4/5 GHz, Bluetooth 4.0
- IP rating
- IP65
- Battery
- 3.7 V 3600 mAh
Reply within 24 hours Tested before dispatch Worldwide shipping
Android UHF RFID Handheld with 1D/2D Scanner, 4G, IP65: overview
The HD-110 is an Android handheld terminal for teams that need to read UHF RFID tags and barcodes with a single device: stock counts, proof of delivery, asset audits and utility meter rounds. The UHF reader works at 4–6 m, and a 1D/2D scan engine handles labels that have not been tagged yet.
It runs Android 6.0 on a quad-core processor of up to 1.8 GHz, with 1 GB RAM, 8 GB storage and a microSD slot for cards up to 32 GB. That platform suits fleets whose apps are already validated on Android 6; if your software needs a newer OS, the HD-120 runs Android 9. Custom apps are built with the standard Android SDK and JDK in Java or C.
The 5.0-inch 1280 × 720 touchscreen works with gloves, and a 28-key backlit industrial keypad speeds up data entry. Connectivity covers 4G LTE, dual-band 2.4/5 GHz Wi-Fi, Bluetooth 4.0 and GPS/AGPS. The housing is sealed to IP65, survives repeated 1.2 m drops onto concrete and operates from –10 to +50 °C on a 3600 mAh battery.
Integration notes

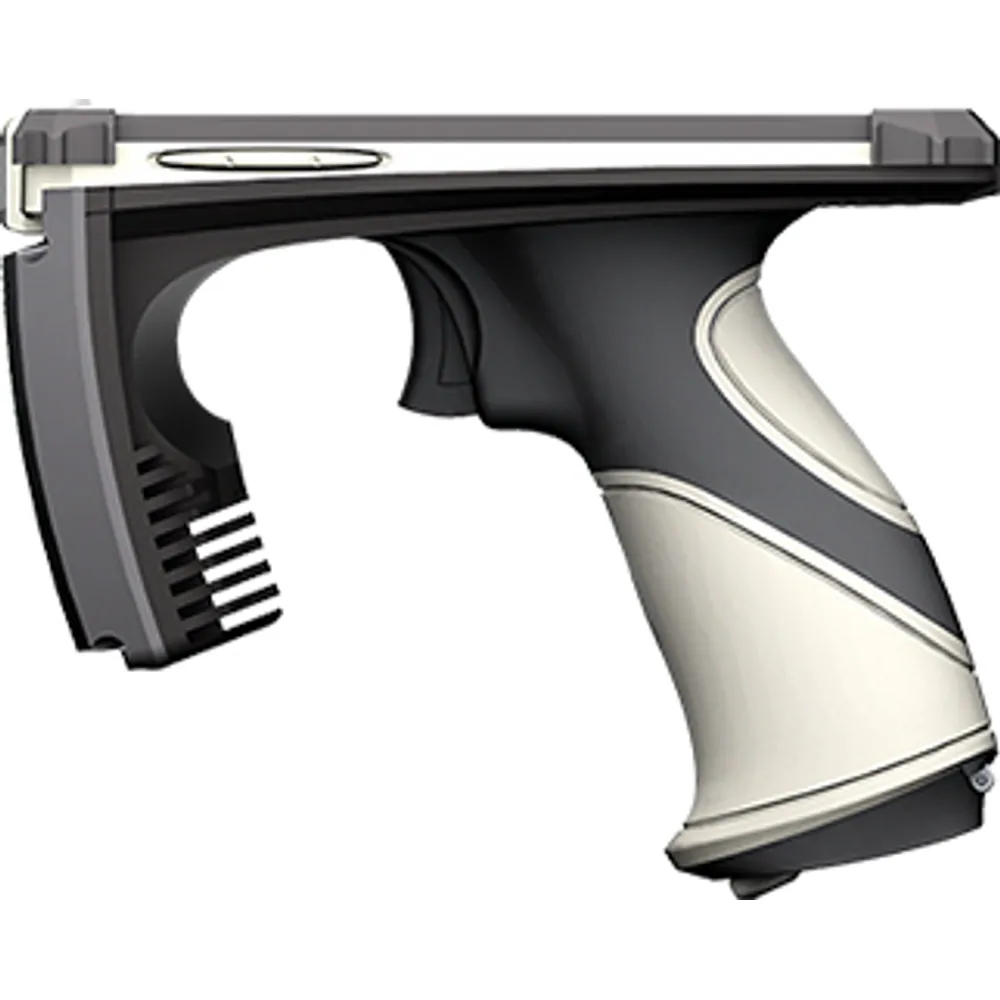

Order HD-110-EU or HD-110-US for your region. Both versions publish the same LTE band list (FDD B1/B3, TDD B38/B39/B40/B41), so check it against your carrier before ordering. The UHF section of the datasheet quotes 915 MHz; for 865–868 MHz deployments, confirm the band configuration with us before purchase. Each unit ships with a battery, a single-slot USB charging and communication cradle, a lanyard and the pistol-grip handle.
More features
- 3.7 V 3600 mAh Li-polymer battery; cradle, lanyard and handle included
HD-110 specifications
Platform
| Processor | Quad-core Cortex-A17, up to 1.8 GHz |
|---|---|
| Operating system | Android 6.0 |
| Memory | 1 GB RAM + 8 GB ROM |
| Expansion | microSD slot, up to 32 GB |
| Development | Android SDK + JDK; Java and C |
Display & input
| Display | 5.0-inch TFT, 1280 × 720, high brightness, LED backlight |
|---|---|
| Touch panel | Industrial capacitive, operable with gloves |
| Keypad | 28 keys, wear-resistant, backlit |
| Camera (optional) | 8 MP autofocus with LED fill light |
| Scan window | Strengthened glass |
| Audio | Built-in microphone, headphone jack |
| Alerts | Vibration, LED and audio; programmable vibration motor |
| Sensor | G-sensor |
RFID & barcode
| UHF frequency | 915 MHz (EU and US regional versions) |
|---|---|
| UHF read distance | 4–6 m |
| NFC (optional) | 13.56 MHz; ISO/IEC 14443 A/B and ISO/IEC 15693 listed |
| 1D scan engine | ≥ 4 mil resolution; 3.81–60.98 cm depth of field; 47° ± 3° scan angle; 102 ± 12 scans/s bidirectional |
| 1D CCD engine | ≥ 4 mil resolution; decoding up to 300 scans/s |
| 2D imager | ≥ 3 mil resolution; omnidirectional; 300 scans/s |
Wireless & ports
| 4G LTE | FDD B1/B3; TDD B38/B39/B40/B41 |
|---|---|
| 3G / 2G | WCDMA 2100 MHz; EVDO 800 MHz; GSM/GPRS 850/900/1800/1900 MHz |
| Data services | GPRS / EDGE / HSPA+ / EVDO / TDD-LTE / FDD-LTE |
| Wi-Fi | 802.11 a/b/g/n, dual band 2.4 GHz + 5 GHz |
| Bluetooth | 4.0 |
| Positioning | GPS / AGPS |
| Ports | Micro USB ×1, bottom charging port ×1, headphone jack ×1 |
Power, mechanical & environment
| Battery | 3.7 V 3600 mAh Li-polymer |
|---|---|
| Terminal dimensions | 160 × 82 × 129 mm |
| Handle dimensions | 111 × 38 × 47 mm |
| Operating temperature | –10 to +50 °C |
| Storage temperature | –20 to +60 °C |
| Humidity | 0–95% non-condensing |
| Drop | Multiple 1.2 m drops to concrete |
| Tumble | 500 tumbles from 0.5 m (1,000 impacts) |
| Ingress protection | IP65 |
| ESD | ±15 kV air, ±8 kV contact |
Accessories
| Standard | Battery, single-slot USB communication and charging cradle, lanyard, handle |
|---|---|
| Optional | Power adapter, bottom charging clip |
Regional versions
| Variant SKU | Region | OS | Processor | Display | Wireless | Scanning |
|---|---|---|---|---|---|---|
| HD-110-EU | EU version | Android 6.0 | Quad-core, up to 1.8 GHz | 5.0 in | 4G LTE / 3G / 2G, Wi-Fi, Bluetooth | UHF RFID + 1D/2D barcode |
| HD-110-US | US version | Android 6.0 | Quad-core, up to 1.8 GHz | 5.0 in | 4G LTE / 3G / 2G, Wi-Fi, Bluetooth | UHF RFID + 1D/2D barcode |
Both versions share the same hardware platform; confirm LTE bands and UHF band setting for your country before ordering.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| HD-110-EU | EU regional version: Android 6.0 handheld with UHF RFID, 1D/2D barcode scanning, 4G, Wi-Fi and Bluetooth | |
| HD-110-US | US regional version: Android 6.0 handheld with UHF RFID, 1D/2D barcode scanning, 4G, Wi-Fi and Bluetooth |
Where the HD-110 is used
- Warehouse cycle counts that read tagged pallets and scan legacy barcodes in the same pass
- Courier proof of delivery with barcode scan, optional photo and GPS position
- Utility meter-reading rounds that log tagged meters in the field
- Ticket and badge validation at conference and event entrances
- Traceability checks on tagged goods at receiving and dispatch
RFID Asset & Tool Tracking
Build an RFID asset tracking system: on-metal, ceramic and tie-on tags matched to each asset, handheld audits, smart cabinets and IP67 HF heads for tooling.
HD-110 FAQ
Which Android version does the HD-110 run?
Android 6.0. No OS upgrade path is published for this model, so plan your app for Android 6.0; if you need a newer release, the HD-120 runs Android 9.
Will the 4G work on my network?
Both regional versions list LTE FDD B1/B3 and TDD B38/B39/B40/B41, plus WCDMA 2100 MHz and quad-band GSM. Check these bands against your carrier before ordering.
What UHF read range should I expect?
The datasheet quotes 4–6 m at 915 MHz. Actual distance varies with tag type, tag orientation and the material the tag is attached to.
What comes in the box?
A battery, a single-slot USB communication and charging cradle, a lanyard and the pistol-grip handle. A power adapter and bottom charging clip are optional extras.
Can we build our own app for it?
Yes. Apps are developed with the Android SDK and JDK in Java, with C also supported. Contact us for the RFID and scanner programming documentation when you request a demo unit.
