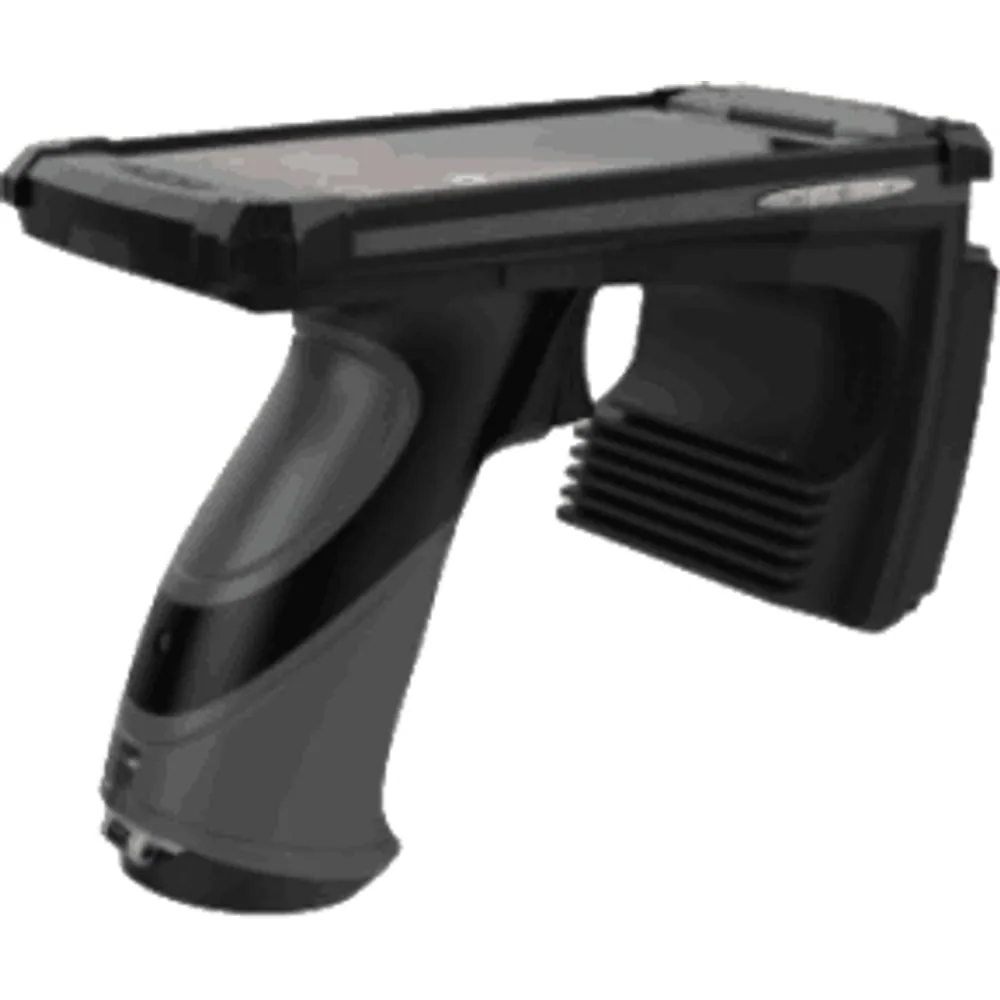

HD-130 Handheld UHF RFID Reader, Pistol Grip, 10 m+ Range
Pistol-grip Android UHF RFID reader with 0–33 dBm output, 10 m+ range and 500+ tags/s, a hot-swap 6000 mAh battery, IP64 body and US/EU band versions with 4G.
- 0–33 dBm UHF output reads tags beyond 10 m at a peak rate above 500 tags per second
- EPC Gen2 (ISO 18000-6C) and ISO 18000-6B at 902–928 MHz or 865–868 MHz
- 4 dBi circularly polarized air-dielectric antenna for orientation-tolerant reads
- Hot-swap 6000 mAh battery magazine keeps the reader running through a full shift
- IP64 cast-aluminum and PC body, 1.6 m drop rating, scan trigger rated 10 million presses
- UHF band
- 902–928 MHz or 865–868 MHz
- RF output
- 0–33 dBm
- Read range
- > 10 m
- Tag rate
- > 500 tags/s
- Battery
- 6000 mAh, hot-swap
- IP rating
- IP64
Reply within 24 hours Tested before dispatch Worldwide shipping
Handheld UHF RFID Reader, Pistol Grip, 10 m+ Range: overview
The HD-130 is a pistol-grip Android handheld for high-volume UHF RFID work: full-site inventories, pallet and roll-cage checks, asset audits and yard counts. Its UHF engine outputs 0–33 dBm, reads beyond 10 m and handles more than 500 tags per second through a 4 dBi circularly polarized antenna.
The engine supports EPC Gen2 (ISO 18000-6C) and ISO 18000-6B and operates at 902–928 MHz or 865–868 MHz. Regional settings cover FCC markets such as the US and Canada, ETSI EN 302 208 markets in Europe, and Korea and Malaysia, so one hardware family serves both sides of the Atlantic.
A magazine-style 6000 mAh battery swaps without powering the reader down, so a count does not stop when a pack runs low. The body is cast aluminum with PC, rated IP64 and tested for 1.6 m drops, and the scan trigger is rated for 10 million presses. Android 6.0 runs on a quad-core processor of up to 1.8 GHz with 2 GB + 32 GB or 4 GB + 64 GB of memory, a 5.0-inch 1280 × 720 IPS screen that works with gloves, Wi-Fi, Bluetooth 4.0 and GPS + GLONASS.
Integration notes
Choose HD-130-WF for Wi-Fi and Bluetooth only, or the 4G versions with a barcode engine: HD-130-EU-4G-Q for 865–868 MHz markets and HD-130-US-4G-Q for 902–928 MHz markets. Confirm LTE compatibility with your country before ordering. Android 6.0 is an older release, so validate your app on a demo unit and check current availability before committing to a fleet.
More features
- Android 6.0, quad-core up to 1.8 GHz, 2 GB + 32 GB or 4 GB + 64 GB, 5.0-inch 720p IPS
- Optional 1D or 2D barcode engine and 3 MP autofocus camera
HD-130 specifications
UHF RFID
| Reader chip | Impinj Indy R2000-based engine |
|---|---|
| Protocols | EPC Gen2 (ISO 18000-6C), ISO 18000-6B |
| Frequency | 902–928 MHz or 865–868 MHz |
| Regional settings | FCC (US, Canada and similar), ETSI EN 302 208 (Europe and similar), Korea, Malaysia |
| Output power | 0–33 dBm |
| Peak read rate | > 500 tags/s |
| Antenna | 4 dBi circularly polarized, air dielectric |
| Read distance | > 10 m |
| Buzzer | Ø12 × 9.5 mm, 2300 ± 300 Hz |
Platform
| Operating system | Android 6.0 |
|---|---|
| Processor | Quad-core Cortex-A17, up to 1.8 GHz, with 3D GPU |
| RAM + ROM | 2 GB + 32 GB; 4 GB + 64 GB optional |
Display & controls
| Display | 5.0-inch IPS, 1280 × 720, 180° viewing angle |
|---|---|
| Touch panel | 1.1 mm toughened glass, 10-point touch, glove-capable |
| Power / volume keys | 2.2 N actuation force, rated 1,000,000 operations |
| Scan trigger | 1.27 N actuation force, rated 10,000,000 operations |
| Feedback | Speaker, 10 mm coin vibration motor, bi-color charging LED |
Data capture options
| 1D barcode (optional) | UPC/EAN, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, GS1 DataBar (RSS) |
|---|---|
| 2D barcode (optional) | Data Matrix, QR Code, Aztec, PDF417, US Planet, UK Postal |
| Camera (optional) | 3 MP autofocus with flash |
Wireless & ports
| Wi-Fi | IEEE 802.11 b/g/n |
|---|---|
| Bluetooth | 4.0 |
| Cellular | 4G on EU and US versions; confirm LTE bands for your country |
| Positioning | GPS + GLONASS |
| Card slots | Micro SIM ×1, TF ×1 |
| USB | Micro USB, rated 10,000 insertion cycles |
Power, mechanical & environment
| Battery | 6000 mAh rechargeable Li-polymer, magazine-style hot swap |
|---|---|
| Housing | Cast aluminum + PC |
| Dimensions | 167 × 82 × 129 mm; handle 111 × 38 × 47 mm |
| Weight | 575 g with standard battery |
| Operating temperature | –20 to +60 °C |
| Storage temperature | –30 to +70 °C |
| Humidity | 5–95% RH non-condensing |
| Drop | 1.6 m within the operating temperature range |
| Ingress protection | IP64 |
Accessories
| Standard | 1 battery, charging/data cable, lanyard |
|---|---|
| Optional | Charger |
Versions
| Variant SKU | UHF band | Cellular | Barcode engine | Wi-Fi / Bluetooth |
|---|---|---|---|---|
| HD-130-WF | 902–928 or 865–868 MHz, set to order | None | Not fitted | Yes / 4.0 |
| HD-130-EU-4G-Q | 865–868 MHz | 4G (EU) | Fitted | Yes / 4.0 |
| HD-130-US-4G-Q | 902–928 MHz | 4G (US) | Fitted | Yes / 4.0 |
All versions share the same UHF engine, battery system and housing.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| HD-130-WF | Standard version: Android 6.0 pistol-grip UHF reader with Wi-Fi and Bluetooth, no cellular or barcode engine; UHF band set to order | |
| HD-130-EU-4G-Q | EU version: 865–868 MHz UHF, 4G for European networks, barcode engine, Wi-Fi and Bluetooth | |
| HD-130-US-4G-Q | US version: 902–928 MHz UHF, 4G for North American networks, barcode engine, Wi-Fi and Bluetooth |
Where the HD-130 is used
- Full-warehouse or distribution-center inventories reading hundreds of tagged cartons per second
- Roll-cage, pallet and returnable-container checks at dock doors
- Fixed-asset audits across large sites where tags sit high on racks or walls
- Yard counts of tagged equipment and vehicles from a walking distance
- Long shifts where a spare battery swap avoids downtime
RFID Asset & Tool Tracking
Build an RFID asset tracking system: on-metal, ceramic and tie-on tags matched to each asset, handheld audits, smart cabinets and IP67 HF heads for tooling.
HD-130 FAQ
How far does the HD-130 read UHF tags?
The specification quotes more than 10 m using its 4 dBi circular antenna at up to 33 dBm. Distance drops with small tags, tags on metal or liquids, and lower power settings.
Which version should I order for Europe or North America?
HD-130-EU-4G-Q for ETSI 865–868 MHz markets and HD-130-US-4G-Q for FCC 902–928 MHz markets such as the US and Canada. If you do not need cellular data, HD-130-WF is the Wi-Fi and Bluetooth version.
Can I change the battery without shutting down?
Yes. The 6000 mAh battery uses a magazine-style hot-swap system, so a charged spare keeps the reader working through long counts.
Which Android version does it run?
Android 6.0 on a quad-core processor of up to 1.8 GHz. It is an older release, so test your app on a demo unit and confirm current availability before a large order.
Does it read ISO 18000-6B tags as well as EPC Gen2?
Yes. The UHF engine supports EPC Gen2 (ISO 18000-6C) and ISO 18000-6B.
