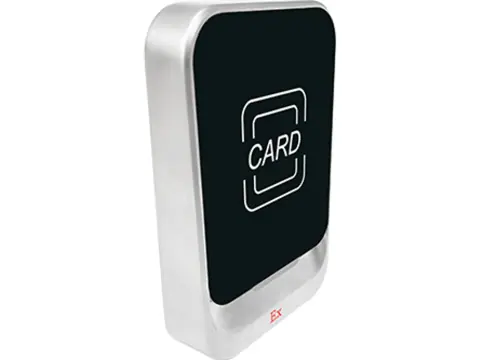

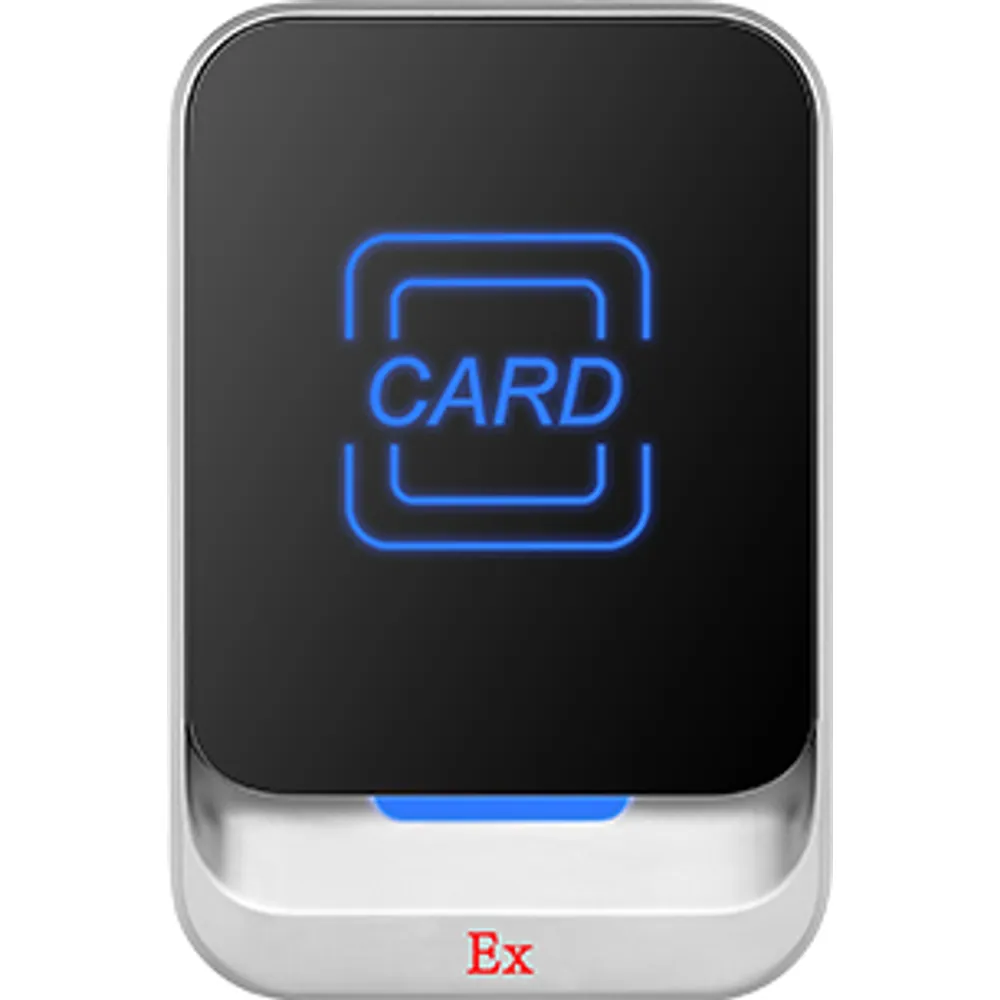

TP-110 Dual-Frequency Card Reader, Reported Ex ia Marking
Dual-frequency card reader with supplier-reported Ex ia gas/dust markings, Wiegand 34/66 or RS485 and potted metal housing. ATEX/IECEx certification remains unverified.
- Supplier-reported gas marking: Ex ia IIC T6 Ga; certification remains unverified
- Supplier-reported dust marking: Ex ia IIIC T200 85 °C Da; installation conditions unverified
- No verified ATEX/IECEx certificate or approved IS circuit documents in current records
- 125 kHz EM4100/TK4100 and 13.56 MHz ISO/IEC 14443A/B card support
- Wiegand 34/66 or RS485; controller format and protocol require confirmation
- Supplier-reported Ex marking
- Ex ia IIC T6 Ga / Ex ia IIIC T200 85 °C Da
- Frequency
- 125 kHz + 13.56 MHz
- Output
- Wiegand 34/66, RS485
- Read range
- 0–5 cm
- Power
- 9–15 V DC, ≤ 0.2 A reading
- Dimensions
- 120 × 80 × 22.67 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
Dual-Frequency Card Reader, Reported Ex ia Marking: overview
TP-110 is a dual-frequency card reader whose supplier documentation reports intrinsic-safety marking Ex ia IIC T6 Ga for gas and Ex ia IIIC T200 85 °C Da for dust. No verified ATEX or IECEx certificate, certified system drawing or entity-parameter set is available in our current records. Treat it as a document-review candidate: the markings alone do not substantiate installation in a particular hazardous zone or the supplier's claim that no external safety barrier is needed.
The listed credential support covers 125 kHz EM4100/TK4100-compatible cards and 13.56 MHz ISO/IEC 14443A/B cards, including MIFARE Classic 1K/4K, MIFARE DESFire and CPU smart cards. Published read range is up to 5 cm. Outputs are Wiegand 34/66 or RS485; match the controller's supported format and protocol before a functional bench test. Card-family support does not by itself establish protected-data authentication or the enrolled number format.
A potted metal housing measures 120 × 80 × 22.67 mm, with tamper detection and card-only or physical-keypad versions. The supplier lists operating temperature of –10 to +60 °C; this is a general product specification, not a verified certified Ex ambient range. No numeric ingress rating is published here.
Integration notes
Supply is 9–15 V DC, with reading current ≤ 0.2 A and a 374 mm (±10 mm) cable tail. Configuration-card setup and a card-issuing tool are listed; confirm their operation with the intended credentials and host software. Any classified-area installation requires acceptable conformity evidence, instructions and review of the complete connected circuit, including power, data, accessories and cables. Bench samples can assess credentials and communication in an unclassified area; they do not establish hazardous-area approval.
More features
- Potted metal housing with tamper detection, 120 × 80 × 22.67 mm
- Card-only and physical-keypad configurations; samples for safe-area bench evaluation
TP-110 specifications
Hazardous-area documentation
| Protection concept | Intrinsic safety, level ia (supplier-reported; certification unverified) |
|---|---|
| Supplier-reported gas marking | Ex ia IIC T6 Ga |
| Supplier-reported dust marking | Ex ia IIIC T200 85 °C Da |
| Certificate | No verified ATEX or IECEx certificate available in current records |
| Safety barrier | Supplier claims no external barrier; unverified without acceptable conformity and system documents |
RF & credentials
| Frequency | 125 kHz + 13.56 MHz |
|---|---|
| HF standards | ISO/IEC 14443A, ISO/IEC 14443B |
| HF cards | MIFARE Classic 1K/4K, MIFARE DESFire, CPU (microprocessor) smart cards |
| LF cards | EM4100, TK4100 and compatible |
| Read range | 0–5 cm |
Interfaces
| Output | Wiegand 34 / 66, RS485 |
|---|---|
| Configuration | Configuration card for output parameters |
| Card issuing | Card-issuing program reported; host software and credential workflow require confirmation |
Electrical
| Supply voltage | 9–15 V DC |
|---|---|
| Current while reading | ≤ 0.2 A |
Mechanical & environment
| Housing | Metal, fully potted (water- and moisture-resistant) |
|---|---|
| Tamper | Tamper detection |
| Dimensions | 120 × 80 × 22.67 mm (±1 mm) |
| Cable | 374 mm ±10 mm |
| Operating temperature | –10 to +60 °C (general product specification; certified Ex ambient range unverified) |
| Storage temperature | –20 to +80 °C |
| Relative humidity | 20–80% |
Reported Ex marking: document review
| Element | Gas: Ex ia IIC T6 Ga | Dust: Ex ia IIIC T200 85 °C Da |
|---|---|---|
| Protection concept | ia: reported intrinsic-safety level; product assessment unverified | ia: reported intrinsic-safety level; product assessment unverified |
| Group | IIC gas subgroup reported; exact approved scope unverified | IIIC dust subgroup reported; exact approved scope unverified |
| Temperature | T6 denotes an 85 °C gas surface-temperature class under assessed conditions | Supplier text includes T200 and 85 °C; full label and dust-temperature conditions require verification |
| Equipment protection level | Ga reported; no verified zone approval | Da reported; no verified zone approval |
General marking meanings do not establish certification. Exact product scope, dust-temperature conditions and installation approval remain unverified.
Versions
| SKU | Keypad | Outputs | Housing |
|---|---|---|---|
| TP-110-D | None (card only) | Wiegand 34/66, RS485 | Metal, potted, 120 × 80 × 22.67 mm |

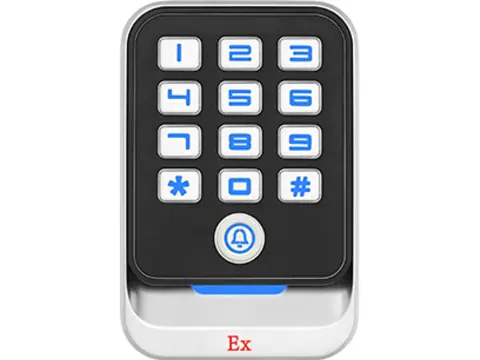

| TP-110-D-K | Physical keypad | Wiegand 34/66, RS485 | Metal, potted, 120 × 80 × 22.67 mm |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| TP-110-D | Card-only reader with supplier-reported Ex ia markings, 125 kHz + 13.56 MHz, Wiegand 34/66 and RS485 | |
| TP-110-D-K | Physical-keypad reader with supplier-reported Ex ia markings, 125 kHz + 13.56 MHz, Wiegand 34/66 and RS485 |
Where the TP-110 is used
- Safe-area bench evaluation of credentials for an industrial access-control project
- Document review for a proposed reader at a classified mounting point
- Evaluation of Wiegand 34/66 or RS485 communication with the intended controller
- Hazardous-area procurement only after acceptable evidence and complete system-design review
TP-110 FAQ
Is TP-110 ATEX or IECEx certified?
No verified ATEX or IECEx certificate is available in our current records. The supplier reports Ex ia gas and dust markings, but these do not substantiate a specific zone installation or an accepted conformity route.
Do I need a separate safety barrier?
The supplier claims no external barrier is needed, but we cannot verify that claim from the current documents. Do not add or omit associated apparatus by assumption; the accepted equipment documents and complete circuit assessment must establish the arrangement.
Which cards are listed as supported?
The supplier lists 125 kHz EM4100/TK4100-compatible cards and 13.56 MHz ISO/IEC 14443A/B cards, including MIFARE Classic 1K/4K, MIFARE DESFire and CPU smart cards, at up to 5 cm. Confirm the required data and read mode with sample credentials.
What outputs does it provide?
Wiegand 34 or 66-bit and RS485 are listed, with output parameters configured by a card. Match the controller format and protocol. Functional communication does not establish approval of a hazardous-area circuit.
What are the environmental limits?
The general specification lists –10 to +60 °C operating temperature, –20 to +80 °C storage and 20–80% relative humidity, with a potted metal housing. A certified Ex ambient range, dust-temperature conditions and installation suitability remain unverified.
