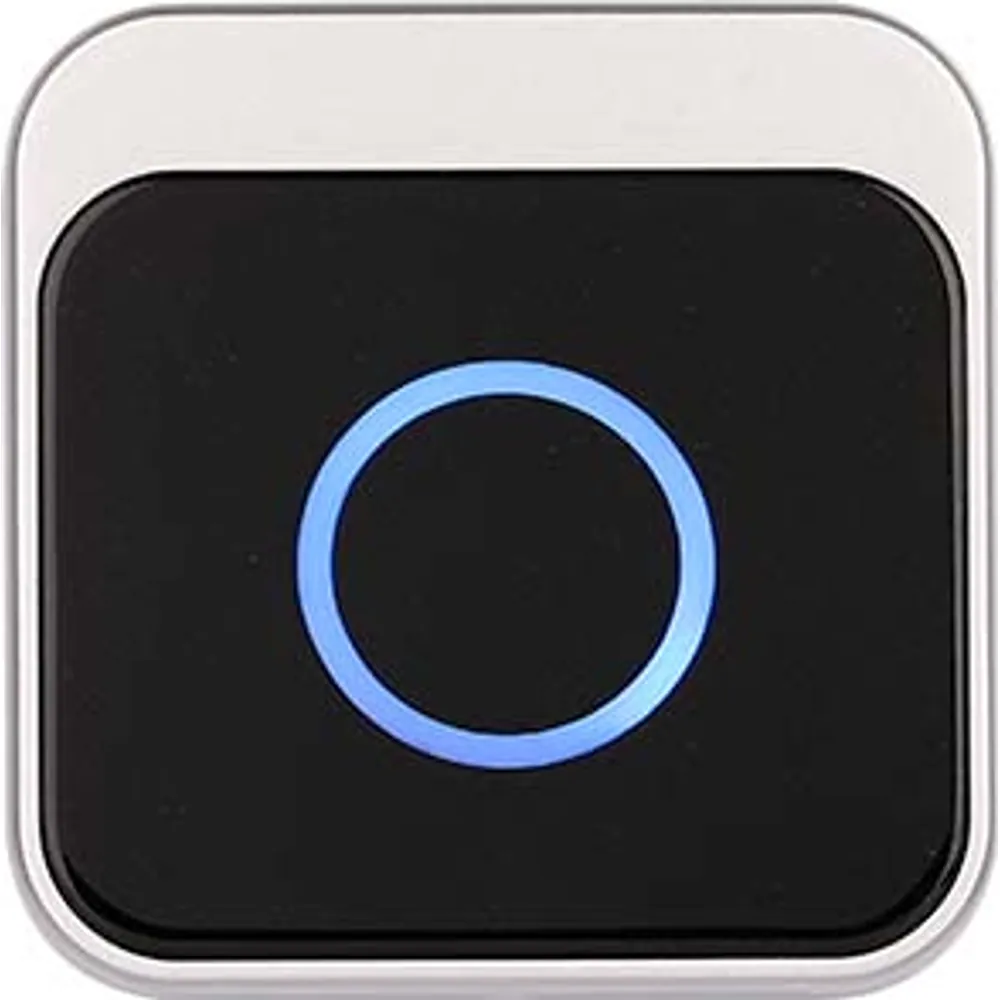

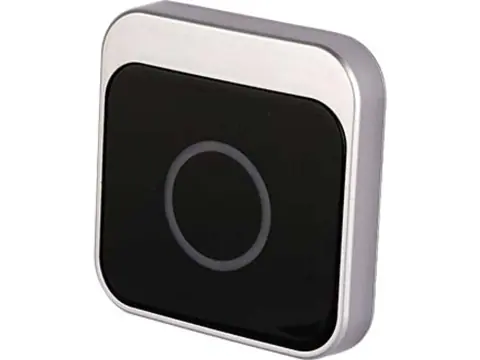

TP-120 IP65 Tamper-Proof Dual-Frequency Card Reader, Wiegand/RS485
Dual-frequency 125 kHz + 13.56 MHz reader with tamper alarm and IP65 housing; reads encrypted CPU card content and outputs Wiegand or RS485.
- Reads 125 kHz EM4100/4102/4200/4305/4450 and 13.56 MHz ISO/IEC 14443A/B cards in one unit
- Reads encrypted CPU smart-card content for anti-copy credentials
- Tamper alarm when the reader is removed from the wall
- IP65 housing, 86 × 86 × 15.6 mm
- Wiegand and RS485 output; firmware and settings updatable over RS485
- Frequency
- 125 kHz + 13.56 MHz
- Output
- Wiegand, RS485
- Read range
- 0–3 cm
- Power
- 9–15 V DC, ≈ 150 mA at 12 V
- IP rating
- IP65
- Dimensions
- 86 × 86 × 15.6 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
IP65 Tamper-Proof Dual-Frequency Card Reader, Wiegand/RS485: overview
TP-120 is a tamper-proof card reader for entrances where someone might pry a reader off the wall or try to copy a card. It reads both 125 kHz and 13.56 MHz credentials, raises a tamper alarm if it is removed, and has an IP65-rated housing for sheltered outdoor doors. The 86 × 86 × 15.6 mm body matches the footprint of an 86-type wall box.
On 13.56 MHz it handles MIFARE Classic, MIFARE DESFire EV1/EV2, MIFARE Ultralight and Ultralight C, NTAG2xx and NFC Forum Type 1, 2 and 4 tags under ISO/IEC 14443A/B and ISO/IEC 18092. It can also read the encrypted content of CPU (microprocessor) smart cards, a far harder credential to duplicate than a card serial number. On 125 kHz it reads EM4100, EM4102, EM4200, EM4305 and EM4450 cards, so existing proximity cards keep working while a site changes over. Read range is 0–3 cm.
A version with a touch keypad is available for doors that need card plus PIN.
Integration notes
Output is Wiegand or RS485. The supply range is 9–15 V DC; at 12 V the reader draws about 100 mA on standby and about 150 mA while reading. A management utility updates firmware and configuration parameters over RS485, so settings can change after installation without swapping hardware.
More features
- 9–15 V DC supply; about 150 mA while reading at 12 V
- Card-only or touch-keypad version
TP-120 specifications
RF & credentials
| Frequency | 125 kHz + 13.56 MHz |
|---|---|
| HF standards | ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 18092 |
| HF cards and tags | MIFARE Classic, MIFARE DESFire EV1/EV2, MIFARE Ultralight, MIFARE Ultralight C, NTAG2xx, CPU (microprocessor) smart cards, NFC Forum Type 1/2/4 tags |
| LF cards | EM4100, EM4102, EM4200, EM4305, EM4450 |
| Encrypted read | Reads encrypted content of CPU smart cards (anti-copy) |
| Read range | 0–3 cm (depends on installation and card) |
Interfaces & management
| Communication | Wiegand, RS485 |
|---|---|
| Firmware update | Over RS485 with the management utility |
| Configuration | Parameters updated with the management utility |
| Keypad | None (card-only) or touch keypad (-K variant) |
Security
| Tamper | Tamper alarm on removal from the mounting surface |
|---|
Electrical
| Supply voltage | 9–15 V DC |
|---|---|
| Current at 12 V | ≈ 100 mA standby, ≈ 150 mA operating |
Mechanical & environment
| Dimensions | 86 × 86 × 15.6 mm (±0.5 mm) |
|---|---|
| Mounting | Wall mount |
| Ingress protection | IP65 |
| Operating temperature | –20 to +65 °C (–4 to +149 °F) |
| Operating humidity | 20–80% RH, non-condensing |
| Storage temperature | –40 to +80 °C (–40 to +176 °F) |
| Certifications | None listed; confirm marking requirements for your market |
Supported credentials
| Band | Standards | Card and tag types |
|---|---|---|
| 13.56 MHz | ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 18092 | MIFARE Classic, MIFARE DESFire EV1/EV2, MIFARE Ultralight, MIFARE Ultralight C, NTAG2xx, CPU (microprocessor) smart cards, NFC Forum Type 1/2/4 tags |
| 125 kHz | EM-family proximity | EM4100, EM4102, EM4200, EM4305, EM4450 |
Encrypted content can be read from CPU smart cards; read range is 0–3 cm depending on card and installation.
Tamper-alarm reader family at a glance
| SKU | Frequencies | Housing | Notes |
|---|---|---|---|
| TP-120 | 125 kHz + 13.56 MHz | 86 × 86 × 15.6 mm | Dual frequency, 86 mm footprint |
| TP-130 | 13.56 MHz | 86 × 86 × 15.6 mm | HF only, 86 mm footprint |
| TP-140 | 125 kHz + 13.56 MHz | 93.3 × 93 × 19.3 mm | Dual frequency, larger square face |
| TP-150 | 13.56 MHz | 93.3 × 93 × 19.3 mm | HF only, metal middle frame for metal mounts |
All four: IP65, tamper alarm, Wiegand or RS485, 9–15 V DC, 0–3 cm read range, card-only or touch-keypad version.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| TP-120-D | Card-only, 125 kHz + 13.56 MHz, tamper alarm, IP65, Wiegand/RS485, 86 × 86 mm | |
| TP-120-D-K | Touch-keypad version, 125 kHz + 13.56 MHz, tamper alarm, IP65, Wiegand/RS485, 86 × 86 mm |
Where the TP-120 is used
- Phased migration from 125 kHz EM cards to encrypted CPU smart cards on one reader
- Apartment and office entrances that need a tamper alarm
- Sheltered outdoor doors and pedestrian gates
- Turnstile and elevator readers wired to an RS485 controller
Elevator Access Control Readers
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
Turnstile & Speed-Gate Readers: QR, RFID and Face
Turnstile card readers, QR scanners and face terminals for tripod, swing and speed gates, with Wiegand, RS485, RS232 or TTL output to the gate board.
TP-120 FAQ
Can we keep our 125 kHz cards while moving to encrypted cards?
Yes. TP-120 reads 125 kHz EM-family cards and 13.56 MHz cards, so both card types can be presented at the same reader during a phased changeover.
What wiring does it need?
A 9–15 V DC supply plus either the Wiegand data lines or an RS485 pair to the controller. At 12 V, budget about 150 mA per reader while reading.
Is it suitable for outdoor doors?
The housing is rated IP65 and operates from –20 to +65 °C at 20–80% non-condensing humidity, which suits sheltered outdoor entrances.
Can settings be changed after installation?
Yes. The management utility updates firmware and parameters over the RS485 line.
Does it carry CE or FCC certification?
No certification is listed for this model. If your project requires CE, FCC or another mark, tell us before ordering and we will confirm what documentation is available.
