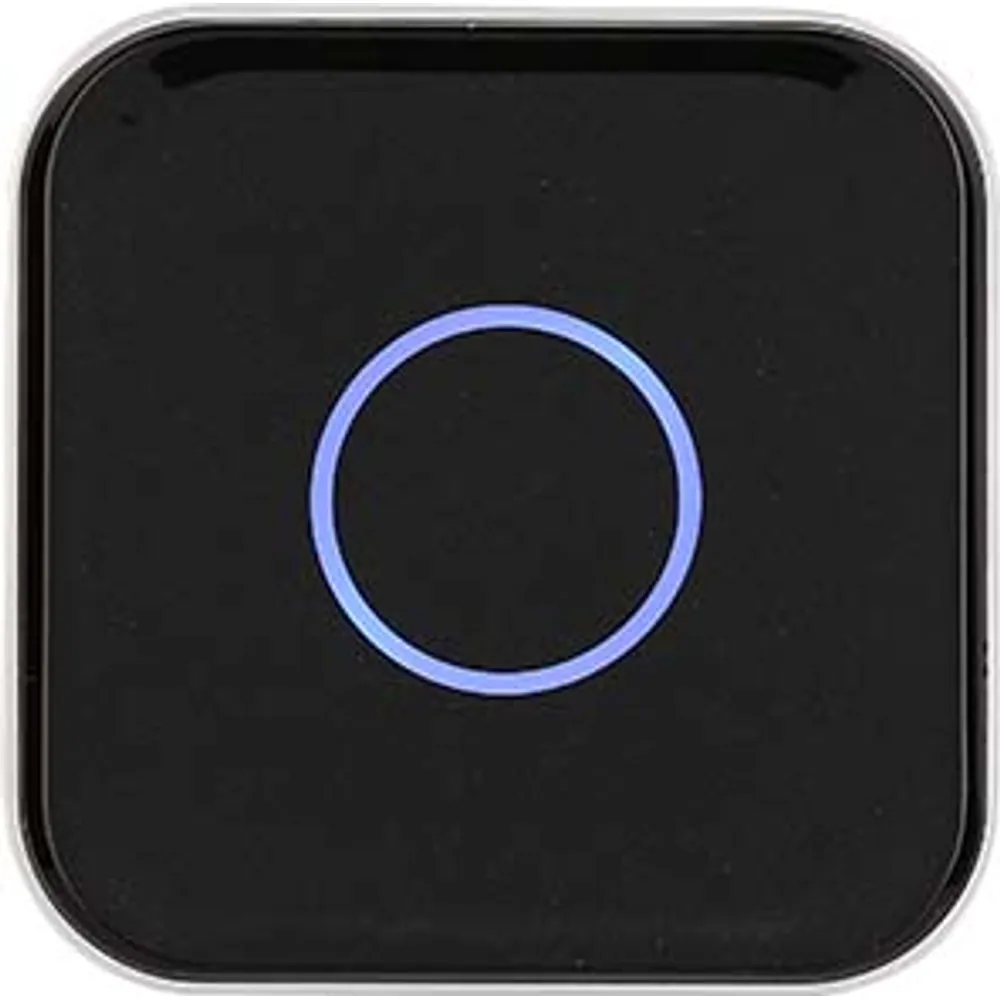

TP-140 IP65 Tamper-Proof Dual-Frequency Card Reader, 93 mm
Dual-frequency 125 kHz + 13.56 MHz tamper-alarm reader, 93 mm square, IP65, reading EM cards through to encrypted CPU cards with Wiegand or RS485 output.
- Reads 125 kHz EM4100/4102/4200/4305/4450 and 13.56 MHz ISO/IEC 14443A/B cards
- Encrypted CPU card reading for a phased move to anti-copy credentials
- 93.3 × 93 × 19.3 mm square housing, IP65, tamper alarm
- Wiegand or RS485 output; firmware updates over RS485
- –20 to +65 °C operating, –40 to +80 °C storage
- Frequency
- 125 kHz + 13.56 MHz
- Output
- Wiegand, RS485
- Read range
- 0–3 cm
- Power
- 9–15 V DC, ≈ 150 mA at 12 V
- IP rating
- IP65
- Dimensions
- 93.3 × 93 × 19.3 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
IP65 Tamper-Proof Dual-Frequency Card Reader, 93 mm: overview
TP-140 puts the dual-frequency tamper-alarm reader into a larger 93.3 × 93 × 19.3 mm square housing. Pick it over the 86 mm TP-120 when the door design calls for a bigger square face, or when a site has already standardized on 93 mm readers.
One reader covers the card mix found on older sites: 125 kHz EM4100, EM4102, EM4200, EM4305 and EM4450 cards, plus 13.56 MHz MIFARE Classic, MIFARE DESFire EV1/EV2, MIFARE Ultralight and Ultralight C, NTAG2xx, NFC Forum Type 1/2/4 tags and CPU smart cards under ISO/IEC 14443A/B and ISO/IEC 18092. Because it reads encrypted CPU card content, a site can phase in anti-copy cards while proximity cards are still in circulation. Read range is 0–3 cm.
The housing is rated IP65 and the reader raises a tamper alarm if it is taken off the wall. Operating range is –20 to +65 °C at 20–80% relative humidity, non-condensing, and storage is rated down to –40 °C.
Integration notes
Connect Wiegand or RS485 to the controller and supply 9–15 V DC; at 12 V, expect about 100 mA on standby and 150 mA while reading. Firmware and settings can be updated over RS485 with the management utility. A touch-keypad version is available for card-plus-PIN doors.
More features
- Card-only or touch-keypad version
TP-140 specifications
RF & credentials
| Frequency | 125 kHz + 13.56 MHz |
|---|---|
| HF standards | ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 18092 |
| HF cards and tags | MIFARE Classic, MIFARE DESFire EV1/EV2, MIFARE Ultralight, MIFARE Ultralight C, NTAG2xx, CPU (microprocessor) smart cards, NFC Forum Type 1/2/4 tags |
| LF cards | EM4100, EM4102, EM4200, EM4305, EM4450 |
| Encrypted read | Reads encrypted content of CPU smart cards (anti-copy) |
| Read range | 0–3 cm (depends on installation and card) |
Interfaces & management
| Communication | Wiegand, RS485 |
|---|---|
| Firmware update | Over RS485 with the management utility |
| Configuration | Parameters updated with the management utility |
| Keypad | None (card-only) or touch keypad (-K variant) |
Security
| Tamper | Tamper alarm on removal from the mounting surface |
|---|
Electrical
| Supply voltage | 9–15 V DC |
|---|---|
| Current at 12 V | ≈ 100 mA standby, ≈ 150 mA operating |
Mechanical & environment
| Dimensions | 93.3 × 93 × 19.3 mm (±0.5 mm) |
|---|---|
| Mounting | Wall mount |
| Ingress protection | IP65 |
| Operating temperature | –20 to +65 °C (–4 to +149 °F) |
| Operating humidity | 20–80% RH, non-condensing |
| Storage temperature | –40 to +80 °C (–40 to +176 °F) |
| Certifications | None listed; confirm marking requirements for your market |
Supported credentials
| Band | Standards | Card and tag types |
|---|---|---|
| 13.56 MHz | ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 18092 | MIFARE Classic, MIFARE DESFire EV1/EV2, MIFARE Ultralight, MIFARE Ultralight C, NTAG2xx, CPU (microprocessor) smart cards, NFC Forum Type 1/2/4 tags |
| 125 kHz | EM-family proximity | EM4100, EM4102, EM4200, EM4305, EM4450 |
Encrypted content can be read from CPU smart cards; read range is 0–3 cm depending on card and installation.
Tamper-alarm reader family at a glance
| SKU | Frequencies | Housing | Notes |
|---|---|---|---|
| TP-120 | 125 kHz + 13.56 MHz | 86 × 86 × 15.6 mm | Dual frequency, 86 mm footprint |
| TP-130 | 13.56 MHz | 86 × 86 × 15.6 mm | HF only, 86 mm footprint |
| TP-140 | 125 kHz + 13.56 MHz | 93.3 × 93 × 19.3 mm | Dual frequency, larger square face |
| TP-150 | 13.56 MHz | 93.3 × 93 × 19.3 mm | HF only, metal middle frame for metal mounts |
All four: IP65, tamper alarm, Wiegand or RS485, 9–15 V DC, 0–3 cm read range, card-only or touch-keypad version.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| TP-140-D | Card-only, 125 kHz + 13.56 MHz, tamper alarm, IP65, Wiegand/RS485, 93 mm square | |
| TP-140-D-K | Touch-keypad version, 125 kHz + 13.56 MHz, tamper alarm, IP65, Wiegand/RS485, 93 mm square |
Where the TP-140 is used
- Mixed-card sites moving from 125 kHz EM cards to encrypted smart cards
- Office entrances where the design calls for a 93 mm square reader
- Apartment doors that need a tamper alarm and dual-frequency support
- Card-plus-PIN doors using the touch-keypad version
Elevator Access Control Readers
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
Turnstile & Speed-Gate Readers: QR, RFID and Face
Turnstile card readers, QR scanners and face terminals for tripod, swing and speed gates, with Wiegand, RS485, RS232 or TTL output to the gate board.
TP-140 FAQ
What is the difference between TP-140 and TP-120?
Card support, outputs and electrical specs are the same. TP-140 uses a 93.3 × 93 × 19.3 mm square housing; TP-120 uses an 86 × 86 × 15.6 mm housing.
Which 125 kHz cards are supported?
EM4100, EM4102, EM4200, EM4305 and EM4450.
How is firmware updated?
Over the RS485 line, using the management utility that accompanies the reader. The same tool updates configuration parameters.
Is it suitable for outdoor use?
The housing is rated IP65 and works from –20 to +65 °C, so it suits sheltered outdoor doors.
What read range should I plan for?
0–3 cm, depending on the card type and installation, so users should present the card close to the reader face.
