GM-160 Mini 23 × 20 mm UHF RFID Reader Module, 902–928 MHz, TTL
Stamp-sized 23 × 20 mm UHF RFID reader module for US-band (902–928 MHz) devices: 18–26 dBm, sensitivity below −85 dBm, TTL UART and a hardware watchdog.
- 23 × 20 mm (±1 mm) footprint for space-constrained OEM designs
- FCC 902–928 MHz band; EPC Gen2 / ISO 18000-6C
- 18–26 dBm output with ±1 dB accuracy and ±0.2 dB flatness
- Receiver sensitivity < −85 dBm; reads 915 MHz long-range UHF cards
- Hardware watchdog plus RF power-amplifier saturation monitoring
- Frequency
- 902–928 MHz (FCC)
- Output power
- 18–26 dBm
- Sensitivity
- < −85 dBm
- Interface
- TTL UART
- Power
- 4.5–5.5 V DC
- Dimensions
- 23 × 20 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
Mini 23 × 20 mm UHF RFID Reader Module, 902–928 MHz, TTL: overview

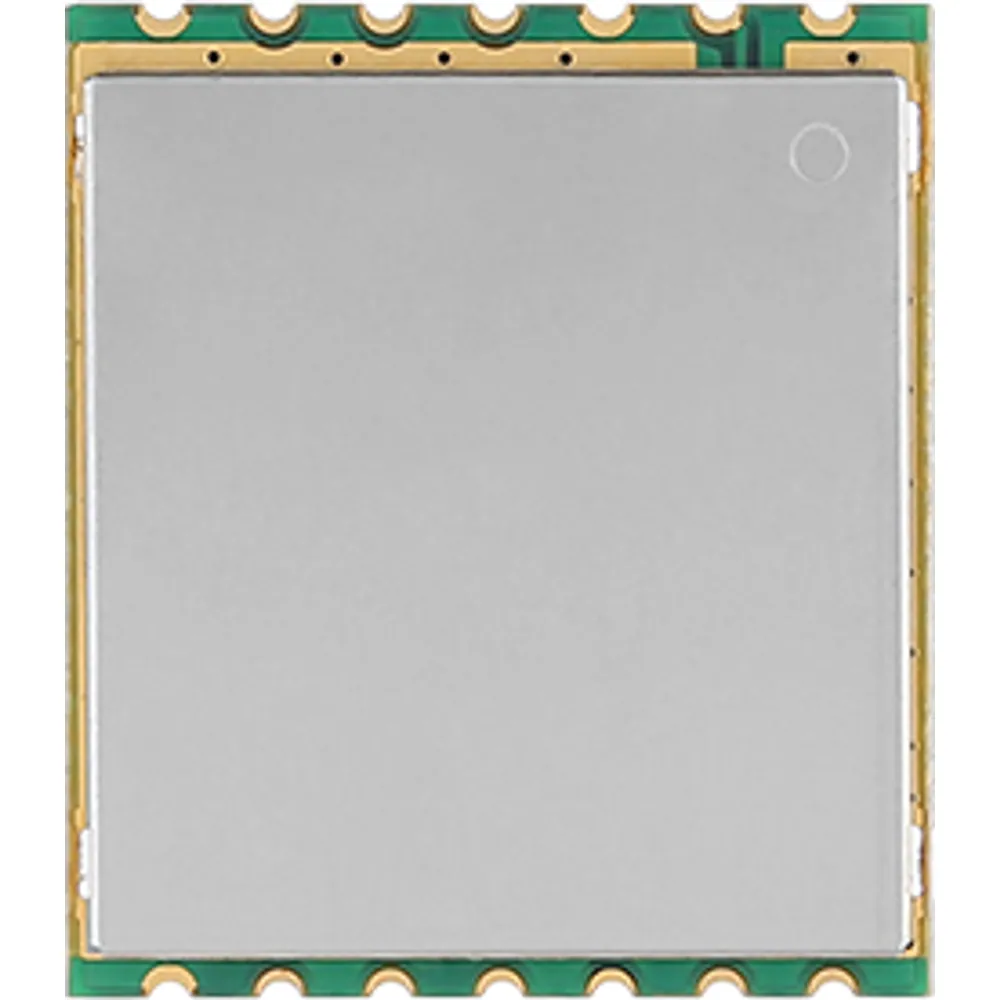

The GM-160 is a mini UHF RFID reader module measuring just 23 × 20 mm (±1 mm), the smallest UHF reader board in our current range. It gives compact US-market devices, such as handheld scanners, desktop enrollment readers and locker controllers, an EPC Gen2 / ISO 18000-6C engine on a board about the size of a postage stamp.
Transmit power is set between 18 and 26 dBm, held to within ±1 dB of the setting with ±0.2 dB flatness across the band, and the receiver picks up replies weaker than −85 dBm. Firmware is tuned two ways: a multi-tag inventory algorithm for crowded fields, and a quick-response routine for the common case of one or two tags. 915 MHz long-range UHF cards are supported. Internally, a dual-processor layout handles tag polling and host output at the same time, while a hardware watchdog and RF power-amplifier monitoring protect against lockups and amplifier saturation.
This part is specified for the FCC 902–928 MHz band only, for the US, Canada and other regions that follow FCC rules. For ETSI 865–868 MHz projects, choose the dual-band GM-150 or the GM-140-EU instead.
Integration notes
Run the module from 4.5–5.5 V DC. The data sheet gives operating current as 300 mA–2.5 A, so size the regulator for the upper figure and measure actual draw on a sample. The host link is a TTL UART at 115200 bps (default) or 38400 bps. Rated operating temperature is −25 to +70 °C, with storage from −30 to +80 °C.
More features
- TTL UART at 115200 bps (default) or 38400 bps
GM-160 specifications
RF & protocols
| Frequency range | 902–928 MHz |
|---|---|
| Region | US, Canada and other regions following FCC rules |
| Air protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
| Supported cards | EPC Gen2 tags, including 915 MHz long-range UHF cards |
| Output power | 18–26 dBm |
| Output power accuracy | ±1 dB |
| Output power flatness | ±0.2 dB |
| Receiver sensitivity | < −85 dBm |
Reliability
| Architecture | Dual CPU (tag polling and data output in parallel) |
|---|---|
| Supervision | Hardware watchdog; RF power-amplifier saturation monitoring |
| Algorithms | Multi-tag inventory; fast-response mode for few-tag scenes |
Interfaces
| Host interface | UART, TTL level |
|---|---|
| Baud rate | 115200 bps (default), 38400 bps |
Electrical
| Supply voltage | 4.5–5.5 V DC |
|---|---|
| Operating current | 300 mA–2.5 A (size supply for the upper figure) |
Mechanical & environment
| Dimensions | 23 × 20 mm (±1 mm) |
|---|---|
| Operating temperature | −25 to +70 °C |
| Storage temperature | −30 to +80 °C |
| Relative humidity | 5–85% (at +25 °C) |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| GM-160-US | Miniature module, US FCC band (902–928 MHz), TTL UART |
Where the GM-160 is used
- UHF engine for a compact handheld or pistol-grip scanner sold in North America
- Enrollment reader built into a front-desk terminal
- Smart locker or cabinet controller with little board space to spare
- Add-on UHF reader for an existing US-market IoT device
