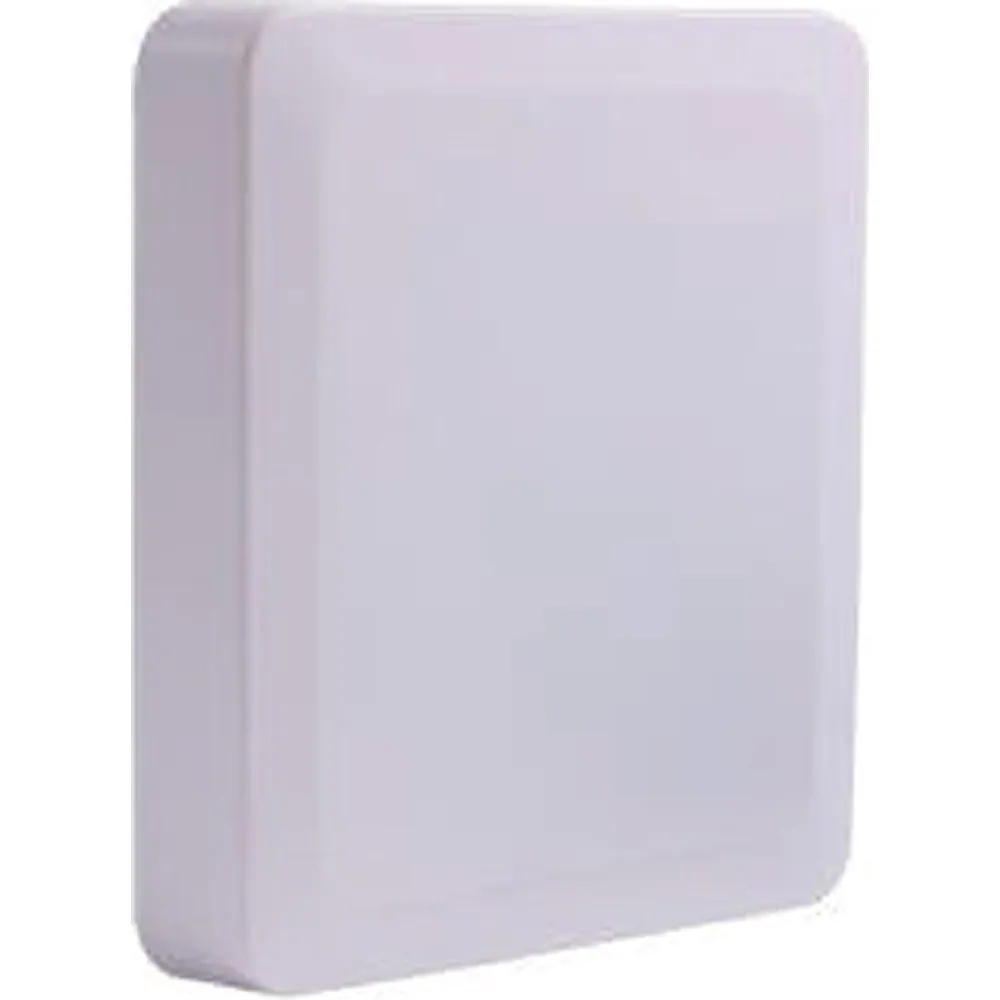

AN-120 6 dBi Compact Circular Polarized UHF RFID Antenna, IP67
Compact 6 dBi circularly polarized UHF antenna in a 140 × 120 × 20 mm IP67 housing with SMA female port, reading 5–11 m for lanes, counters and cabinets.
- 6 dBi circular polarization in a 140 × 120 × 20 mm housing weighing 0.46 kg
- Reads UHF tags at 5–11 m depending on reader output power and tag type
- 60° horizontal / 58° vertical beam with ≥ 23 dB front-to-back ratio
- IP67 ABS radome with gasket and silicone seal; operates –40 to +80 °C
- SMA female connector, 50 Ω, VSWR ≤ 1.3, 100 W maximum input
- Gain
- 6 dBi
- Polarization
- Circular
- Read range
- 5–11 m (reader and tag dependent)
- Connector
- SMA female, 50 Ω
- IP rating
- IP67
- Dimensions
- 140 × 120 × 20 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
6 dBi Compact Circular Polarized UHF RFID Antenna, IP67: overview
The AN-120 is a compact 6 dBi circularly polarized UHF antenna for short- to mid-range read zones: pedestrian lanes, service counters, document and tool cabinets, and warehouse shelving, where a full-size outdoor panel would be too bulky. Paired with a fixed reader or reader module, it reads at 5–11 m depending on reader power and tag.
Its 60° horizontal by 58° vertical beam produces a wider, shorter field than a 9 dBi panel, which makes it easier to stop one read zone spilling into the next. Front-to-back ratio is at least 23 dB, VSWR is 1.3 or better, and the antenna accepts up to 100 W.
The small footprint does not mean indoor-only. An ABS radome with gasket and silicone sealing gives IP67 protection, and the operating range of –40 to +80 °C covers outdoor pedestrian gates as well as refrigerated storage. At 0.46 kg it can hang from a light bracket or sit inside furniture.
Integration notes

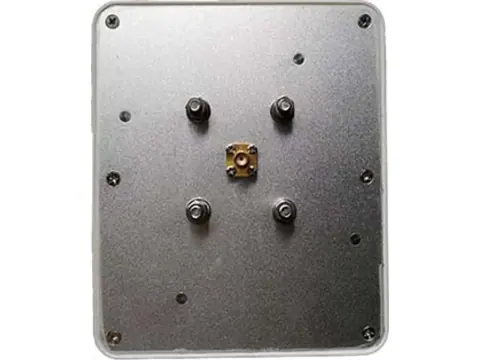

The RF port is an SMA female (jack) connector on the metal back plate, so the reader cable needs an SMA male plug at the antenna end and 50 Ω impedance throughout. Pole mounting suits masts of 25–50 mm diameter. Two tunings are available: AN-120-EU for 865–868 MHz readers and AN-120-US for 902–928 MHz readers (listed as 840 MHz and 940 MHz nominal, 100 MHz bandwidth). For vehicle lanes that need more distance, step up to the 9 dBi AN-110.
More features
- EU (865–868 MHz) and US (902–928 MHz) tuned versions
AN-120 specifications
RF performance
| Frequency versions | 840 MHz or 940 MHz nominal tuning (see variants) |
|---|---|
| Bandwidth | 100 MHz |
| Gain | 6 dBi |
| Polarization | Circular |
| Beamwidth | 60° horizontal / 58° vertical |
| Front-to-back ratio | ≥ 23 dB |
| VSWR | ≤ 1.3 |
| Impedance | 50 Ω |
| Maximum input power | 100 W |
| Typical read range | 5–11 m, depending on reader output power and tag |
Connection & protection
| Connector | SMA female (jack) |
|---|---|
| Lightning protection | DC grounded |
| Sealing | Gasket plus silicone double seal |
Mechanical & environment
| Dimensions | 140 × 120 × 20 mm |
|---|---|
| Weight | 0.46 kg |
| Reflector | Copper plate / FR4 high-frequency board |
| Radome | ABS |
| Ingress protection | IP67 |
| Operating temperature | –40 to +80 °C |
| Rated wind velocity | 60 m/s |
| Mounting | Pole mount, mast diameter 25–50 mm |
Frequency versions
| Variant SKU | Gain | Nominal tuning | Use with readers on | Connector |
|---|---|---|---|---|
| AN-120-EU | 6 dBi | 840 MHz | 865–868 MHz (ETSI) | SMA female |
| AN-120-US | 6 dBi | 940 MHz | 902–928 MHz (FCC) | SMA female |
Same housing, gain and SMA connector; choose the tuning that matches your reader's regional band.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| AN-120-EU | 6 dBi compact circular polarized antenna, lower tuning (840 MHz nominal) for 865–868 MHz readers, SMA female, IP67 | |
| AN-120-US | 6 dBi compact circular polarized antenna, upper tuning (940 MHz nominal) for 902–928 MHz readers, SMA female, IP67 |
