AN-130 6 dBi Circular Polarized PCB UHF RFID Antenna, Indoor
Bare-board 6 dBi circularly polarized UHF antenna, 120 × 120 × 6.5 mm and 0.12 kg, with a 3 m or 5 m SMA lead for smart cabinets, shelves and self-service fridges.
- 6 dBi circularly polarized PCB antenna, only 120 × 120 × 6.5 mm and 0.12 kg
- 35° × 36° beam keeps the read field on the shelf or drawer directly in front
- Pre-terminated coaxial lead with SMA plug in 3 m or 5 m lengths
- 50 Ω, VSWR ≤ 1.3, ≥ 23 dB front-to-back ratio, up to 100 W input
- Operating range –40 to +80 °C for chilled and frozen display cabinets
- Gain
- 6 dBi
- Polarization
- Circular
- Beamwidth
- 35° H / 36° V
- Connector
- SMA plug on 3 m or 5 m lead
- Dimensions
- 120 × 120 × 6.5 mm
- Weight
- 0.12 kg
Reply within 24 hours Tested before dispatch Worldwide shipping
6 dBi Circular Polarized PCB UHF RFID Antenna, Indoor: overview

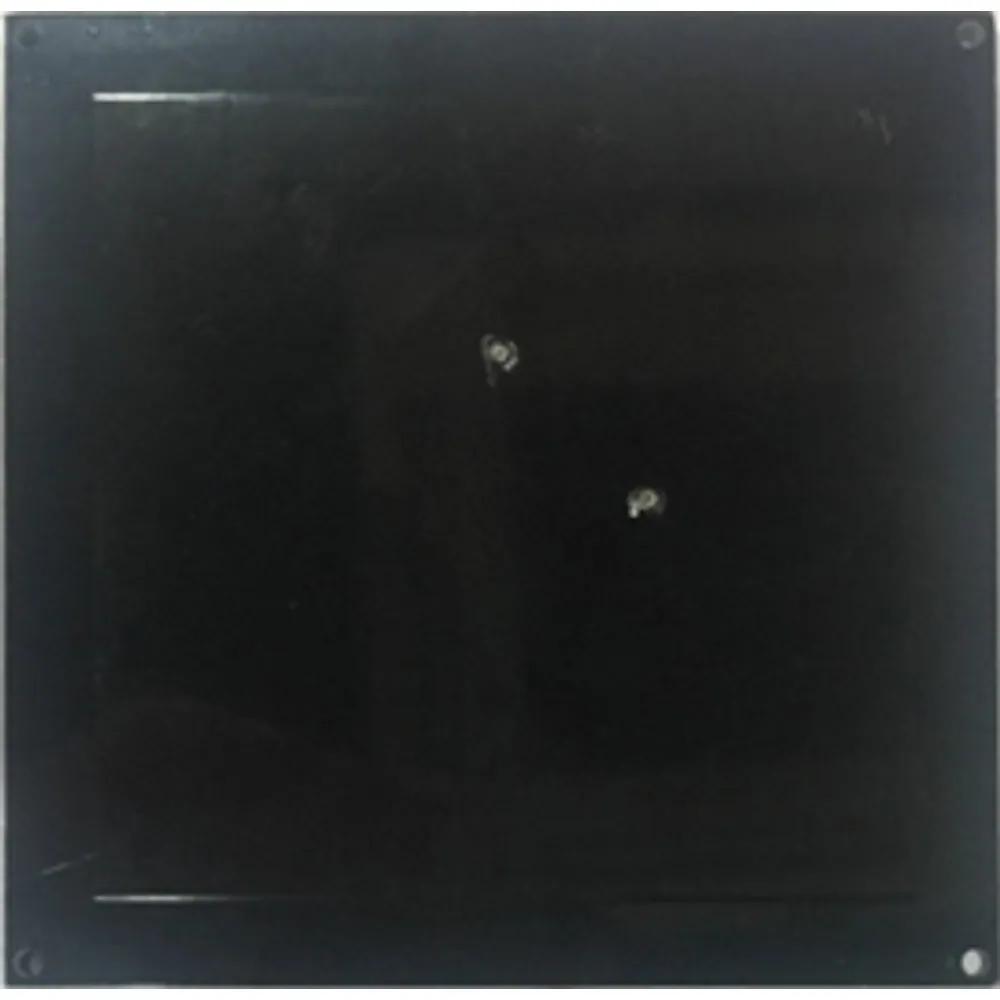

The AN-130 is a bare-board 6 dBi UHF antenna for building RFID into furniture and equipment: smart cabinets, unattended retail fridges and freezers, checkout shelves and inventory drawers. At 6.5 mm thick and 0.12 kg it fits behind a shelf panel, under a counter top or inside a door where a housed antenna would not.
The board is circularly polarized, so tagged items read whichever way they are placed, and its 35° horizontal by 36° vertical beam concentrates energy on the shelf or drawer in front of it rather than across the room. VSWR is 1.3 or better at 50 Ω, the front-to-back ratio is at least 23 dB, and the antenna tolerates up to 100 W.
There is no radome and the board is not waterproof, so it belongs inside a dry enclosure. The rated operating range of –40 to +80 °C covers refrigerated and frozen displays, provided the installation keeps condensation off the board.
Integration notes
Each antenna comes with a fixed coaxial lead ending in an SMA plug: 3 m on AN-130-3 and 5 m on AN-130-5. It is meant for multi-port fixed readers and reader modules, typically with one antenna per shelf or compartment. The datasheet lists the frequency as 840/940 MHz with 100 MHz bandwidth; tell us whether your reader runs 865–868 MHz or 902–928 MHz and we confirm the tuning before dispatch. For damp or outdoor locations, use the IP67-rated AN-120 instead.
More features
- Uncovered, non-waterproof board designed to mount inside dry enclosures
AN-130 specifications
RF performance
| Frequency | 840/940 MHz per datasheet; tuning confirmed for 865–868 or 902–928 MHz readers |
|---|---|
| Bandwidth | 100 MHz |
| Gain | 6 dBi |
| Polarization | Circular |
| Beamwidth | 35° horizontal / 36° vertical |
| Front-to-back ratio | ≥ 23 dB |
| VSWR | ≤ 1.3 |
| Impedance | 50 Ω |
| Maximum input power | 100 W |
| Grounding | DC grounded |
Cable & connector
| Connector | SMA plug on integrated coaxial lead |
|---|---|
| Cable length | 3 m (9.8 ft) or 5 m (16.4 ft) |
Mechanical & environment
| Dimensions | 120 × 120 × 6.5 mm (±3 mm) |
|---|---|
| Weight | 0.12 kg |
| Substrate | FR4 high-frequency board |
| Radome | None (bare board) |
| Water resistance | Not waterproof; indoor enclosure use |
| Operating temperature | –40 to +80 °C |
Cable length options
| Variant SKU | Gain | Cable length | Termination | Enclosure |
|---|---|---|---|---|
| AN-130-3 | 6 dBi | 3 m (9.8 ft) | SMA plug | None, indoor use |
| AN-130-5 | 6 dBi | 5 m (16.4 ft) | SMA plug | None, indoor use |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| AN-130-3 | 6 dBi circular polarized PCB antenna, 120 × 120 × 6.5 mm, no radome, 3 m (9.8 ft) coaxial lead with SMA plug | |
| AN-130-5 | 6 dBi circular polarized PCB antenna, 120 × 120 × 6.5 mm, no radome, 5 m (16.4 ft) coaxial lead with SMA plug |
Where the AN-130 is used
- Smart tool or document cabinets with one antenna per shelf on a multi-port reader
- Unattended retail fridges and freezers that count tagged products on each door cycle
- Self-checkout counters reading a basket of tagged goods in one pass
- Inventory drawers and returns bins logging what goes in and out
RFID Asset & Tool Tracking
Build an RFID asset tracking system: on-metal, ceramic and tie-on tags matched to each asset, handheld audits, smart cabinets and IP67 HF heads for tooling.
AN-130 FAQ
Can the AN-130 be used outdoors or in wet areas?
No. It is a bare PCB with no radome and is not waterproof. For exposed or damp locations use the IP67-rated AN-120 (6 dBi) or AN-110 (9 dBi).
Which cable length should I choose?
Choose the shortest lead that reaches your reader: AN-130-3 has a 3 m cable and AN-130-5 a 5 m cable, both ending in an SMA plug. Shorter coax means less signal loss.
Will it work with my multi-port reader?
It works with UHF readers and reader modules that have 50 Ω antenna ports. The lead ends in an SMA plug, so a reader with RP-TNC or another port type needs an adapter cable.
Which frequency band is it tuned for?
The datasheet lists 840/940 MHz with 100 MHz bandwidth. Tell us whether your reader runs 865–868 MHz or 902–928 MHz and we confirm the tuning before we ship.
