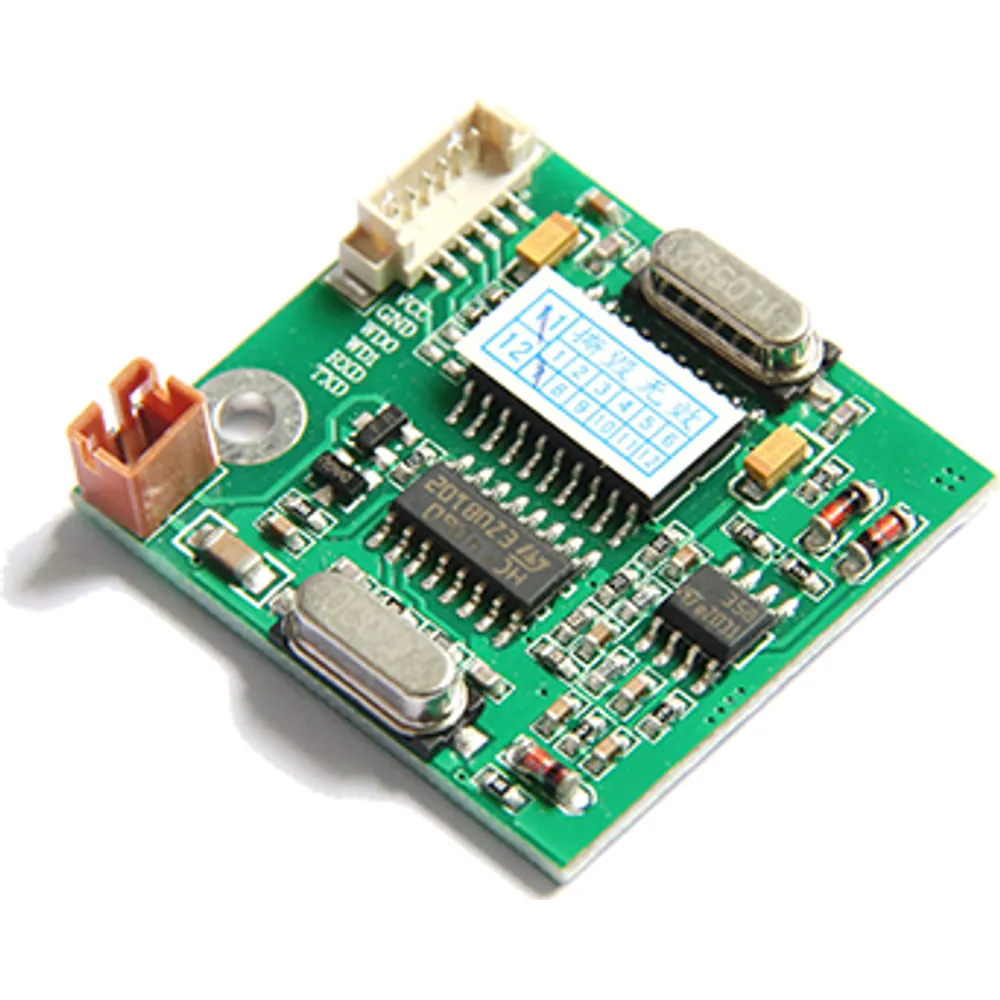

HF-180 MIFARE Classic Read/Write Module, TTL/Wiegand 34/RS232
38 × 29 mm ISO14443A module that reads card UIDs and reads/writes MIFARE Classic sectors, available with TTL, Wiegand 34 or RS232 output.
- Reads ISO14443A UIDs: MIFARE Classic 1K/4K, Ultralight, NTAG2xx and FM11RF08
- Reads and writes MIFARE Classic sector data
- TTL UART, Wiegand 34 or RS232 output builds on one 6-pin footprint
- Automatic card-search mode by default: card data is sent without host polling
- Integrated antenna with read distance up to 60 mm
- Frequency
- 13.56 MHz (ISO/IEC 14443A)
- Output
- TTL UART / Wiegand 34 / RS232 (by build)
- Read range
- 0–60 mm
- Power
- 5 V DC ±5% (3.3 V option), < 100 mA
- Dimensions
- 38 × 29 × 11.5 mm
- Operating temperature
- –10 to +70 °C
Reply within 24 hours Tested before dispatch Worldwide shipping
MIFARE Classic Read/Write Module, TTL/Wiegand 34/RS232: overview
The HF-180 is a single-protocol 13.56 MHz module for products that only need ISO/IEC 14443A cards, such as MIFARE Classic 1K/4K access and membership cards. It returns the UID of MIFARE Classic, Ultralight and NTAG2xx cards and can read and write data held in MIFARE Classic sectors, which suits stored-value, locker-assignment or visitor-pass schemes that keep data on the card.
The antenna is integrated on the 38 × 29 mm board, and rated read distance is up to 60 mm depending on the card and surroundings. By default the module runs in automatic card-search mode and pushes card data to the host as soon as a card is presented, so a simple controller can listen without polling.
Three output builds share one footprint: TTL UART for microcontroller hosts, Wiegand 34 for access controllers, and RS232 for PCs, kiosks and older terminals. Demo software and an SDK are supplied for development.
Integration notes
Connection is a 6-pin, 2.54 mm pitch header: reset, a reserved input, D1, D0, ground and power in. D1 and D0 carry serial RX/TX on the serial builds and Wiegand DATA1/DATA0 on the Wiegand build. Serial speed is set by command between 9600 and 115200 bit/s, defaulting to 115200. The ordering table lists all three builds at 5 V; the datasheet also names 3.3 V as a supply option, so confirm the voltage when you order. Current draw is below 100 mA, and the module is rated –10 to +70 °C.
More features
- 38 × 29 × 11.5 mm board, 2.54 mm pitch pins, under 100 mA
HF-180 specifications
RF & credentials
| Operating frequency | 13.56 MHz |
|---|---|
| Protocol | ISO/IEC 14443A |
| Card UIDs | MIFARE Classic 1K (S50), MIFARE Classic 4K (S70), FM11RF08, MIFARE Ultralight, NTAG2xx |
| Memory access | MIFARE Classic sector read/write |
| Read distance | 0–60 mm (depends on card type and installation) |
| Antenna | Integrated on board |
| Default mode | Automatic card search; data sent to host on card detection |
Interfaces
| Output | TTL UART, Wiegand 34 or RS232 (by build) |
|---|---|
| Baud rate | 9600–115200 bit/s, configurable by command (default 115200) |
| Software | Demo software and SDK |
Electrical
| Supply voltage | 5 V DC ±5% (listed builds); 3.3 V option per datasheet — confirm at order |
|---|---|
| Operating current | < 100 mA |
Mechanical & environment
| Connection | 6 pins, 2.54 mm pitch |
|---|---|
| Dimensions | 38 × 29 × 11.5 mm (±3 mm) |
| Operating temperature | –10 to +70 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 15–90% RH |
Builds
| Variant SKU | Output | Supply |
|---|---|---|
| HF-180-M-T | TTL UART | 5 V |
| HF-180-M-W34 | Wiegand 34 | 5 V |
| HF-180-M-232 | RS232 | 5 V |
Pin definition
| Pin | Signal | Function |
|---|---|---|
| 1 | RESET | Reset |
| 2 | IN | Reserved (no function) |
| 3 | D1 | Serial RX / I2C SDA / Wiegand DATA1 |
| 4 | D0 | Serial TX / I2C SCL / Wiegand DATA0 |
| 5 | GND | Ground |
| 6 | VIN | Power input |
6-pin header, 2.54 mm pitch.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| HF-180-M-T | MIFARE Classic read/write module, TTL UART output, 5 V | |
| HF-180-M-W34 | MIFARE Classic read/write module, Wiegand 34 output, 5 V | |
| HF-180-M-232 | MIFARE Classic read/write module, RS232 output, 5 V |
Where the HF-180 is used
- Wiegand 34 card heads for residential door stations and turnstiles
- Gym or club lockers that write the assigned locker number into a MIFARE Classic sector
- RS232 card readers for PC-based visitor registration desks
- TTL-connected readers in vending or laundry machines using stored-value MIFARE cards
Turnstile & Speed-Gate Readers: QR, RFID and Face
Turnstile card readers, QR scanners and face terminals for tripod, swing and speed gates, with Wiegand, RS485, RS232 or TTL output to the gate board.
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
HF-180 FAQ
Can the HF-180 write to cards?
Yes. Besides reading UIDs, it reads and writes MIFARE Classic sector data. Ultralight and NTAG2xx cards are listed for UID reading.
Which Wiegand format does the Wiegand build output?
HF-180-M-W34 outputs Wiegand 34 on the D0/D1 pins. If your controller expects Wiegand 26, look at the HF-160-M-W26 or HF-170-M-W26.
Does the host need to poll for cards?
No. The default mode is automatic card search, so the module sends card data as soon as a card enters the field. Serial builds run at 9600–115200 bit/s, 115200 by default.
What supply voltage does it use?
The listed builds run at 5 V DC ±5% and draw under 100 mA. The datasheet also lists 3.3 V as an option; confirm it at order if your host rail is 3.3 V only.
