HF-220 13.56 MHz USB NFC Reader Module, ISO15693 & FeliCa Options
USB-powered 47 × 26 mm multi-protocol HF module with built-in or external antenna, optional FeliCa, and SDKs for Windows, Android and Linux.
- ISO/IEC 14443A/B, ISO/IEC 15693 and ISO/IEC 18092 in one USB module
- Reads MIFARE Classic, DESFire EV1/EV2, Ultralight C, NTAG2xx, ICODE and CPU cards
- FeliCa support on -FC builds
- On-board antenna, or external 50 Ω antenna connector on -EXT builds
- Active auto-read or passive command-driven reading
- Frequency
- 13.56 MHz
- Interface
- USB (12 Mbps)
- Protocols
- ISO/IEC 14443A/B, 15693, 18092; FeliCa (-FC)
- Read range
- 0–5 cm
- Power
- USB 4.3–5.5 V, ≤ 150 mA
- Dimensions
- 47 × 26 × 4.5 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
13.56 MHz USB NFC Reader Module, ISO15693 & FeliCa Options: overview
The HF-220 is a USB reader module for device makers who want multi-standard 13.56 MHz card reading in handhelds, tablets, PCs, displays, service terminals and ticketing equipment. It handles ISO/IEC 14443A/B, ISO/IEC 15693 and ISO/IEC 18092 (NFC) cards, covering MIFARE Classic, DESFire EV1/EV2, Ultralight and Ultralight C, NTAG2xx, ICODE, CPU cards and NFC Forum tags.

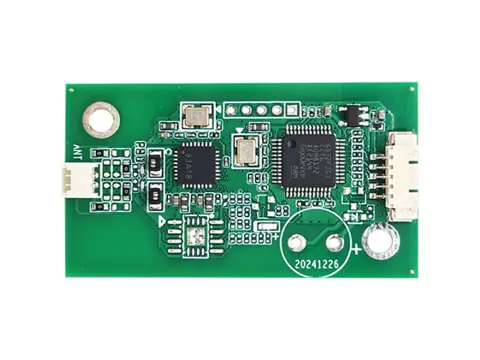

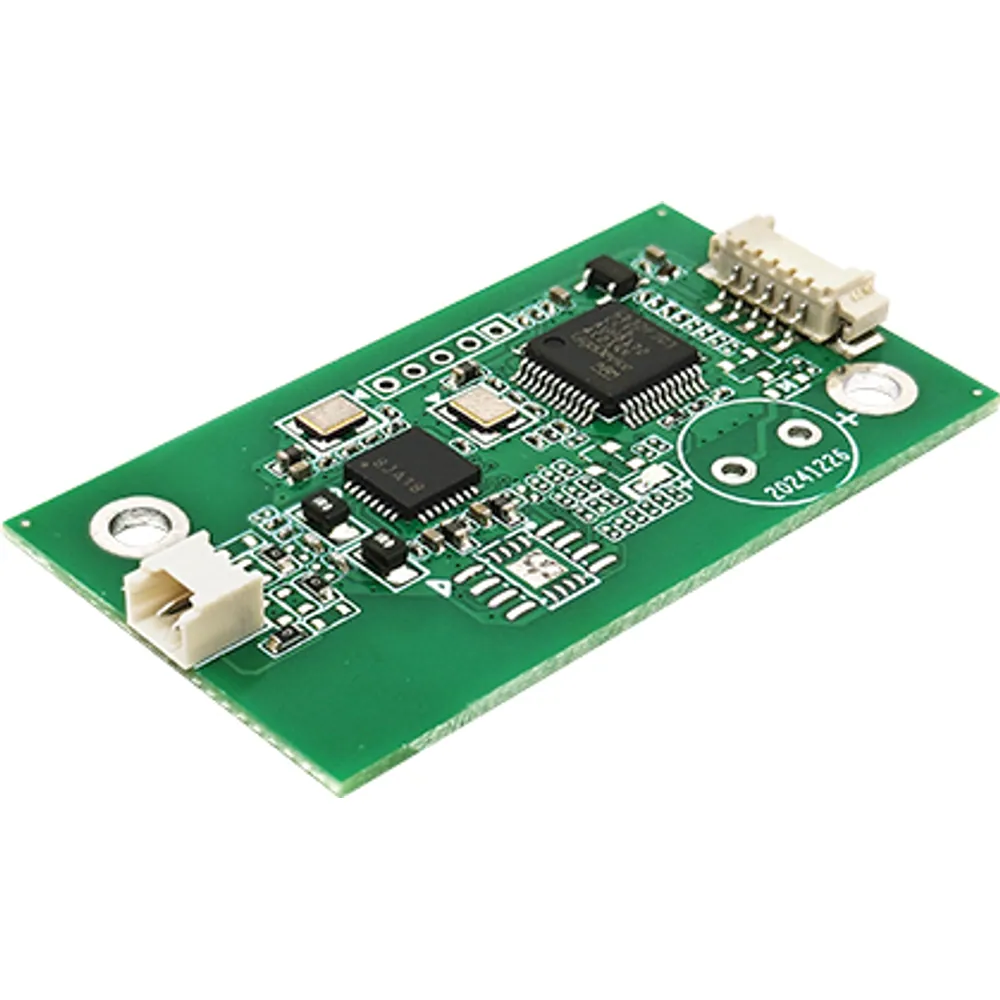

Four builds cover two choices. First, card support: the standard build leaves out FeliCa, while the -FC builds add FeliCa for markets and card schemes that depend on it. Second, antenna: the standard boards carry an on-board antenna, and the -EXT boards bring out a 2-pin, 1.25 mm pitch connector for an external 50 Ω antenna when the reading point has to sit away from the electronics.
Rated read distance is 0–5 cm depending on the card and mounting. The module can run in active mode, reading cards automatically, or in passive mode, where it reads only when the host sends a command.
Integration notes
All builds use a 5-pin, 1.25 mm pitch connector: 5 V, USB D–, USB D+, ground and an active-low reset. The USB link runs at 12 Mbps from a 4.3–5.5 V supply, drawing up to 150 mA while reading and up to 120 mA on standby. Listed host systems are Windows 10/8.1/8/7, Linux, Android and macOS, with SDKs for Windows, Android and Linux. Firmware can be upgraded, and a management tool handles configuration. The board measures 47 × 26 × 4.5 mm and weighs about 4 g.
More features
- SDKs for Windows, Android and Linux; firmware upgradable
- 47 × 26 × 4.5 mm, about 4 g, USB-powered at 4.3–5.5 V
HF-220 specifications
RF & credentials
| Operating frequency | 13.56 MHz |
|---|---|
| Protocols | ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693, ISO/IEC 18092; FeliCa on -FC builds |
| Credentials | MIFARE Classic, MIFARE DESFire EV1/EV2, MIFARE Ultralight, MIFARE Ultralight C, NTAG2xx, ICODE, CPU cards, NFC Forum Type 1–5 tags |
| Read distance | 0–5 cm (depends on installation and card) |
| Antenna | On board (standard builds); external 50 Ω via 2-pin connector (-EXT builds) |
| Reading modes | Active (automatic) or passive (on host command) |
Interfaces
| Device interface | USB |
|---|---|
| Data rate | 12 Mbps |
| Supported host OS | Windows 10, 8.1, 8, 7; Linux; Android; macOS |
| SDK | Windows, Android, Linux |
| Firmware & configuration | Firmware upgradable; management tool for configuration |
Electrical
| Supply voltage | USB, 4.3–5.5 V |
|---|---|
| Current | ≤ 150 mA working; ≤ 120 mA standby |
Mechanical & environment
| Connectors | 5-pin, 1.25 mm pitch (USB/power); 2-pin, 1.25 mm pitch antenna (-EXT) |
|---|---|

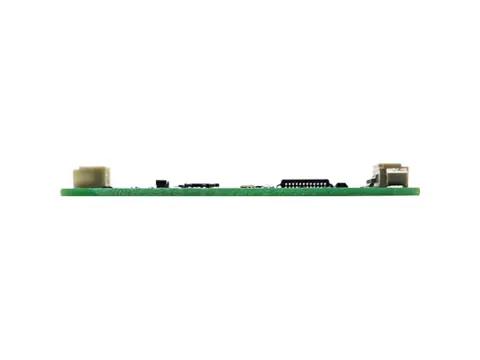

| Dimensions | 47 × 26 × 4.5 mm ±0.5 mm |
| Weight | Approx. 4.0–4.1 g |
| Operating temperature | –20 to +60 °C (–4 to +140 °F) |
| Storage temperature | –40 to +80 °C (–40 to +176 °F) |
| Operating humidity | 20–80% RH, non-condensing |
| Compliance | RoHS |
Build matrix
| Variant SKU | FeliCa | Antenna | Weight |
|---|---|---|---|
| HF-220-U | No | On board | Approx. 4.0 g |
| HF-220-U-EXT | No | External, 50 Ω (2-pin connector) | Approx. 4.1 g |
| HF-220-FC-U | Yes | On board | Approx. 4.1 g |
| HF-220-FC-U-EXT | Yes | External, 50 Ω (2-pin connector) | Approx. 4.1 g |
All builds: USB, 13.56 MHz, ISO/IEC 14443A/B, 15693 and 18092.
Pin definition
| Pin | Signal | Function |
|---|---|---|
| Main-1 | 5V | Power, +5 V DC |
| Main-2 | DM | USB data – |
| Main-3 | DP | USB data + |
| Main-4 | GND | Ground |
| Main-5 | RESET | Reset (active low) |
| ANT-1 | TX1 | Antenna pin 1 |
| ANT-2 | TX2 | Antenna pin 2 |
Main connector on all builds; antenna connector on -EXT builds only.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| HF-220-U | USB 13.56 MHz multi-protocol module, no FeliCa, on-board antenna | |
| HF-220-U-EXT | USB 13.56 MHz multi-protocol module, no FeliCa, external 50 Ω antenna connector | |
| HF-220-FC-U | USB 13.56 MHz multi-protocol module with FeliCa, on-board antenna | |
| HF-220-FC-U-EXT | USB 13.56 MHz multi-protocol module with FeliCa, external 50 Ω antenna connector |
Where the HF-220 is used
- Android or Linux handhelds that read ICODE asset labels and MIFARE staff cards
- Charging-station or kiosk front panels accepting FeliCa and MIFARE cards over USB
- Displays and service terminals with the antenna mounted in the bezel (-EXT builds)
- Ticketing and fare equipment needing ISO14443 and ISO15693 on one board
RFID for EV Charging Stations: Modules, Cards & Fobs
EV charger RFID cards, key fobs and 13.56 MHz reader modules for charger OEMs and operators: UID formats, OCPP idTag mapping and UART integration notes.
HF-220 FAQ
What is the difference between the -FC and standard builds?
The -FC builds add FeliCa card reading; all other card support is the same. Choose -FC if your users carry FeliCa-based cards.
When should I pick an -EXT build?
Choose -EXT when the read point must sit away from the board, such as behind a bezel or display frame. These builds have a 2-pin, 1.25 mm pitch connector for an external 50 Ω antenna; the standard builds use the on-board antenna.
Which operating systems and SDKs are supported?
Listed host systems are Windows 10, 8.1, 8 and 7, Linux, Android and macOS. SDKs are provided for Windows, Android and Linux.
What read distance can I expect?
0–5 cm, depending on the card type and how the module is mounted.
Does it read 125 kHz cards?
No, it is a 13.56 MHz-only module. For 125 kHz EM cards in the same 47 × 26 mm footprint, see the HF-210 dual-frequency builds.
