HF-200 USB CCID 13.56 MHz NFC Reader Module for OEM Integration

Compact 13.56 MHz USB CCID board for embedded terminals. HF-200-U requires an external 50 Ω antenna; validate the reader driver, PC/SC application and card transaction with samples.

  • HF-200-U: USB CCID configuration for OEM host integration; validate the PC/SC workflow
  • 13.56 MHz; ISO/IEC 14443A/B, ISO/IEC 15693 and ISO/IEC 18092 listed
  • ISO14443B APDU exchange and ISO15693 read/write named in the ordering record
  • External 50 Ω antenna required; confirm antenna, cable and connection details
  • 28.8 × 19 × 4.5 mm, approx. 2 g; USB 4.3–5.5 V, ≤ 180 mA working
Frequency
13.56 MHz
Interface
USB CCID (12 Mbps USB link)
Protocols
ISO/IEC 14443A/B, 15693, 18092
Antenna
External 50 Ω antenna required
Power
USB 4.3–5.5 V, ≤ 180 mA
Dimensions
28.8 × 19 × 4.5 mm
Reply within 24 hours Tested before dispatch Worldwide shipping

USB CCID 13.56 MHz NFC Reader Module for OEM Integration: overview

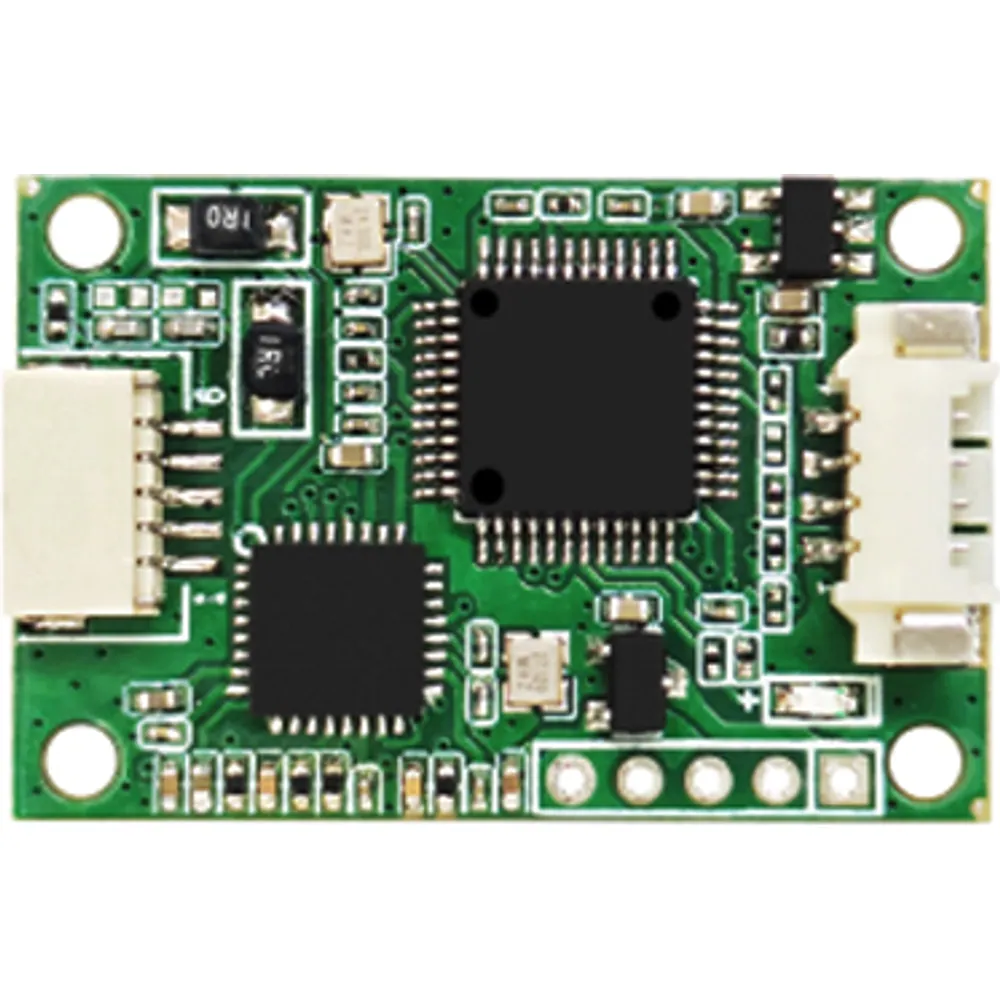

HF-200-U is the documented USB CCID configuration in this family: a 28.8 × 19 × 4.5 mm board for OEM kiosks, enrollment equipment and embedded terminals. It requires an external 50 Ω, 13.56 MHz antenna. Include the antenna, wiring and enclosure in your evaluation.

Check the host and card operation together

USB CCID is the listed device class. For PC/SC integration, confirm reader enumeration, driver support and command mapping in your actual application. Windows 11, 10, 8.1, 8 and 7 are listed; this is a platform list, not an application test report.

ISO/IEC 14443A/B, 15693 and 18092 are listed, along with MIFARE, DESFire EV1/EV2, Ultralight, NTAG2xx, ICODE, FeliCa and CPU card families. The ordering record specifically names ISO14443B APDU exchange and ISO15693 read/write. For other transactions, identify the exact chip, memory or application, commands and access conditions. Card recognition does not establish NDEF encoding or protected-data access.

Use the USB NFC buying guide for host-interface choices and the HF protocol compatibility guide to match MIFARE/NTAG and ICODE requirements.

Specify the antenna and integration package

Provide the intended read position, available antenna space, enclosure materials and nearby metal/display components. Confirm the antenna match, connection, cable, pinout and USB wiring with the sample package. The external-antenna requirement does not establish which accessories are included in a quote. See the OEM module checklist for the full integration process.

Approve the sample before a production order

  1. Record HF-200-U, firmware, host OS, driver and application/library versions; verify PC/SC reader enumeration and the required transaction.
  2. Test each actual credential and operation. Read back written test data after removing and presenting the card again.
  3. Test the antenna inside the intended enclosure, with actual cables, power arrangement and card-presentation position.
  4. Check reconnect, power-cycle and application recovery. Confirm the management-tool package and USB firmware-update procedure.

Prepare an OEM quote request

Send HF-200-U, sample and production quantities, card chips/operations, OS/application, antenna/enclosure constraints, delivery country and target date. Identify needed documentation, cables and software; confirm MOQ, availability and delivery timing for the selected build.

More features

  • USB firmware update and management tool listed; confirm the software package

HF-200 specifications

RF & credentials

Operating frequency13.56 MHz
ProtocolsISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693, ISO/IEC 18092
CredentialsMIFARE Classic, DESFire EV1/EV2, Ultralight/Ultralight C, NTAG2xx, ICODE, FeliCa and CPU cards listed; confirm the required operation per chip
NFC Forum tagsType 1, 2, 4 and 5
Card commandsISO14443B APDU exchange and ISO15693 read/write listed; confirm commands and firmware for the exact transaction
AntennaExternal, 50 Ω (13.56 MHz)

Interfaces

Device interfaceUSB CCID
USB link rate12 Mbps
Listed host OSWindows 11, 10, 8.1, 8 and 7; validate reader driver, PC/SC enumeration and actual application
Firmware & configurationUSB firmware update and management tool listed; confirm package, supported OS and update procedure

Electrical

Supply voltageUSB, 4.3–5.5 V
Current≤ 180 mA working; ≤ 150 mA standby

Mechanical & environment

Dimensions28.8 × 19 × 4.5 mm ±0.5 mm (antenna external)
WeightApprox. 2.0 g
Operating temperature–20 to +60 °C (–4 to +140 °F)
Storage temperature–40 to +80 °C (–40 to +176 °F)
Operating humidity20–80% RH, non-condensing
ComplianceRoHS mentioned in ordering data; declaration for the exact build pending confirmation. No radio approval documents established by this record.

OEM integration: listed capability and sample confirmation

ItemListed for HF-200-UConfirm with the sample or quote
ModuleUSB CCID, 13.56 MHz, 28.8 × 19 × 4.5 mmPinout, USB wiring, mounting and accepted firmware
AntennaExternal 50 Ω antenna requiredAntenna, connector/cable, package contents and installed read position
Host accessWindows 7–11 listed; USB CCIDDriver, PC/SC reader enumeration and target application/library
Card transactionISO14443B APDU; ISO15693 read/write namedExact chip, command sequence, access conditions and result
Management softwareUSB update and configuration tool listedPackage/version, supported OS, documentation and update procedure

Use this as an evaluation checklist. It records requirements to confirm, not completed compatibility tests or an included-accessory list.

Specifications can change between production batches. Confirm the current revision with us before placing volume orders.

Ordering options

Request a quote for a configuration below, or add one or more to your inquiry list. Send HF-200-U, card chips and transactions, host OS/application, antenna/enclosure constraints, sample and production quantities, and delivery country.

SKUConfigurationActions
HF-200-U USB CCID 13.56 MHz multi-protocol reader module, external 50 Ω antenna

Where the HF-200 is used

  • OEM kiosks evaluating a USB CCID card interface with a matched external antenna
  • Enrollment stations integrating specified card transactions into compatible host software
  • Asset-label stations evaluating ISO15693 read/write with actual ICODE credentials
  • Embedded ticket or pass terminals validating the required card application and transaction
Asset Tracking

RFID Asset & Tool Tracking

Build an RFID asset tracking system: on-metal, ceramic and tie-on tags matched to each asset, handheld audits, smart cabinets and IP67 HF heads for tooling.

HF-200 FAQ

Is HF-200-U a complete desktop NFC reader?

HF-200-U is an embedded USB CCID board that requires an external 50 Ω, 13.56 MHz antenna. Plan wiring, mounting, housing and host integration. Confirm which antenna, cable, connector and software items are included in the sample or production quote.

How do I evaluate HF-200-U with a PC/SC application?

USB CCID is documented; the actual PC/SC driver and application workflow need validation. On your target host, confirm reader enumeration, card detection, command mapping and the required transaction. Record the OS, driver, library and firmware versions. CCID alone does not prove every card operation or encoding workflow.

Which host operating systems are listed for HF-200-U?

Windows 11, 10, 8.1, 8 and 7 are listed. Confirm driver and management-tool support for your exact OS version and application. The available record does not establish Linux, macOS or Android compatibility; request evidence and evaluate a sample if another platform is required.

Can HF-200-U write ICODE tags or encode NFC URLs?

ISO15693 read/write is named in the ordering data, but confirm the exact ICODE chip and commands with the selected firmware. A tag-family list does not establish NDEF encoding software or every protected application. Specify the payload, memory/access conditions and host application, then test writing and readback with sample tags.

Which compliance documents should I request?

The ordering data mentions RoHS, while the parameter table provides no certification evidence. Request the declaration for the exact ordered build and any applicable module or finished-product approval documents for your destination. This page does not establish a verified radio certification or an approval for your assembled device.

What information is needed for an HF-200-U OEM quote?

Send the full SKU, sample and production quantities, exact credential chips and required transactions, host OS/application, antenna space and enclosure constraints, delivery country and target date. Confirm cables, pinout/command documentation, management software, compliance documents, MOQ and delivery timing in the quote.
