HF-150 Ultra-Thin 1.9 mm 13.56 MHz RFID Module, 3.3 V TTL
1.9 mm thin, 47.7 × 25 mm HF module with an integrated antenna and 3.3 V TTL UART, for card reading inside tablets, handhelds and other slim hosts.

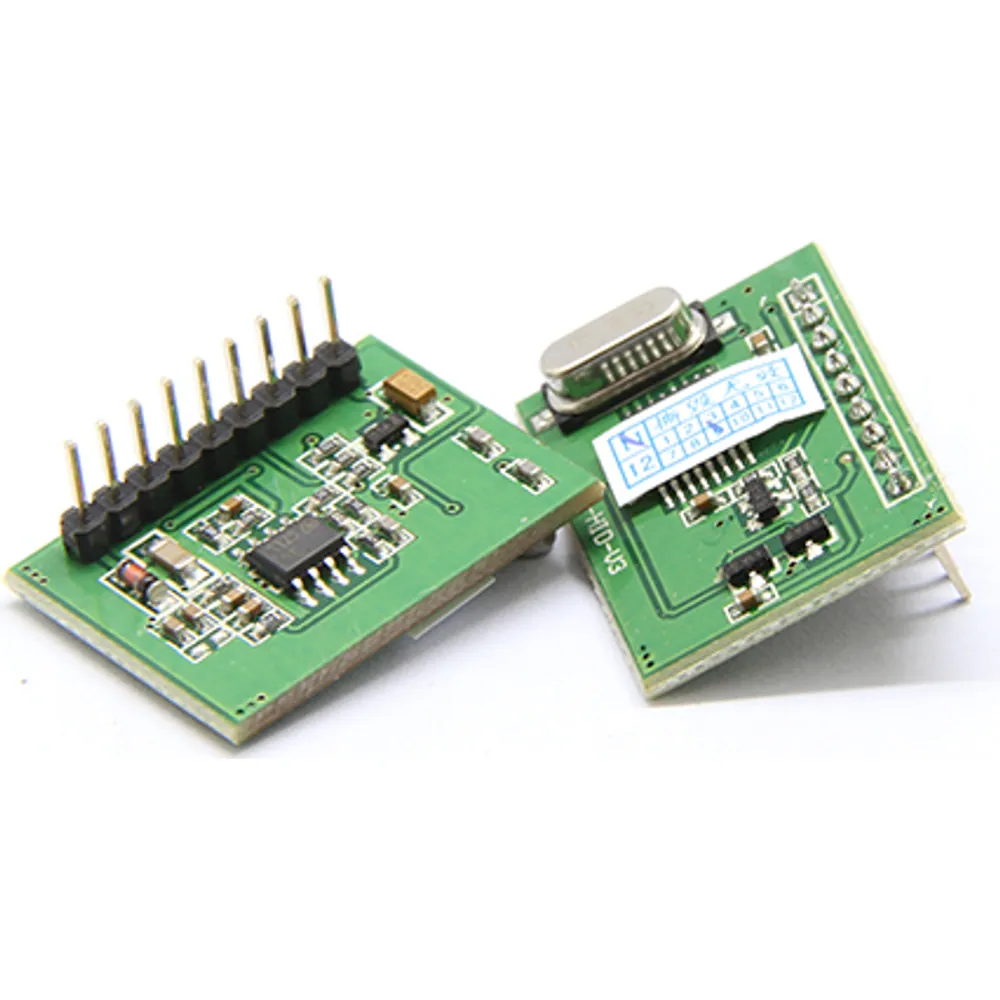

- 1.9 mm thick, 47.7 × 25 mm board with integrated antenna
- 3.3 V supply at under 100 mA; TTL UART configurable 9600–115200 bit/s
- Builds for ISO14443A with CPU cards, ISO14443A/B, or ISO14443A plus ICODE and DESFire UIDs
- Reads UIDs of MIFARE Classic 1K/4K, Ultralight, NTAG, FM11RF08 and FM1208
- Read distance 0–30 mm for deliberate tap-to-read use
- Frequency
- 13.56 MHz
- Protocols
- ISO/IEC 14443A/B, ISO/IEC 15693 (by build)
- Interface
- 3.3 V TTL UART
- Read range
- 0–30 mm
- Power
- 3.3 V DC ±5%, < 100 mA
- Dimensions
- 47.7 × 25 × 1.9 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
Ultra-Thin 1.9 mm 13.56 MHz RFID Module, 3.3 V TTL: overview
The HF-150 is a low-profile 13.56 MHz module for device designers with almost no height to spare. The board measures 47.7 × 25 mm and only 1.9 mm thick with its antenna integrated, and it runs from 3.3 V at under 100 mA, which suits the power rails and space budgets of tablets, handheld terminals and thin wall-mounted devices.
Three builds cover different card estates. The -MV build returns UIDs from MIFARE Classic 1K/4K, Ultralight, NTAG, FM11RF08 and FM1208 cards as well as ICODE (ISO/IEC 15693) tags and DESFire cards. The -MA build covers ISO/IEC 14443A cards up to FM1208 CPU cards, and the -AB build reads MIFARE Classic, Ultralight, NTAG and FM11RF08 UIDs with ISO/IEC 14443 Type B protocol support added. All three talk to the host over a 3.3 V TTL UART.
Rated read distance is 0–30 mm, so the module is intended for deliberate tap-to-identify steps such as member check-in, staff log-on or asset lookup rather than hands-free reading.
Integration notes
The 15-position J14 connection on 2.54 mm pitch carries VCC, ground, UART RXD/TXD, an external interrupt input (INT), SDA/SCL lines and an enable (EN) pin; several positions are unused. UART speed is configurable by command from 9600 to 115200 bit/s (default 115200). The datasheet names USB as an optional interface, but every listed build is TTL. Operating temperature is –10 to +50 °C, so check the thermal budget inside sealed handhelds. Demo software and an SDK are available.
More features
- INT input and EN enable pins on the 15-position connection
- Demo software and SDK for evaluation
HF-150 specifications
RF & credentials
| Operating frequency | 13.56 MHz |
|---|---|
| Protocols | ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693 (depending on build) |
| Supported cards (UID) | MIFARE Classic 1K/4K (S50/S70), MIFARE Ultralight, NTAG, FM11RF08, FM1208; ICODE and DESFire on -MV build |
| Read distance | 0–30 mm (depends on card type and environment) |
| Antenna | Integrated on board |
Interfaces
| Host interface | TTL UART (USB listed as optional in datasheet; all current builds TTL) |
|---|---|
| Baud rate | 9600–115200 bit/s, configurable by command (default 115200) |
| Other lines | INT (external interrupt input), EN (enable), SDA/SCL |
| Software | Demo software and SDK |
Electrical
| Supply voltage | 3.3 V DC ±5% |
|---|---|
| Operating current | < 100 mA |
Mechanical & environment
| Connection | 15 positions, 2.54 mm pitch (J14) |
|---|---|
| Dimensions | 47.7 × 25 × 1.9 mm (±1 mm) |
| Operating temperature | –10 to +50 °C |
| Storage temperature | –20 to +65 °C |
| Operating humidity | 15–90% RH |
Builds
| Variant SKU | Card support (UID) | Interface | Supply |
|---|---|---|---|
| HF-150-MV-T | MIFARE Classic S50/S70, Ultralight, NTAG, FM11RF08, FM1208, ICODE, DESFire | TTL UART | 3.3 V |
| HF-150-MA-T | MIFARE Classic S50/S70, Ultralight, NTAG, FM11RF08, FM1208 | TTL UART | 3.3 V |
| HF-150-AB-T | MIFARE Classic S50/S70, Ultralight, NTAG, FM11RF08; ISO14443B protocol | TTL UART | 3.3 V |
All builds: 3.3 V, TTL UART.
Pin definition (J14)
| Pin | Signal | Function |
|---|---|---|
| 1 | VCC | Power |
| 2 | GND | Ground |
| 3 | RXD | UART receive |
| 4 | TXD | UART transmit |
| 5 | INT | External interrupt input |
| 6 | NC | Not connected |
| 7 | SDA | Data line |
| 8 | SCL | Clock line |
| 9 | GND | Ground |
| 10 | EN | Enable |
| 11 | NC | Not connected |
| 12 | NC | Not connected |
| 13 | VCC | Power |
| 14 | NC | Not connected |
| 15 | GND | Ground |
15 positions, 2.54 mm pitch.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| HF-150-MV-T | Ultra-thin 3.3 V TTL module: ISO14443A UIDs plus ICODE (ISO15693) and DESFire UIDs | |
| HF-150-MA-T | Ultra-thin 3.3 V TTL module: ISO14443A UIDs including FM1208 CPU cards | |
| HF-150-AB-T | Ultra-thin 3.3 V TTL module: ISO14443A/B protocol, MIFARE/Ultralight/NTAG/FM11RF08 UIDs |
Where the HF-150 is used
- Card log-on built behind the display glass of a rugged tablet
- Member check-in pads at gyms and clubs with a slim wall housing
- Handheld asset lookup by tapping an ICODE or NTAG label
- Resident card reading in thin intercom or door-entry panels
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
RFID Asset & Tool Tracking
Build an RFID asset tracking system: on-metal, ceramic and tie-on tags matched to each asset, handheld audits, smart cabinets and IP67 HF heads for tooling.
HF-150 FAQ
How thin is the HF-150?
The module is 1.9 mm thick on a 47.7 × 25 mm footprint (±1 mm tolerance), with the antenna integrated on the board.
Can it run from 5 V?
No. It is specified for 3.3 V DC ±5% only, drawing under 100 mA. For 5 V hosts, see the HF-160 or HF-170 families.
Which build reads DESFire and ICODE?
HF-150-MV-T returns UIDs of DESFire cards and ICODE (ISO/IEC 15693) tags in addition to MIFARE Classic, Ultralight, NTAG, FM11RF08 and FM1208 cards.
Is a USB version available?
USB appears as an optional interface in the datasheet, but every current build is 3.3 V TTL. Ask us if you need USB in this footprint.
What temperature range does it support?
Operating –10 to +50 °C and storage –20 to +65 °C, at 15–90% RH.
