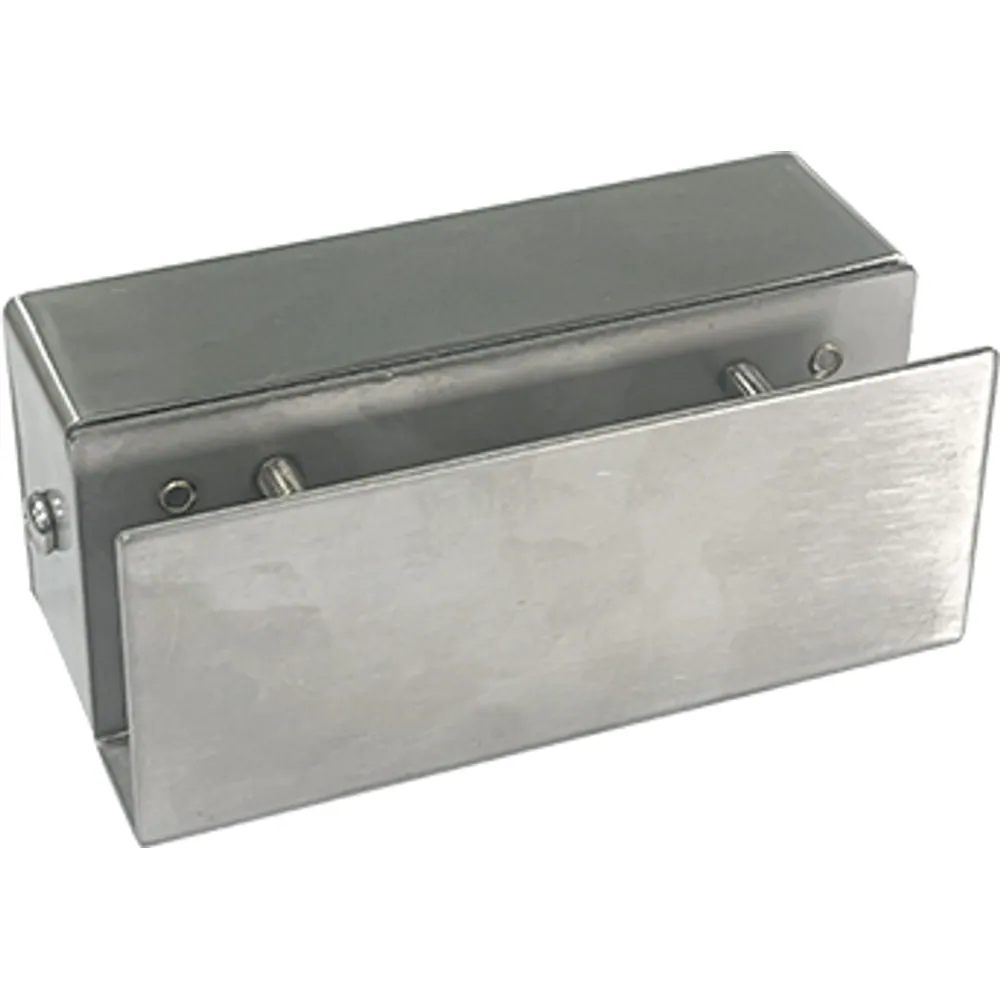

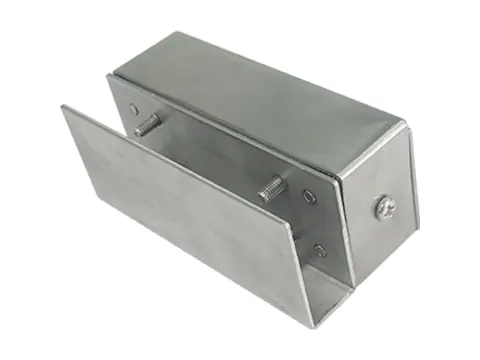

EB-140 Glass Door Bracket for Drop Bolt Locks, Bottom-Frameless
Compact 90 mm stainless-steel bracket for electric drop bolts on glass doors that are frameless at the bottom. Clamps 8–15 mm glass; iron shim and two rubber gaskets included.
- Fits electric drop bolts to glass doors that are frameless at the bottom
- Clamps glass 8–15 mm thick; specified for a 180° door opening range
- Compact stainless-steel body: 90 × 45.8 × 38 mm, 0.28 kg
- Supplied with one iron shim plate and two rubber gaskets
- Listed bracket option for the EB-110 and EB-120 drop bolt locks
- Material
- Stainless steel
- Glass thickness
- 8–15 mm
- Door opening
- 180°
- Dimensions
- 90 × 45.8 × 38 mm
- Weight
- 0.28 kg
- In the box
- Iron shim ×1, rubber gasket ×2
Reply within 24 hours Tested before dispatch Worldwide shipping
Glass Door Bracket for Drop Bolt Locks, Bottom-Frameless: overview
EB-140 is a compact stainless-steel bracket for installing an electric drop bolt on glass doors that are frameless at the bottom edge. It clamps glass 8–15 mm thick and is specified for doors with a 180° opening range, so it covers the swing glass doors found in most commercial interiors.
The bracket measures 90 × 45.8 × 38 mm and weighs 0.28 kg, small enough to sit discreetly on the glass. Each unit ships with one iron shim plate and two rubber gaskets for fitting against the panel. It is the listed glass-door bracket option for our EB-110 fail-safe drop bolt and EB-120 door-status drop bolt; its 90 mm length is the same as the 90 × 25 mm strike plate supplied with both locks.
Integration notes
Choose EB-140 for glass doors that are frameless at the bottom. For doors with no top or bottom rail, use the larger EB-130 U bracket instead. Confirm the glass thickness on site before ordering, check the door's swing against the 180° opening range, and test the bolt against the strike with the door closed before the installation is handed over. Order brackets together with the locks so each door kit arrives complete.
EB-140 specifications
Fitment
| Bracket type | Glass door bracket for bottom-frameless glass doors |
|---|---|
| Door type | Glass door |
| Glass thickness | 8–15 mm |
| Door opening | 180° |
| Compatible locks | Electric drop bolts: EB-110, EB-120 |
Mechanical
| Material | Stainless steel |
|---|---|
| Dimensions | 90 × 45.8 × 38 mm |
| Weight | 0.28 kg |
| Packing list | Bracket ×1, iron shim plate ×1, rubber gasket ×2 |
Glass door bracket selector
| Item | EB-130 | EB-140 |
|---|---|---|
| Bracket style | Full-length U bracket | Compact glass bracket |
| Door condition | Frameless glass door (no top or bottom rail) | Glass door frameless at the bottom |
| Glass thickness | 8–15 mm | 8–15 mm |
| Door opening | 180° | 180° |
| Dimensions | 208 × 57 × 46 mm | 90 × 45.8 × 38 mm |
| Weight | 1.3 kg | 0.28 kg |
| Fitting kit | Not specified | Iron shim plate ×1, rubber gasket ×2 |
Both brackets are stainless steel and are the listed bracket options for EB-110 and EB-120 drop bolts.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| EB-140 | Compact stainless glass door bracket for electric drop bolts on bottom-frameless doors, 8–15 mm glass; iron shim and two rubber gaskets included |
Where the EB-140 is used
- Glass office doors with a top frame but no bottom rail, locked by a drop bolt
- Retail and showroom glass doors converted to card or keypad access
- Meeting-room glass doors on a building-wide access control system
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
EB-140 FAQ
What comes in the box?
One stainless-steel bracket, one iron shim plate and two rubber gaskets.
Which glass thickness does it clamp?
Glass from 8 to 15 mm thick. Check the real thickness on site before ordering.
When should I use EB-130 instead?
Use EB-130 where the glass door has no top or bottom rail; EB-140 is specified for doors that are frameless at the bottom only.
Which drop bolt locks is it paired with?
EB-110 and EB-120. Both run on 12 V DC and come with a 90 × 25 × 2 mm strike plate.
