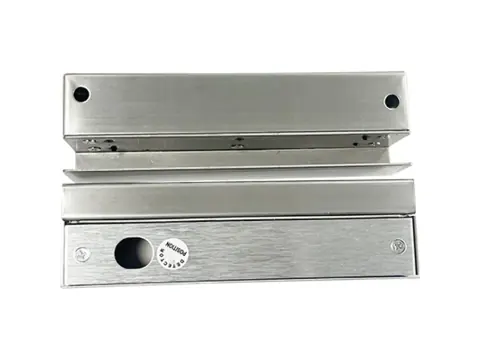

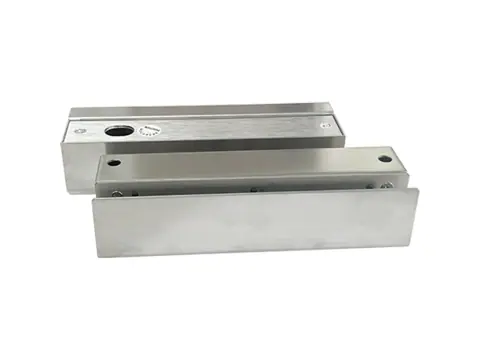

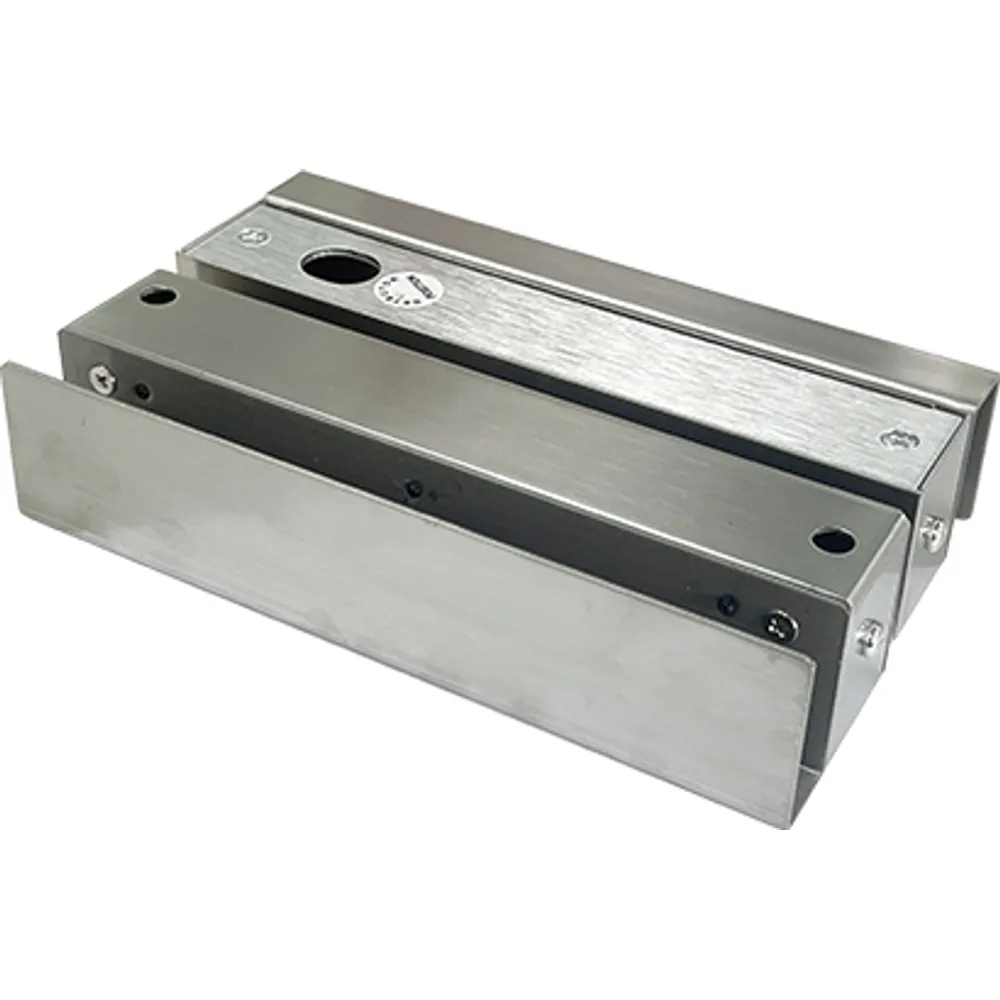

EB-130 Drop Bolt Lock U Bracket for Frameless Glass Doors
Stainless-steel U bracket that mounts an electric drop bolt on frameless glass doors 8–15 mm thick with a 180° opening range. Listed for EB-110 and EB-120.
- Mounts an electric drop bolt on frameless glass doors with no frame to mortise into
- Clamps glass panels 8–15 mm thick
- Specified for doors with a 180° opening range
- Stainless-steel construction: 208 × 57 × 46 mm, 1.3 kg
- Listed U bracket option for the EB-110 and EB-120 drop bolt locks
- Material
- Stainless steel
- Glass thickness
- 8–15 mm
- Door opening
- 180°
- Dimensions
- 208 × 57 × 46 mm
- Weight
- 1.3 kg
- Compatible locks
- EB-110, EB-120
Reply within 24 hours Tested before dispatch Worldwide shipping
Drop Bolt Lock U Bracket for Frameless Glass Doors: overview
EB-130 is a stainless-steel U bracket for fitting an electric drop bolt to a frameless glass door, where there is no rail or frame to cut a mortise into. The channel clamps onto glass 8–15 mm thick, and the bracket is specified for doors with a 180° opening range, which covers the swing glass doors common in office entrances, shops and residential lobbies.
It is the listed U bracket option for our EB-110 fail-safe drop bolt and the EB-120 drop bolt with door-status output, so a lock and bracket can be quoted together as one glass-door kit. The bracket measures 208 × 57 × 46 mm and weighs 1.3 kg; the stainless finish matches typical glass-door hardware.
Integration notes
Use EB-130 where the glass door leaf has no top or bottom rail. For glass doors that are frameless only at the bottom, the compact EB-140 bracket is the specified option. Measure the actual glass thickness on site before ordering, because the clamp range is 8–15 mm. Plan the lock cable route, through the header or a surface raceway, before the bracket goes on, and check that the bolt aligns with the strike when the door is closed.
EB-130 specifications
Fitment
| Bracket type | U bracket for frameless glass doors |
|---|---|
| Door type | Glass door without top or bottom rail |
| Glass thickness | 8–15 mm |
| Door opening | 180° |
| Compatible locks | Electric drop bolts: EB-110, EB-120 |
Mechanical
| Material | Stainless steel |
|---|---|
| Dimensions | 208 × 57 × 46 mm |
| Weight | 1.3 kg |
Glass door bracket selector
| Item | EB-130 | EB-140 |
|---|---|---|
| Bracket style | Full-length U bracket | Compact glass bracket |
| Door condition | Frameless glass door (no top or bottom rail) | Glass door frameless at the bottom |
| Glass thickness | 8–15 mm | 8–15 mm |
| Door opening | 180° | 180° |
| Dimensions | 208 × 57 × 46 mm | 90 × 45.8 × 38 mm |
| Weight | 1.3 kg | 0.28 kg |
| Fitting kit | Not specified | Iron shim plate ×1, rubber gasket ×2 |
Both brackets are stainless steel and are the listed bracket options for EB-110 and EB-120 drop bolts.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| EB-130 | Stainless U bracket for electric drop bolts on frameless glass doors, 8–15 mm glass, 180° opening |
Where the EB-130 is used
- Frameless glass entrance doors in office receptions and apartment lobbies
- All-glass shopfront doors fitted with a fail-safe drop bolt
- Glass partition doors to meeting rooms and server rooms
- Glass entrances to gyms and clubs controlled by a card reader
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
EB-130 FAQ
Which glass thickness does EB-130 fit?
Glass from 8 to 15 mm thick. Measure the actual panel on site, since laminated glass can differ from its nominal thickness.
Which locks is it designed for?
It is the listed U bracket for our EB-110 and EB-120 electric drop bolts. For other locks, send us the lock body dimensions and we will check the fit.
Do I need EB-130 or EB-140?
EB-130 is intended for glass doors with no frame at the top or bottom. EB-140 is the compact option for glass doors that are frameless at the bottom only.
What door swing does it support?
It is specified for glass doors with a 180° opening range.
